TANBead Maelstrom 9600 Nucleic Acid Extractor

Product Information

TANBead MaelstromTM 9600 is a novel technology for applications in molecular diagnostics. The fully automated magnetic bead operating platforms use the magnetic rods within the equipment for nucleic acid isolation. The magnetic beads with nucleic acids adsorbed are automatically transferred from well to well for cell lysis, nucleic acid adsorption, washing, and elution. In contrast to laborious and prone to errors manual Spin Column operations, TANBead's automated extraction devices provide a walk-away solution and effort-saving approach for processing multiple samples at the same time. The system is fully automated with temperature control modules to ensure the stability of the purification process. It allows simultaneous processing and purification of DNA and RNA samples, automates complicated manual steps, and comes with pre-dispensed plates with all reagents ready to use. The Patented Whirl Stirring Mixing Technology provides effective prevention of aerosol cross-contamination. Its easy operation is facilitated by an intuitive user interface and easy menu navigation, saving time with high-throughput technology that can process 96 samples simultaneously in just 40 minutes after inactivation. The TANBead Maelstrom 9600 has a processing volume of 300 l, a heater with 4 heating plates, a magnetic rod with >3000 gauss, and a 7-inch touchscreen display. The shipping size of the equipment is L100cm x W65cm x H93cm, with a weight of 148kg.

• Fully automated magnetic bead operating platforms
• Simultaneous processing and purification of DNA and RNA samples
• High-throughput technology for processing 96 samples simultaneously
• Patented Whirl Stirring Mixing Technology for effective prevention of aerosol cross-contamination
• Intuitive user interface and easy menu navigation

• Model: Maelstrom 9600
• Weight: 130kg

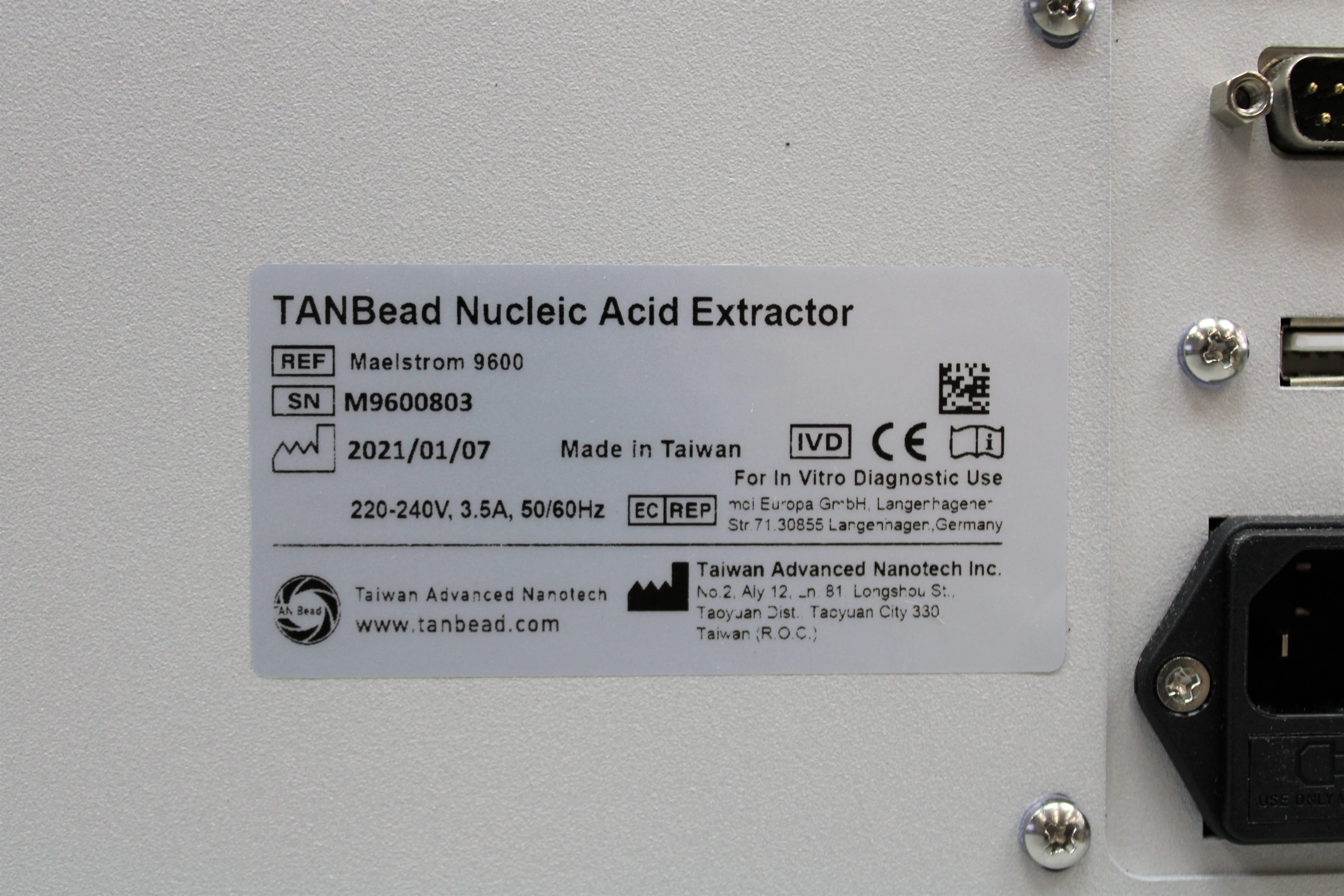

• Power supply: 220-240 Vac
• Capacity: 96 samples per run
• Process volume: 50l-1600l
• Spin speed: up to 3000rpm
• Heater: 4 heating plates
• Magnetic rod: >3000 gauss

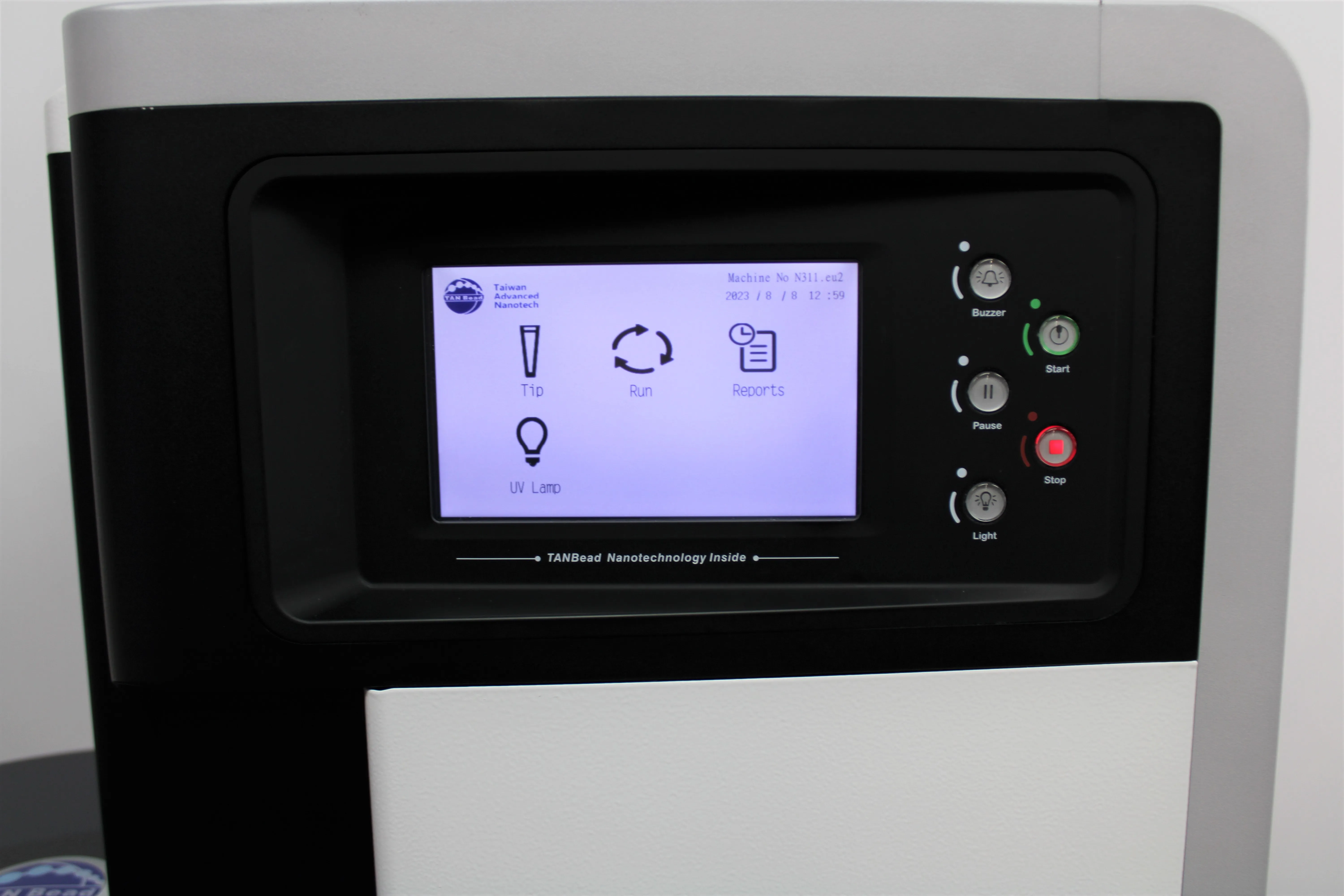

• Display: 7-inch touchscreen

Metric: 130 kg
Imperial: 286.6006 lb

Metric: 100 cm x 65 cm x 93 cm
Imperial: 39.37 in x 25.59 in x 36.61 in

902780

The harmonized code 902780 classifies instruments and apparatus for physical or chemical analysis (for example, polarimeters, refractometers, spectrometers, gas or smoke analysis apparatus); instruments and apparatus for measuring or checking viscosity, porosity, expansion, surface tension or the like.
