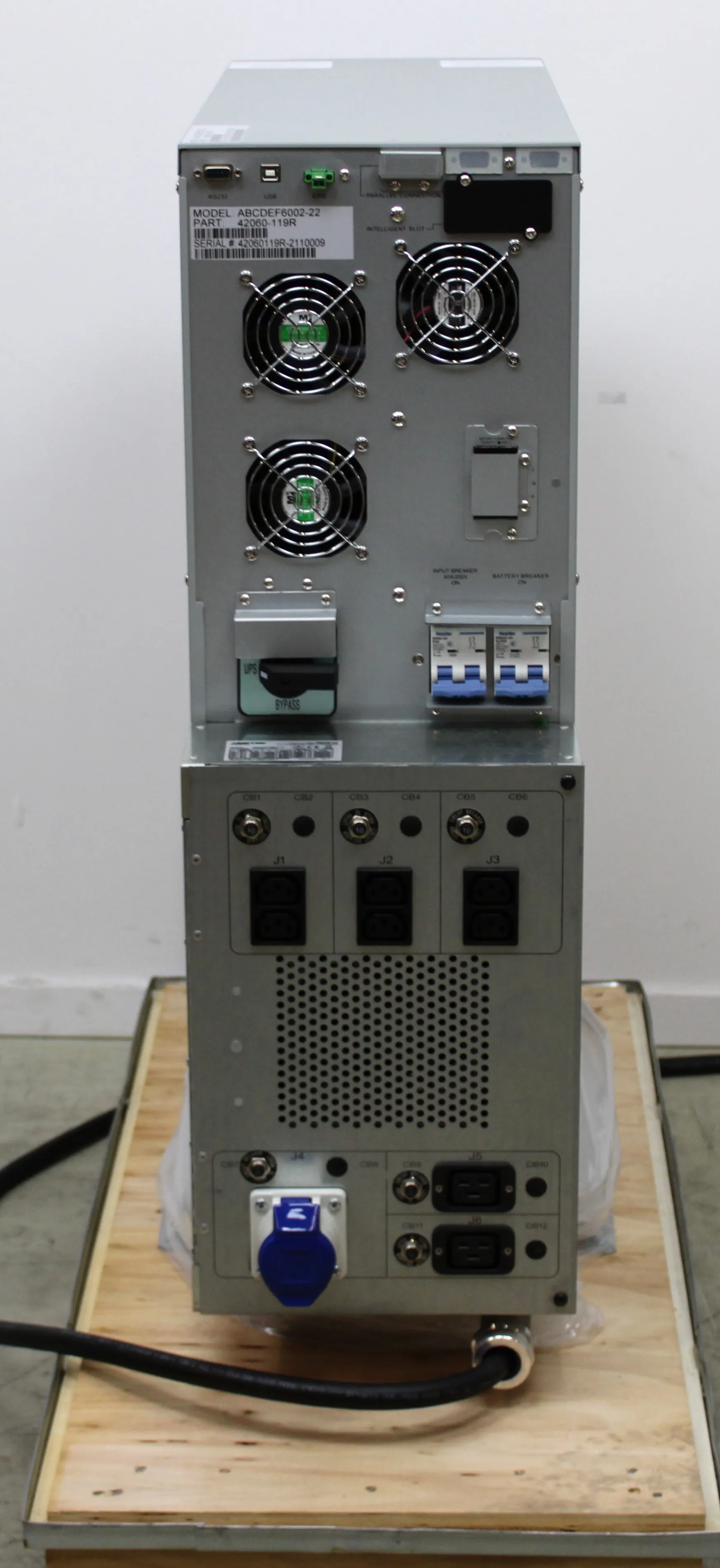

Powervar Security Plus II ABCDEF6002-22 UPS Battery Backup Power Model

Product Information

The Powervar Security Plus II ABCDEF6002-22 is a powerful battery backup power model designed to deliver advanced power protection for mission-critical applications. The model features industry-leading capacity, efficiency, and user-friendly features, ensuring seamless performance and a positive return on your investment. Its notable features include Powervar's proven low impedance isolation transformer technology, customizable back panel for direct plug-in installation, 1.0 output power factor, diverse input voltage options, tight voltage regulation, low input THDi, high load inrush capacity, integrated SNMP card slot, and ECO mode. This UPS model comes with a 30-Day Warranty, 100% Parts and Labor, and operates at 240V with 50Hz/60Hz frequency.

• Proven low impedance isolation transformer technology

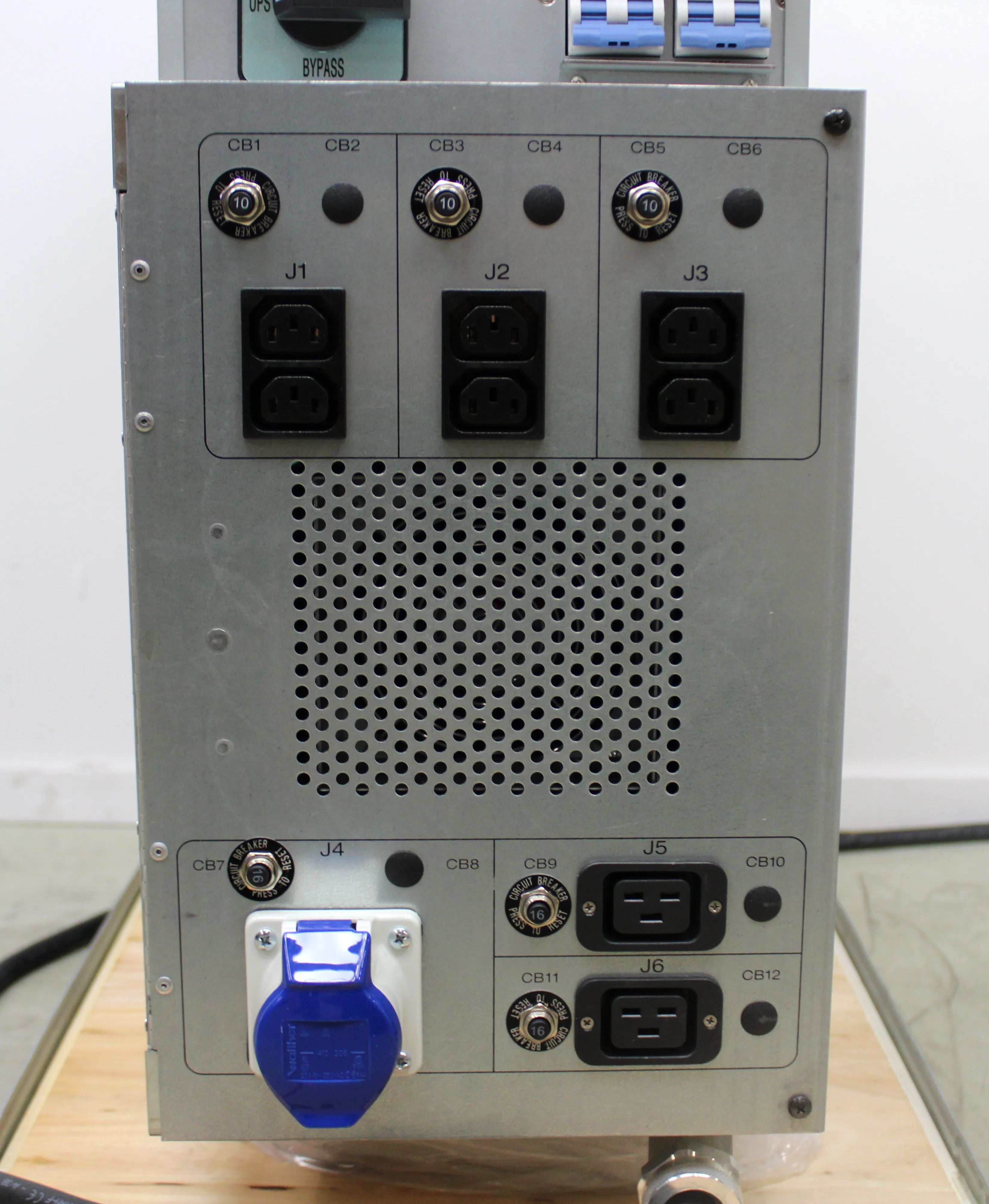

• Customizable back panel for direct plug-in installation
• 1.0 output power factor
• Diverse input voltage options
• Tight voltage regulation
• Low input THDi
• High load inrush capacity

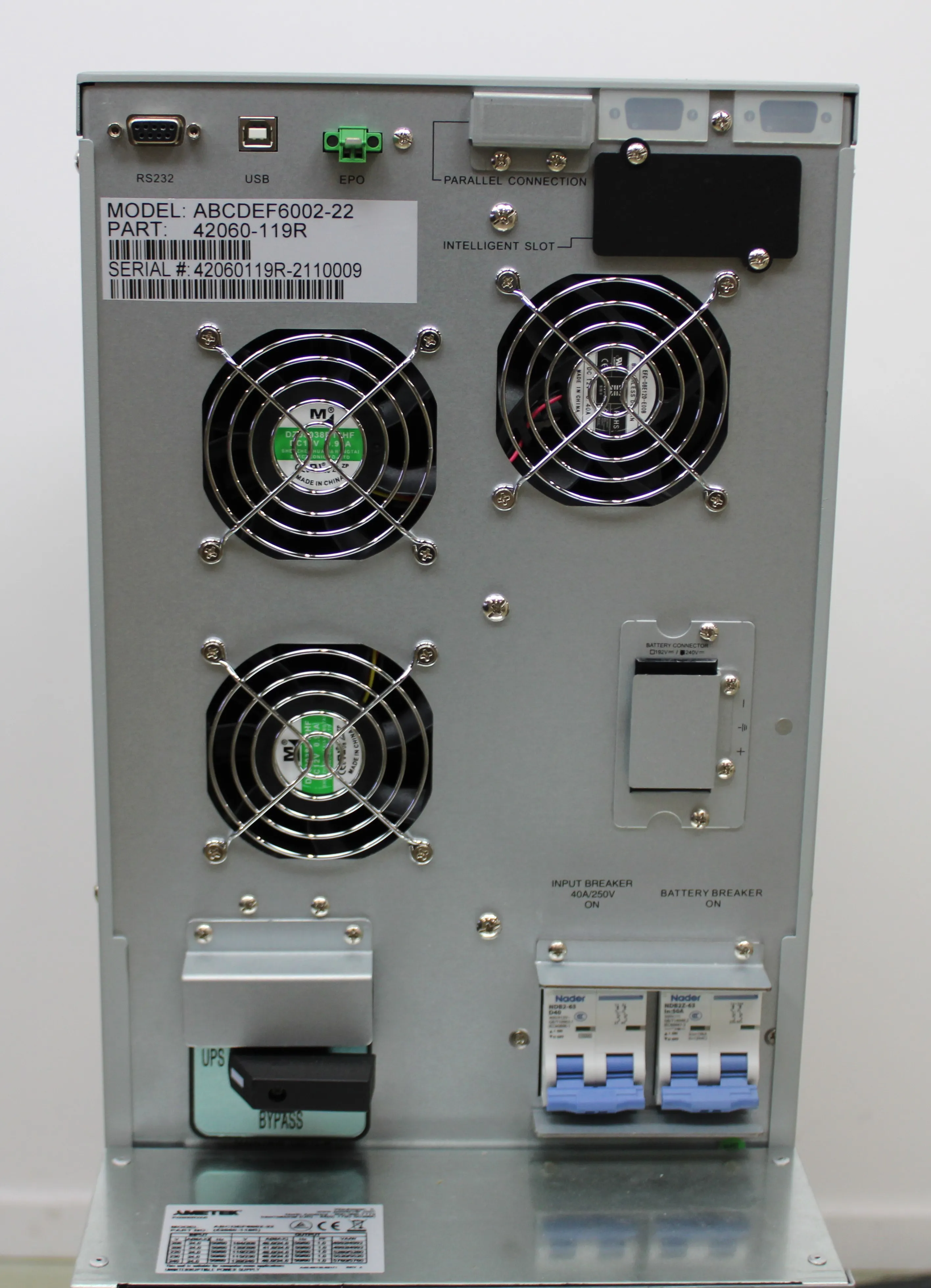

• Integrated SNMP card slot
• ECO mode
• 30-Day Warranty, 100% Parts and Labor

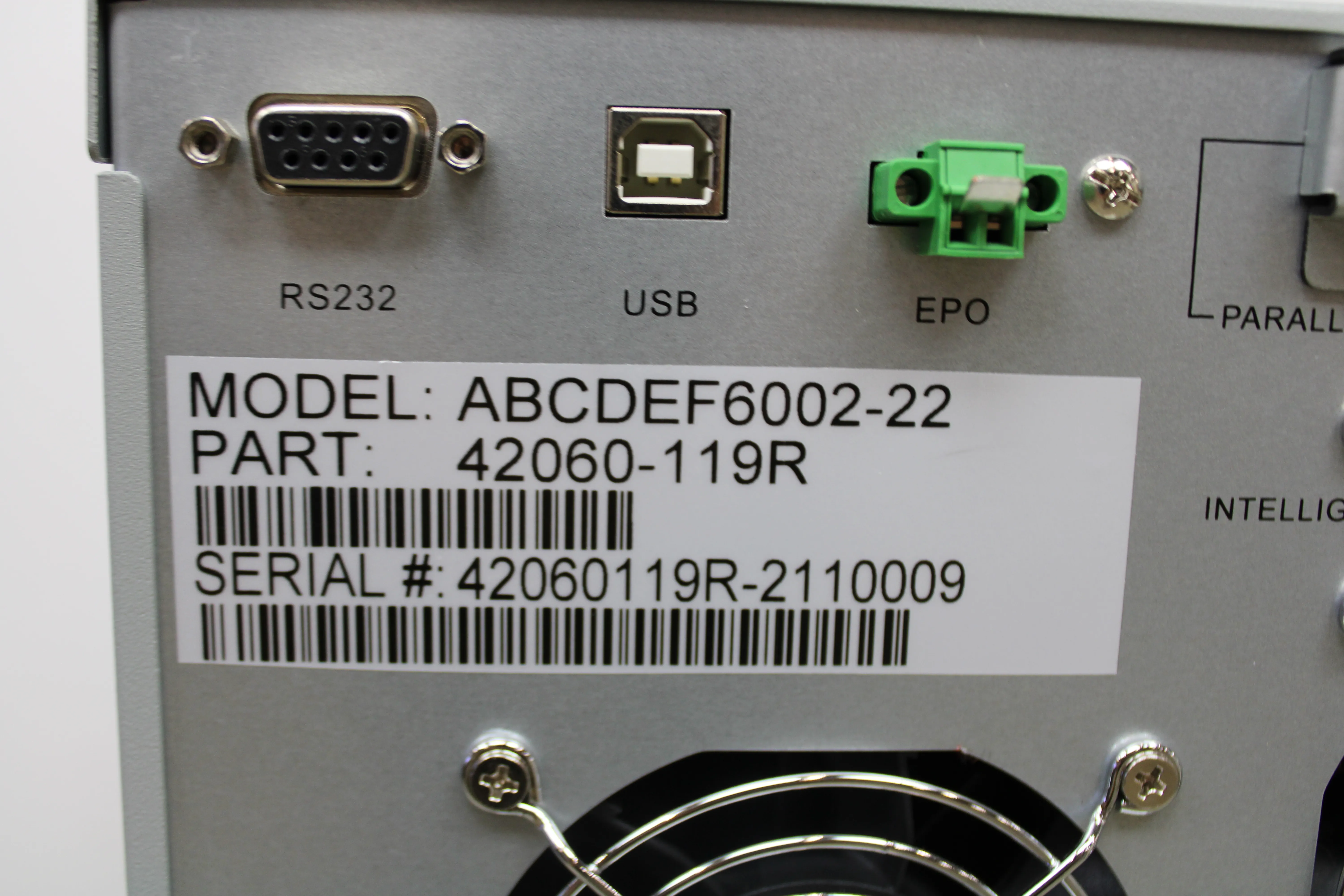

• Model: PowerVar Ametek Security Plus (UPS) ABCDEF6002-22BBP-ADV-6000-PSW-ONL

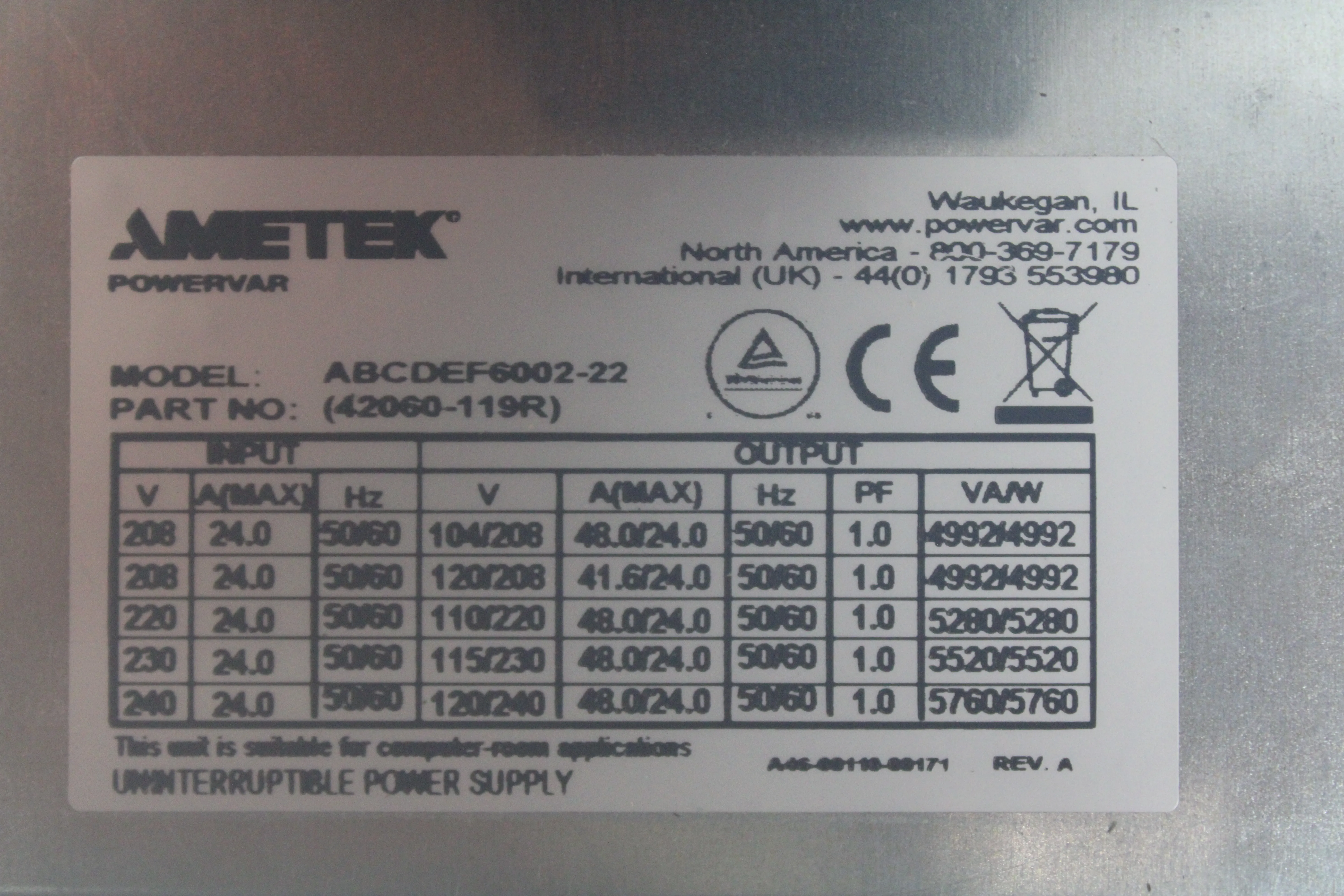

• Power Rating (VA/Watts): 6000 / 5400
• Type: Online (Double Conversion) With Isolation
• Inverter Waveform: Pure Sine Wave
• Transfer Time: 0 ms (Always Engaged)
• Frequency: 50/60 Hz
• Input Voltage: 200, 208, 220, 230, 240
• Output Voltage: 120, 200, 208, 220, 230, 240
• Input Voltage Range: 140 To 276 Volts
• Output Regulation (On Mains): 3%
• Output Regulation (On Battery): 2%
• Backup Time at Full Load: >5 Minutes
• Recharge Time: 8 Hours To 90%
• Batteries: 16x 12 Volt 7 Amp Hours
• Input Plug: Hardwire
• Output Receptacles: Hardwire
• Temperature (Operating): 0 to 40 (32 to 104)
• Humidity (Operating): 5% to 90% Non-Condensing
• Altitude (Maximum Operating): 2,000m (6,500 ft)

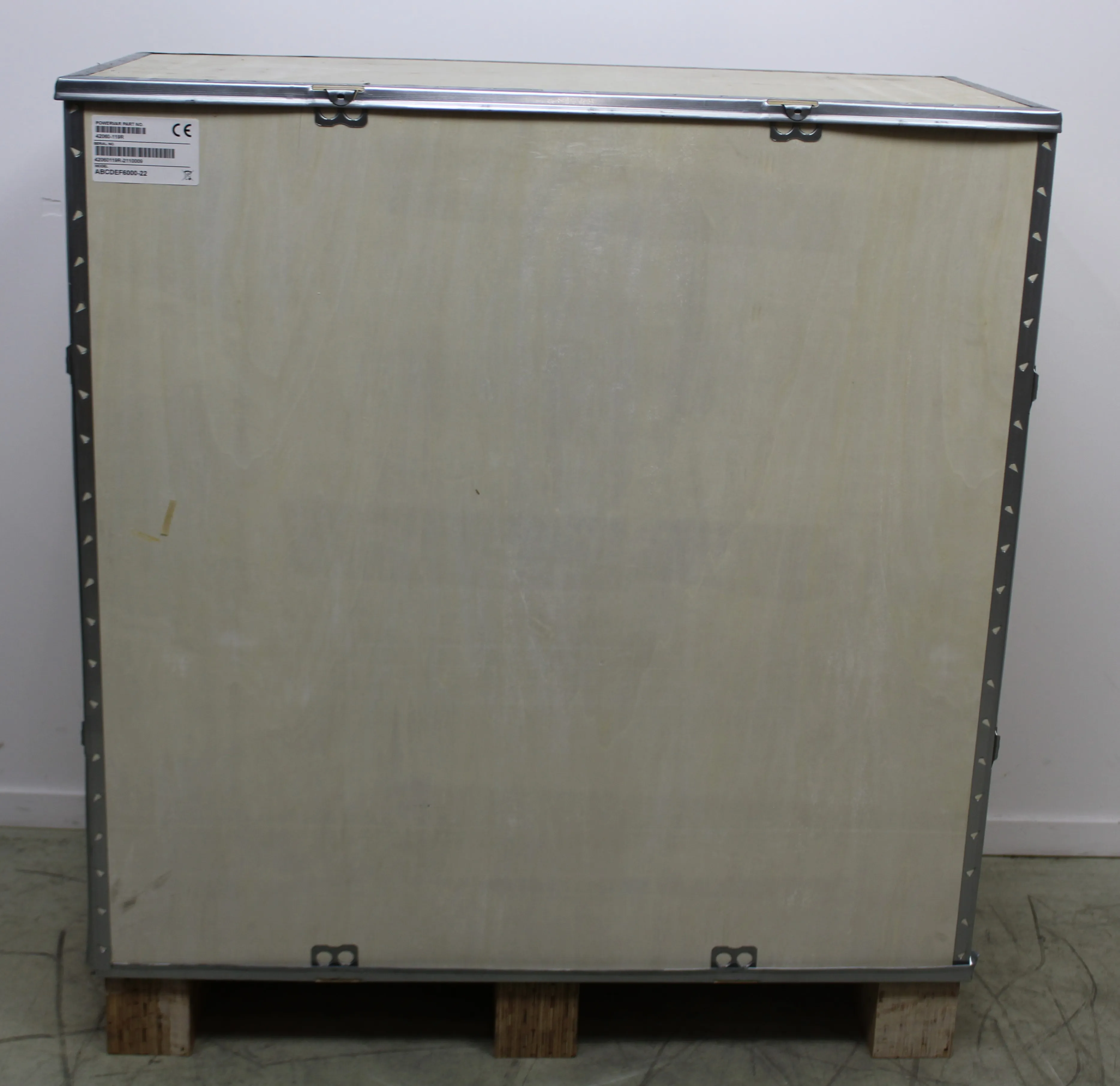

• Shipping Size: Length: 96 cm, Width: 44 cm, Height: 106 cm, Weight: 178 kg

Metric: 178 kg
Imperial: 392.42 lb

Metric: 96 cm x 44 cm x 106 cm
Imperial: 37.8 in x 17.3 in x 41.7 in

8504409550

The UPS falls under HS code 8504409550, 'Electric inverter and voltage control units, other than of a kind used with telecommunication apparatus, uninterrupted power supplies (UPS).' This code is appropriate for this particular product due to its functionality as an uninterruptible power supply with specific voltage control features.
