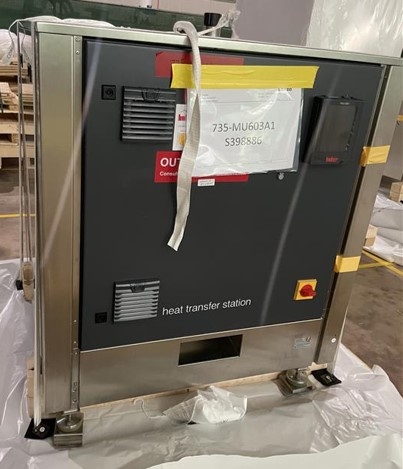

Huber HTS 30-H12 Heat Transfer Unit with Digital Control, 5 to 90C, 30kW Cooling
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS398886
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 Heat Transfer Unit is a highly efficient device used in a range of industrial applications. Manufactured in Germany, this pre-owned unit is in very good condition, ensuring reliable performance. It operates on a three-phase, 400V power supply and features an atmospheric open expansion tank and a stainless steel circulation pump. Equipped with a Pilot ONE controller, it offers advanced control functions, including a 5.7 TFT touchscreen display, USB, and network connections. This unit is designed for externally closed applications, with an adjustable overtemperature protection mechanism in compliance with DIN 12876. Suitable for temperature-critical applications, it supports a secondary temperature range from 5 to 90°C, while the primary side can handle temperatures from 0 to 90°C. It includes a digital level indicator, and can be expanded with E-grade capabilities for enhanced function management. With a cooling capacity of 30kW and detailed technical data supporting various flow and pressure specifications, this heat transfer unit meets rigorous industrial standards.
Key Features
- Advanced Pilot ONE controller
- 5.7 TFT touchscreen display
- Three-phase 400V power supply
- Adjustable overtemperature protection
- Atmospheric open expansion tank
- 30kW cooling capacity
Specifications
- Temperature Range: 5 to 90°C (secondary)
- Temperature Stability: 0.1 K
- Cooling Capacity: 30kW
- Power Supply: 400V 3~ 50Hz, 5A
- Pump: max delivery 240 l/min, maximum pressure 4.7 bar
- Overall Dimensions: 940 x 1050 x 1130 mm
- Weight: 270 kg
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
841950
Harmonized Code Details
841950 - Industrial machinery – Heat exchange unit. This code encompasses machinery and equipment designed for heat transfer processes typically used in industrial settings, similar to the specification of the Huber HTS 30-H12.
