Thermo Q Exactive Mass Spectrometer System, Quadrupole-Orbitrap LC-MS/MS
Thermo Fisher
Details
-
CategoryMass Spectrometry
-
Dimension29.0in x 36.0in x 38.0in
-
SerialSN01644L
-
Shipping TypeFreight
-
Manufacturing2013-01-01
-

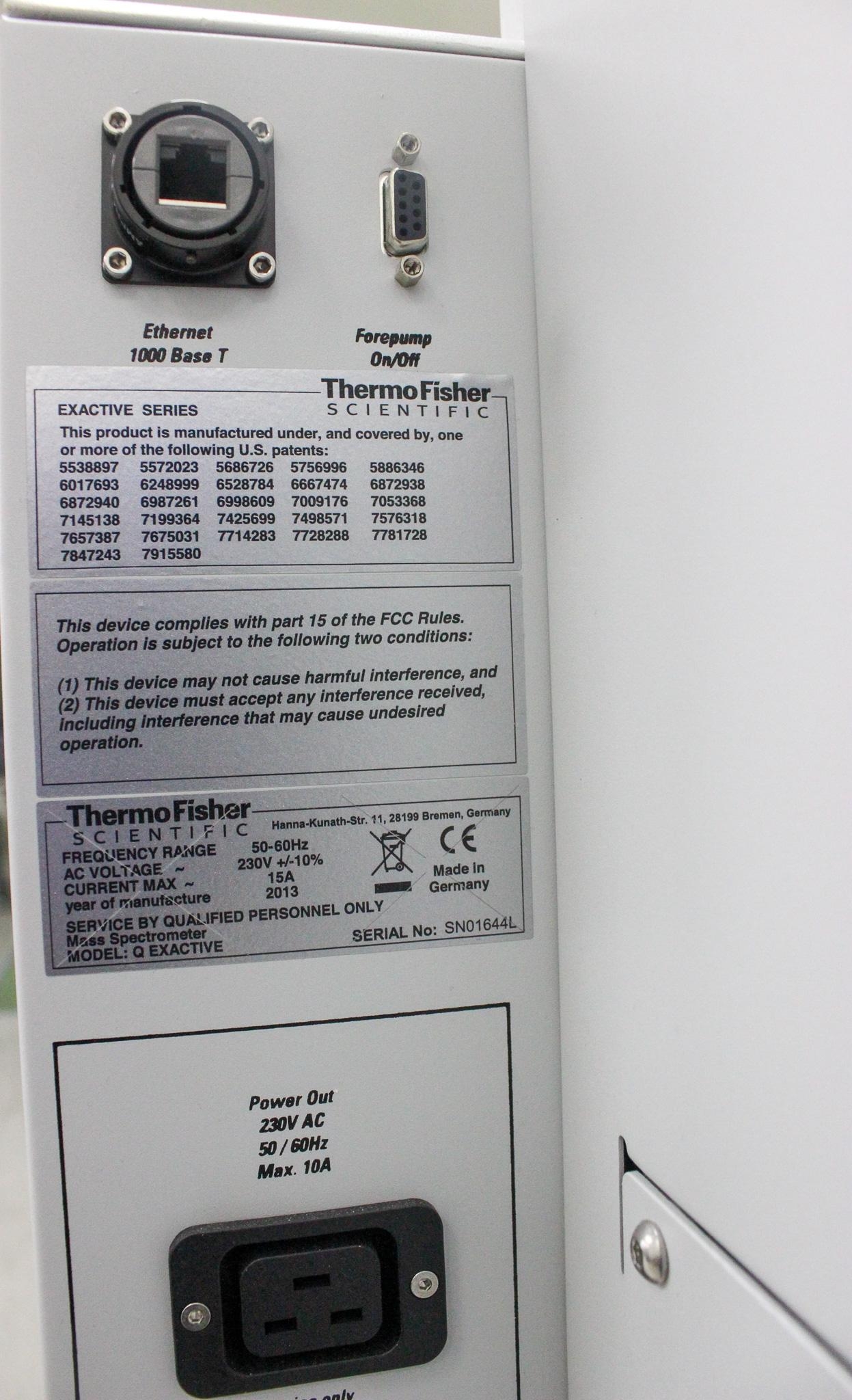

Voltage / Hertz230V / 50Hz/60Hz
Description

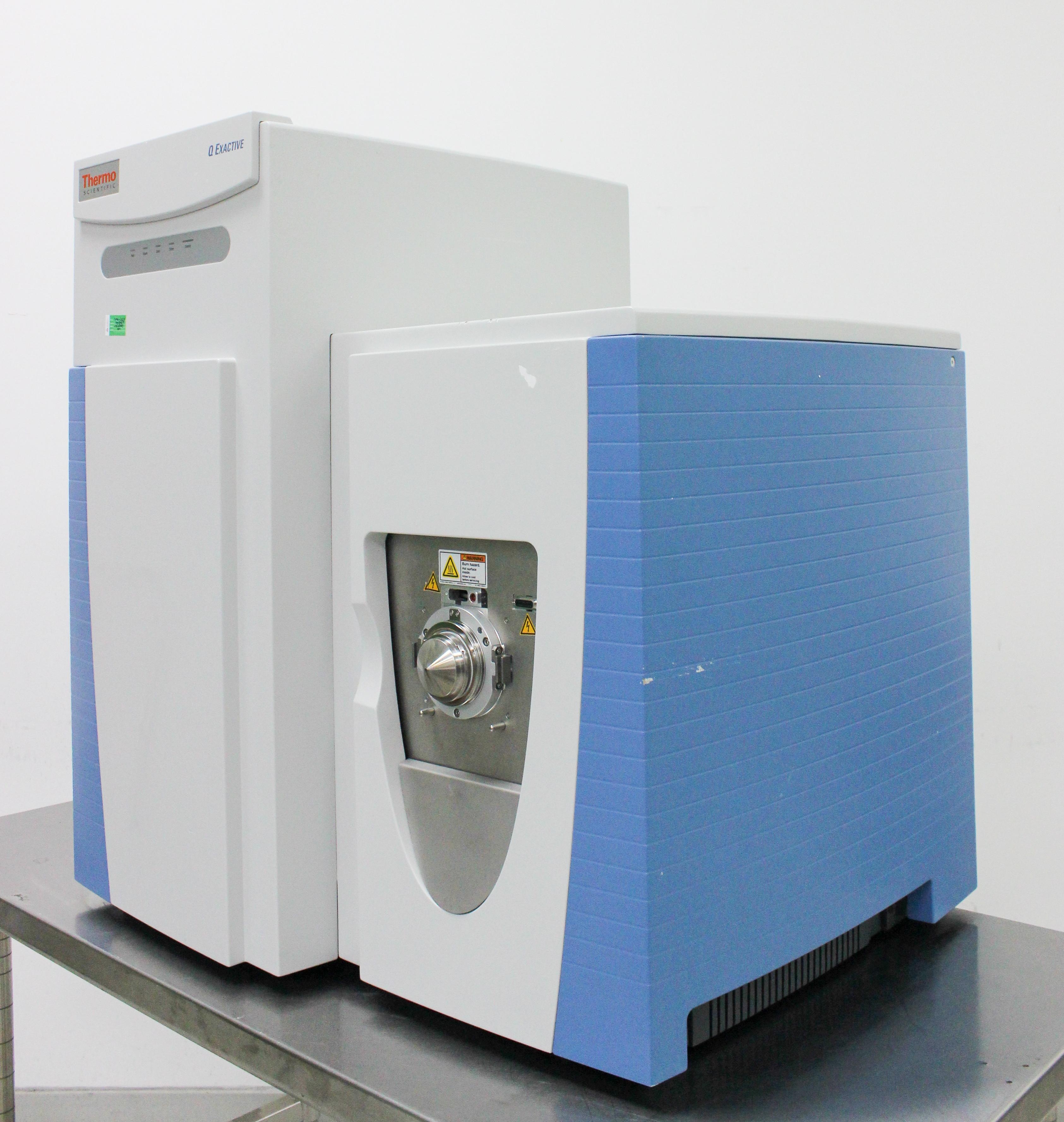

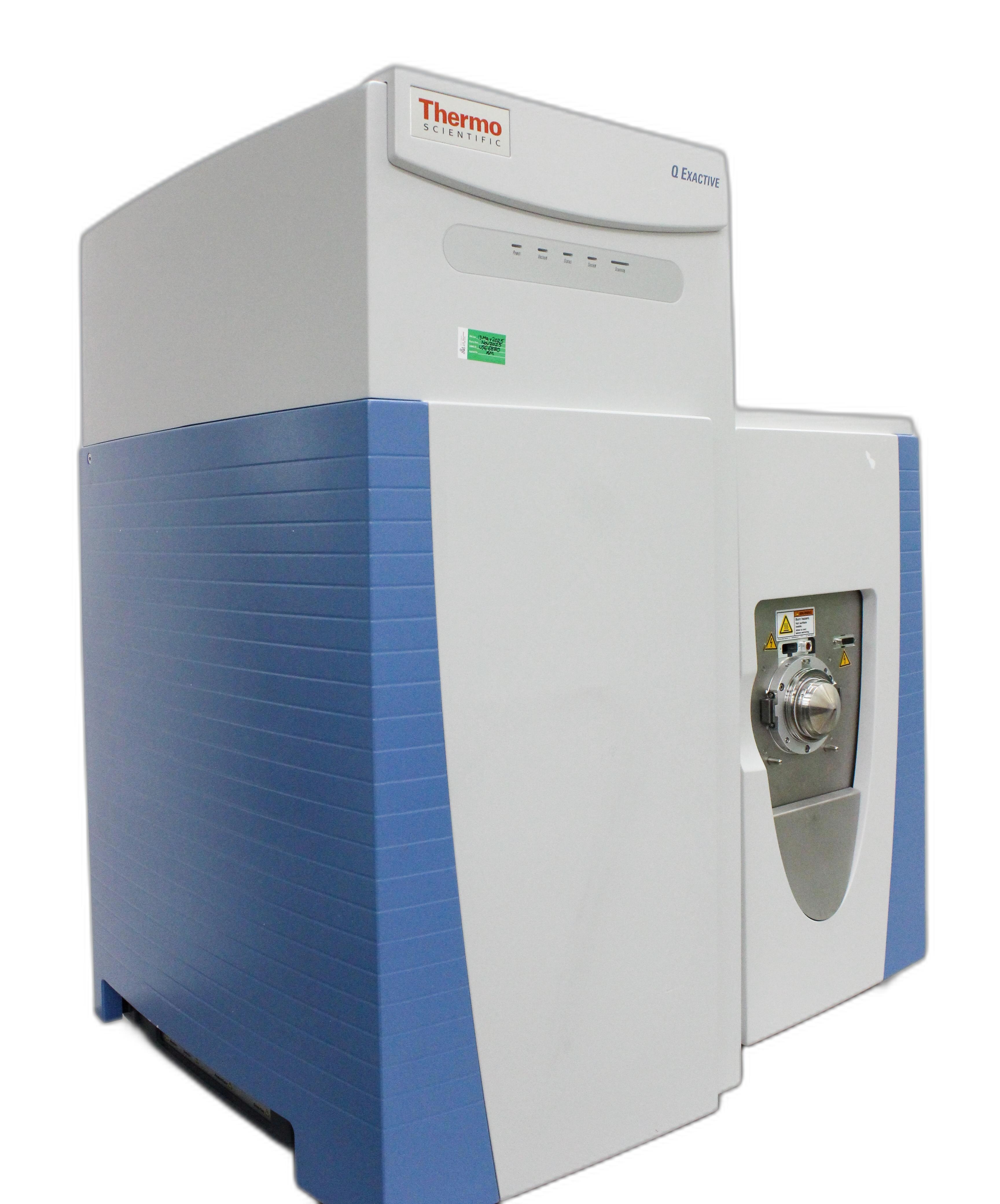

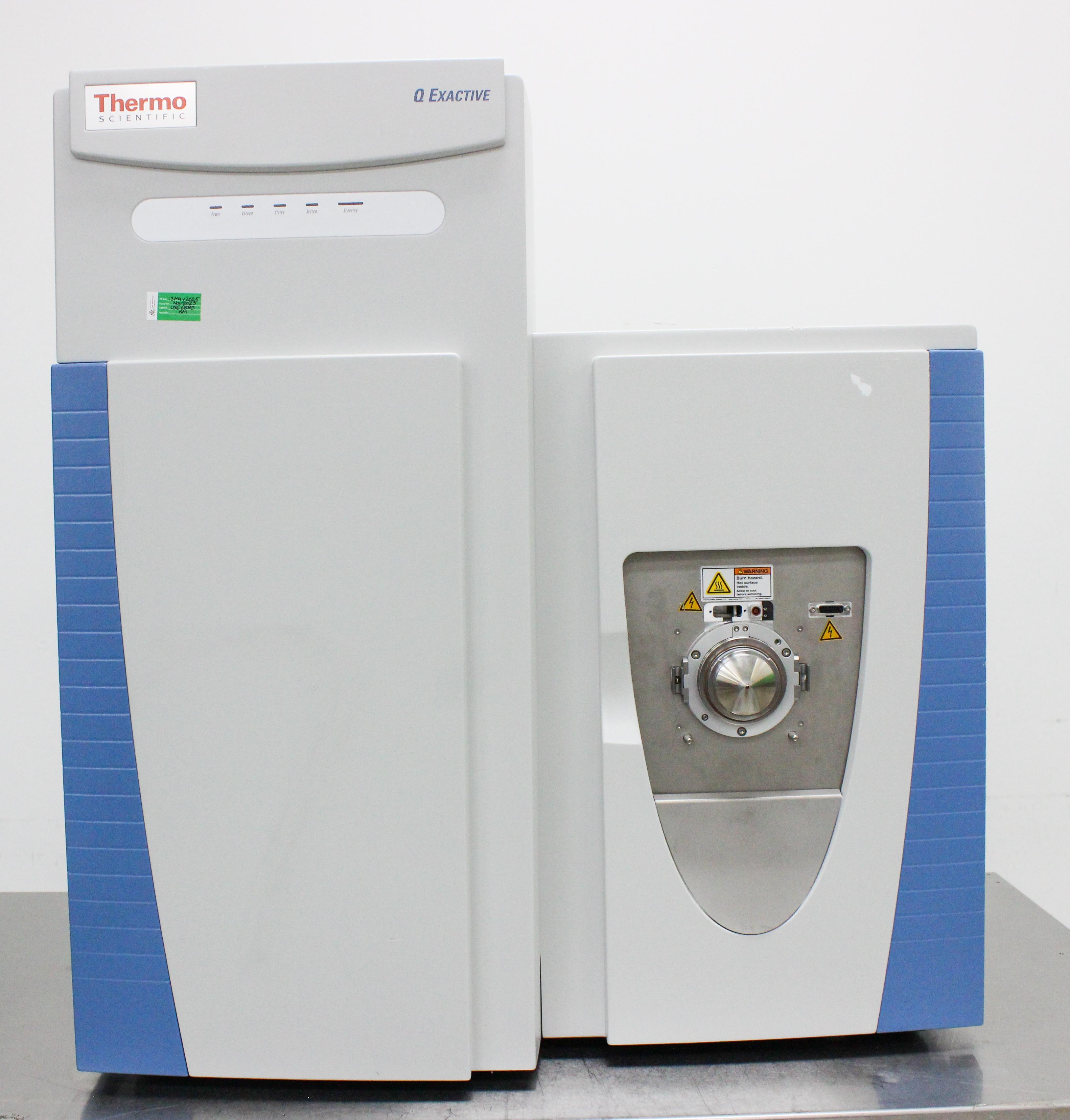

The Thermo Q Exactive Mass Spectrometer is a versatile benchtop quadrupole-orbitrap LC-MS/MS system, combining high-performance quadrupole precursor selection with high-resolution, accurate-mass Orbitrap detection. Designed for drug metabolism, proteomics, environmental analysis, food safety, toxicology, and clinical research, it excels in identifying, quantifying, and confirming trace-level metabolites, contaminants, peptides, and proteins. Despite fair condition with some cosmetic wear, it remains a powerful tool for labs seeking fast chromatography separation capabilities. Instrument fans operate while diagnostics are needed for the control/display issue. Computer is not included.
Technician comment

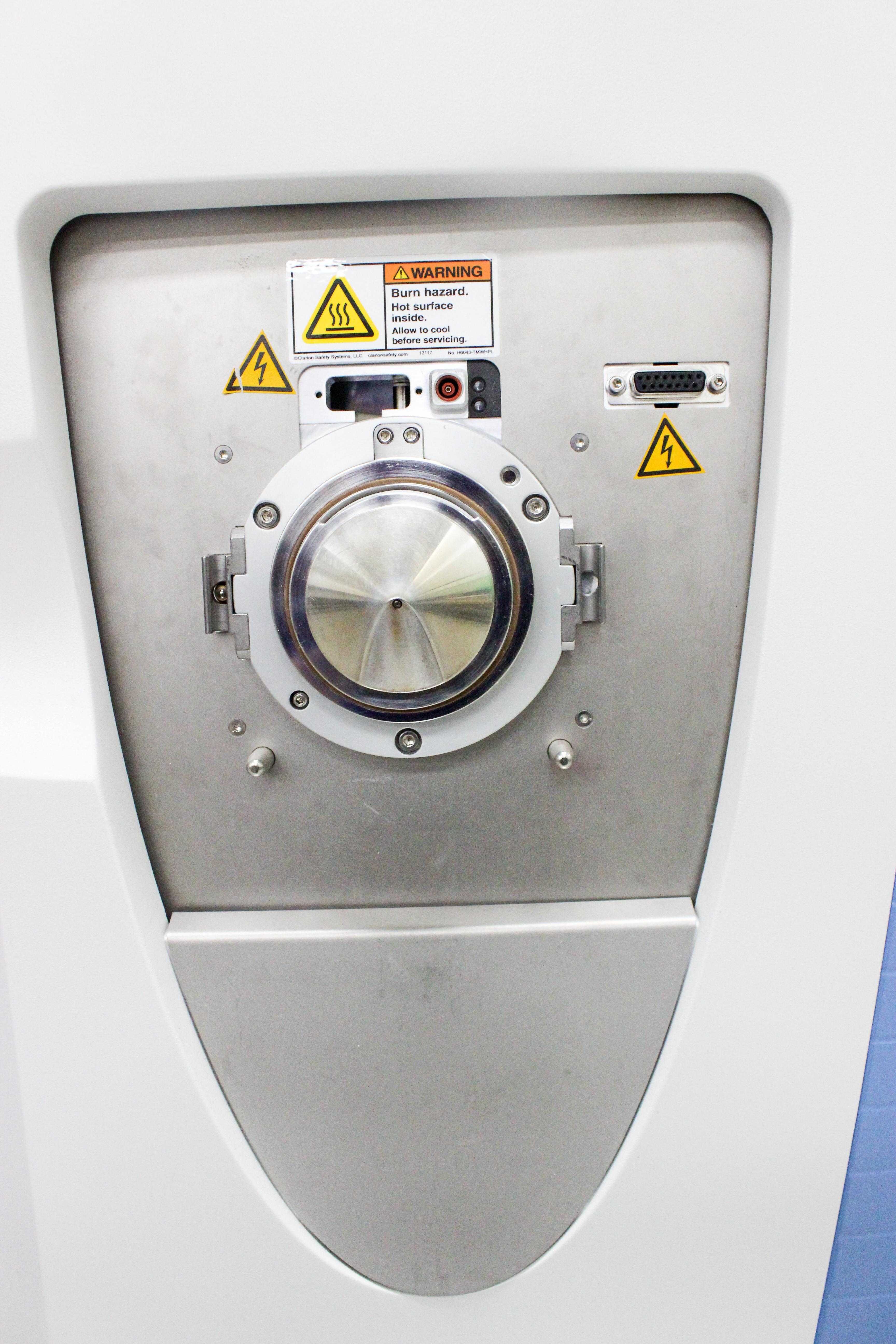

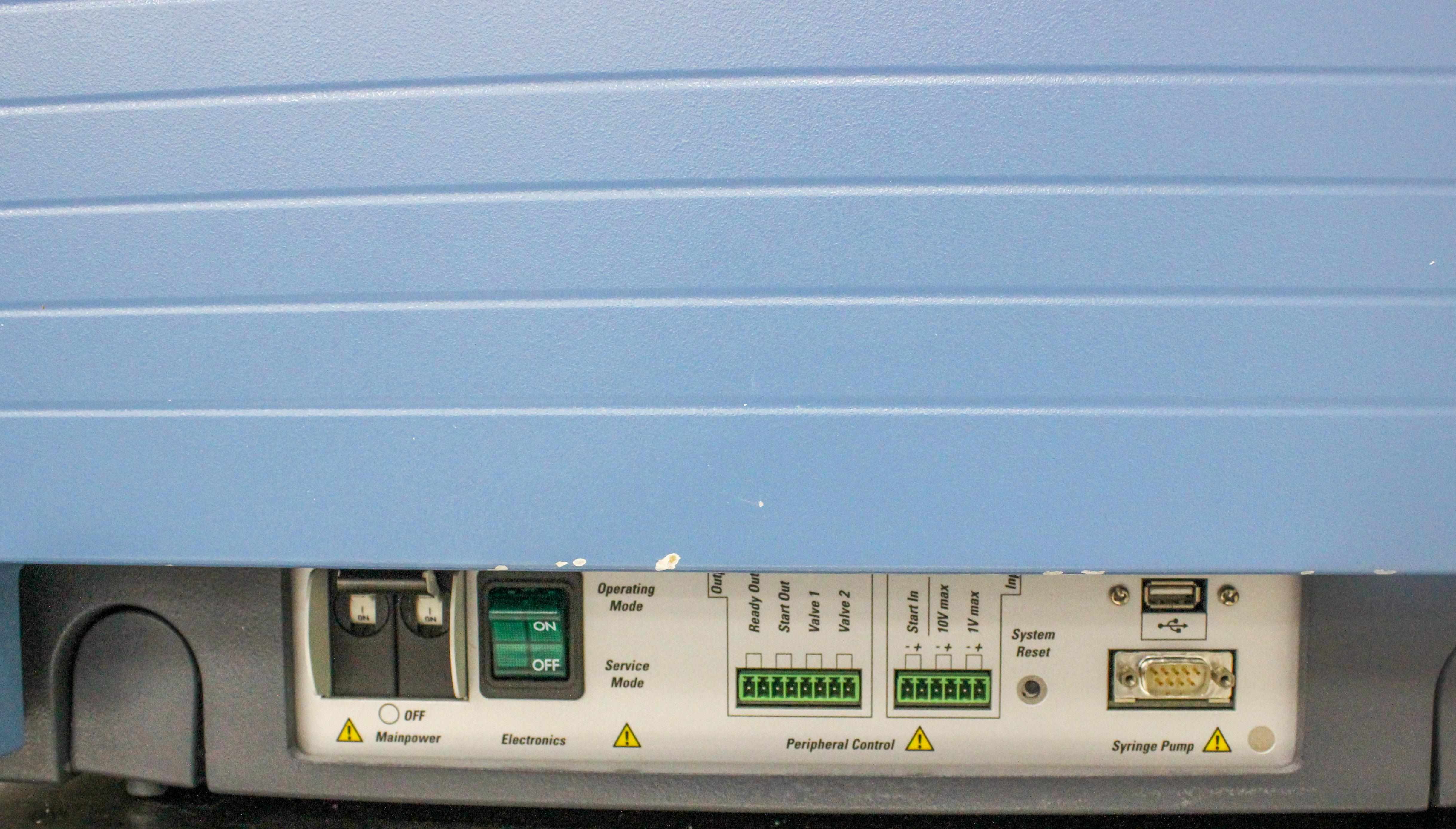

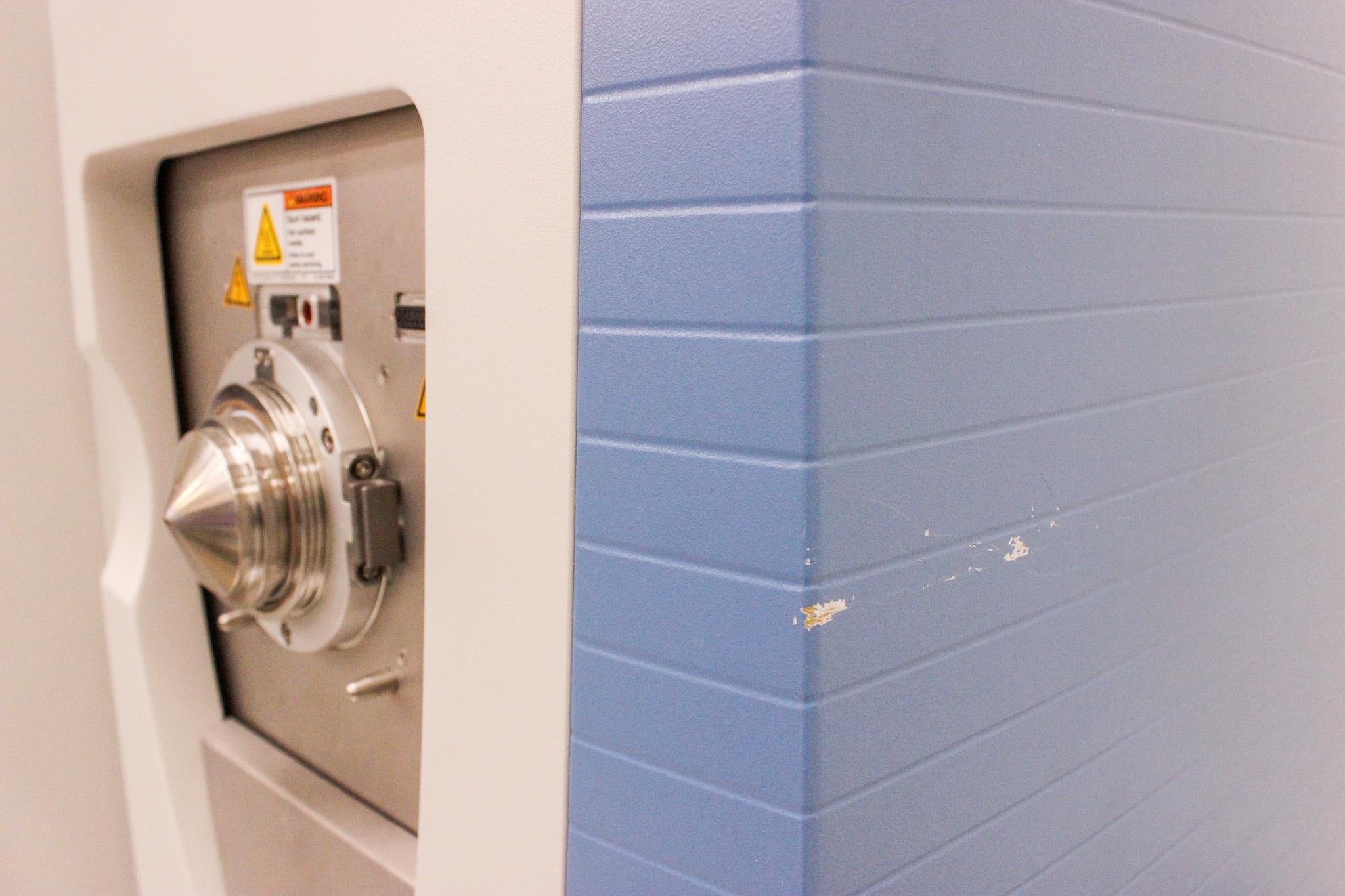

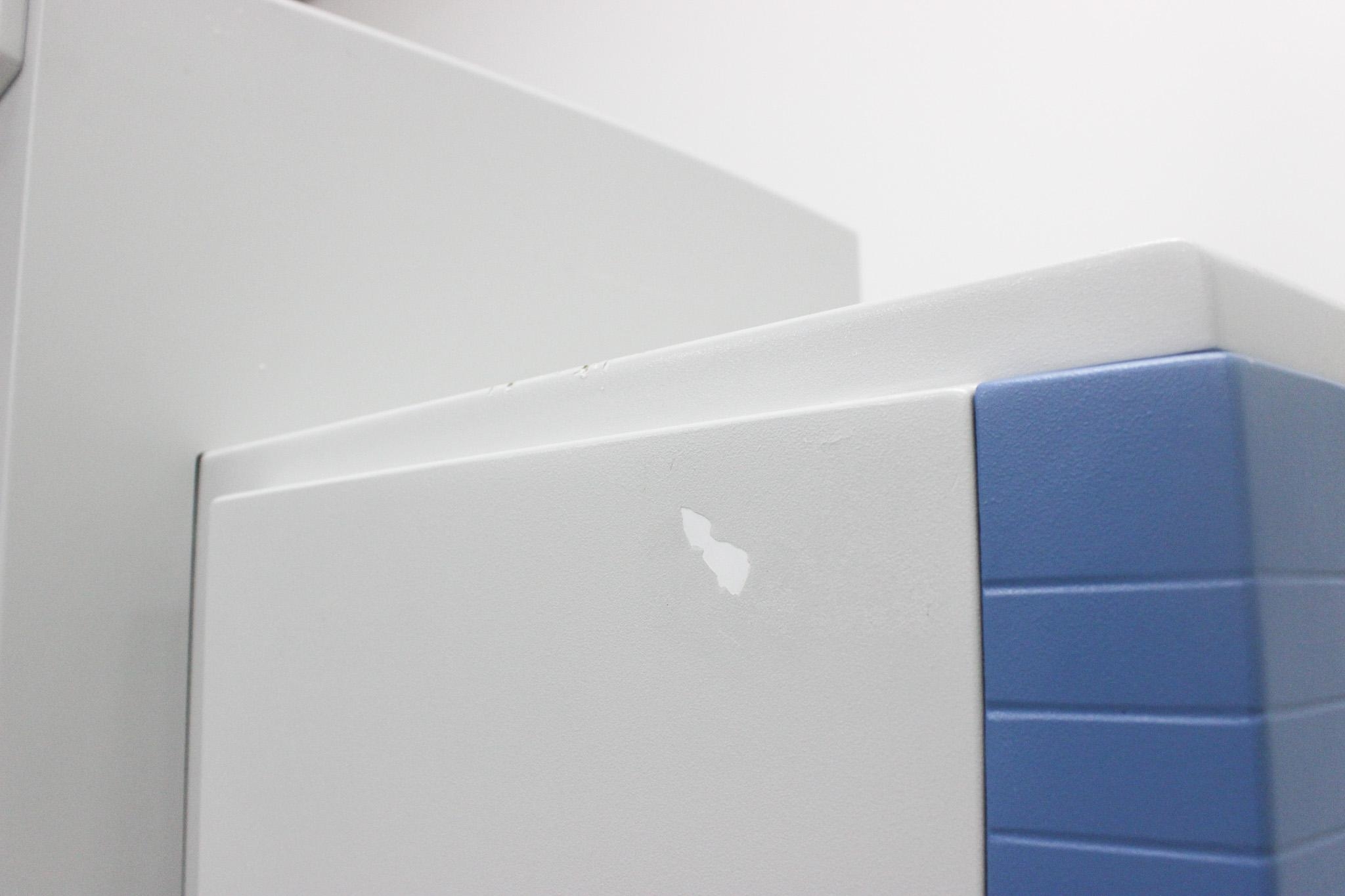

Q Exactive powers on from the main switch. Instrument fans are running but the front panel status LEDs remain off, indicating an unresolved internal power or control/display issue; further diagnostics are required. Connect to software to test connectivity. Cabinet shows minor cosmetic wear & chipped paint, the right-side retractable carrying handle is broken, and the ACPI‑ESI D‑sub connector on the ion source mount is missing. See photos for details.
Key Features
- High-resolution accurate-mass Orbitrap detection
- Resolving power up to 140,000
- Mass range: m/z 50-6,000
- Fast scan rate up to 12 Hz
- In-source CID, HCD dissociation
- Alternating positive-negative scan modes
Specifications
- Mass Range: m/z 50-6,000
- Max Resolving Power: 140,000 @ m/z 200
- Scan Rate: Up to 12 Hz at 17,500 setting
- Mass Accuracy: Internal < 1 ppm RMS
- Quadrupole Mass Filter: Thermo Scientific HyperQuad
- S-Lens Ion Source for Enhanced Sensitivity
Weight
Imperial: 480.0 Pounds
Metric: 217.72 Kilograms
Shipping Dimensions
Imperial: 34.8 lb x 43.2 lb x 45.6 lb
Metric: 88.39 cm x 109.73 cm x 115.82 cm
Harmonized Code
9027.90.54
Harmonized Code Details
9027.90.54 - Instruments and apparatus, for physical or chemical analysis, for measuring or checking viscosity, porosity, expansion, surface tension or the like. This code fits given the equipment's use in analytical applications.
