Vaisala DMT340 Dewpoint Temperature Transmitter 120V Used For Industrial
Vaisala
Details
-
CategoryMeter
-
Dimension8.0in x 3.0in x 10.0in
-
SerialS4950742
-
Shipping TypeFedEx Ground
-
Manufacturing2020-01-01
-
Voltage / Hertz120V / 50Hz/60Hz
Description
This is a Vaisala DMT340 Dewpoint and Temperature Transmitter (Manufactured in 2020) designed for challenging industrial applications such as compressed air drying and metal treatment. Featuring the proprietary DRYCAP sensor, this device offers precision in measuring dew points down to -60°C (-58°F) while being resilient against particle contamination and water condensation. With a datalogging feature, this transmitter stores up to a year of temperature data, accessible for trend analysis. Although we could not fully test this used unit, it powers on and performs essential functions adequately, showing no signs of functional impairment. Note, the model does not include computer or data cables. Slight cosmetic scratches are present due to regular use.
Technician comment
This item has been tested for power function only. Has slight scratches all around from regular use. See photos for further details.
Key Features
- Vaisala DMT-series designed for demanding industrial conditions
- Resilient DRYCAP sensor
- Dew point measurement down to -60°C
- Data logging capability for up to a year

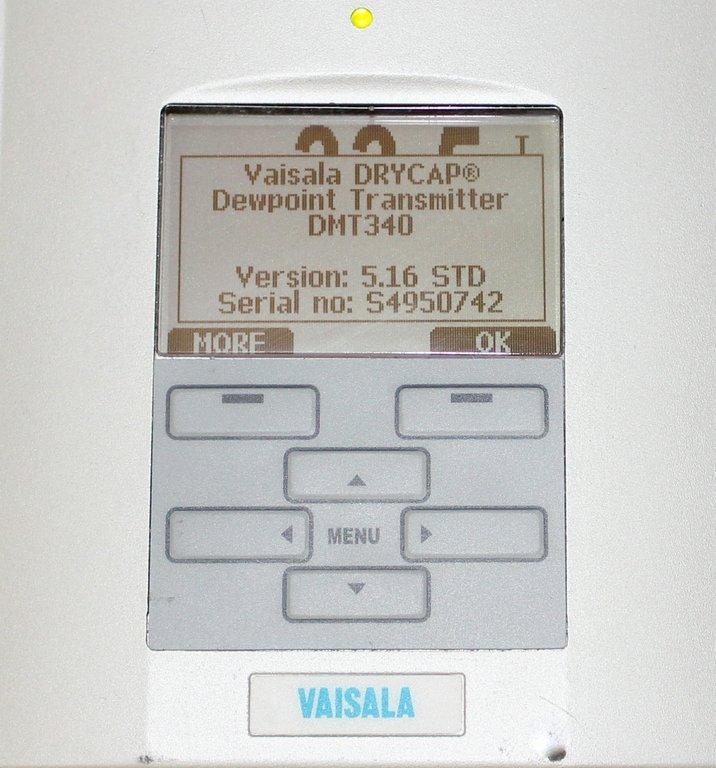

- Easy-to-use LCD with menu interface
Specifications
- Min RH Range: 0%
- Max RH Range: 70%
- RH Accuracy: ±0.004% RH at 20% of reading
- Min Temperature: 0°C (32°F)
- Max Temperature: 80°C (176°F)
- Temperature Accuracy: ±0.2°C
- Min Dew Point Range: -60°C (-76°F)
- Max Dew Point Range: 80°C (176°F)
- Response Time: 30 seconds
- Output: 4 to 20mA, Power supply: 10 to 35 VDC
- Dimensions: 4.5 in x 7.25 in x 3 in (HxWxD)
Weight
Imperial: 4.8 Pounds
Metric: 2.18 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 3.6 lb x 12.0 lb
Metric: 24.38 cm x 9.14 cm x 30.48 cm
Harmonized Code
9025.80.1000
Harmonized Code Details
9025.80.1000: Hydrometers and similar floating instruments, thermometers, pyrometers, barometers, hygrometers, and psychrometers, whether or not combined on a single base for measuring or checking liquid flow, level, or other variables. This code fits the Dewpoint and Temperature Transmitter as it measures humidity and temperature variables in industrial applications.
