Rheodyne PD725-000 Ultra-High Pressure Valve 2-Position 6-Port
Rheodyne
Details
-
CategoryPump
-
Dimension32.0cm x 17.0cm x 15.0cm
-

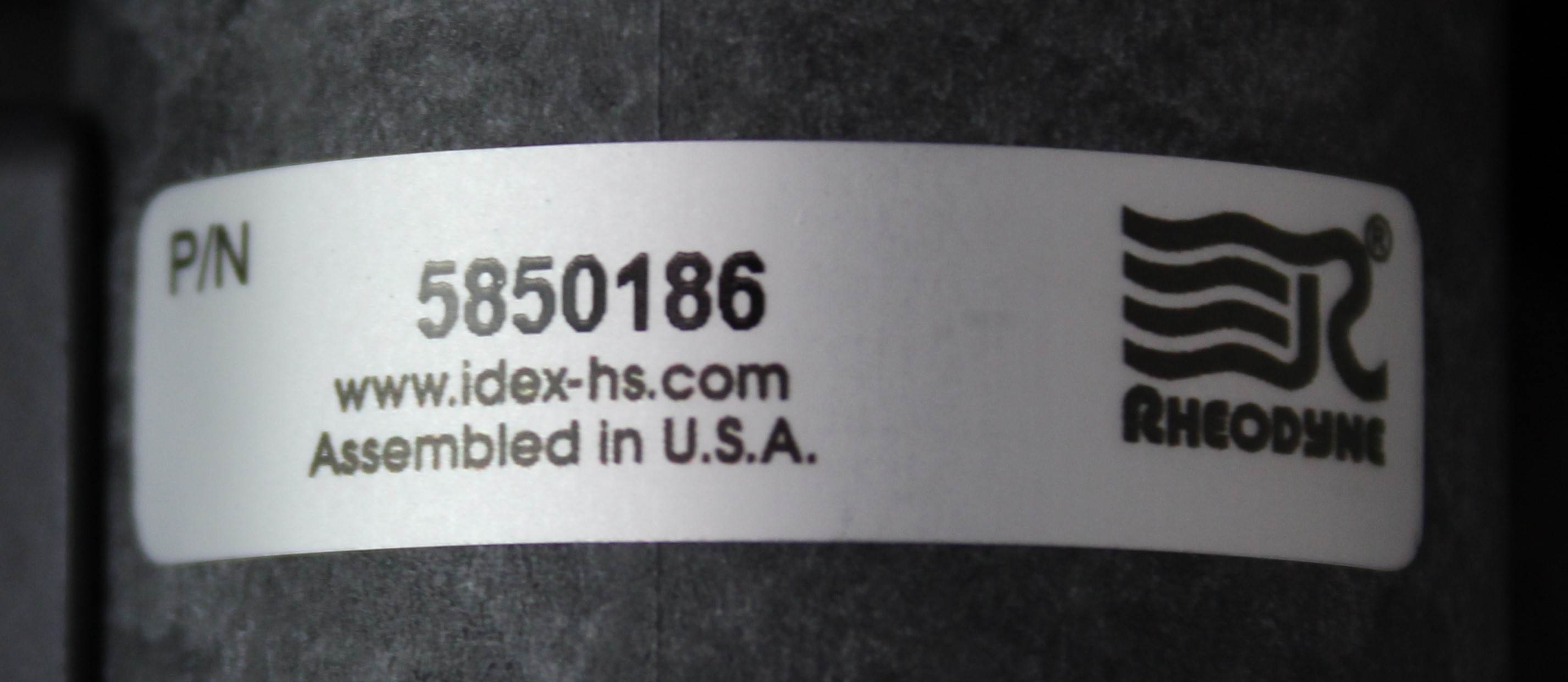

Serial5850186
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Rheodyne PD725-000 2/6 model from the TitanHT series is an unused ultra-high pressure valve optimized for high-pressure injection, selection, and switching operations. Employing innovative shear valve technology, it boasts metal-on-metal seal technology, ensuring extended service life even under rigorous 15,000 psi conditions. Operating at the forefront of valve technology, this valve is ideal for modern instrumentation applications. Its design facilitates easy field maintenance through the Rapid Replacement Pod feature. This product is new, made in the United States, and showcases a robust 2-position, 6-port injector system.
Key Features
- Ultra-high pressure handling with 15,000 psi capability
- 2-position, 6-port configuration
- Advanced shear valve technology
- Metal-on-metal seal for prolonged seal life
- Rapid Replacement Pod for easy maintenance
Specifications

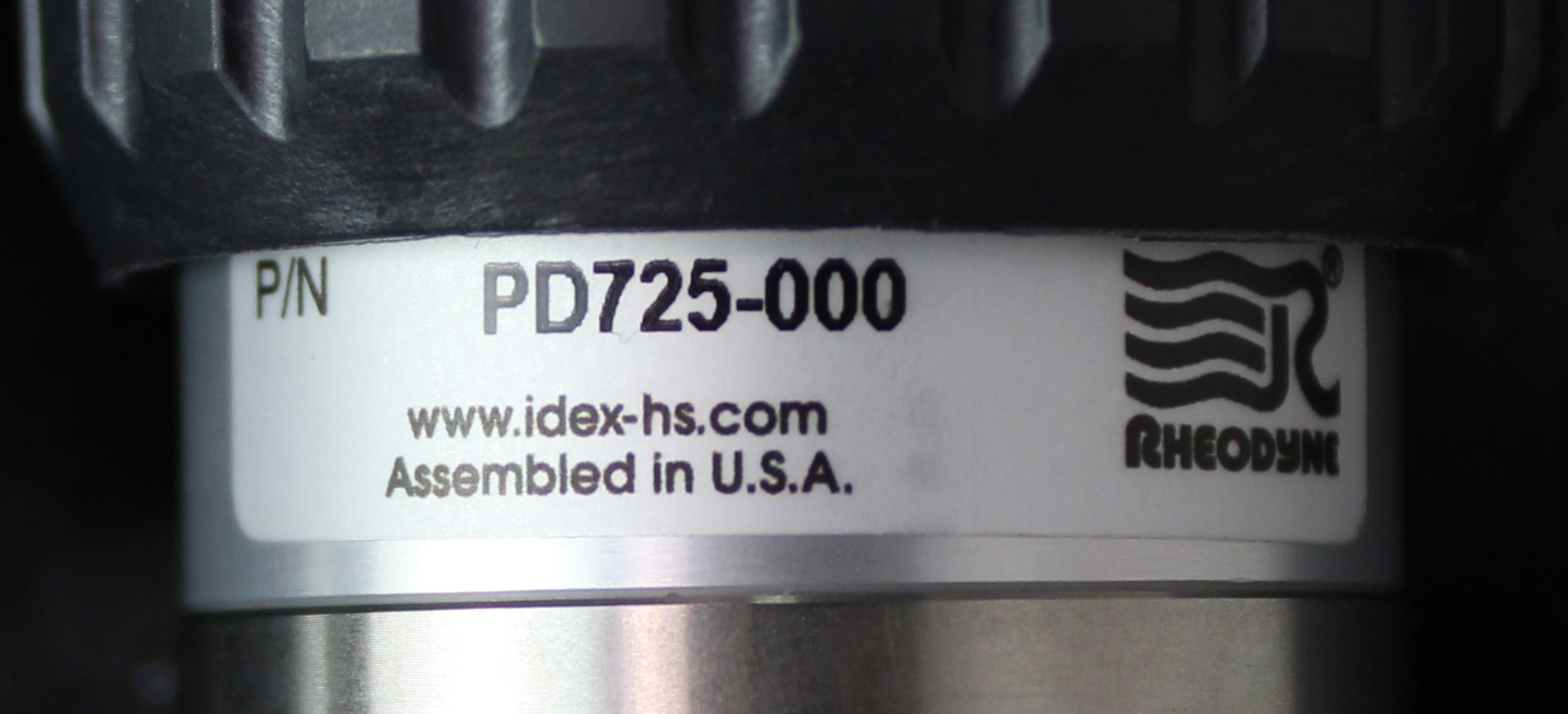

- Model Number: PD725-000
- Country of Origin: United States
- 2-Position, 6-Port Injector System
- Dimensions: 32 x 17 x 15 cm
- Weight: 1 kg
Weight
Imperial: 2.65 Pounds
Metric: 1.2 Kilograms
Shipping Dimensions
Imperial: 15.12 lb x 8.03 lb x 7.09 lb
Metric: 38.4 cm x 20.4 cm x 18.01 cm
Harmonized Code
84818059
Harmonized Code Details
Assumed code for valves, since the product is a high-pressure valve used in specialized instrumentation applications.
