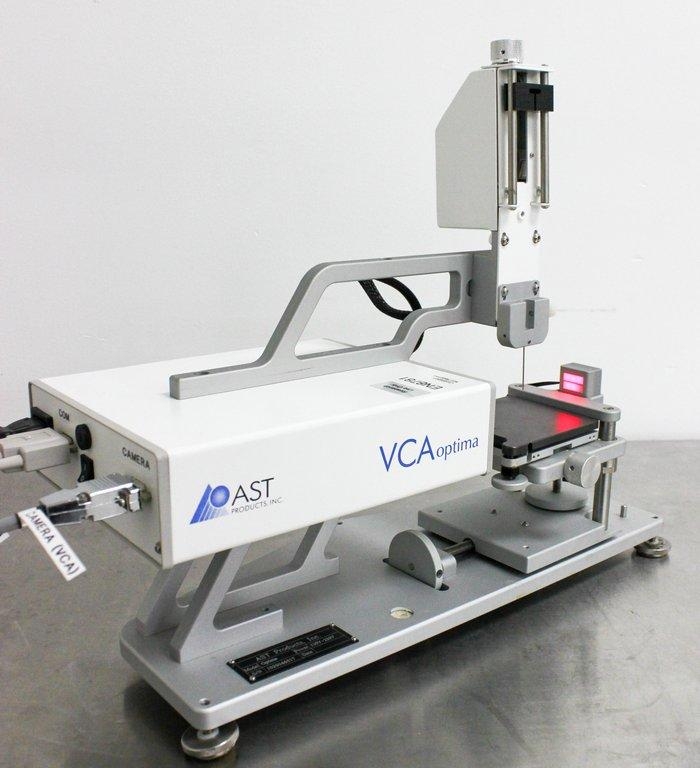

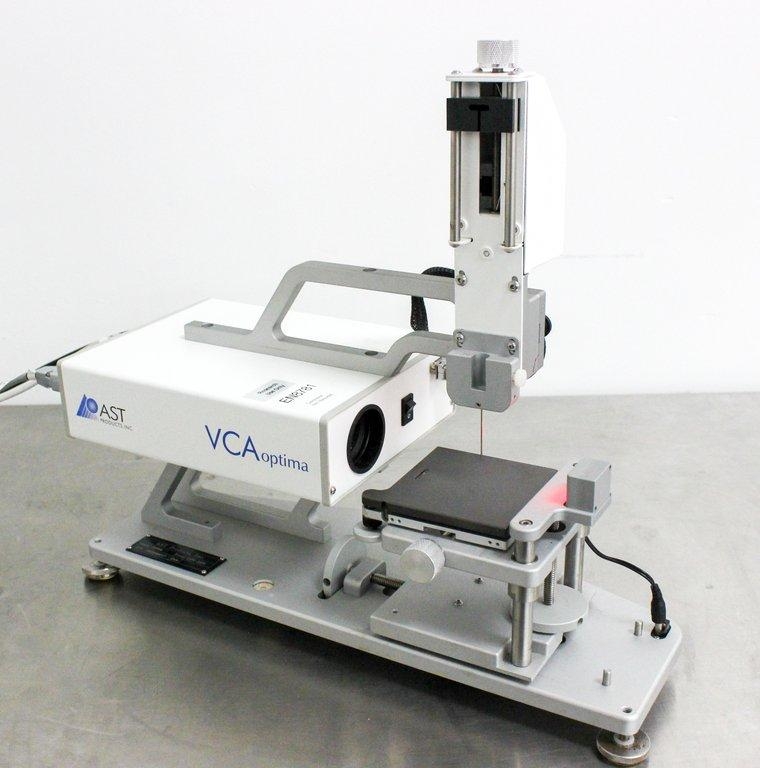

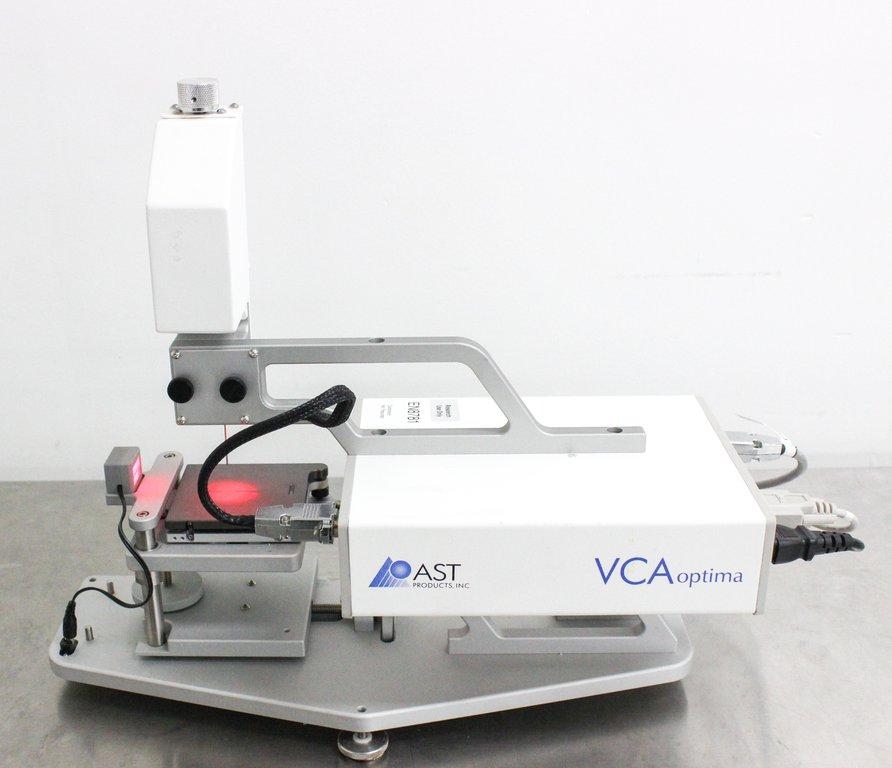

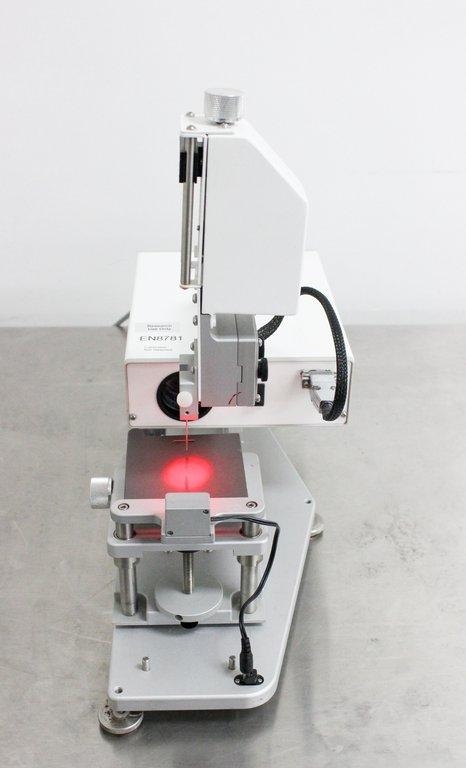

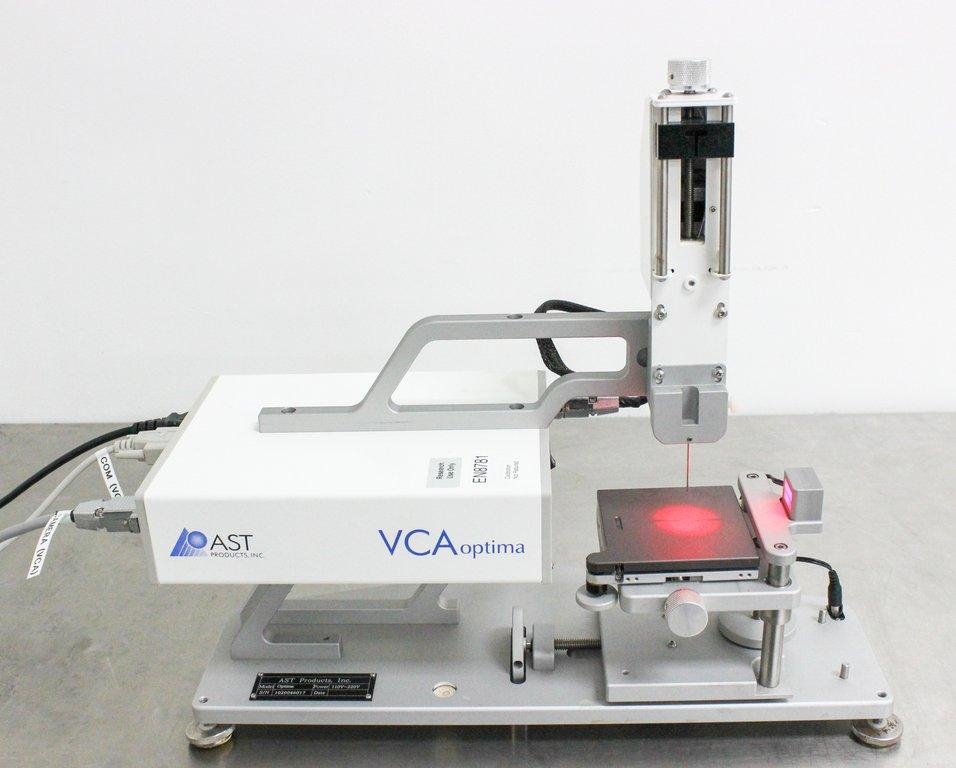

AST VCA Optima Contact Angle Analyzer Video System includes Cables
AST Products
Details
-
CategoryTesting Equipment
-
Dimension8.0in x 18.0in x 17.0in
-
Serial1020046017
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 60Hz US
Description
The AST VCA Optima Video Contact Angle System, a versatile tool for evaluating contact angles and surface energy in R&D and process engineering, features a high-precision camera and state-of-the-art PC technology for accurate droplet analysis. Manufactured by AST Products, this system, which powers on with no known functionality issues, is perfect for assessing surface treatments, adhesion, and wetting behavior across various materials such as fabrics, polymers, semiconductors, and biomaterials. Equipped with a high-resolution video camera, motorized syringe, and adjustable stage, the VCA Optima supports both manual and automatic dispensing of test liquids, enhancing research accuracy and efficiency. The system is in good condition with minor cosmetic wear and includes necessary power cables for operation, but requires additional software for full functionality. Note: Computer not included.
Technician comment
Need software to fully test.
Key Features
- High-resolution video camera for fine image focus
- Motorized syringe for automated liquid dispensing
- High-performance video board for quick image capture
- Adjustable stage for precise sample positioning
- Supports both static and dynamic drop analysis
- Compact design requiring minimal counter space
Specifications
- Measuring range: 0-180 degrees
- Repeatability: 1°
- Accuracy: 0.5°
- Magnification: 35:1 (up to 51:1)
- Dosing capacity: 150-500 droplets
- Input voltage: 120V/220V, Frequency: 60Hz US
- Device dimensions: L17” x W7” x H15”
- Weight: 21 lbs.
- Includes: 5 needle tips (28g), 3 syringes (100ml)
Weight
Imperial: 19.2 Pounds
Metric: 8.71 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 21.6 lb x 20.4 lb
Metric: 24.38 cm x 54.86 cm x 51.82 cm
Harmonized Code
902750
Harmonized Code Details
902750: Instruments and apparatus for physical or chemical analysis (e.g., polarimeters, refractometers, spectrometers) — suitable for the contact angle analysis systems, which assess surface treatment effectiveness.
