Chemglass Explosion Proof Motor 1/4hp 350RPM 90VDC 30in Lead Cable
Chemglass
Details
-
CategoryFacility
-
Dimension13.0in x 21.0in x 13.0in
-

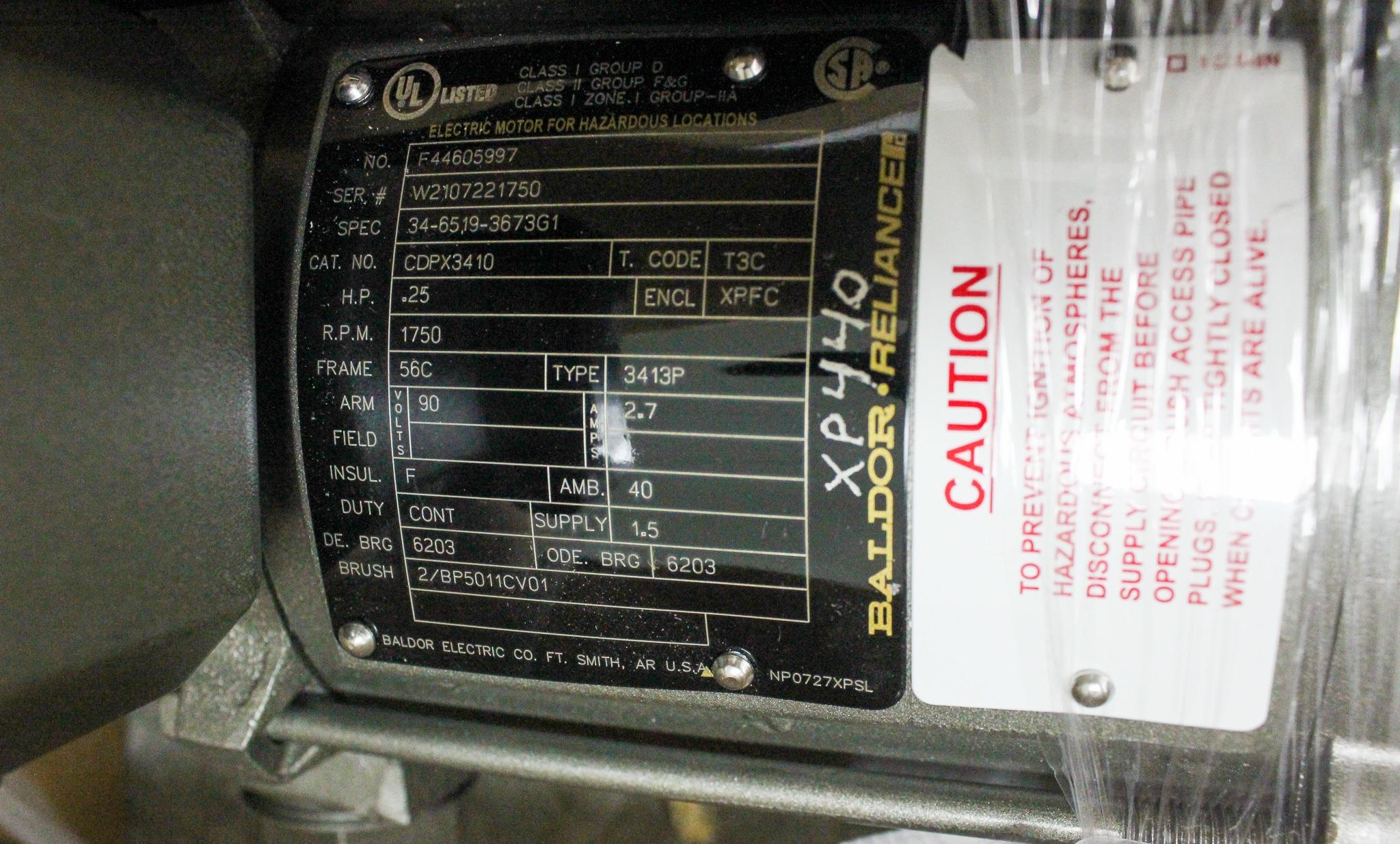

SerialW2107221750
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

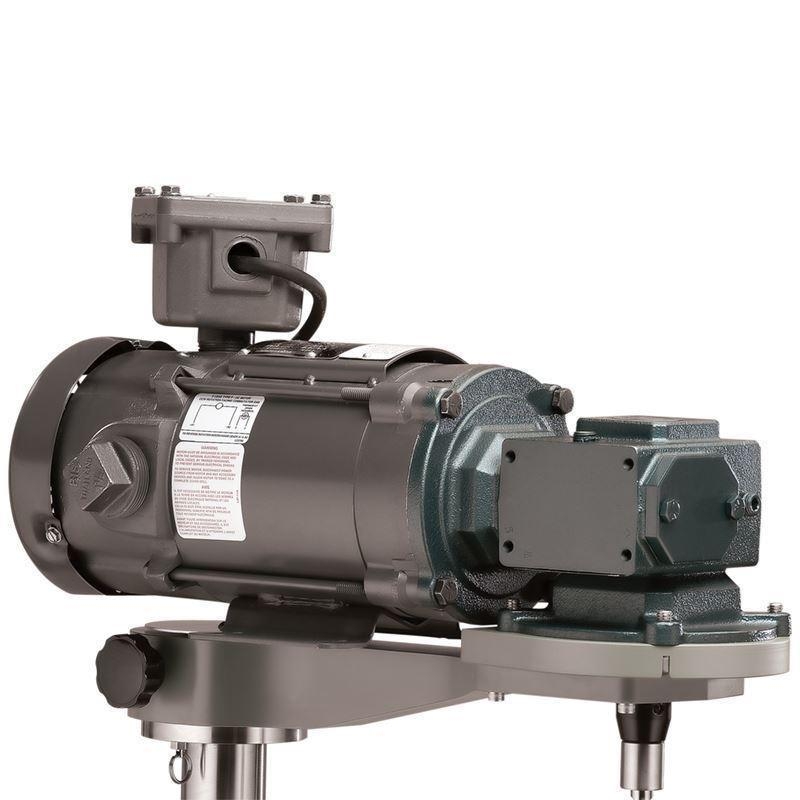

The Chemglass Explosion Proof Motor 1/4hp with 30'' Lead Cable, model CG-2033-X-11, is an essential unit for those requiring safety in explosive environments. This motor offers a 5:1 right angle gearbox, significantly reducing height over the support frame to just 10.5 inches, making it compact and minimizing spatial footprint. To ensure reliability in various hazardous applications, the motor comes equipped with a 30ft 18/3 SJEOO cord with a twist-lock connector and operates optimally in tandem with a digital motor controller (not included). Powering the motor is a 1/4 Hp engine delivering 0.225 output Hp, achieving maximum torque reaching 30 in-lbs and a peak RPM of 350. This rugged unit is enclosed within a 90VDC voltage armature, a permanent magnet (XPFC) enclosure, and runs on 2.7A, making it ideal for use in Class I Group D, and Class II Group F&G classified environments. Designated for professional environments, this reliable and robust motor addresses both performance and safety for a range of operational contexts.
Key Features
- Explosion proof motor with a 30'' lead cable
- Compact 5:1 right angle gearbox to reduce height
- Max Torque: 30 in-lbs, Max RPM: 350
- Voltage: 90VDC with Permanent Magnet, XPFC Enclosure
- For Class I Group D, Class II Group F&G environments
Specifications
- Motor Hp: 1/4
- Output Hp: 0.225
- Maximum Torque: 30 in-lbs
- Maximum RPM: 350
- Motor Shaft Size: 5/8 inch
- Motor Weight: 58 lbs
- Voltage: 90VDC
- Amperage: 2.7A
- XP Classification: Class I Group D, Class II Group F&G
Weight
Imperial: 66.0 Pounds
Metric: 29.94 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 25.2 lb x 15.6 lb
Metric: 39.62 cm x 64.01 cm x 39.62 cm
Harmonized Code
85015220
Harmonized Code Details
The code 85015220 covers electric motors with output exceeding 750 watts but less than 1500 watts, specifically designed for industrial use, which applies to this Chemglass motor due to its power rating and intended industrial applications.
