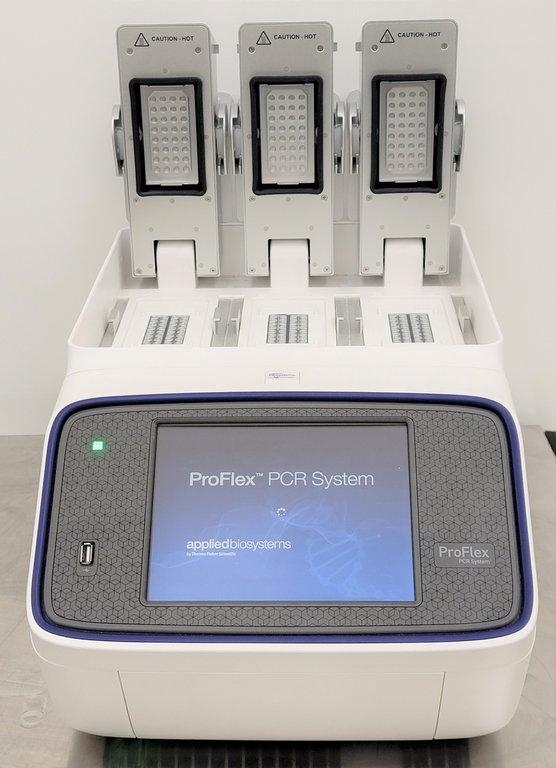

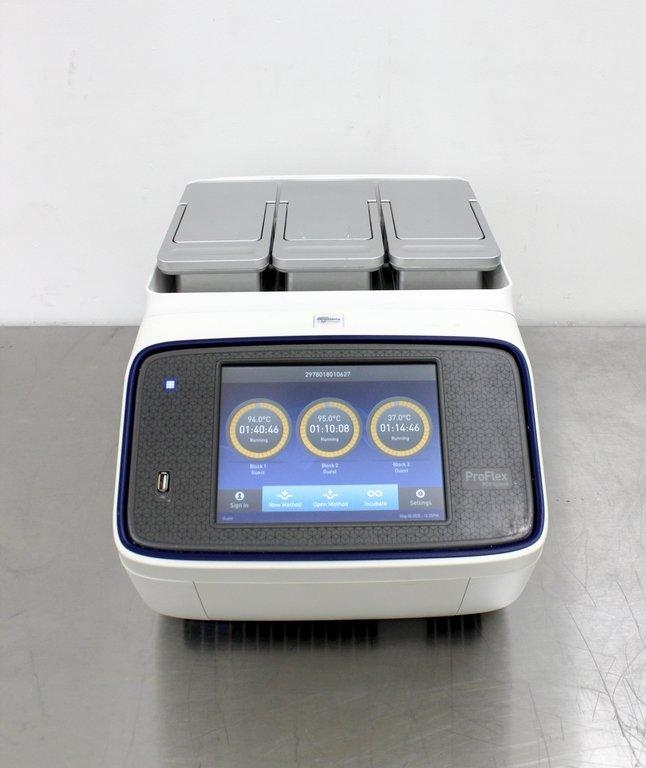

ABI ProFlex Base 3x32 Well PCR System Interchangeable Blocks 100-240V
Applied Biosystems
Details
-
CategoryMolecular Biology
-
Dimension23.0in x 14.0in x 13.0in
-

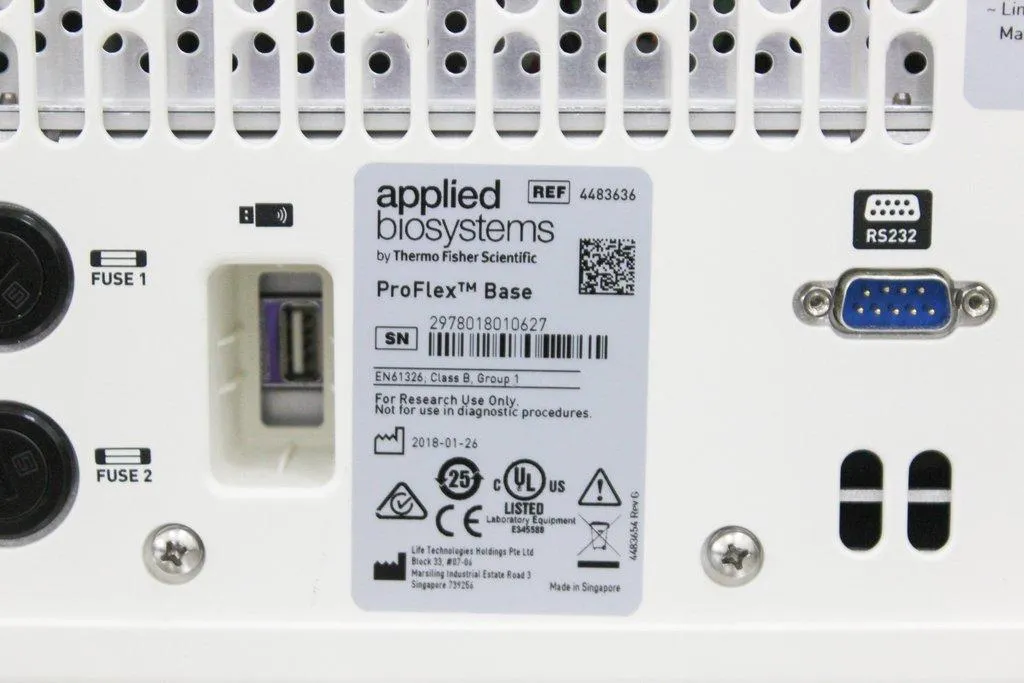

Serial2978018010627
-
Shipping TypeFedEx Ground
-
Manufacturing2018-01-26
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description

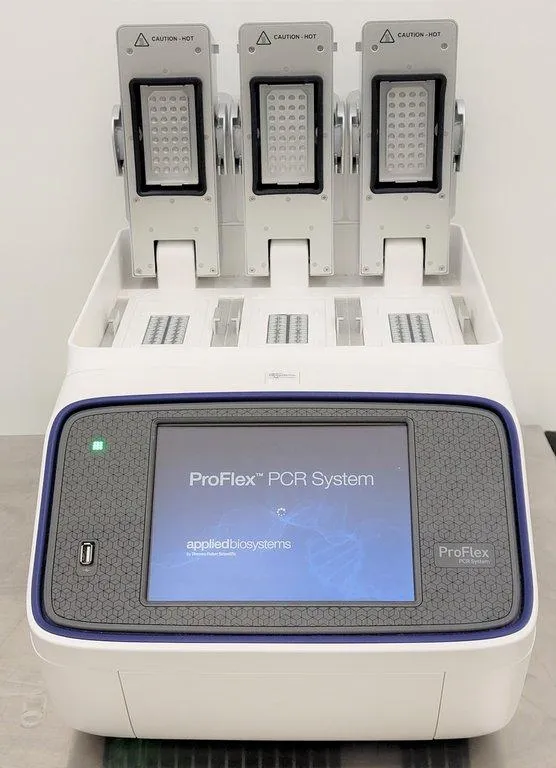

Introducing the 2018 Applied Biosystems ProFlex Base + ProFlex 3x32 Well Sample Block system, renowned for its modularity and flexibility in PCR optimization. This unit, in very good condition, enables rapid block changes to adapt to evolving research needs. The ProFlex 2 x Flat Sample Block is tailored for use with TaqMan Open Array Genotyping plates. Enjoy precise control over PCR with VeriFlex blocks, allowing for independent temperature settings. Additionally, its intuitive color touchscreen interfaces with the Veriti 96-well fast thermal cycler for simplified operation. With options for fast or standard cycling methods, control PCR cycling times efficiently. The system supports easy protocol transfers and reduced PCR cycling times, ideal for high-throughput environments. Tested to specifications, this unit includes minor cosmetic blemishes from regular use, as shown in accompanying photos.
Technician comment

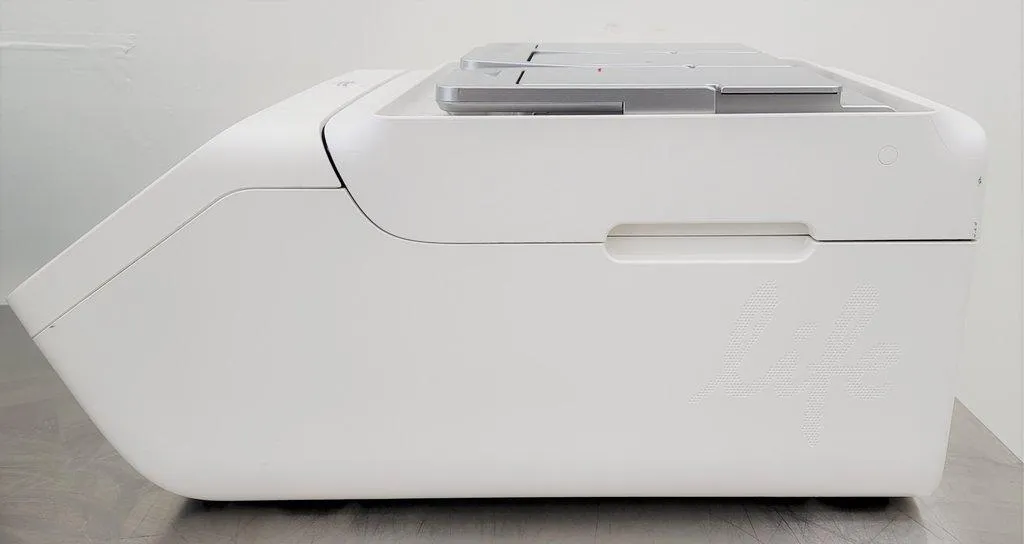

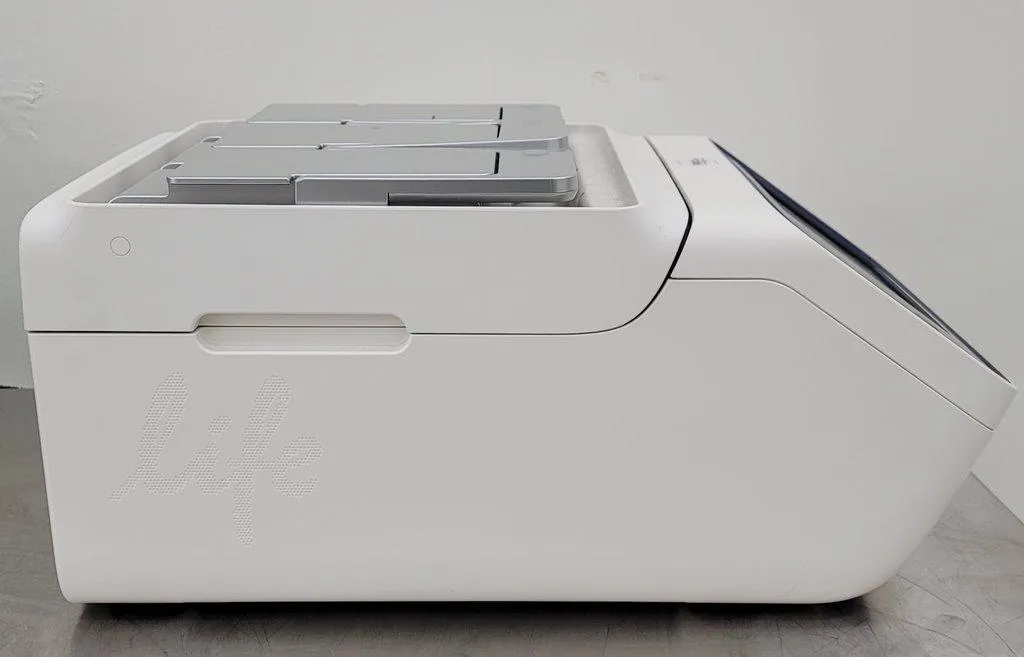

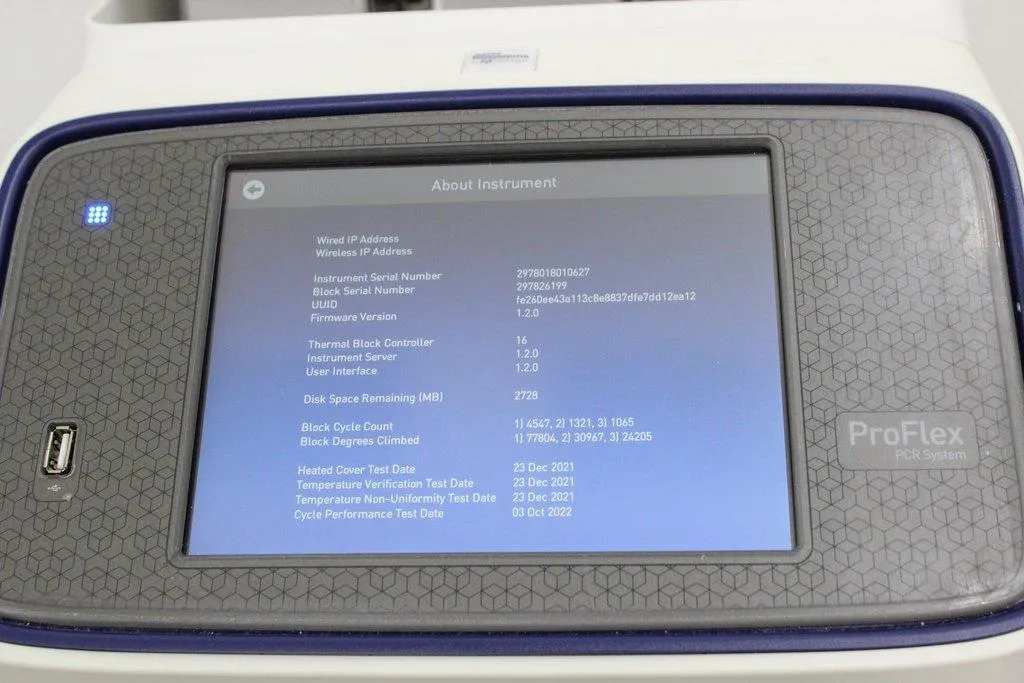

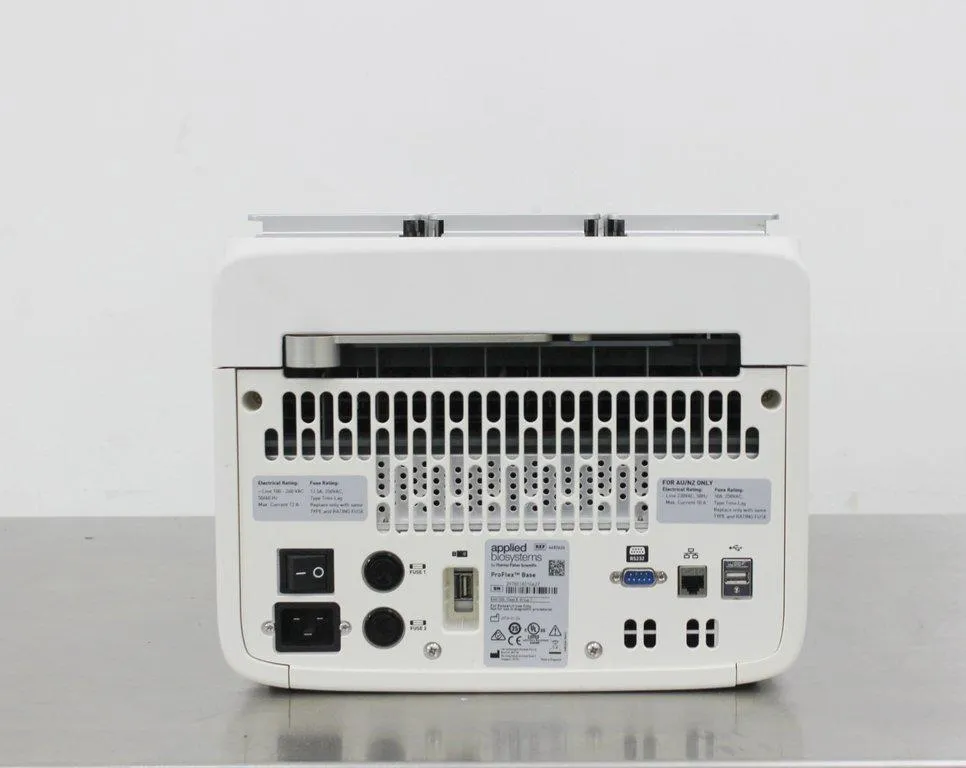

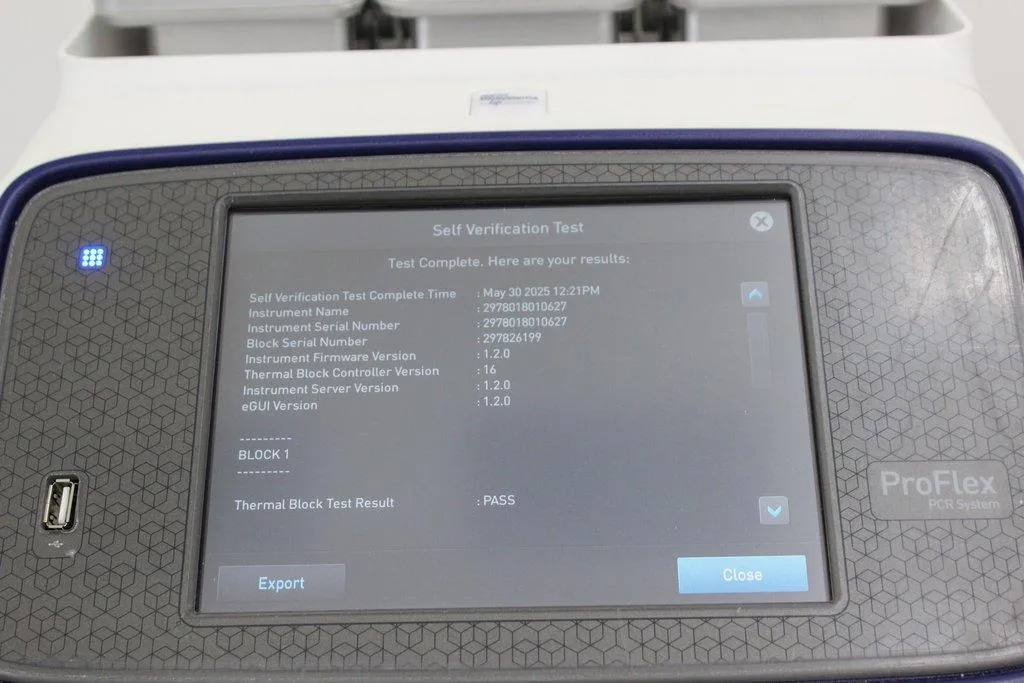

This unit has been tested to specifications. Self test run and Pass. Has slight cosmetic blemishes from normal use. See photos for further details.
Key Features
- Interchangeable block design for future research flexibility
- ProFlex Base Module necessary for operation
- VeriFlex blocks for independent temperature control

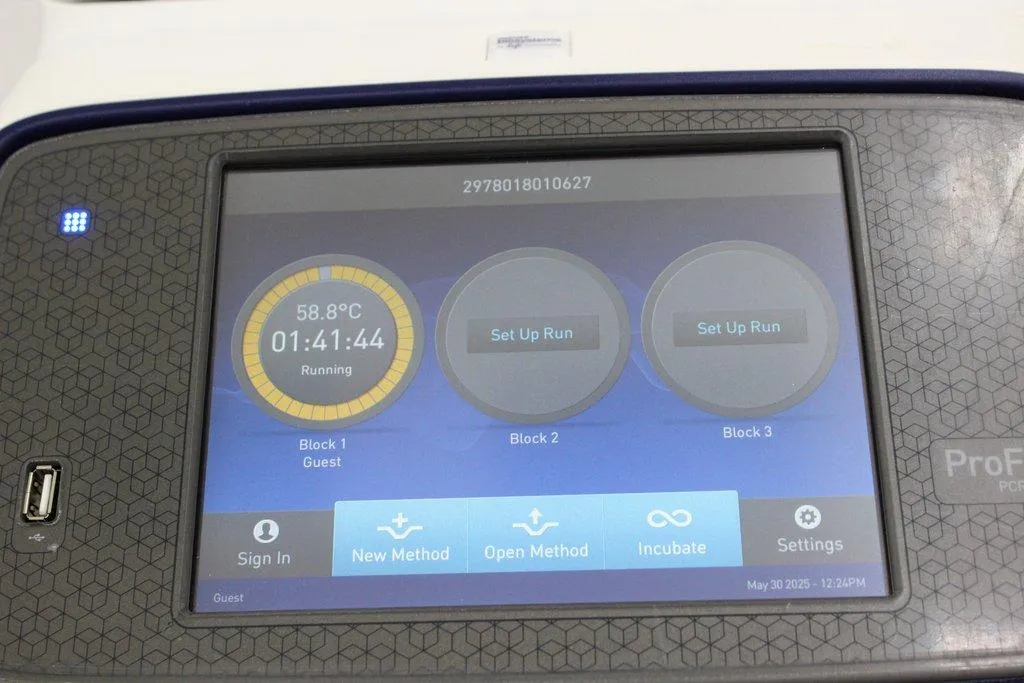

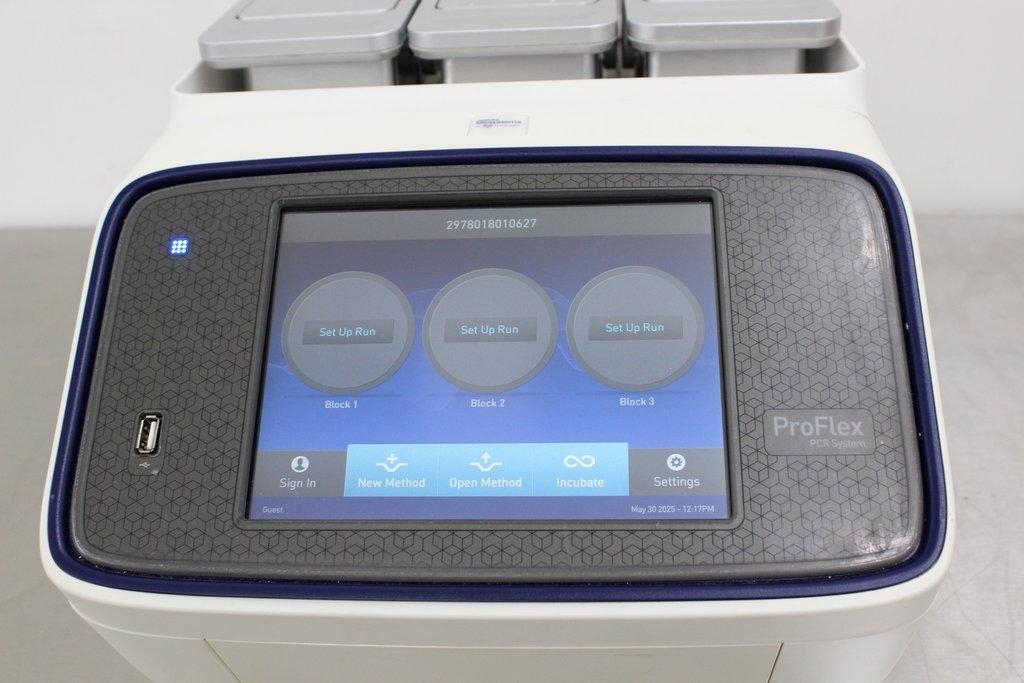

- 6.5-inch VGA touchscreen for user-friendly operation

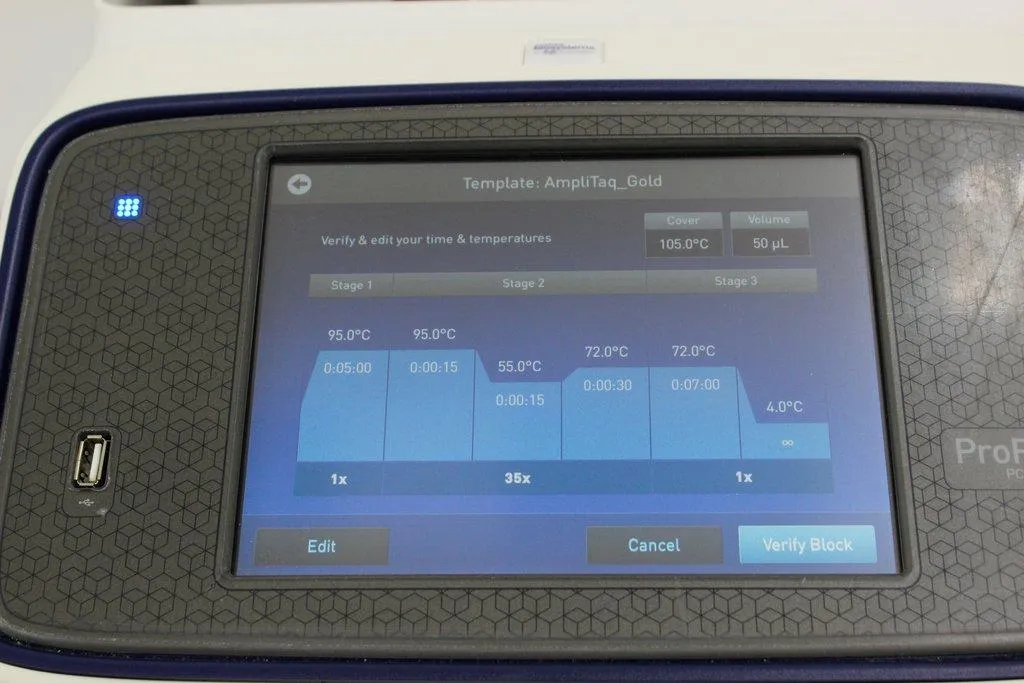

- Fast and standard-enabled PCR cycling
- Supports remote management software for overseeing up to 50 cyclers
Specifications
- Block Format: Interchangeable
- Display Interface: 8.4 in. TFT LCD Touchscreen
- For Use With: ProFlex PCR System
- Format: 2 X Flat Block for Open Array Plates
- High Throughput Compatibility: Yes
- Instrument Memory: USB and On-board
- Peak Block Ramp Rate: 2.0C/sec
- Power Requirements: 100-240V, 50-60 Hz, Max: 950 VA
- Program Features: Auto re-start, Program overwrite protection
- Temperature Range: 0 to 100.0 C
- Temperature Accuracy: 0.25C (35C to 99.9C)
- Temperature Uniformity: <0.5 C (20 sec after reaching 95 C)
- Reaction Volume Range: 33 nl ( 1 nl)
- Max. Ramp Rate: 3C/sec. (Block), 1.6C/sec. (Sample)
Weight
Imperial: 56.4 Pounds
Metric: 25.58 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 16.8 lb x 15.6 lb
Metric: 70.1 cm x 42.67 cm x 39.62 cm
Harmonized Code
9027.80.25
Harmonized Code Details
9027.80.25 - Instruments and apparatus for physical or chemical analysis, uses PCR technology. Suitable as it's a PCR thermal cycler used for laboratory research.
