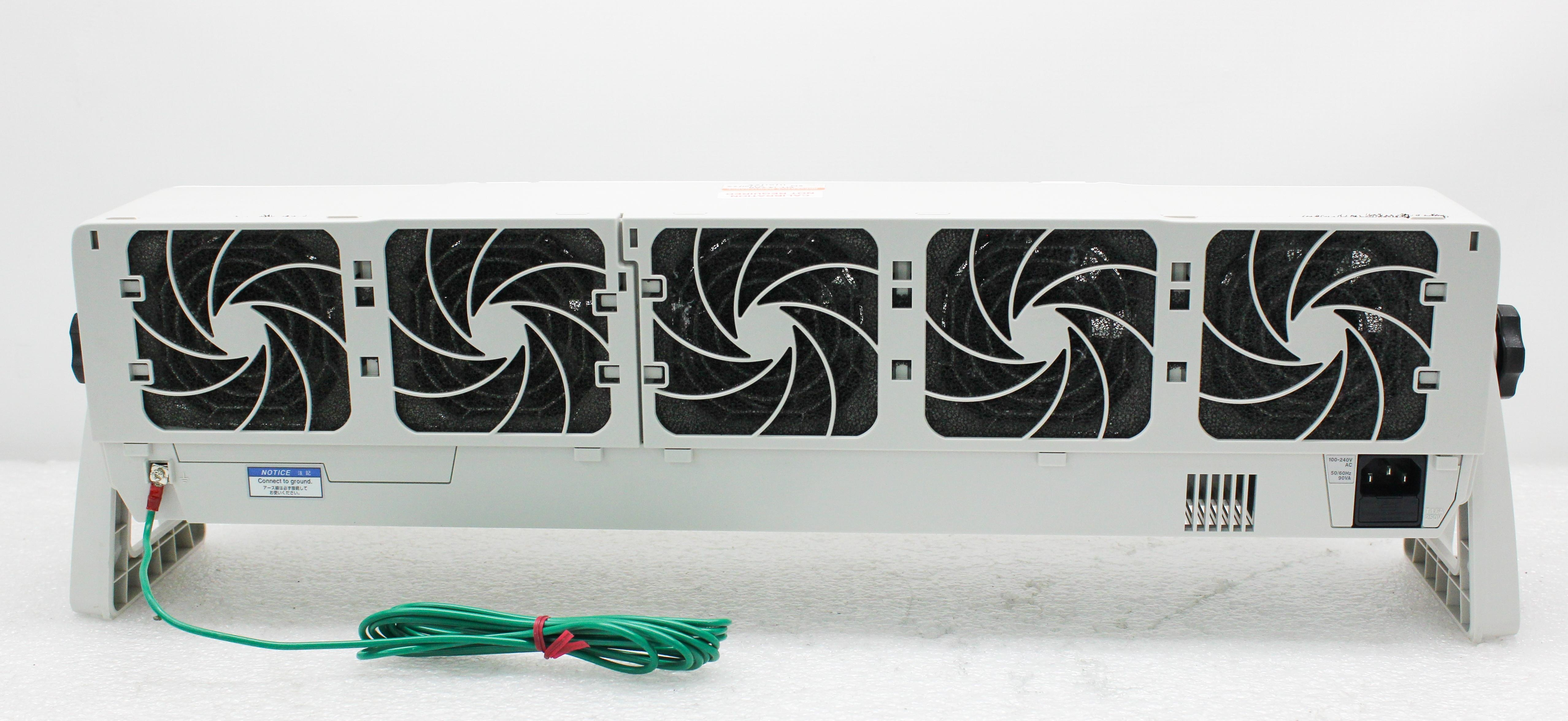

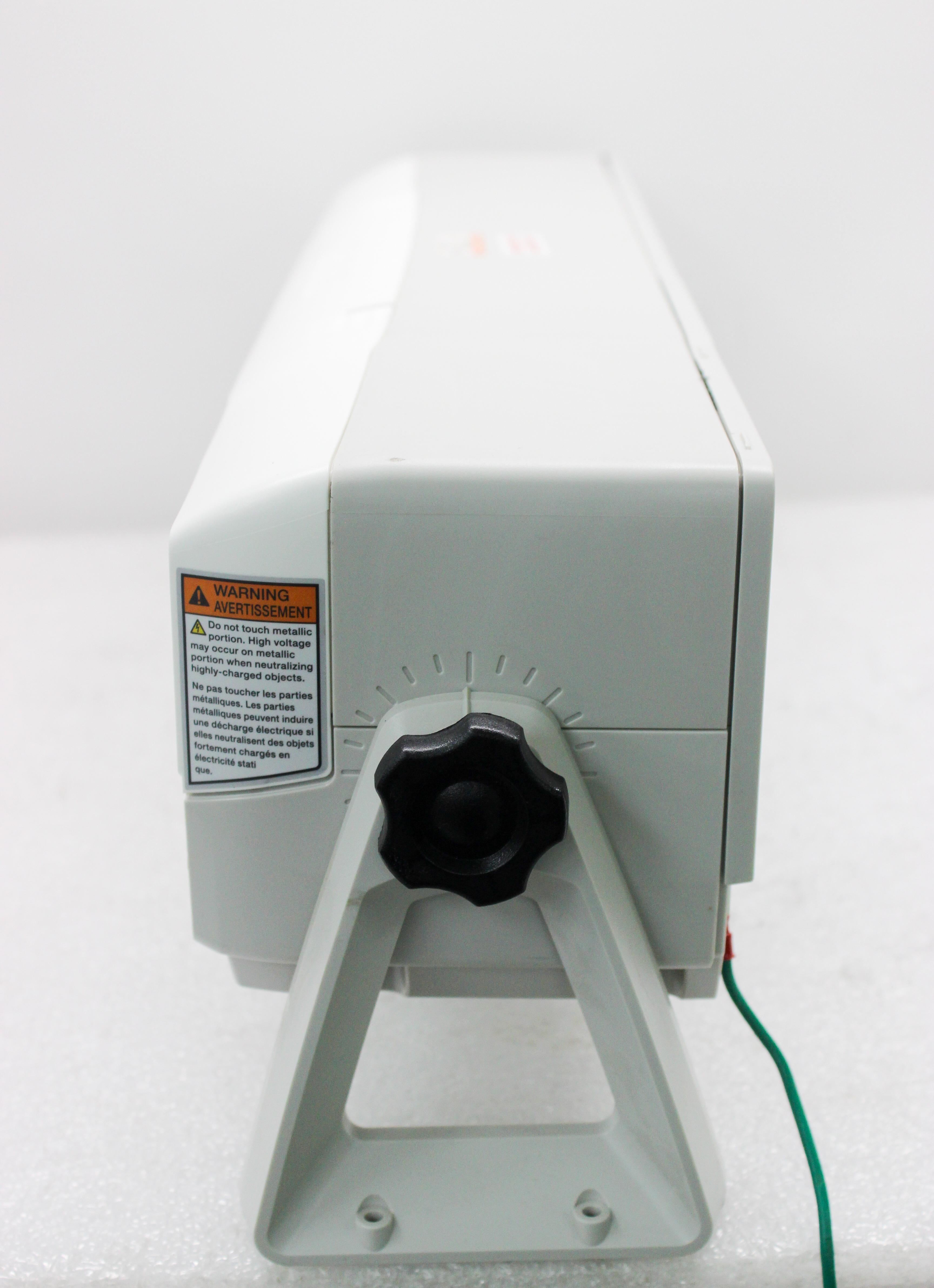

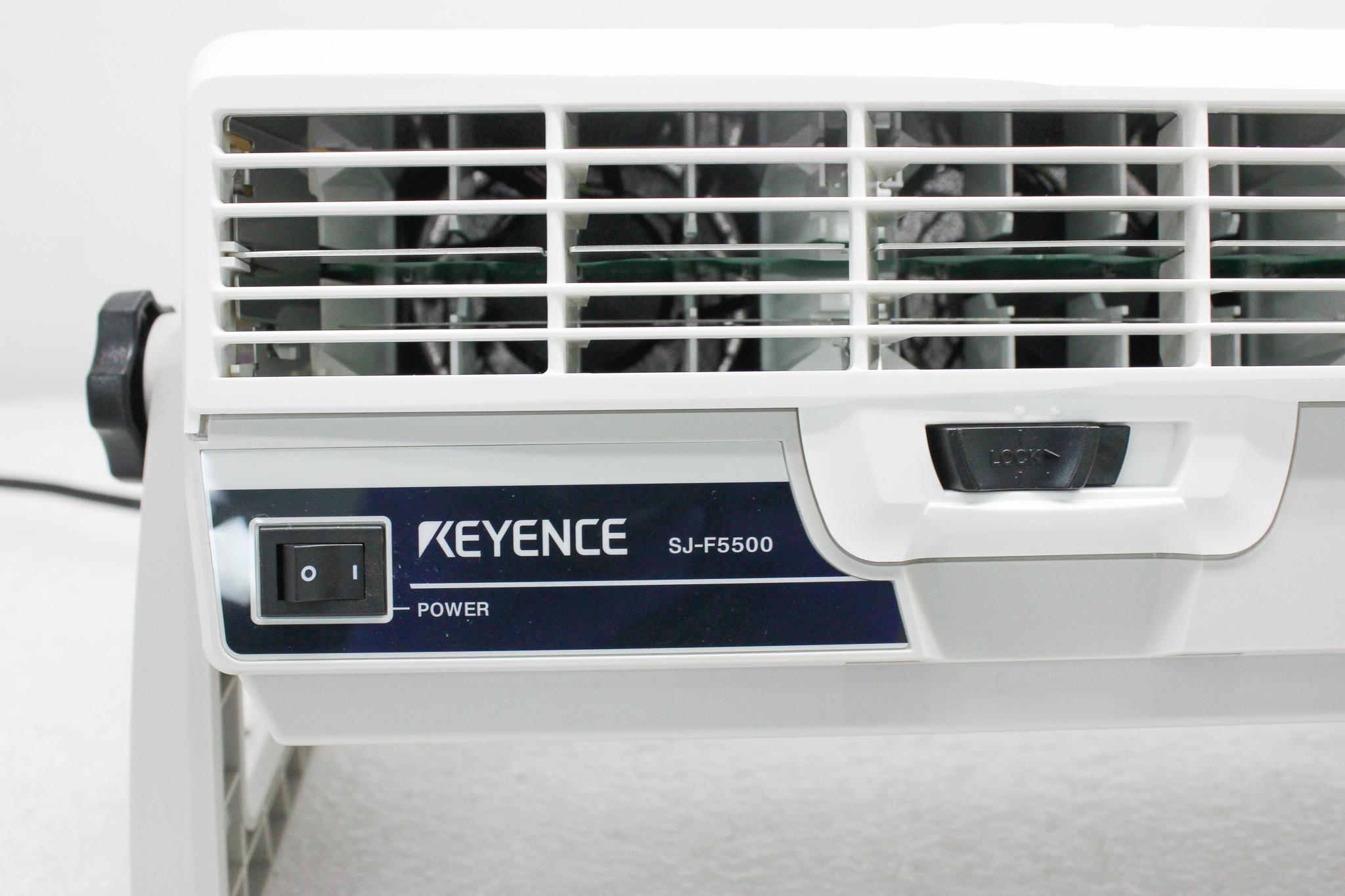

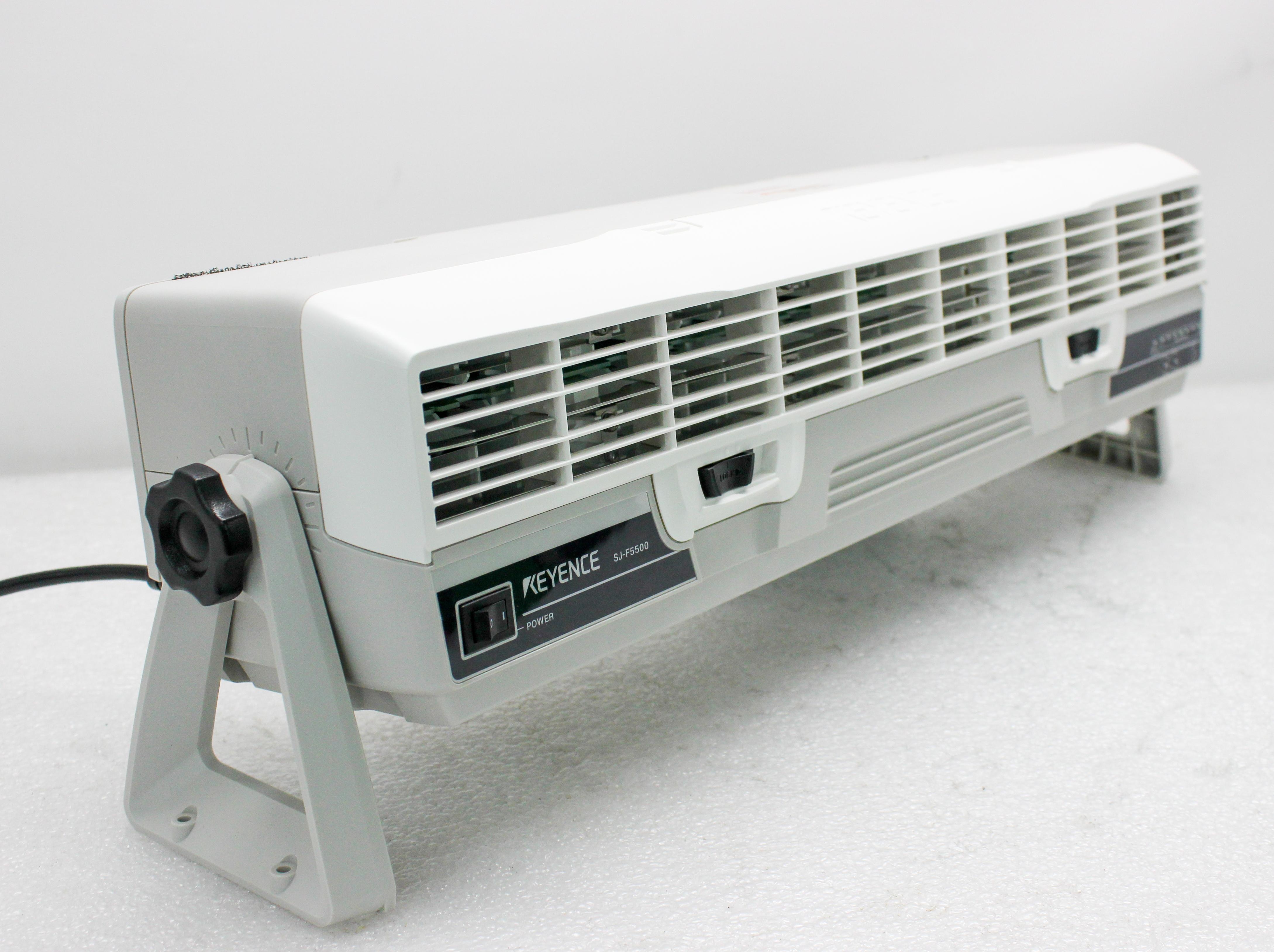

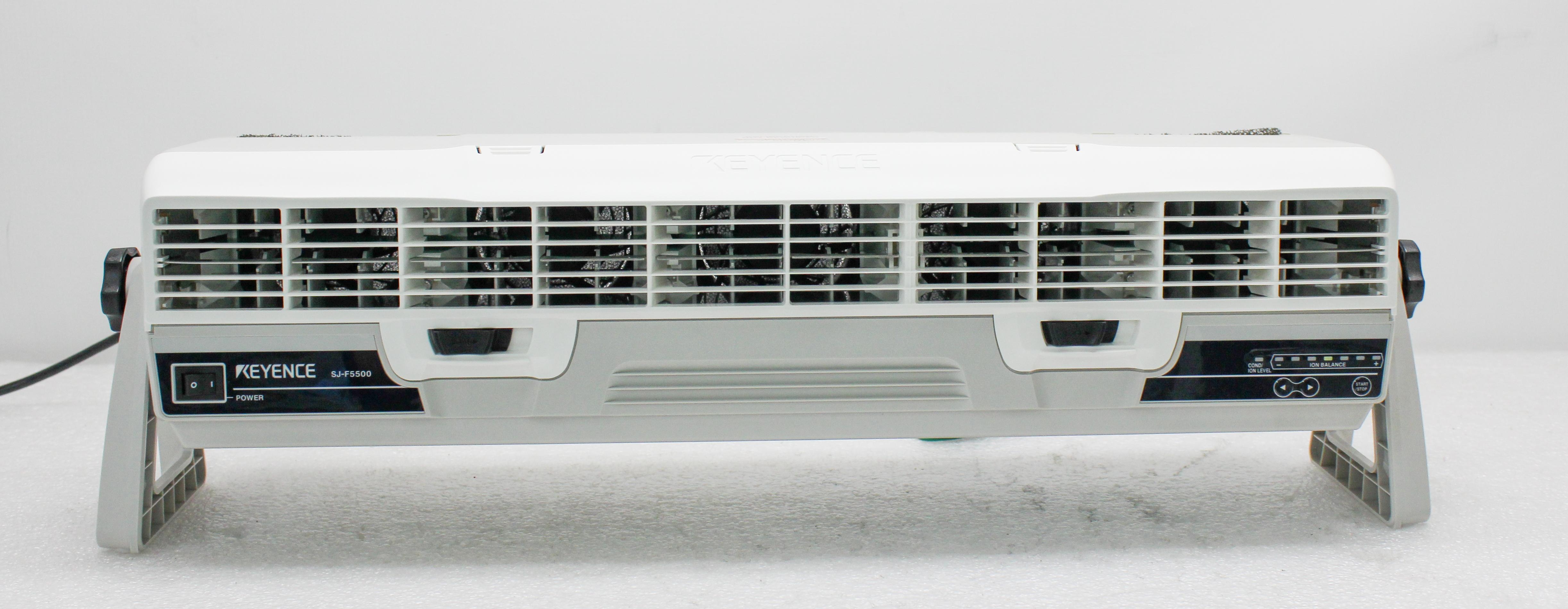

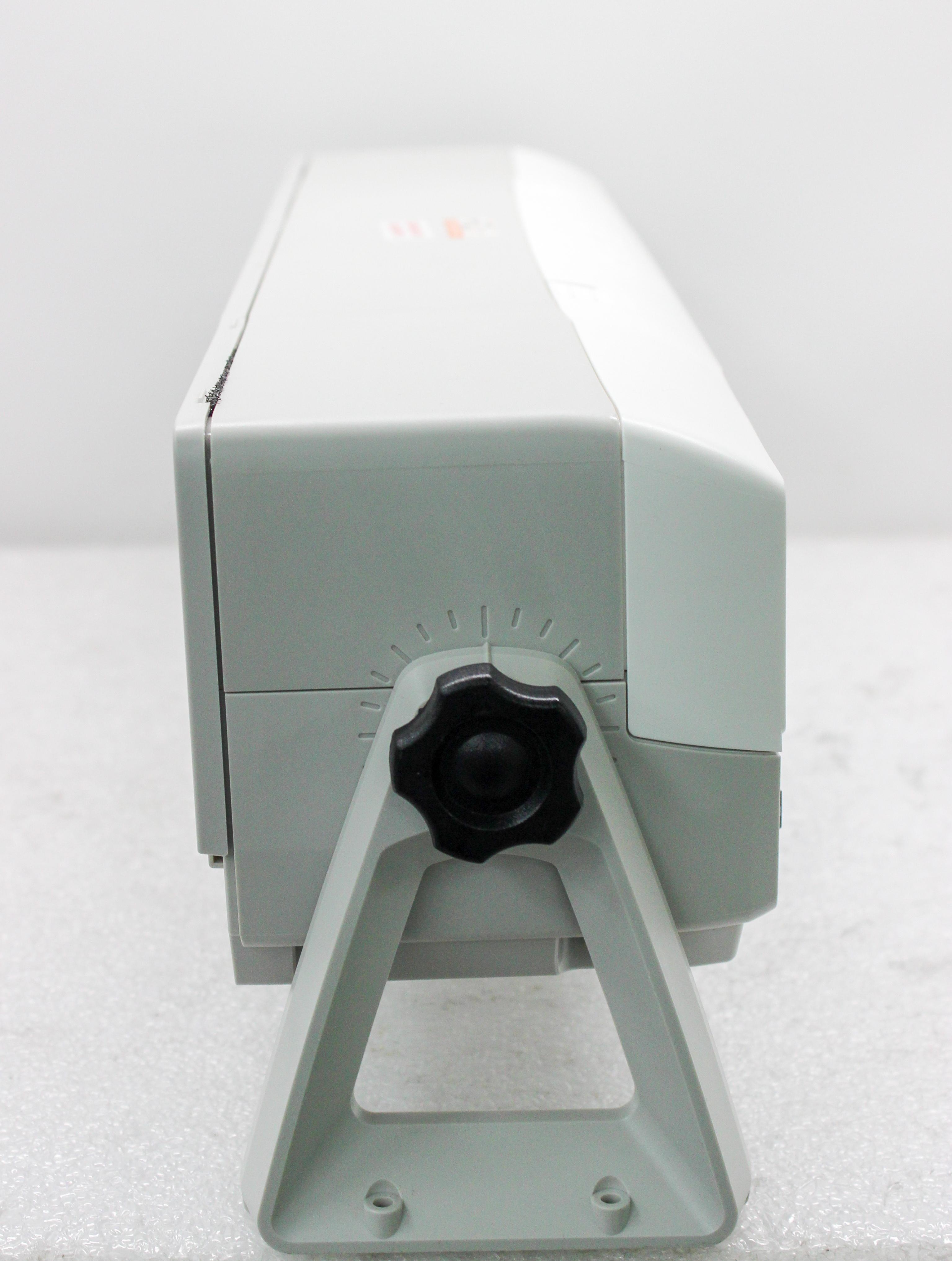

Keyence SJ-F5500 Static Eliminator High-speed Pulse AC Wide-area 0.6s
Keyence
Details
-
CategoryMiscellaneous
-
Dimension6.0in x 25.0in x 8.0in
-

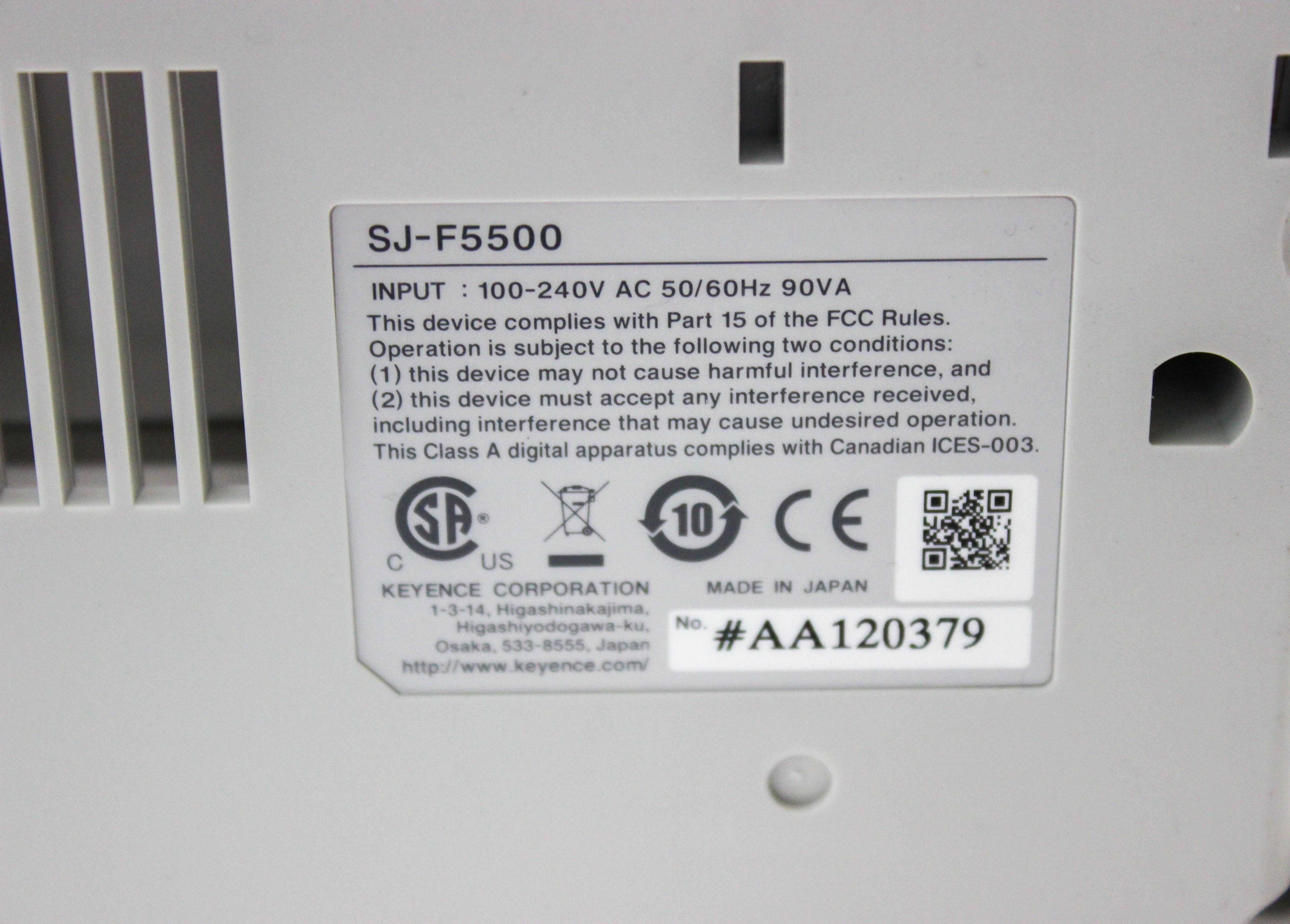

SerialAA120379
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Keyence SJ-F5500, a high-speed, high-precision static eliminator blower, is crafted to effectively manage static electricity across wide areas, thereby preventing dust adhesion, component damage, and operator shocks. This near-new condition unit, manufactured in Japan, operates using a Pulse AC method with an applied voltage of ±7000V. With rapid static elimination time of approximately 0.6 seconds and precise Ion balance control at ±5 V, it measures static electricity, humidity, and temperature non-contactly, with a maximum wind speed of 5.7 m/s and air volume of 10.0 m3/min. Suitable for diverse industries, it operates at ambient temperatures from 0 to 50°C and humidity between 35 to 65% RH. Power requirements are 100 to 240 VAC at 50/60 Hz. Ideal for maintaining static-free environments and ensuring quality in sensitive electronic components.
Key Features
- High-speed and high-precision static elimination
- Pulse AC method with ±7000V applied voltage
- I.C.C. Ion balance control method
- Rapid static elimination time of 0.6 seconds
- Wide operating temperature and humidity range
- Non-contact measurement capabilities
- Maximum wind speed 5.7 m/s and air volume 10.0 m3/min
Specifications
- Model: SJ-F5500
- Voltage Application Method: Pulse AC
- Applied Voltage: ±7000V
- Ion Balance: ±5 V
- Static Elimination Time: Approx. 0.6 sec
- Operating Distance: Min. 50 mm
- Maximum Wind Speed: 5.7 m/s
- Maximum Air Volume: 10.0 m3/min
- Ozone Density: 0.005 ppm max.
- Power Requirement: 100 to 240 VAC, 50/60 Hz
- Power Consumption: 90 VA
- Ambient Temperature: 0 to +50°C
- Relative Humidity: 35 to 65% RH
- Weight: Approx. 5 kg
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 30.0 lb x 9.6 lb
Metric: 18.29 cm x 76.2 cm x 24.38 cm
Harmonized Code
8543.70.90
Harmonized Code Details
The harmonized code 8543.70.90 is typically used for machinery or appliances, not specified or included elsewhere, for electrical circuits; it fits given this equipment's primary function of static elimination using electrical methods.
