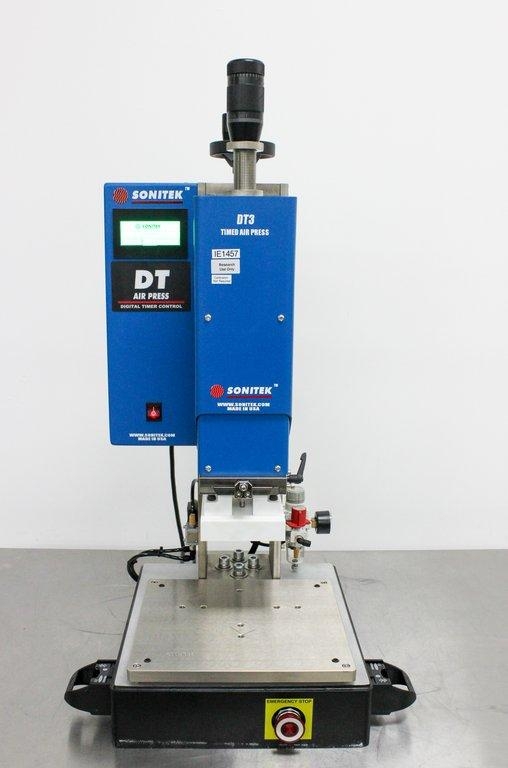

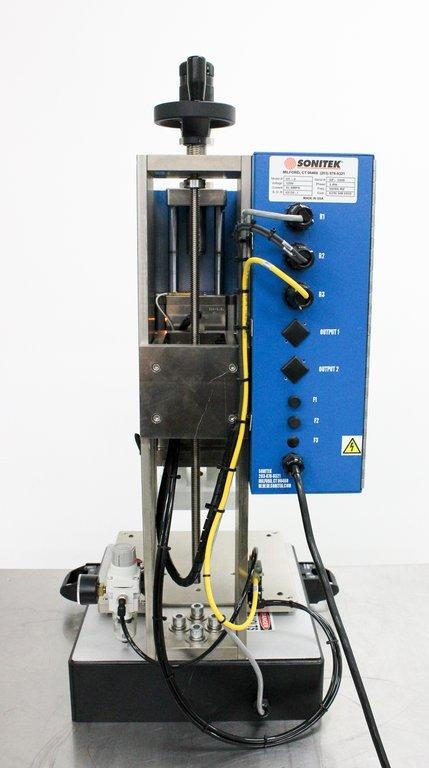

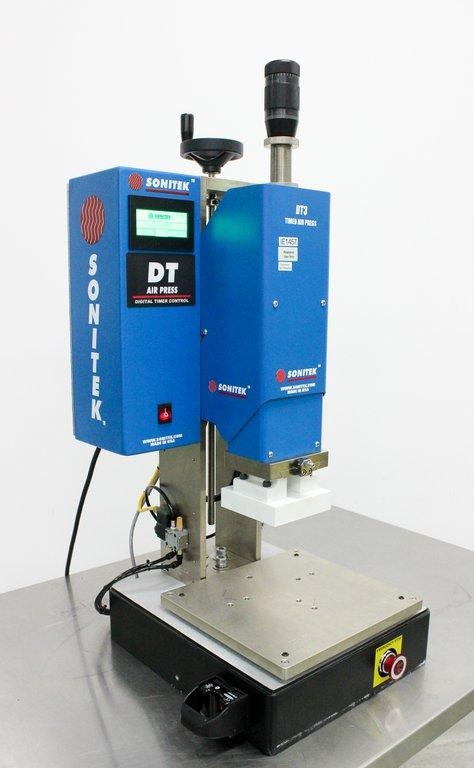

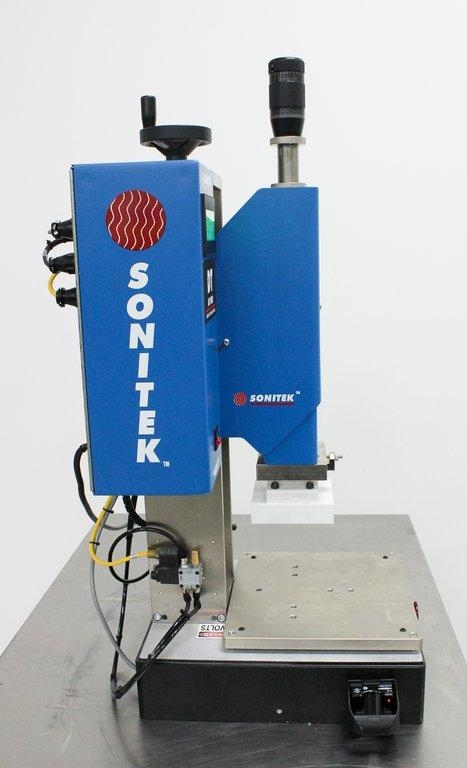

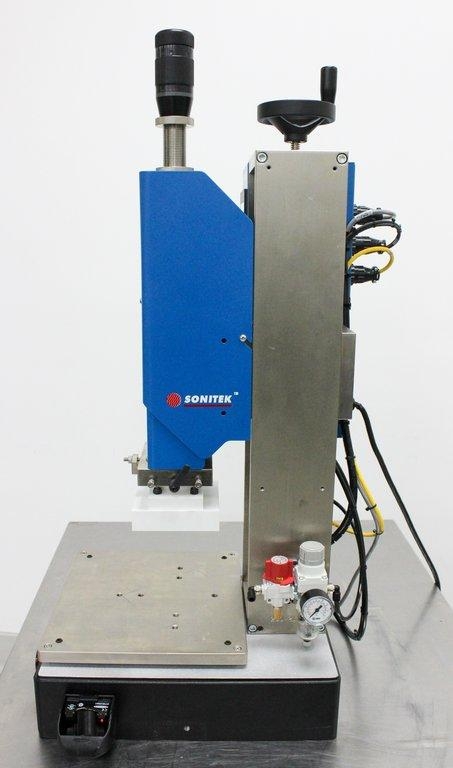

Sonitek DT-3 Air Press Timed Pneumatic Press Digital Timer 325 lb Force
Sonitek
Details
-
CategoryProduction / Manufacturing
-
Dimension18.0in x 20.0in x 36.0in
-

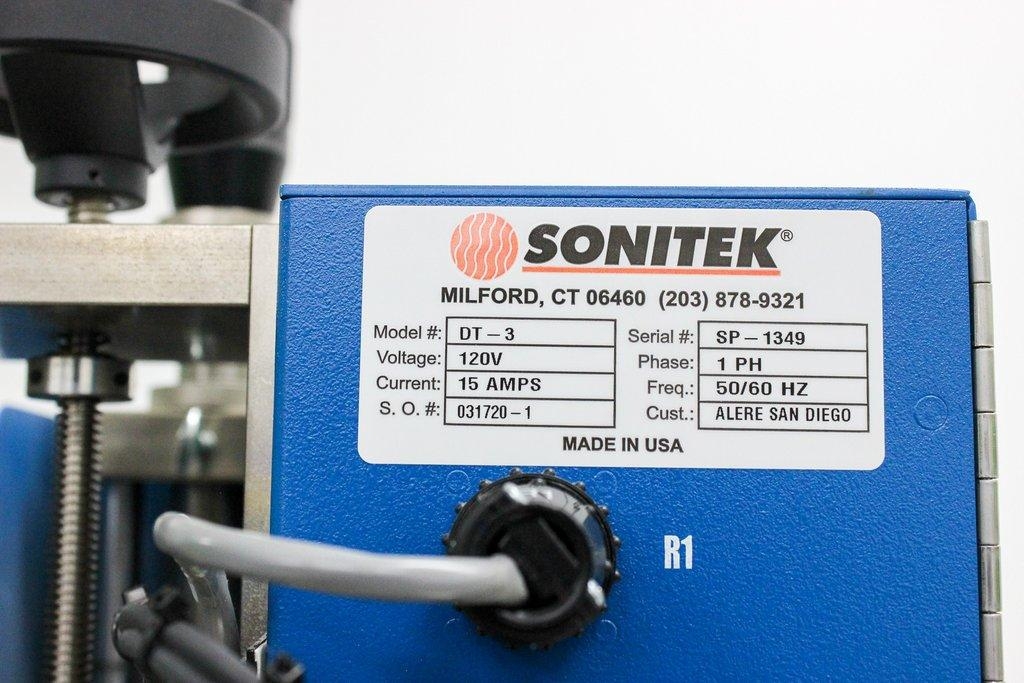

SerialSP-1349
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

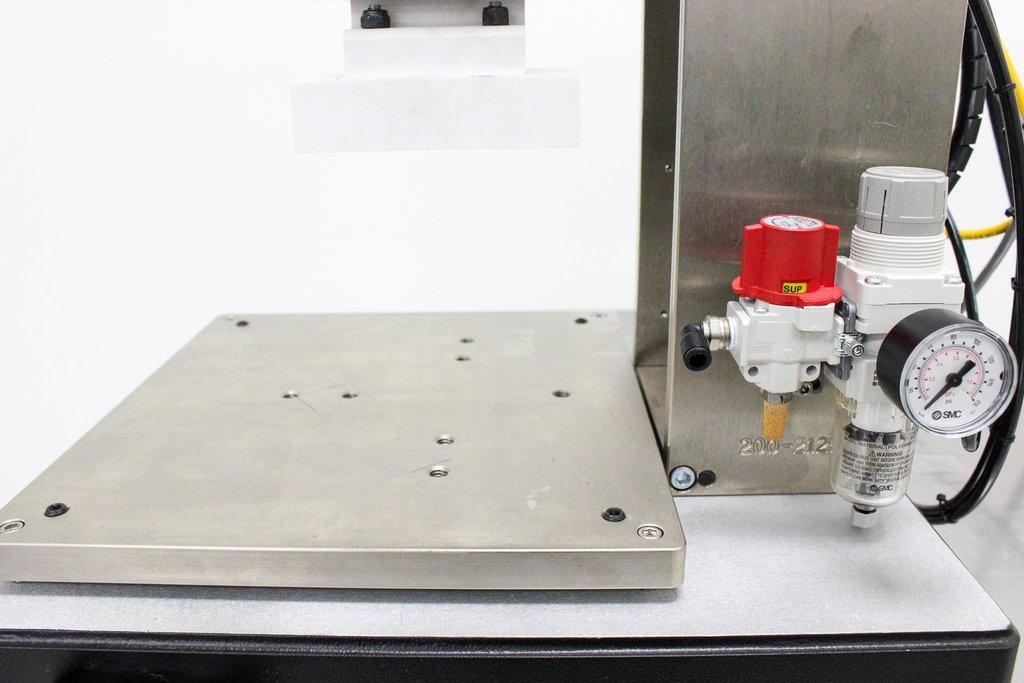

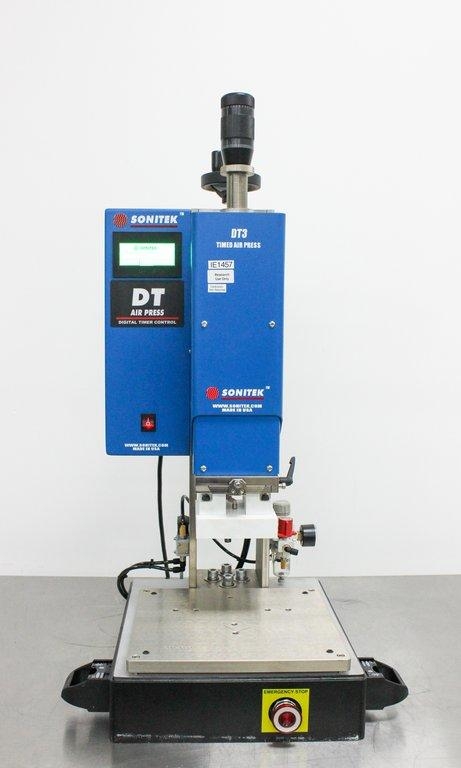

The Sonitek DT-3 Air Press with Digital Timer is designed for precision bench-top pressing operations. Manufactured in the United States by Sonitek, it features a new controller with an integrated HMI and graphic display screen, offering selectable dwell time ranges from 0.01 ms to 99.99 hours. The digital electronic dwell timer, password protection, resettable parts counter, and life cycles counter enhance operational efficiency. The unit can exert pressing forces ranging from 0 to 1400 lbs, provides two-hand anti-tie down safety circuitry, dual palm push buttons for cycle start, an air filter with regulator, and features adjustable nomenclature for optimal setup. It requires clean dry air at 100 PSIG and consumes 0.56 CFM at a full stroke of 4.9 inches. The DT-3 model, with a strong and durable build, ensures maintenance-free use with components mounted on bushings and bearings.
Technician comment
Sonitek DT3 Timed Air PressDT - Air Press w/ Digital Timer, preowned in good condition.
Key Features

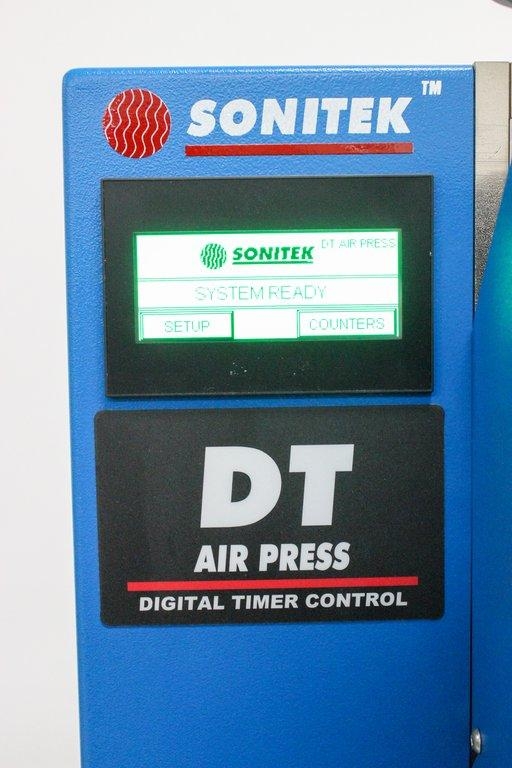

- Integrated HMI and graphic display screen
- Digital electronic dwell timer from 0.01ms to 99.99 hrs

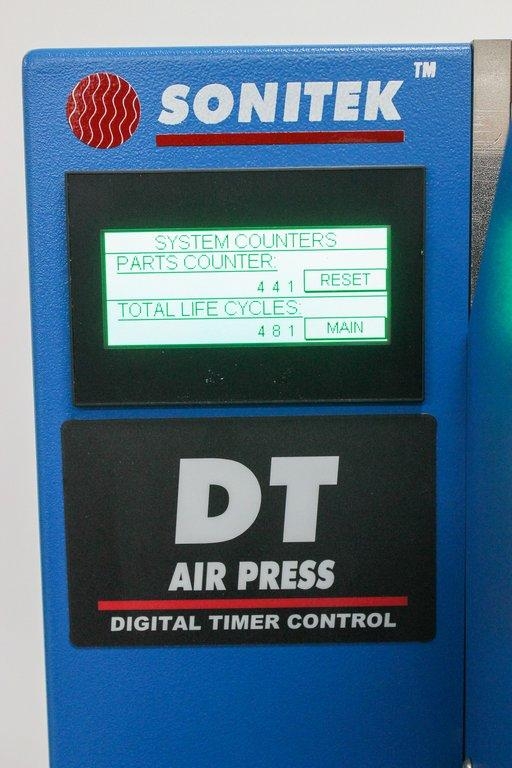

- Resettable parts and life cycles counters
- Adjustable pressing forces from 0 to 1400 lbs
- Two-hand anti-tie down safety with dual palm push buttons
Specifications
- Voltage: 120V, Hertz: 50Hz/60Hz
- Maximum Force on part at 100 PSIG: 325 lbs
- Air Consumption at 5 CPM: 0.56 CFM
- Stroke Length: 4.9"
- Head Height Clearance: 0-13"
- Ambient Temperature: 41-122 F
- Weight: 125 lbs
- Dimensions: 36" x 20" x 18"
Weight
Imperial: 150.0 Pounds
Metric: 68.04 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 24.0 lb x 43.2 lb
Metric: 54.86 cm x 60.96 cm x 109.73 cm
Harmonized Code
8205700090
Harmonized Code Details
Harmonized Code 8205700090 falls under 'Tools for working in the hand, pneumatic, hydraulic or with self-contained electric or non-electric motor, nesoi'. Selected based on item's functionality as a pneumatic press system.
