Packworld PW3416V-5-22-06-D Clean Room Heat Sealer 16-24 In Validatable ISO Compliant
Packworld
Details
-
CategoryPharma
-
Dimension27.0in x 23.0in x 52.0in
-
Serial224615
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The Packworld PW3416V-5-22-06-D heat sealer is an advanced, validatable impulse heat sealer equipped with a TOSS Touch Screen control. This device is designed for precise and efficient sealing of plastics and sealable composites in environments such as medical packaging, R&D, or industrial production. Manufactured in the United States and weighing approximately 250 pounds, the unit boasts excellent condition, with minimal cosmetic wear and optimal operational capabilities. Key features include touch screen precision control, graphical display of temperature, time, and pressure, and various sequence possibilities with visual and audible alarms. The unit supports programmable settings for time, temperature, and pressure, including options such as Vacuum/Purge and Seal Only. It is RoHS and ISO 11607 compliant, ideal for ensuring your packaging meets rigorous standards.
Technician comment
Packworld heat sealer was sourced from a working environment. Unit was tested to confirm heating and functions as intended. The Packworld heat sealer is in excellent cosmetic condition, with minimal signs of use. Controls respond properly and the system is ready for immediate lab or production use.
Key Features

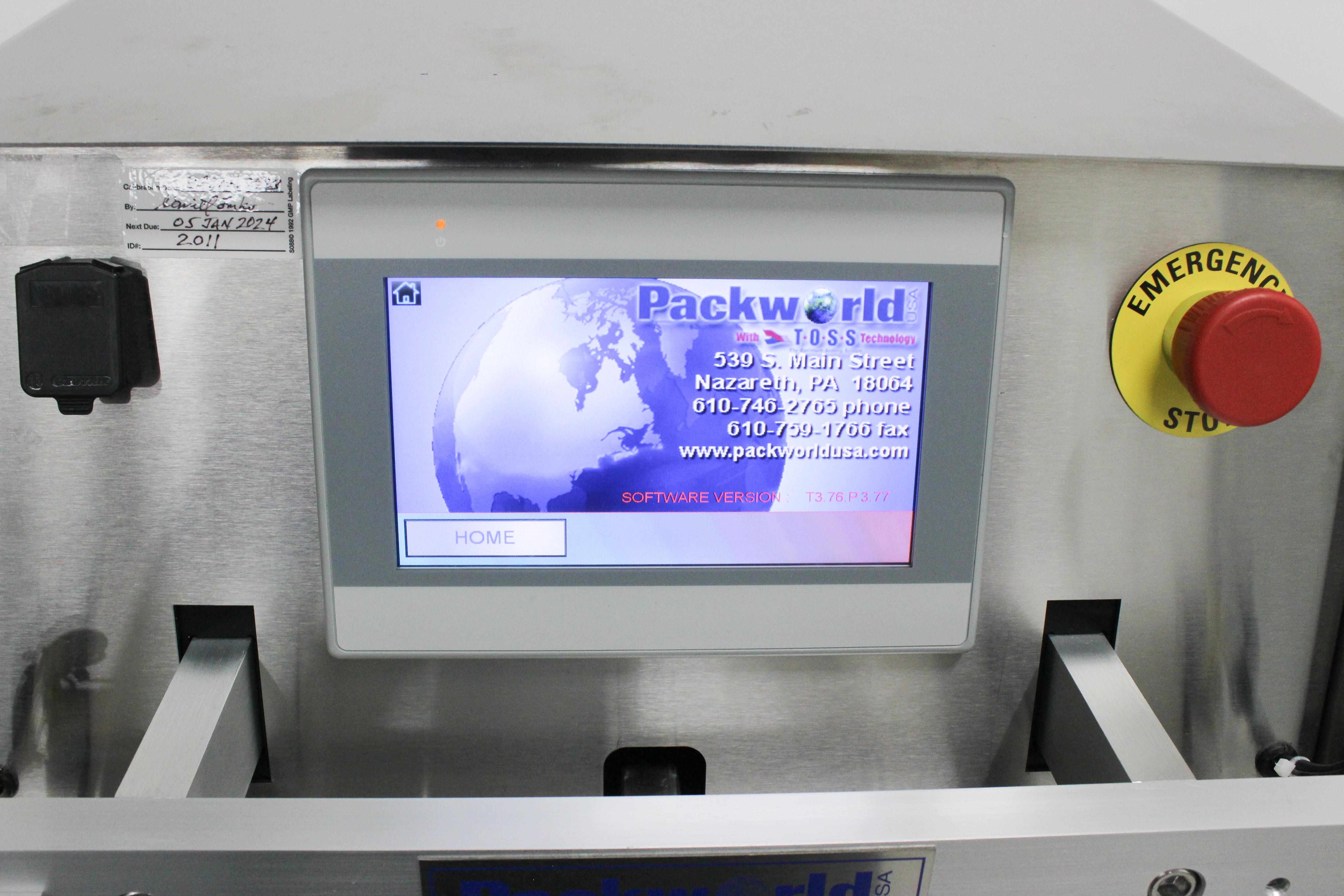

- TOSS Touch Screen control

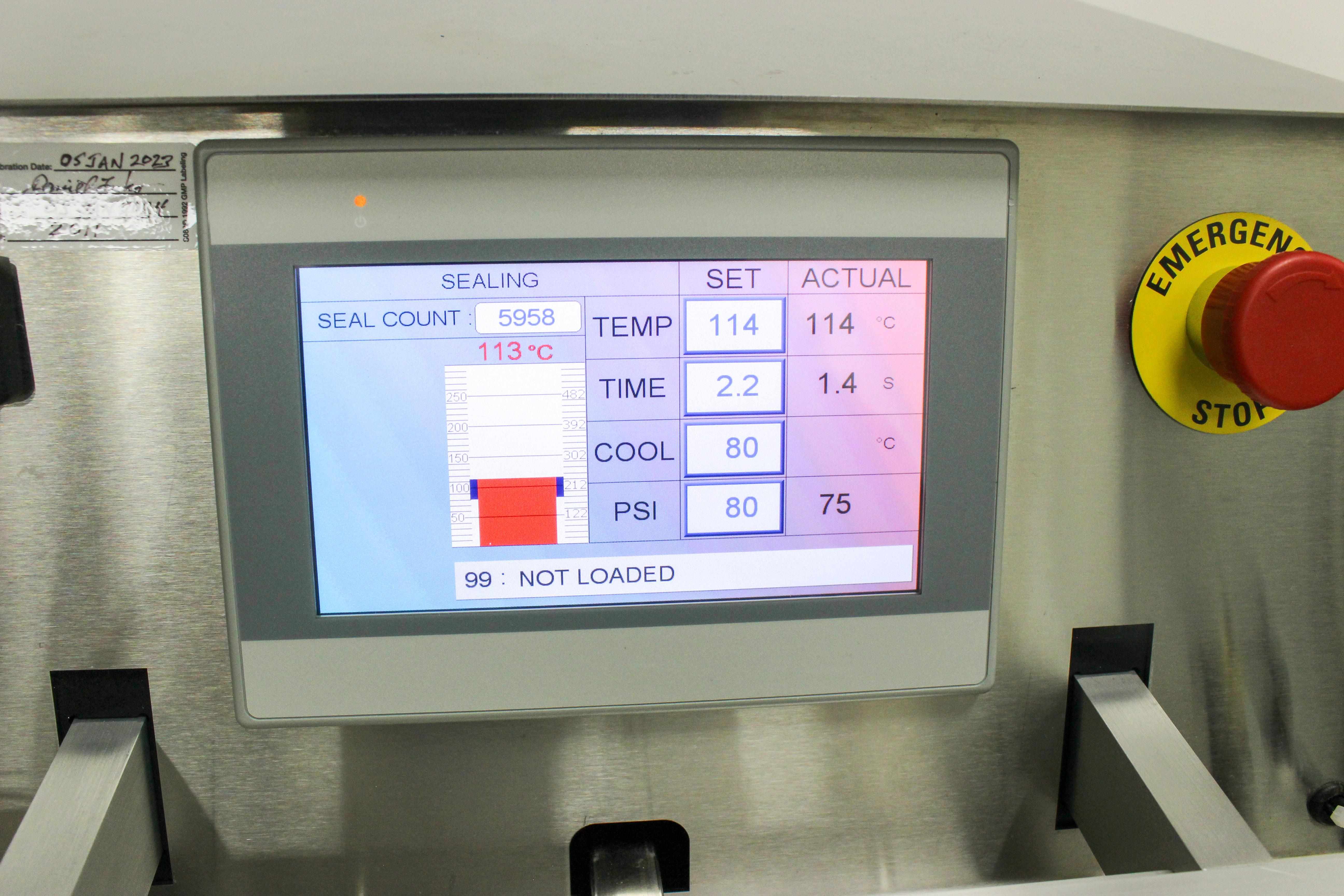

- Graphical temperature/time/pressure display
- Validatable and ISO 11607 compliant
- RoHS compliant
- Programmable settings for time, temperature, pressure
- Vacuum/Purge, Seal Only operations
- Real-time process controls
- AUTOCAL for automatic Zero Calibration
Specifications

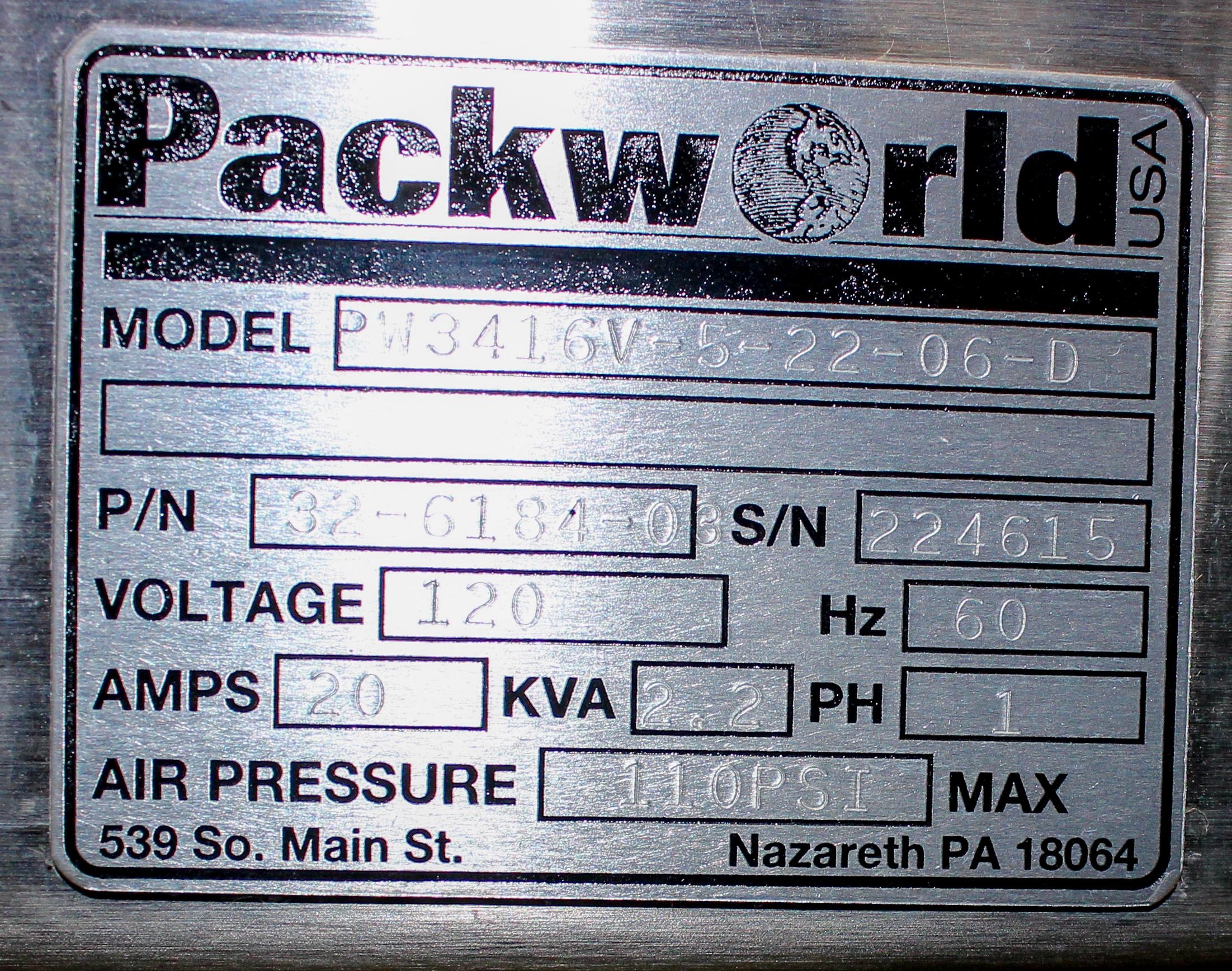

- Manufacturer: Packworld USA
- Model: PW3416V-5-22-06-D
- Sub-Model: 32-6184-0
- Serial number: 224615
- Voltage: 120 VAC
- Frequency: 60 Hz
- Phase: Single
- Max Air Pressure: 110 PSI
- Heat Seal Length: 16 and 24 Inches
- Heat Seal Width: 2 - 10 mm
- Temperature Range: 300°C (Optional 500°C)
- Timers: 0.1 - 98.9 Seconds
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 27.6 lb x 62.4 lb
Metric: 82.3 cm x 70.1 cm x 158.5 cm
Harmonized Code
84798997
Harmonized Code Details
The harmonized code 84798997 covers machines and mechanical appliances having individual functions not specified elsewhere in Chapter 84. This code fits as the Packworld PW3416V-5-22-06-D is a specialized heat sealing machine used in industrial applications.
