Keyence IM-7030T System, Image Dimension Measurement, Telecentric Optics
Keyence
Details
-
CategoryOther
-
Dimension48.0in x 40.0in x 43.0in
-
Serial8C910160
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

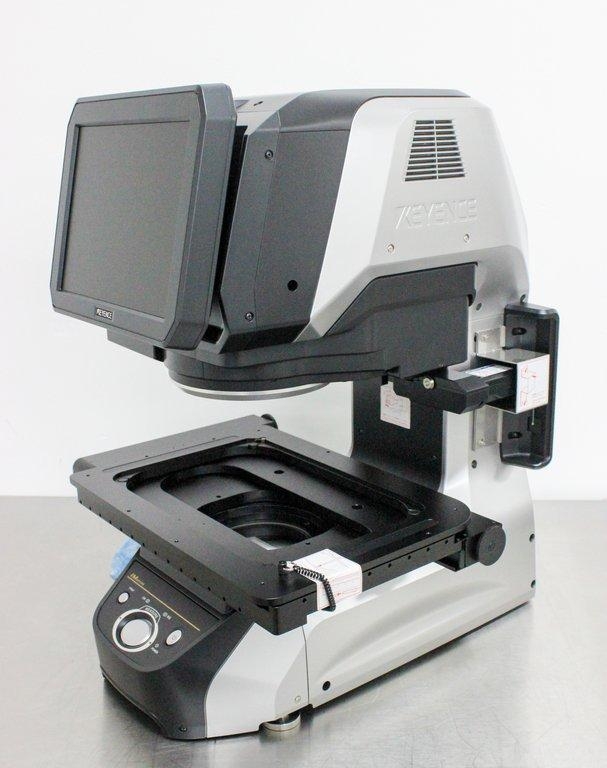

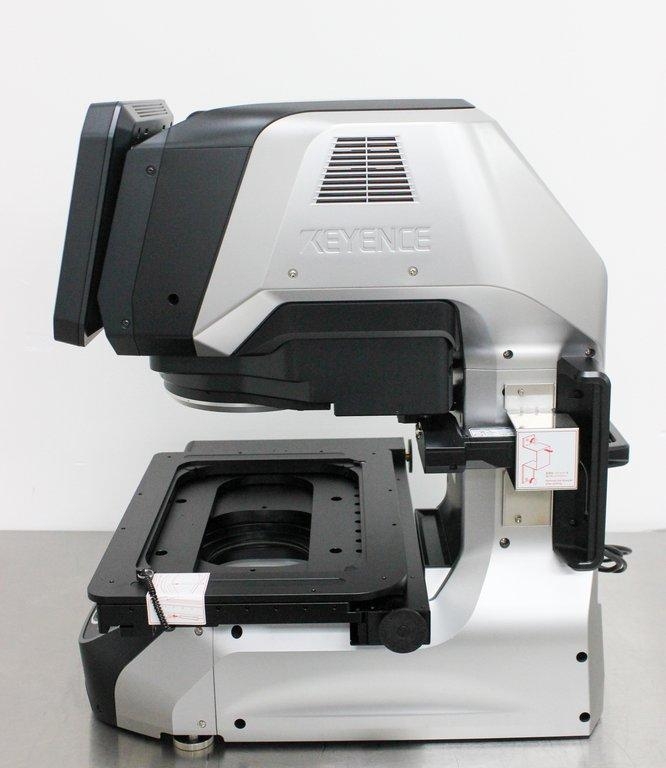

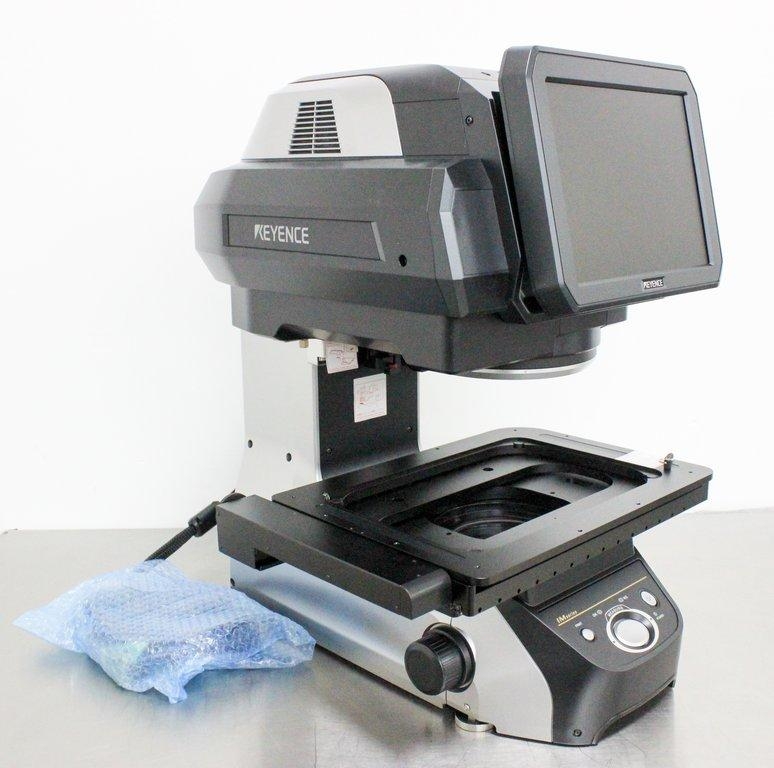

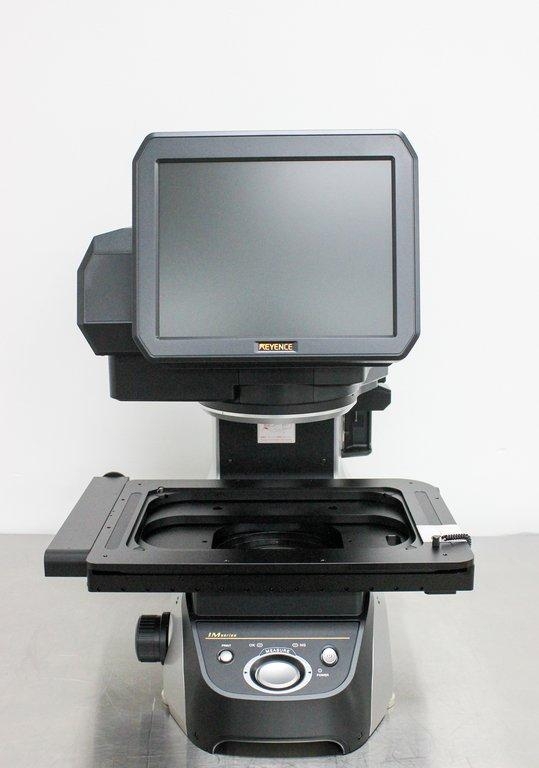

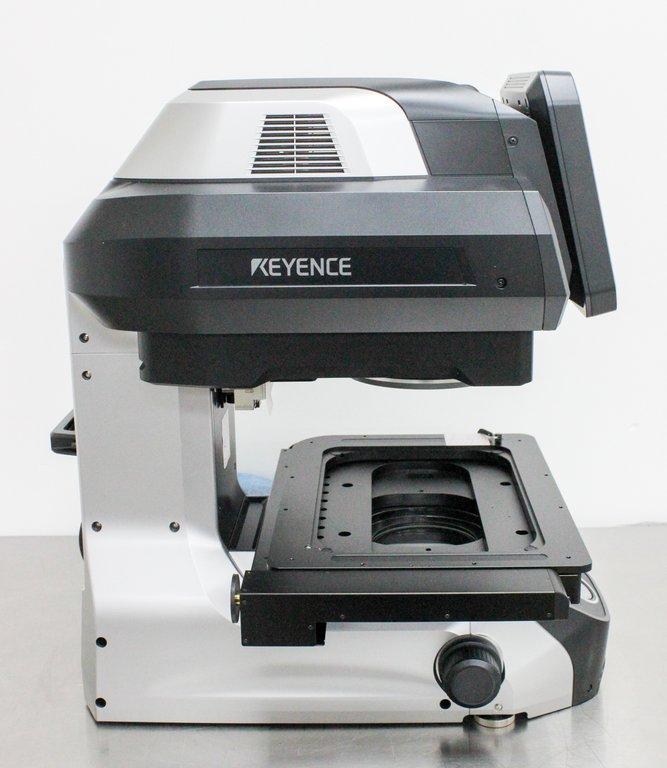

The Keyence IM-7030T Image Dimension Measuring System is designed for high-precision, rapid measurements of small or intricate parts. Featuring advanced telecentric optics and high-resolution CMOS imaging, it accurately measures up to 99 dimensions without manual alignment. With repeatability down to ±1 µm, it's ideal for quality control and statistical process analysis in manufacturing environments. This system, part of the Keyence IM Series, includes instant measurement capabilities, automated reporting, and a user-friendly interface, making it suitable for a variety of industries. Application areas include machinings such as dimensional inspection of parts, in-process quality checks, and rapid inspection in diverse production scenarios.
Technician comment
Keyence IM-7030T Image Dimension Measuring System is NEW in box. Everything pictured included. System includes: IM-7030T- Instant Measurement System IM head Unit, IM-7501-IM Conroller Unit, IM-M75A Accessory set, IM-SG3 Tempered glass 8x12 for Stage, 0P-88215 Flat Stylus for IM-7030T, OP-99021 Standard AC Cable LC,LT,LS,VH,VK, etc, IM-H2C IM Software CAD offline Software, IM-H2EA IM Software Offline Editor Software.
Key Features
- Instant measurement capabilities for up to 99 dimensions
- Advanced telecentric optics for consistent measurements
- High-resolution CMOS imaging technology
- Repeatability down to ±1 µm
- User-friendly interface for easy operation
- Automated report generation for reduced documentation errors
- Compact design suitable for manufacturing and quality control environments
Specifications
- Model: IM-7030T
- Type: Automated Measurement System
- Image Sensor: 1” 6.6 megapixel monochrome CMOS
- Display: 10.4” LCD (XGA: 1024 × 768)
- Receiver Lens: Double telecentric lens
- Measurement Modes: Wide-field (300 mm × 200 mm), High-precision (225 × 125 mm)
- Minimum Display Unit: 0.1 µm
- Repeatability Standard: ±1 µm (without binding)
- Interface Support: RJ-45, USB 3.1, USB 2.0
- Stage Movement: XY 200 × 100 mm, Z 75 mm
- Power: 100-240 VAC, 50/60 Hz, 430 VA max consumption
Weight
Imperial: 120.0 Pounds
Metric: 54.43 Kilograms
Shipping Dimensions
Imperial: 57.6 lb x 48.0 lb x 51.6 lb
Metric: 146.3 cm x 121.92 cm x 131.06 cm
Harmonized Code
9031809070
Harmonized Code Details
The code 9031809070 refers to measuring and checking instruments, appliances, and machines not elsewhere specified or included in this chapter. The Keyence IM-7030T’s advanced measuring capability and application place it under this category.
