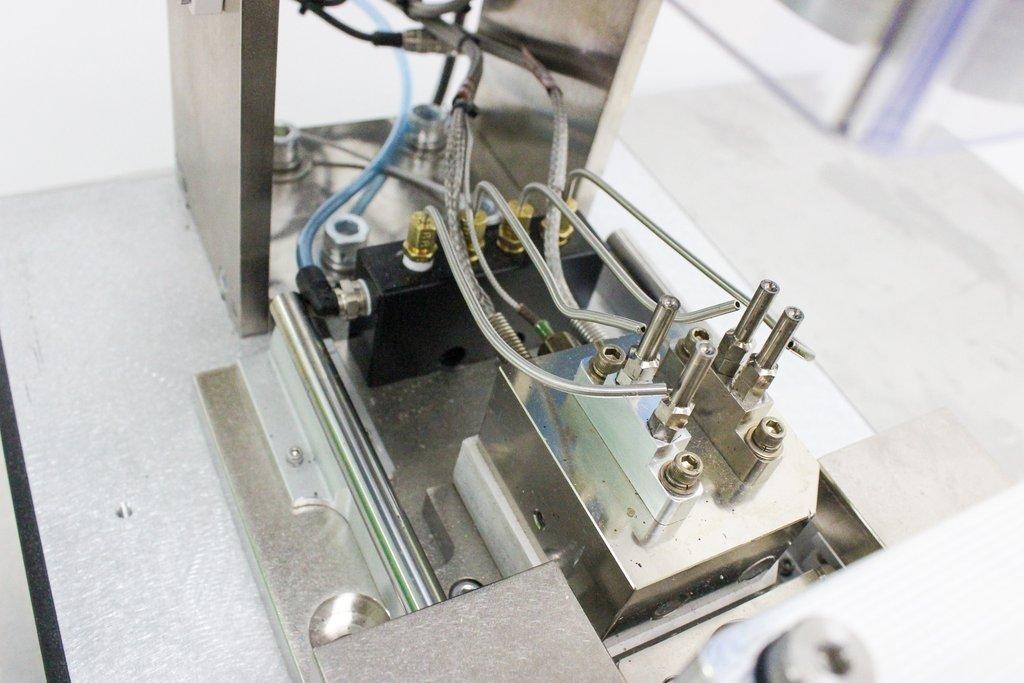

Sonitek SU-5 Thermal Press Heatstaking Compact System 120V 50/60Hz 0-1400lb
Sonitek
Details
-
CategoryProduction / Manufacturing
-
Dimension25.0in x 20.0in x 39.0in
-

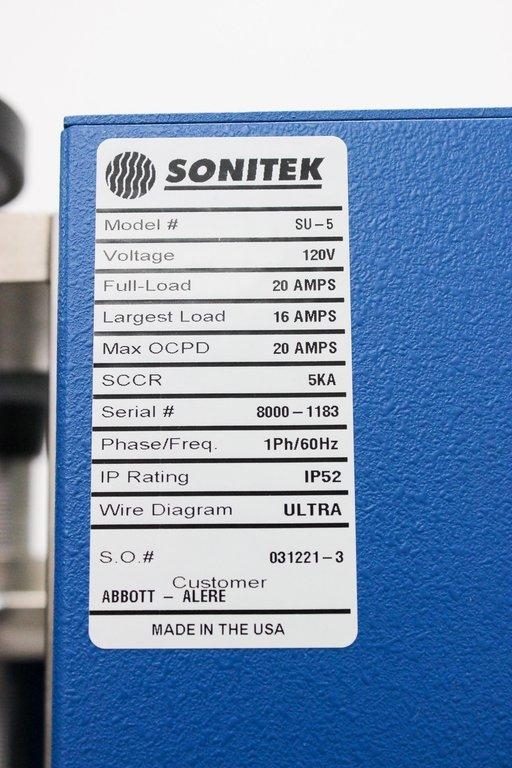

Serial8000-1183
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

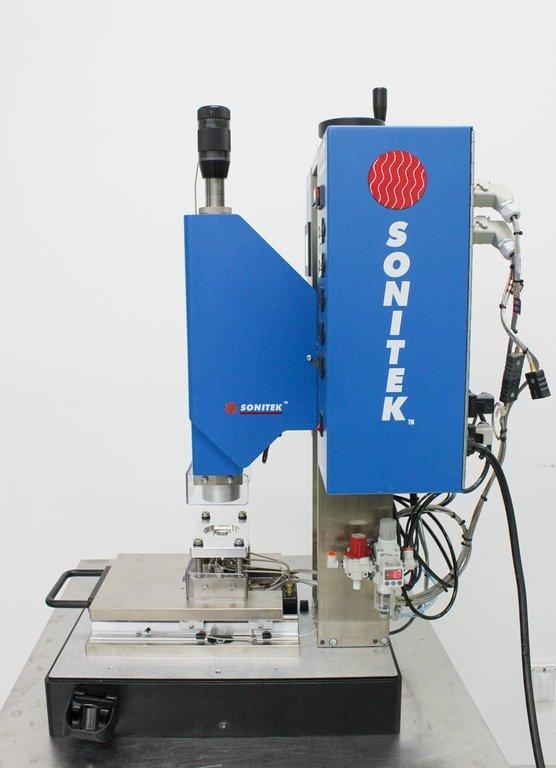

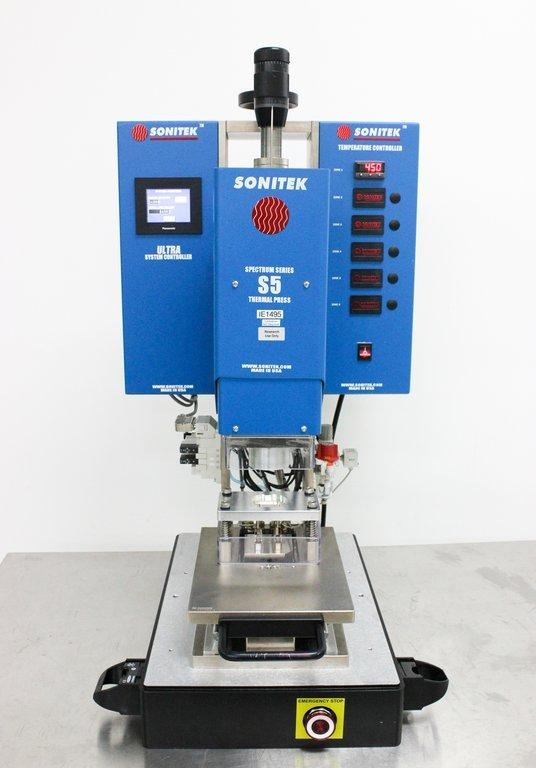

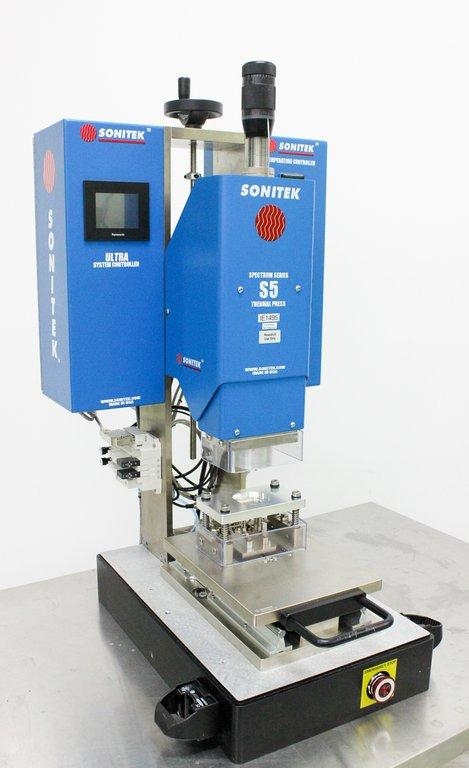

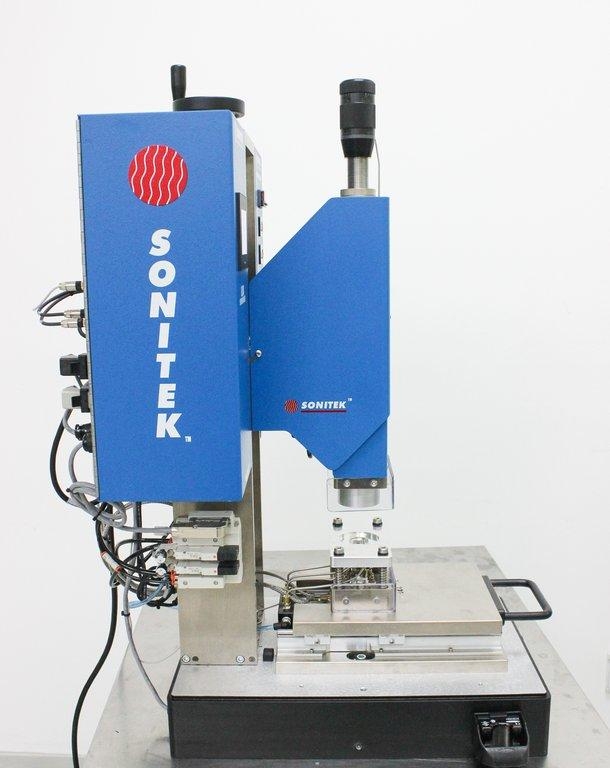

Presenting the Sonitek SU-5 Spectrum Series S5 Thermal Press, made in the United States. This advanced, compact bench-top thermal press features a 4.3" color touch screen (HMI) and is suitable for various heatstaking, sealing, forming, insertion, swaging, and riveting tasks in precision assembly operations. Operating on a 120V or 240V power supply, it offers closed-loop process controls for thermal secondary and sealing operations with pressing forces ranging from 0-1400 lbs. Despite cosmetic wear, it powers on and performs basic tests well, suggesting full functionality. Ideal for industries where precision matters, the SU-5 simplifies implementation and operation costs and provides many optional accessories and advanced safety features, making it a reliable choice for efficient production floors.
Key Features
- Advanced compact bench-top system
- 4.3" color touch screen HMI
- Closed loop process controls
- 0-1400 lbs pressing force
- 120V or 240V 50/60Hz operation
- Virtually maintenance-free
- Micro-adjustable positive stop
- Optional Velocity & Distance Control Unit
- Pre-lubricated oil-free cylinder
- Dual palm start buttons with Opto-Touch
Specifications
- Power: 120V or 240V, 50/60Hz
- Maximum Force: 325 lbs on part @ 100 PSIG
- Air Consumption: .56 CFM at 5 CPM
- Stroke Length: 4.9" (125mm)
- Head Height Clearance: 0-13" (0-330mm)
- Throat Depth: 4" (100mm)
- Weight: 125 lbs (56kg)
- Operating Temperature: 41-122 °F (5-50°C)
Weight
Imperial: 186.0 Pounds
Metric: 84.37 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 24.0 lb x 46.8 lb
Metric: 76.2 cm x 60.96 cm x 118.87 cm
Harmonized Code
851580
Harmonized Code Details
851580 - Electric laser or other light or photon beam equipment used for soldering, brazing, welding, surface heat treatment, or hot spraying; It aligns with the Sonitek SU-5's function as a thermal press used for heatstaking and sealing operations.
