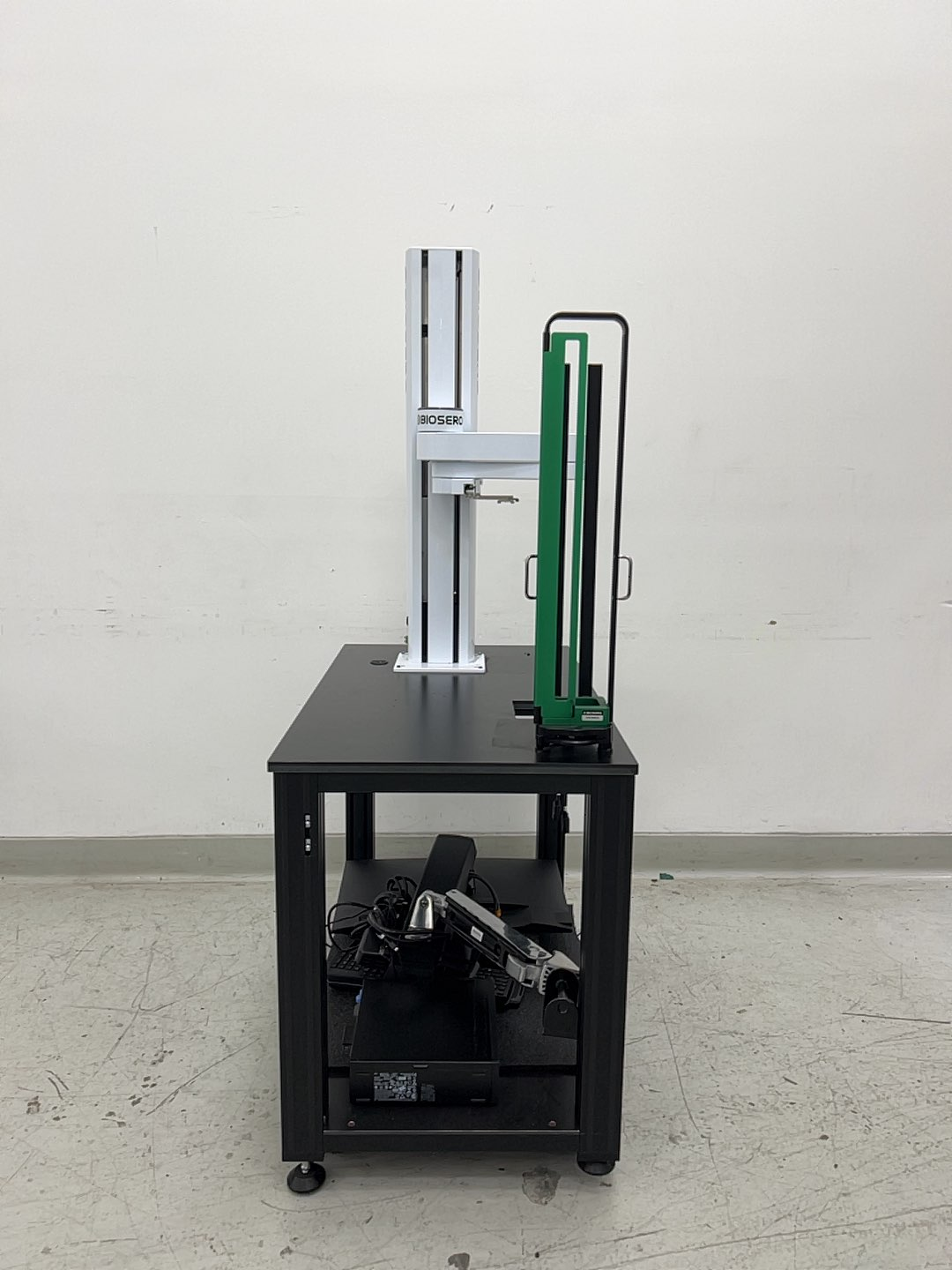

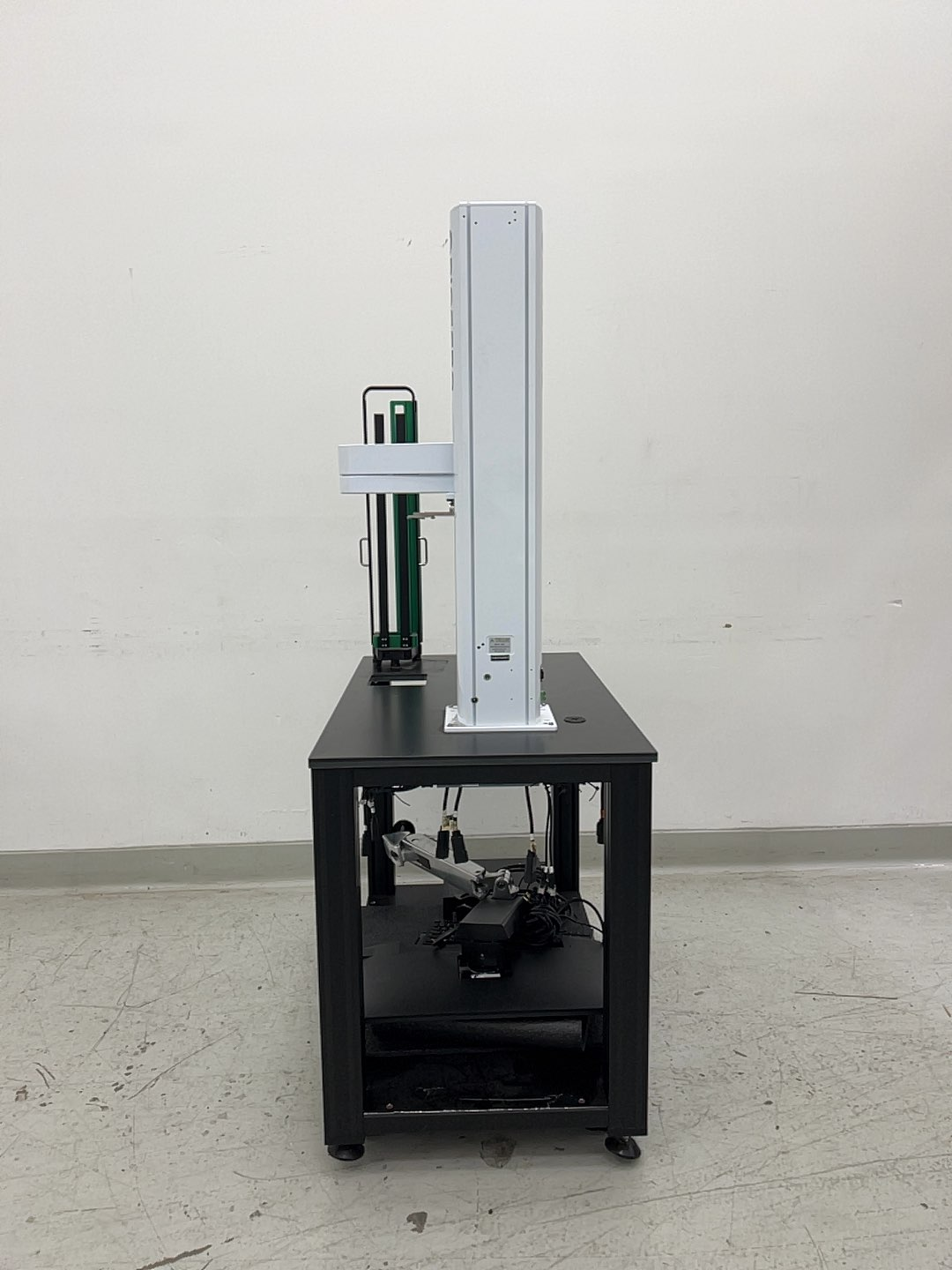

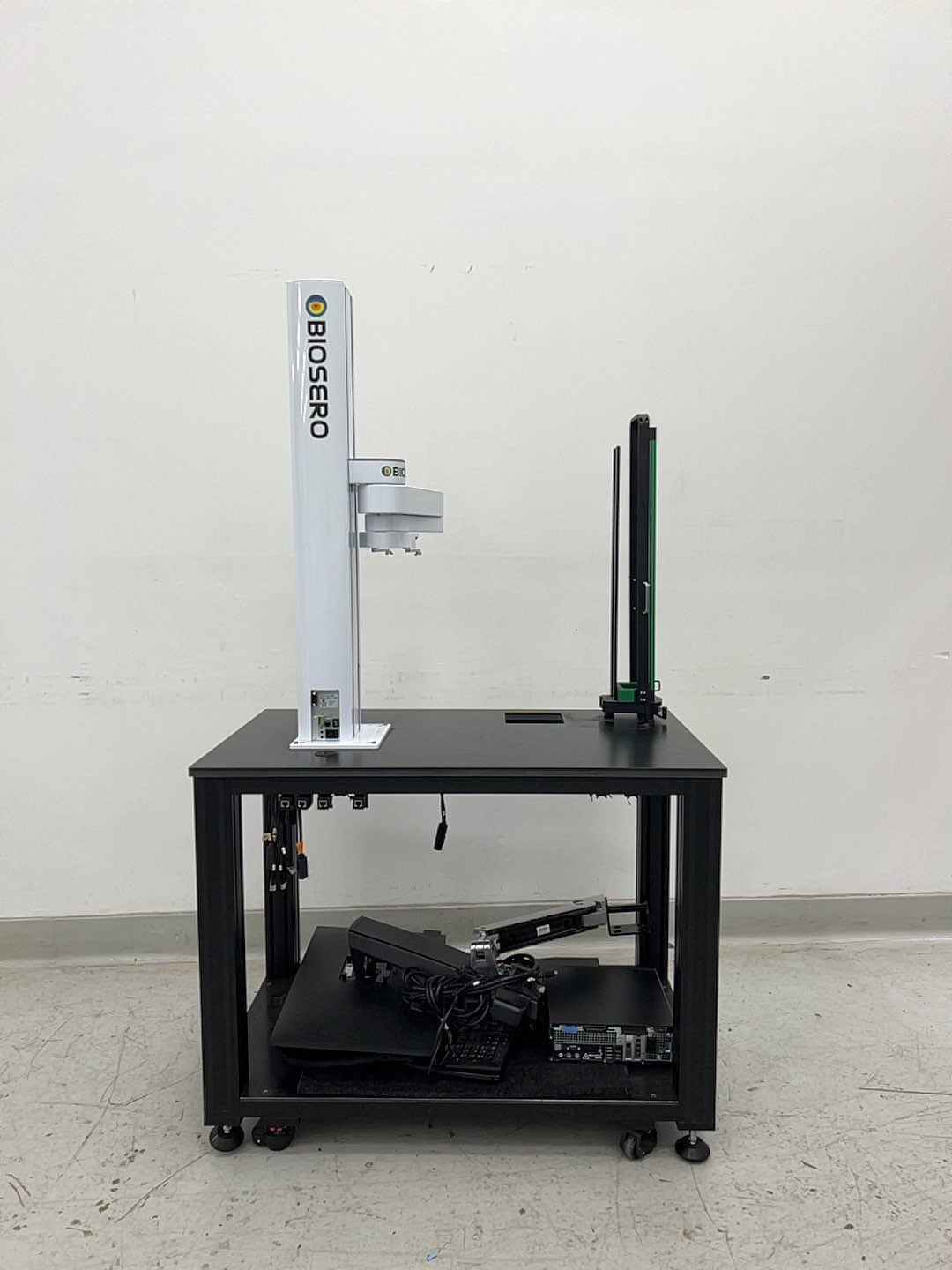

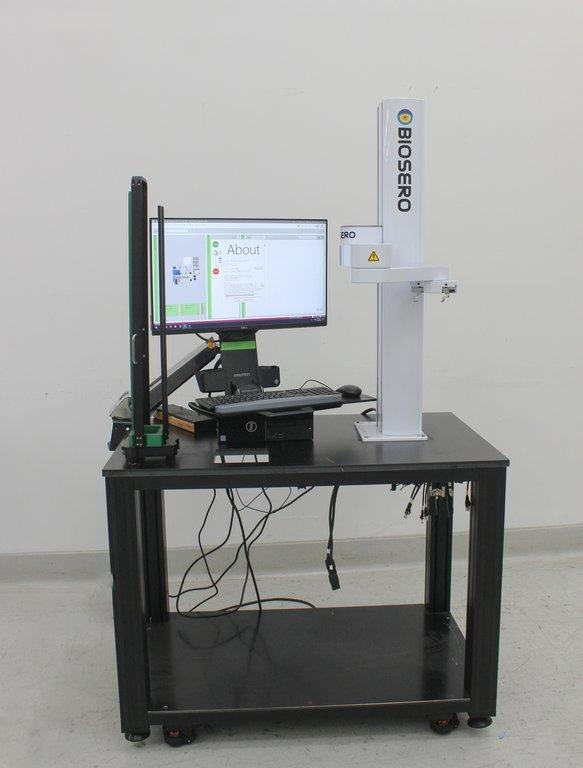

Biosero PF00-MA-00400 Arm Precise Automation Robotic Arm System 500g-2.5kg Capacity
Biosero
Details
-
CategoryRobotic / Automation
-
Dimension26.0in x 41.0in x 76.0in
-

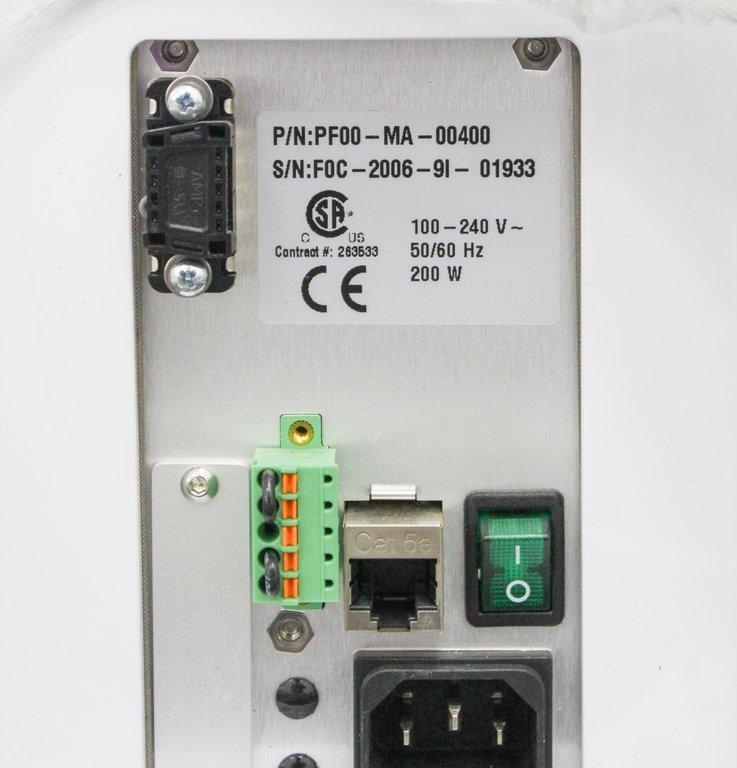

SerialF0C-2006-9I-01933
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The Biosero PF00-MA-00400 Precise Automation Arm System is designed for streamlined automation in Life Sciences, Medical Products, Semiconductors, and Electronics industries. The tabletop robot boasts capabilities to manipulate payloads up to 2.5kg depending on configurations. Key features include silent operations, smooth movements, and high reliability with excellent positioning repeatability. Powered by brushless DC motors with absolute encoders, the unit is equipped for multiple applications, featuring rotational axes on the shoulder, elbow, and wrist, alongside adjustable grippers ideal for precise handling of materials. Comes with a computer with software, though it may need license renewal for enhanced functionality. The sturdy build and comprehensive design make it an apt choice for automating laboratory and production tasks.
Technician comment

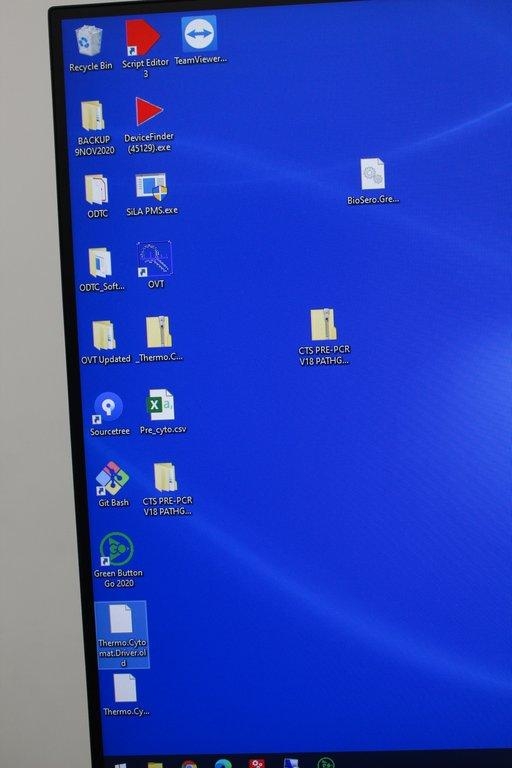

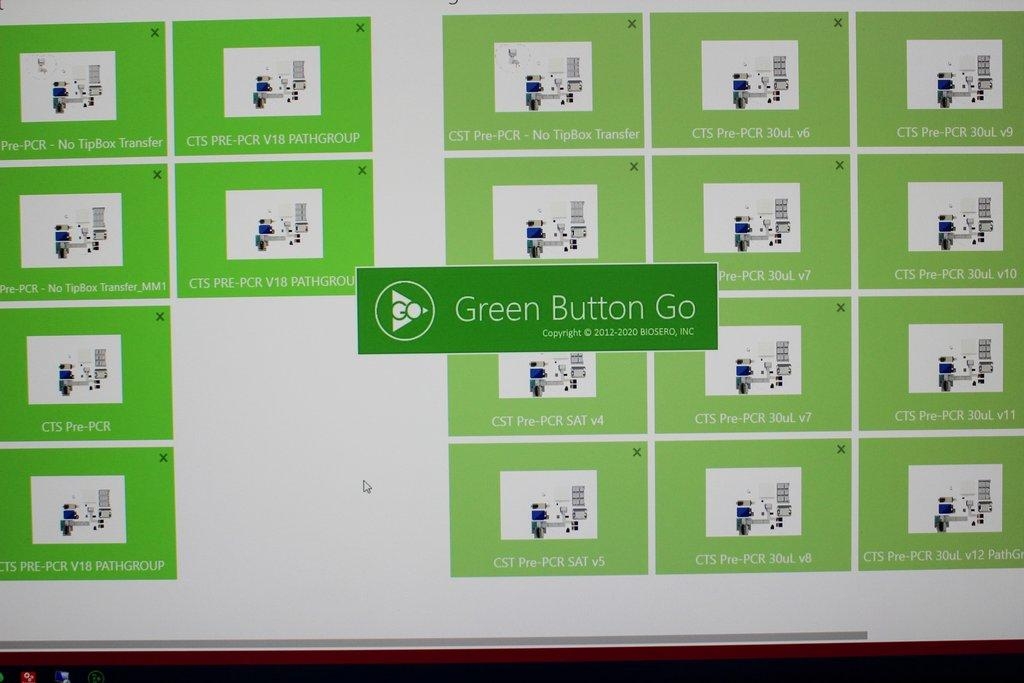

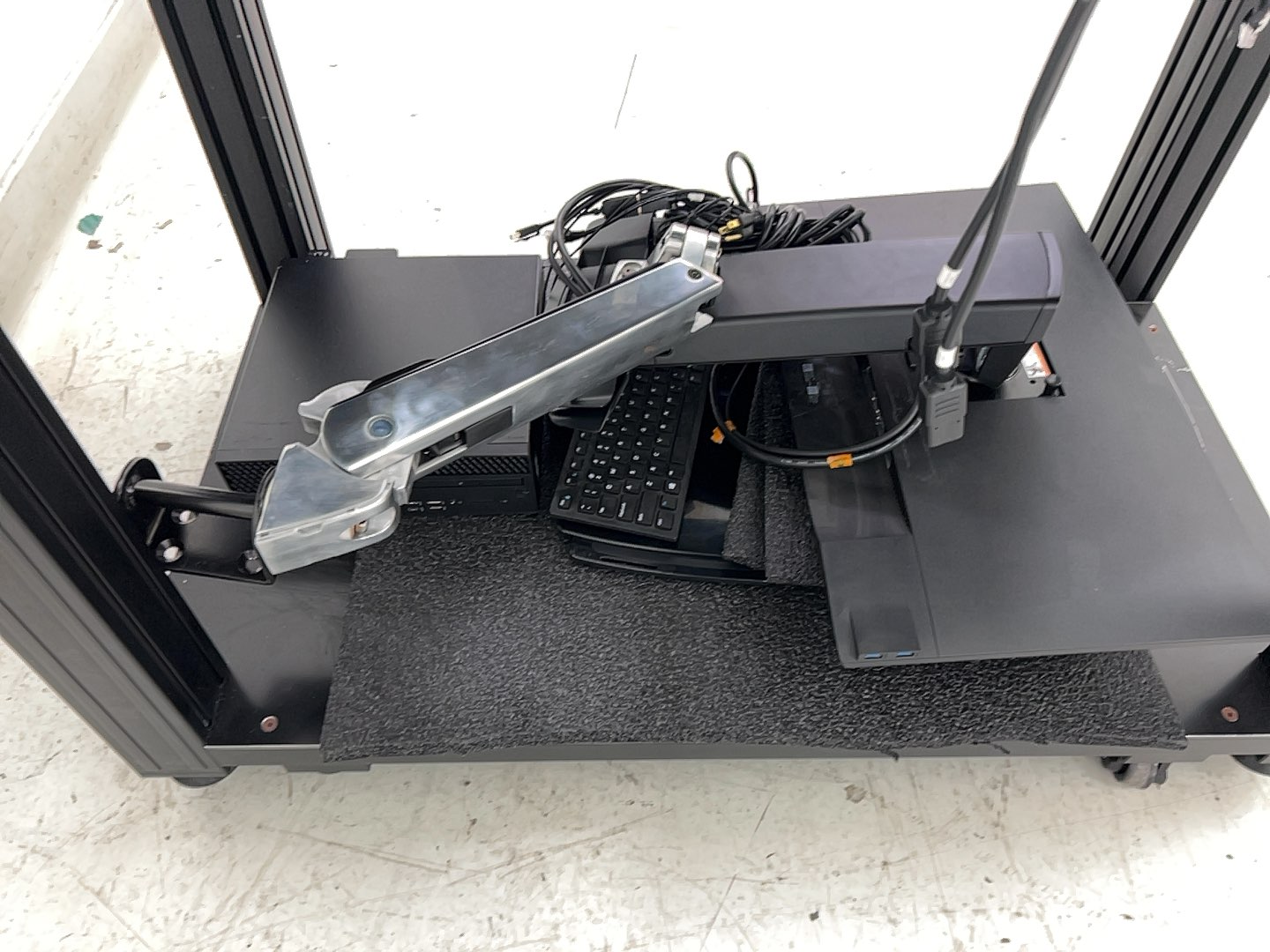

Precise Automation Arm System is preowned with minimal wear from normal use. Software included. (Note: Error Display May need to renew license for better functionality). Everything in pictures is included. Monitor arm mount not attached to table. See photos Password: Biosero
Key Features
- Tabletop design for efficient automation
- Payload capacity from 500g to 2.5kg
- Smooth, silent operations with brushless DC motors
- Excellent positioning repeatability
- Axis rotations: 180° shoulder, 334° elbow, +/-970° wrist

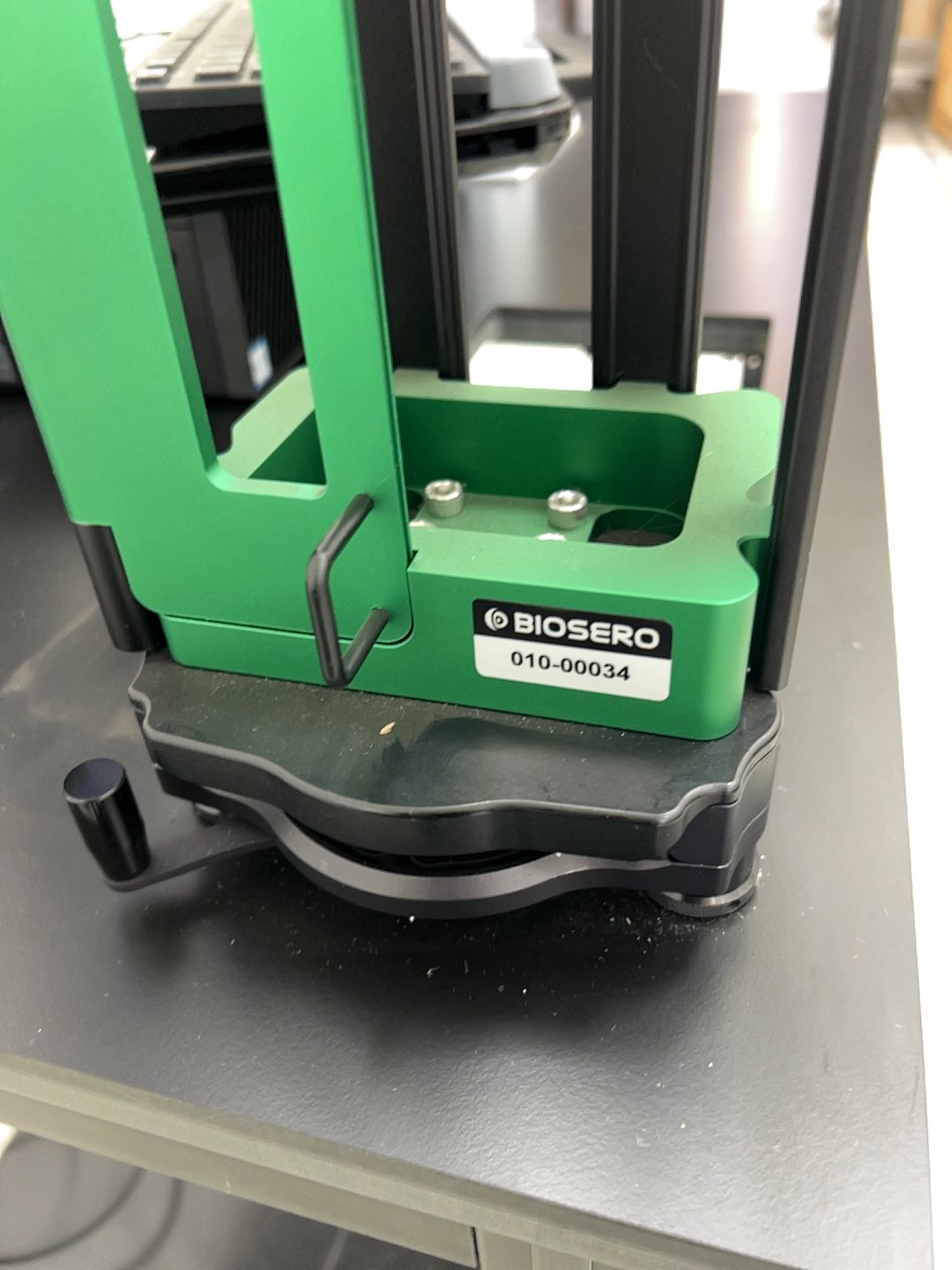

- Adjustable gripper openings: 77mm to 133mm
- Suitability for Life Sciences, Medical, and Electronics industries
- RS-232 and 100Mb Ethernet connectivity
Specifications
- Brand: Biosero
- Model: PF00-MA-00400
- Manufacture Country: United States
- Condition: Good - Preowned with minimal wear
- Power: 100-240V, 50/60Hz
- Communication Ports: RS-232, 100Mb Ethernet
- Pneumatic Line Option: 75 PSI max
- Operational Temperature: 4°C to 40°C
- Storage Temperature: -25°C to +55°C
- Humidity Range: 10% to 90%, non-condensing
- Altitude Operational Capability: Up to 5000m
- Resolution: 10 microns typical
- Repeatability: +/- 0.090 mm overall for x, y & z axes
- Acceleration: 2500 mm/sec² with 500g payload
- Velocity: 500 mm/sec Cartesian max speed
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 49.2 lb x 91.2 lb
Metric: 79.25 cm x 124.97 cm x 231.65 cm
Harmonized Code
84795000
Harmonized Code Details
Harmonized Code 84795000 covers industrial robots, with or without sensors, making it fitting for this robotic automation arm system suitable for laboratory and industrial use.
