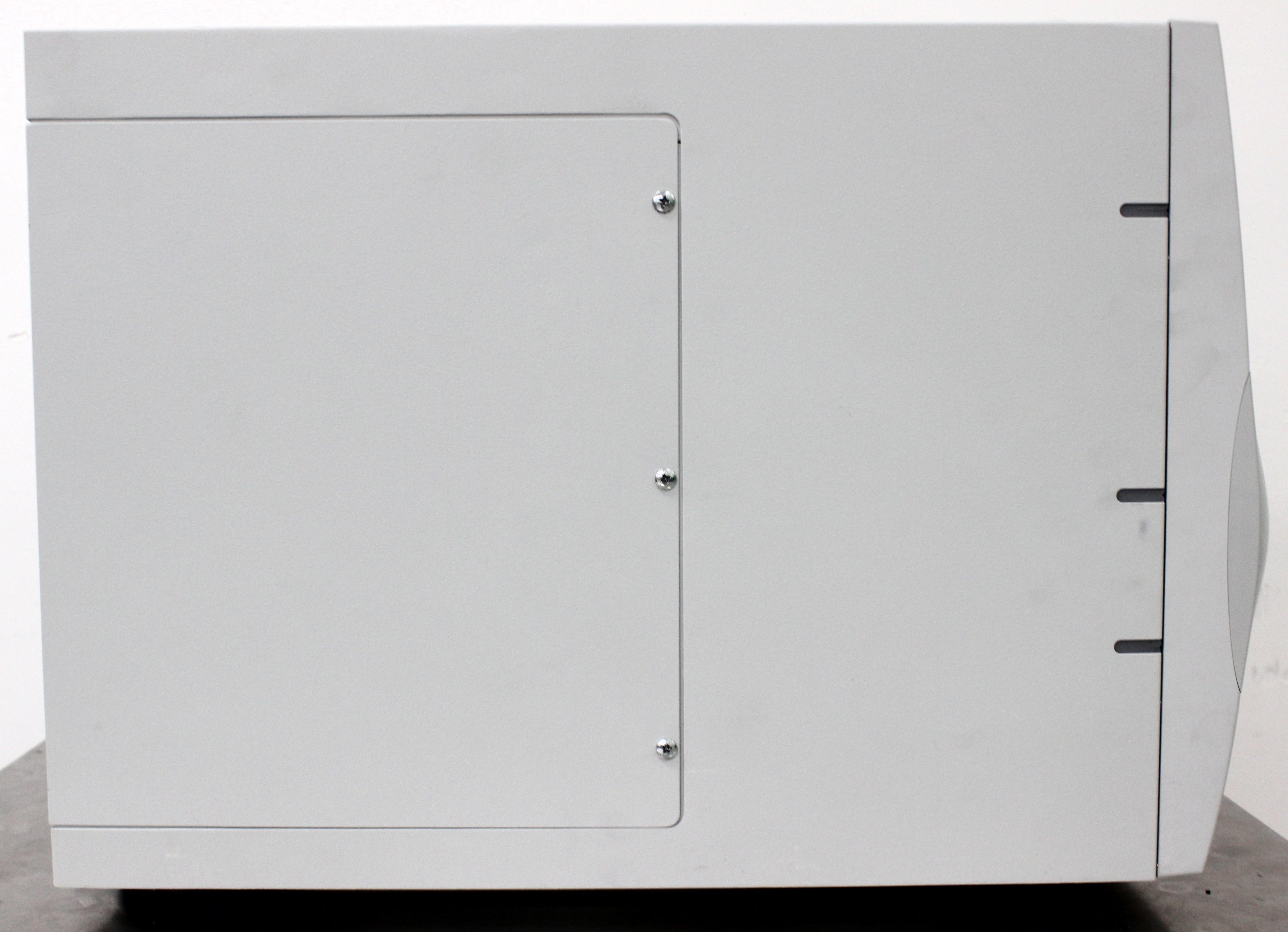

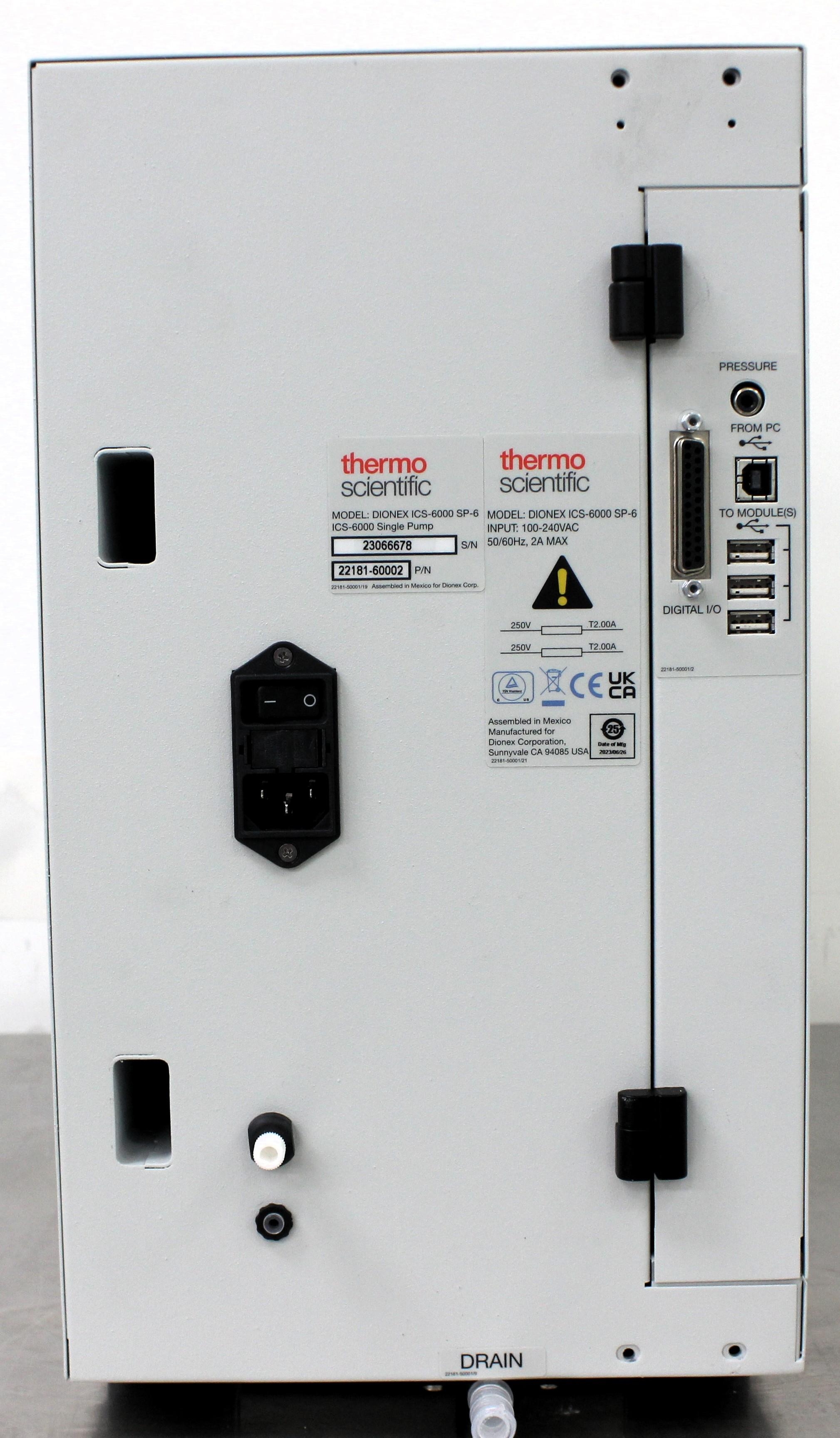

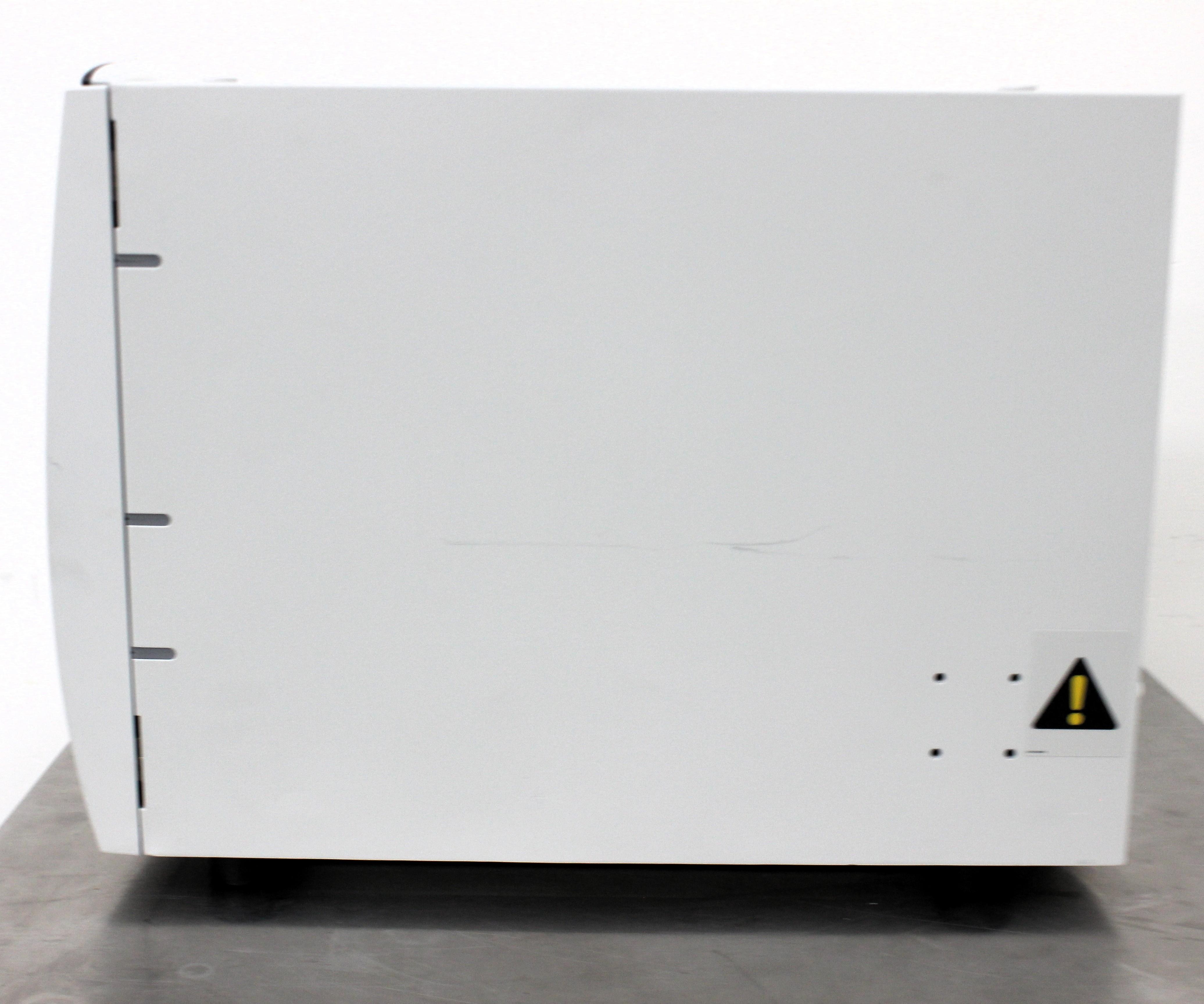

Thermo DIONEX-ICS-6000 SP Pump Analytical Ion Chromatography System VG
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension35.0in x 23.0in x 29.0in
-
Serial23066678
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz90-265V / ccff74b0ea
Description
The Thermo DIONEX-ICS-6000 SP-6, in very good condition, is an analytical, gradient single pump designed specifically for ion chromatography applications. Ideal for the DIONEX-ICS-6000 HPIC system, this pump features a variable-speed, serial-piston design, consistently delivering flow rates and ensuring silent detector baselines. Configurable with capillary or analytical pump heads, it supports a range of chromatography applications – from capillary to semipreparative. This model operates up to 5000 psi with flow accuracy and precision under 0.1%, and its built-in pressure limits allow user-specific shutdown control. Additionally, its inert PEEK construction, integrated piston seal wash, easy fluidics access, and built-in vacuum degas make maintenance user-friendly. Compact with dimensions of 19x8.25x14 inches, this unit requires no power cord, enabling adaptability and multipurpose use within lab environments.
Technician comment
Item powered on and all parts seem to function properly. Does not have power cord.
Key Features
- Variable-speed serial-piston design
- Up to 5000 psi operation
- Supports capillary, microbore, standard bore, and semipreparative IC applications
- Flow accuracy <0.1%
- Inert PEEK construction
- Integrated piston seal wash
- Built-in vacuum degas
- User selectable pressure limits
Specifications
- Ion Chromatography Application
- Voltage: 90 to 265 V AC
- Frequency: 47 to 63 Hz
- Gradient Proportioning Accuracy: ±0.5% at 2 mL/min
- Min. Flow Rate: 0.000 mL/min
- Max. Flow Rate: 10 mL/min
- Overall Dimensions: 19 in depth, 8.25 in width, 14 in height
- Weight: 45 lb / 20.4 kg
- Pressure Range: 0 to 41 MPa
Weight
Imperial: 108.0 Pounds
Metric: 48.99 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 27.6 lb x 34.8 lb
Metric: 106.68 cm x 70.1 cm x 88.39 cm
Harmonized Code
902720
Harmonized Code Details
902720 - Chromatographs and Electrophoresis instruments; This code fits given the model’s focus on ion chromatography applications highly relevant in analytical chemistry for material separation and analysis.
