Cummins DFEH-A045X397 400kW Diesel Generator with Stamford Alternator
Cummins
Details
-
CategoryOther
-
Dimension150.0in x 50.0in x 90.0in
-
SerialM13D160102
-
Shipping TypeFreight
-
Manufacturing2013-01-01
-
Voltage / Hertz480V / 60Hz US
Description
The Cummins DFEH-A045X397 400kW Diesel Power Generator with Stamford Alternator is engineered for robust performance. Manufactured in 2013, this commercial-grade generator provides reliable standby power with a rated output of 400 kW/500 kVA, ideal for data centers, hospitals, manufacturing facilities, or large commercial sites. Operating at 480V, 3-phase, and 60 Hz frequency, it features a power factor of 0.8 and runs on diesel fuel. Equipped with Stamford HCI534C1 alternator and a sound-attenuated weatherproof enclosure, this unit ensures low operational noise levels. It includes a 24V battery system with 4 heavy-duty Cummins batteries, an integrated base fuel tank with a lockable cap, and can consume a maximum of 112 gallons per hour. The system offers continuous duty cycle and has a protective enclosure rating of IP23. Although it shows some wear from previous use, the generator powers on and passes basic tests with no known functionality issues.
Technician comment
Preowned Cummins 400kW Diesel Generator with Stamford Alternator – Low Hours, Ready to Work. FOB: Austin, TX. Buyer to cover rigging.
Key Features
- 400 kW output with 500 kVA standby power
- Durable Stamford HCI534C1 alternator
- 480V, 3-phase electrical configuration
- Continuous operation duty cycle
- Weatherproof, sound-attenuated enclosure
Specifications
- Rated Output: 400 kW / 500 kVA
- Voltage: 480V, 3-phase, Wye-connected
- Frequency: 60 Hz
- Power Factor: 0.8
- Engine Fuel Type: Diesel
- RPM: 1800

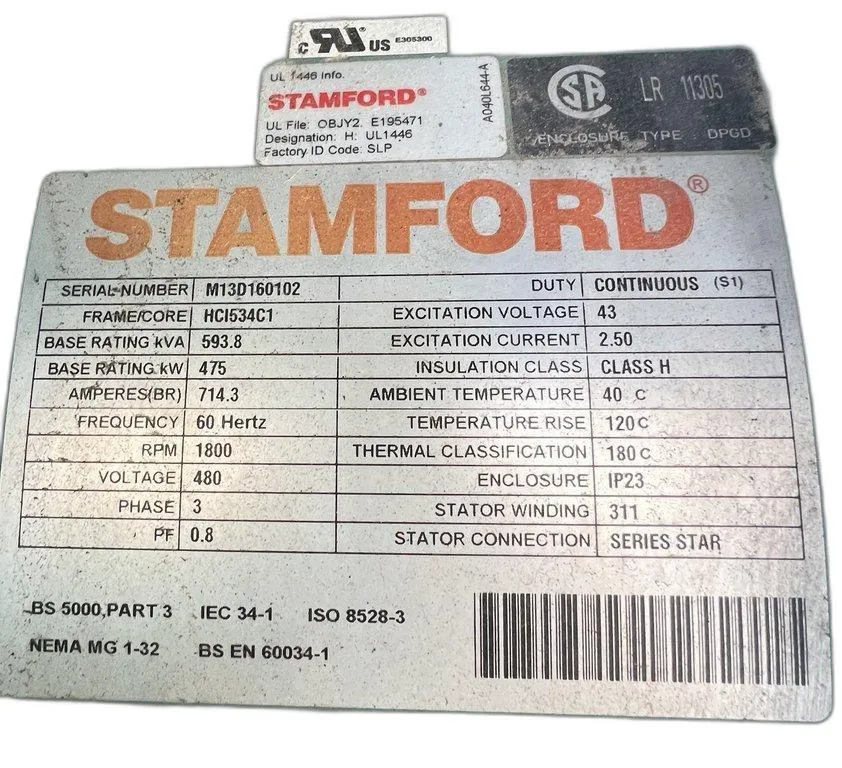

- Alternator: Stamford HCI534C1
- Battery System: 24V, includes 4x 12V Cummins batteries
- Cooling & Exhaust: Enclosed, sound-attenuated, weatherproof
- Fuel System: Base tank with external fill port and lockable cap
- Max Fuel Consumption: 112 gallons/hour
- Duty Cycle: Continuous (S1)
- Enclosure Rating: IP23
- Build Date: 2013
Weight
Imperial: 5400.0 Pounds
Metric: 2449.4 Kilograms
Shipping Dimensions
Imperial: 180.0 lb x 60.0 lb x 108.0 lb
Metric: 457.2 cm x 152.4 cm x 274.32 cm
Harmonized Code
8502.12.00
Harmonized Code Details
8502.12.00 - Generating sets with compression-ignition internal combustion piston engines - Diesel generator sets. This code is used as it represents diesel-based electric generating sets commonly used across various industrial applications.
