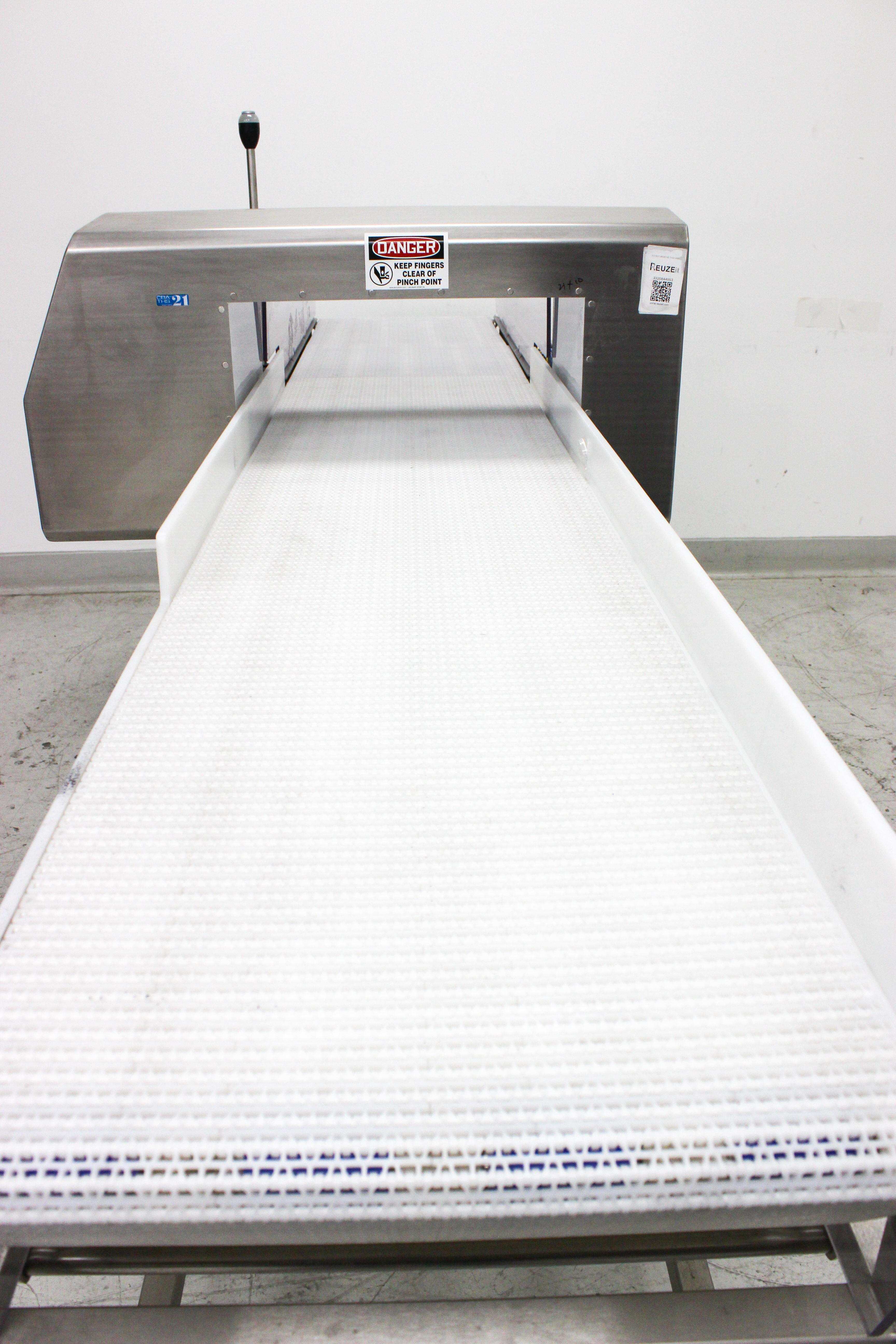

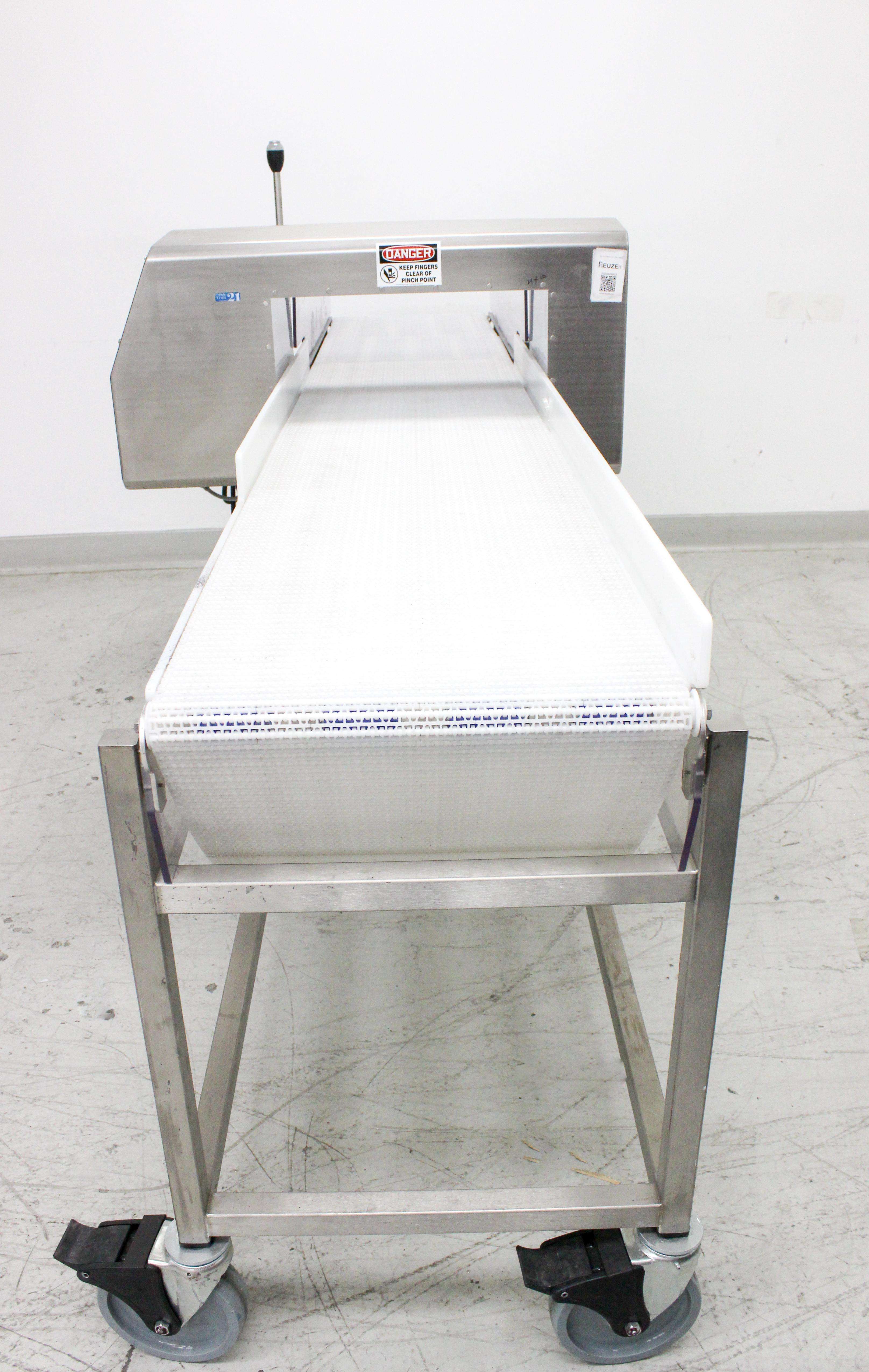

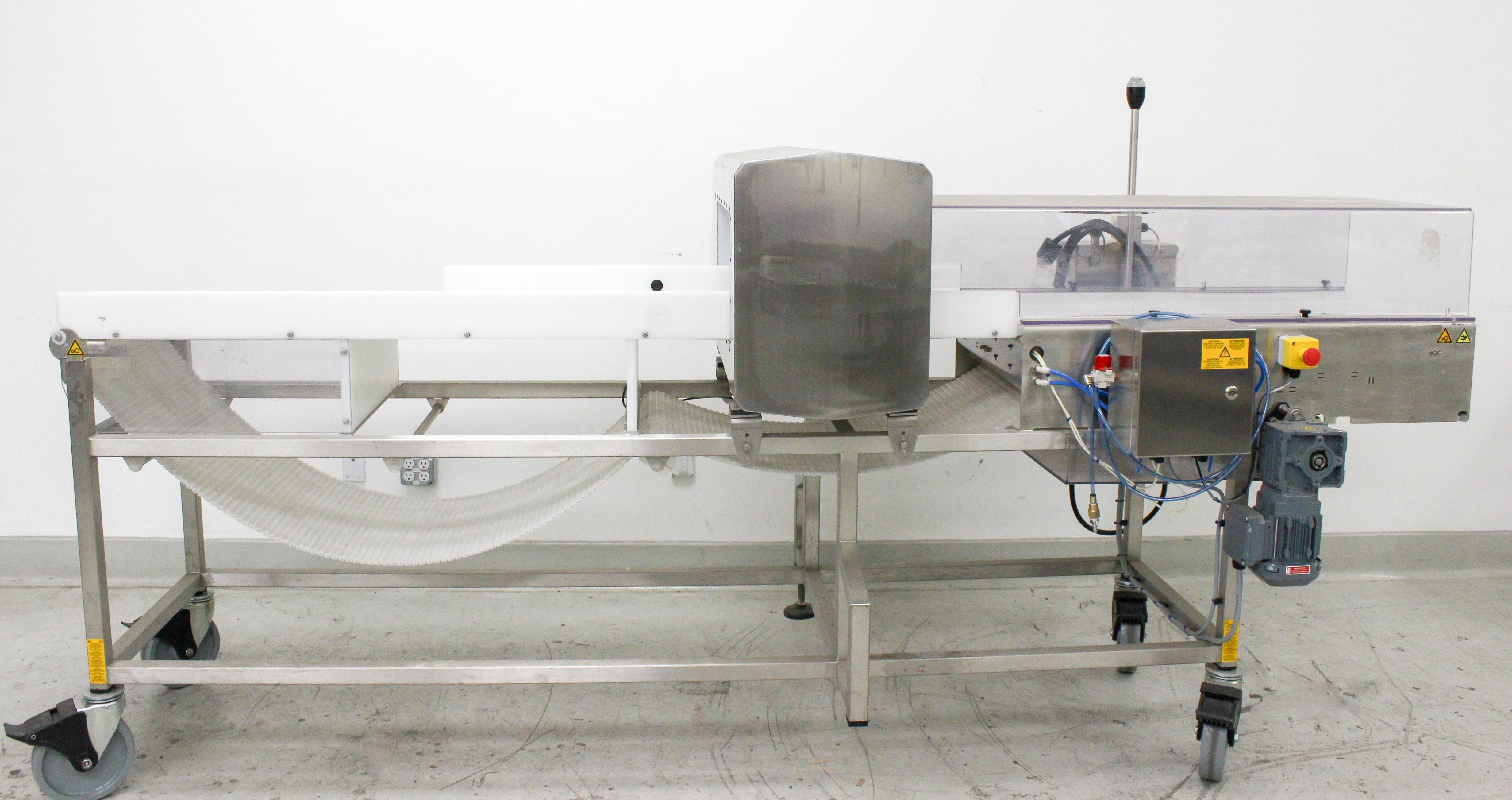

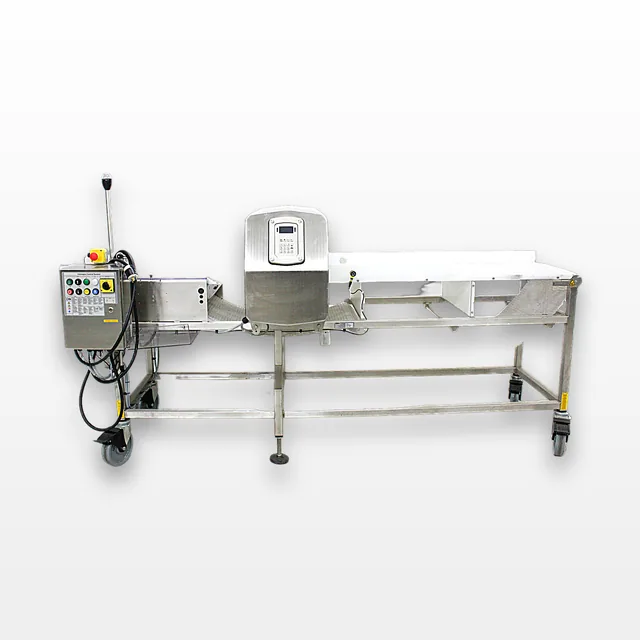

Ceia THS/MS21 Metal Detector Ultra-High Sensitivity IP69K
Ceia
Details
-
CategoryTesting Equipment
-
Dimension85.0in x 37.0in x 40.0in
-

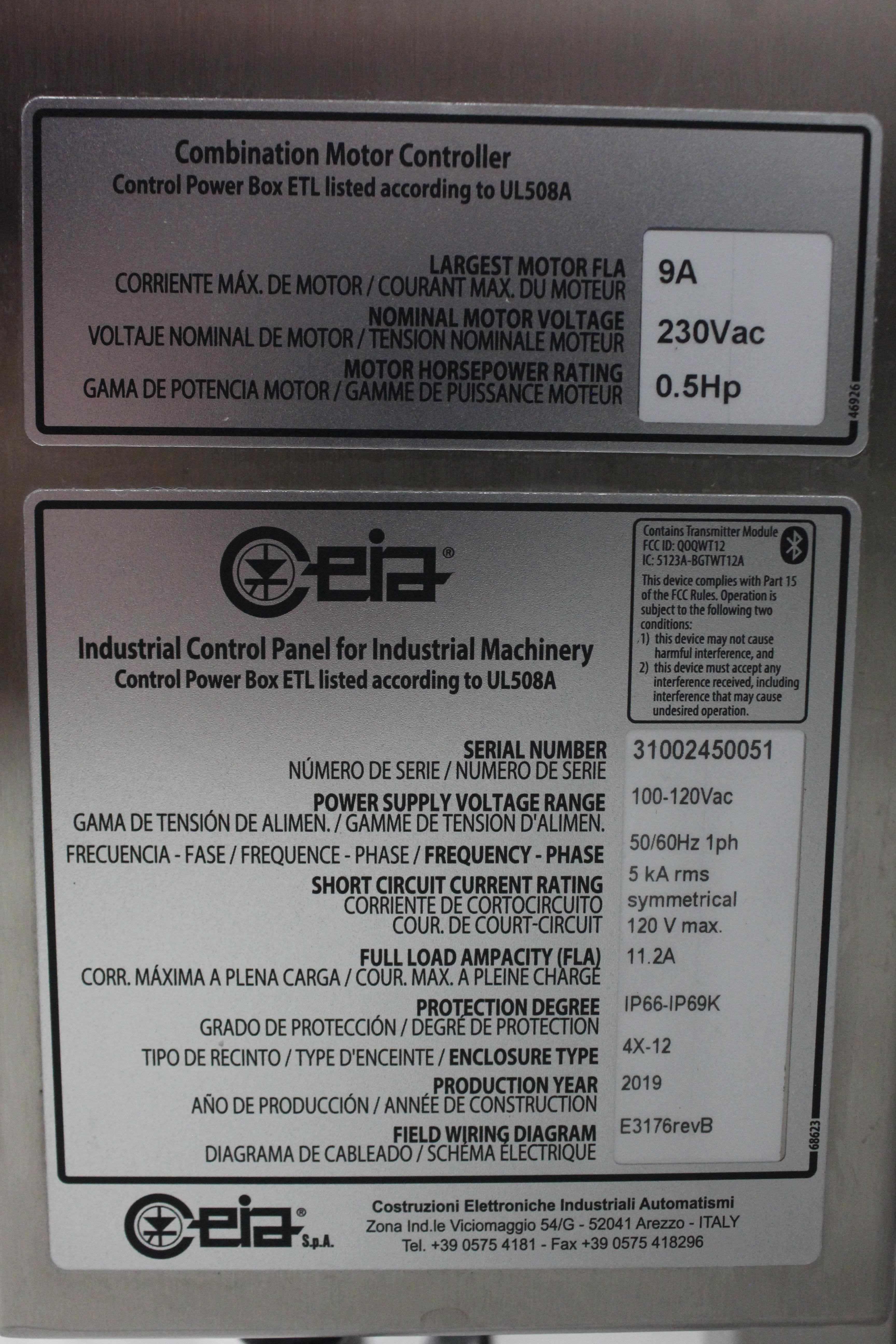

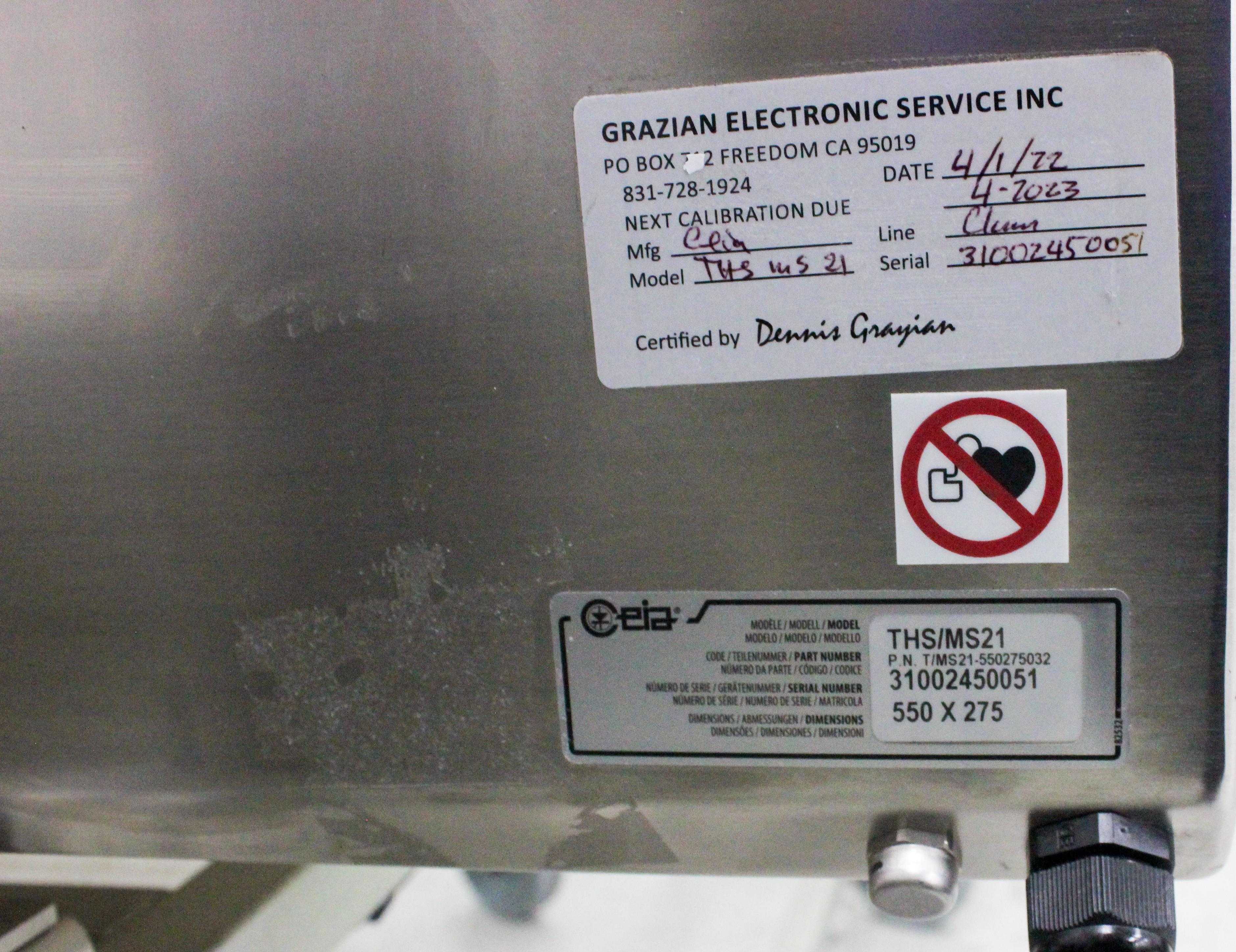

Serial31002450051
-
Shipping TypeFreight
-
Voltage / Hertz120V / 50Hz/60Hz
Description

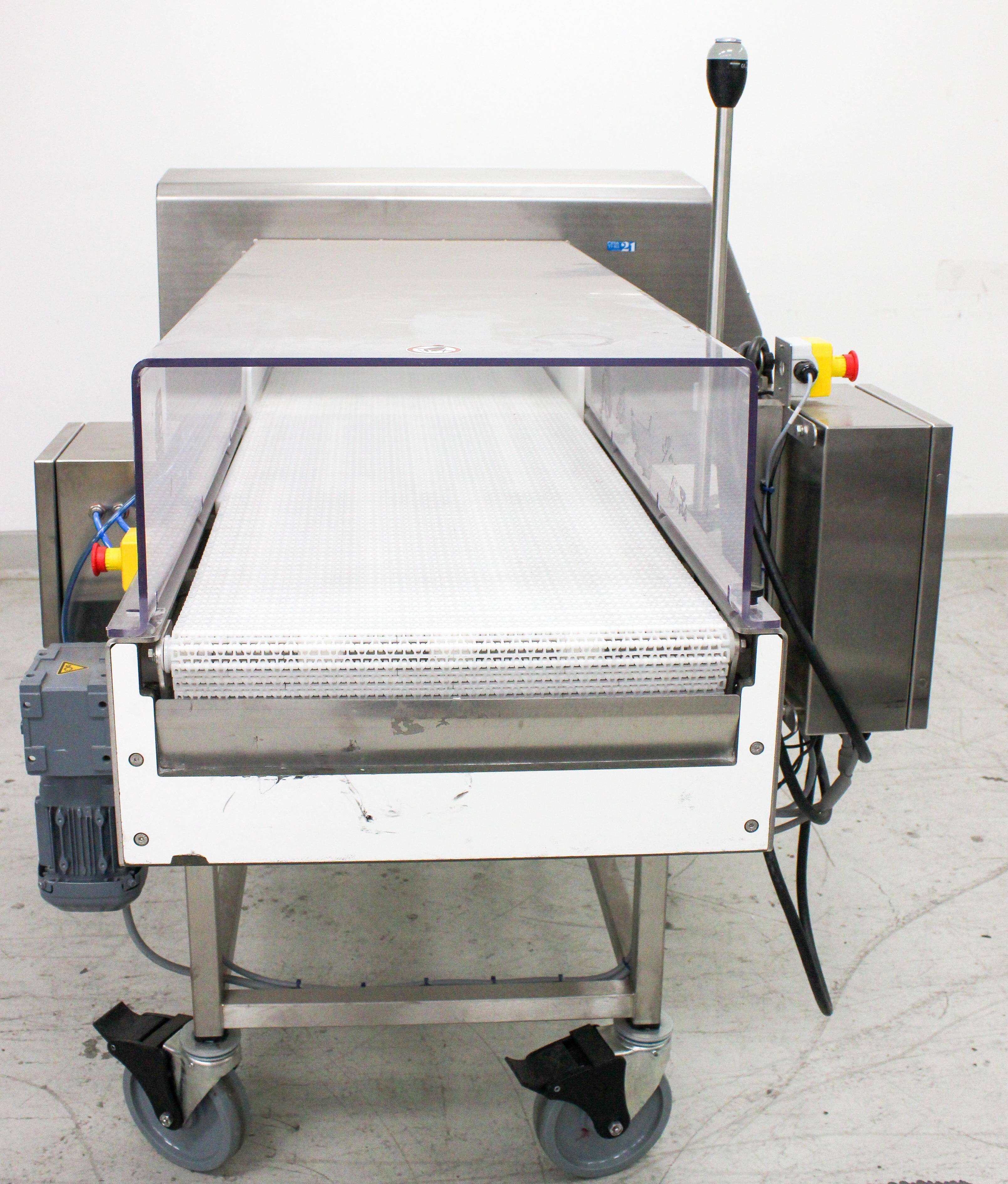

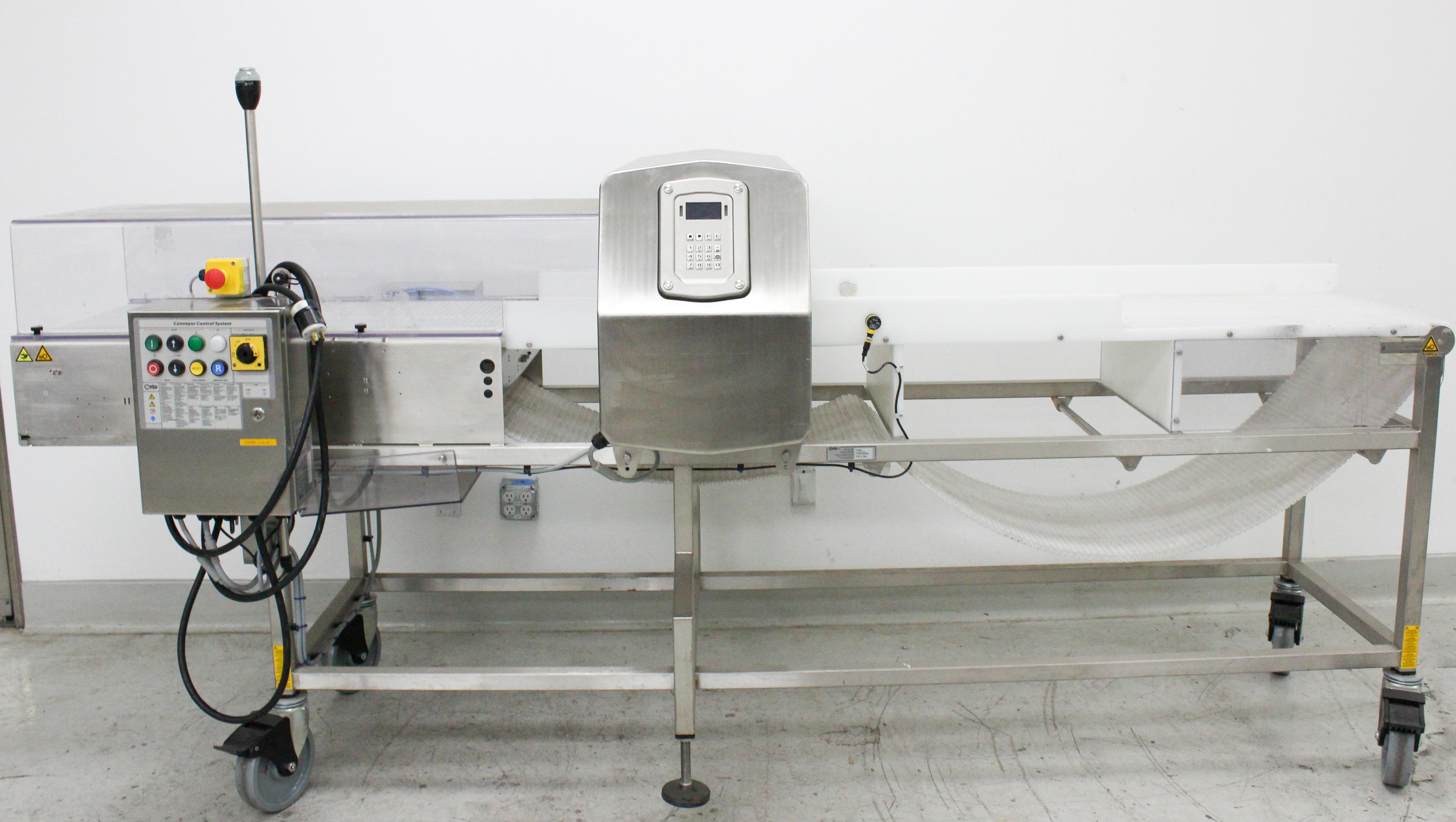

The Ceia THS/MS21 Metal Detector is engineered to identify magnetic, non-magnetic, and stainless steel contaminants with ultra-high detection sensitivity. Constructed from robust AISI 316L stainless steel with food-compatible plastic parts, it ensures washdown durability and compliance with HACCP criteria. This unit offers various ejection systems like belt stop, air blast, and pusher arm to cater to comprehensive applications, while its digitally adjustable belt speed enhances adaptability. Equipped with advanced local and remote connectivity features, the device offers 500 product data memories and sophisticated data management, integrating FDA 21 CFR part 11 compliance. The detector powers on, though initial testing suggests a possible need for repair due to a short circuit in the controller box, affecting the conveyor belt movement, but not the metal detection capability. The device's connectivity includes optional BT wireless communication, Ethernet/WiFi, and RS232 interfaces. Its compact design, enhanced programming capabilities, and adaptable learning functions make it an essential tool for critical environments requiring contaminant detection and compliance assurance.
Technician comment

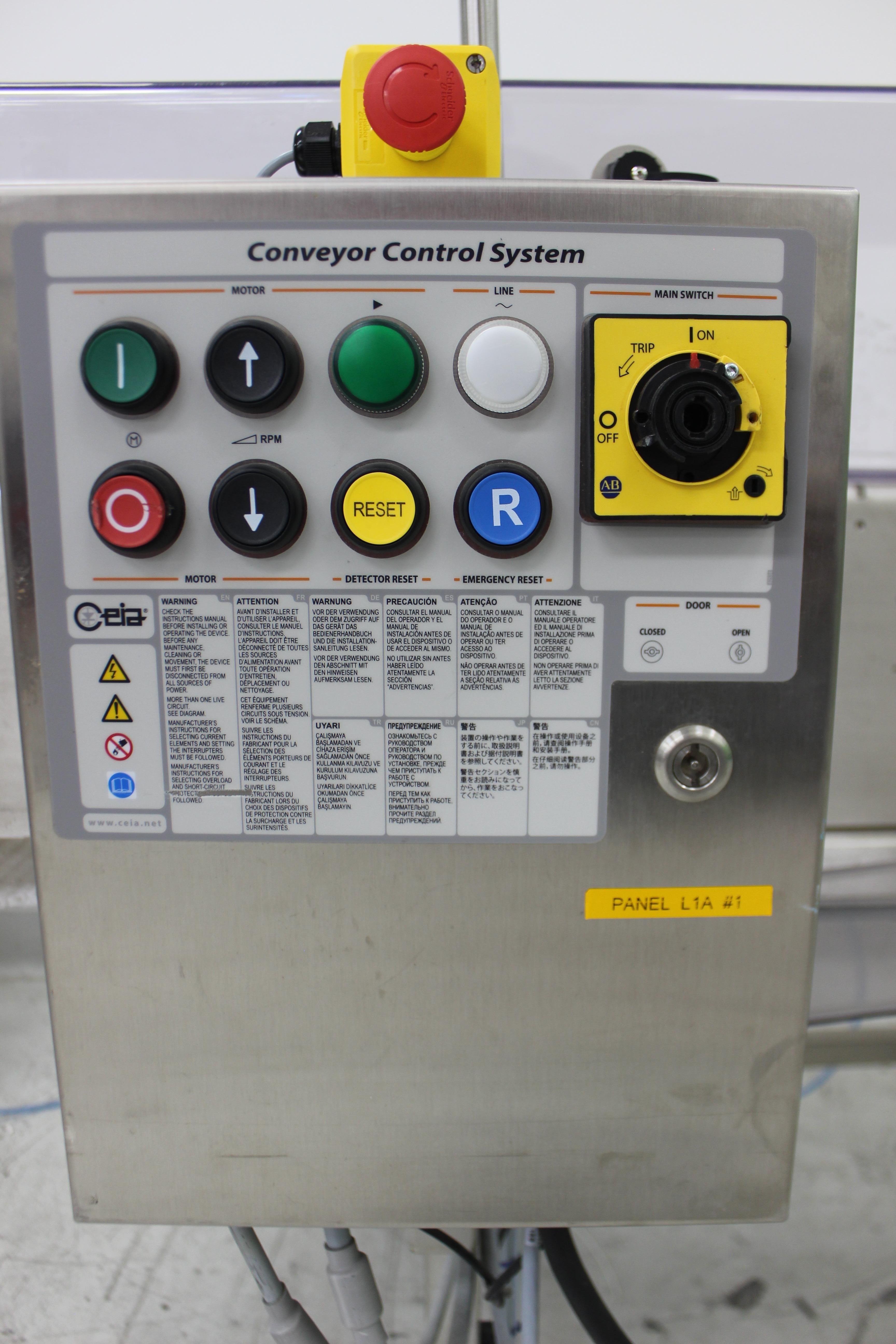

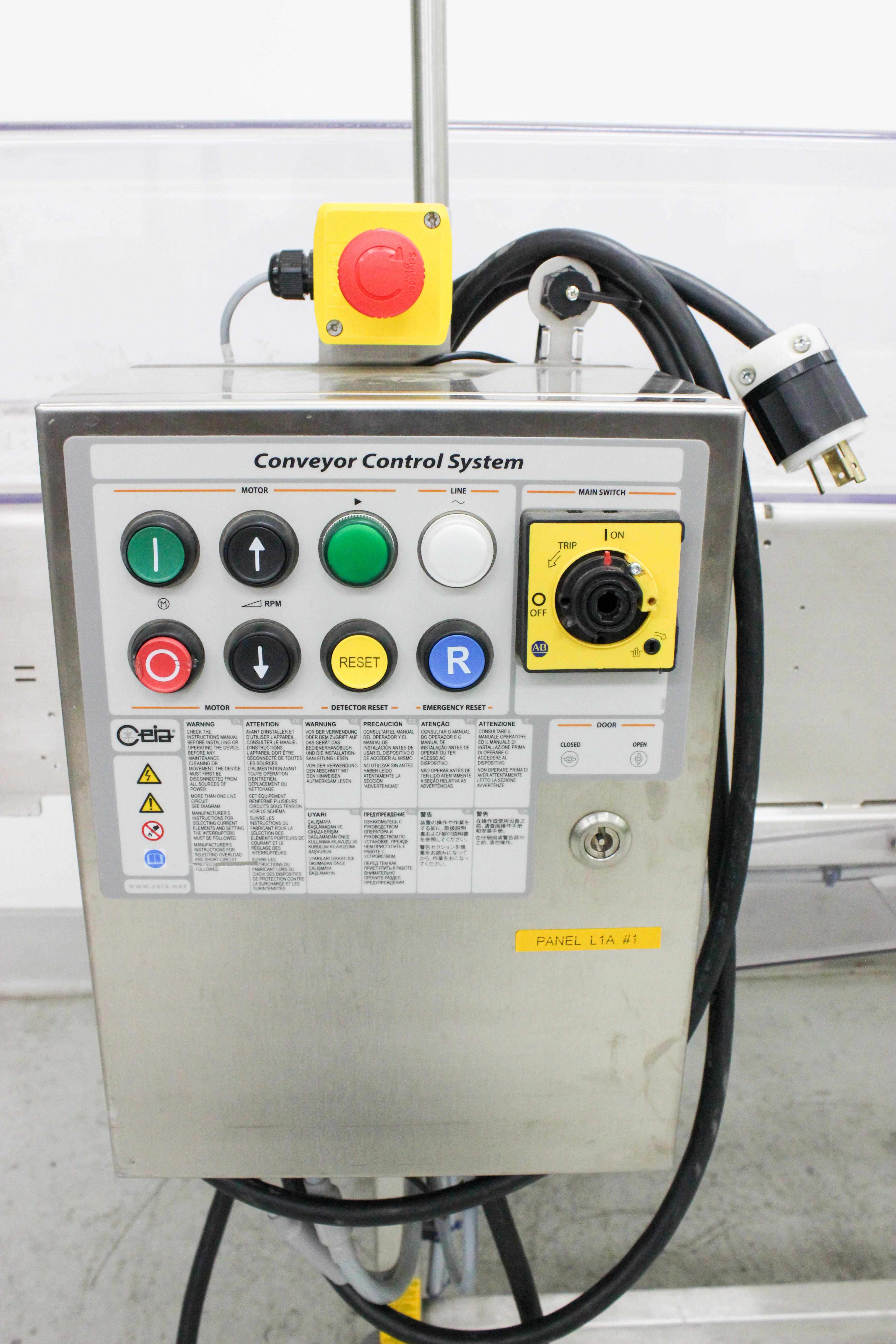

Metal detector powers on, upon start up controller box was overloaded and caused something to short circuit inside the controller box. Odd fluid is seen in bottom of controller box (see pics). This only effects the conveyor belt moving, it does NOT effect the ability for the THS Metal Detector to detect for metals. There are no major damages to units
Key Features
- Ultra-high sensitivity for all metals
- AISI 316L stainless steel construction
- Multiple ejection system options
- Digitally adjustable belt speed
- Local and advanced connectivity
- Up to 500 product data memories
- FDA 21 CFR part 11 compliant
- Optional Ethernet/WiFi/USB connectivity
Specifications
- Detection Sensitivity: Ultra High
- Construction: AISI 316L stainless steel
- Ejection Systems: Belt stop, Air blast, Pusher arm

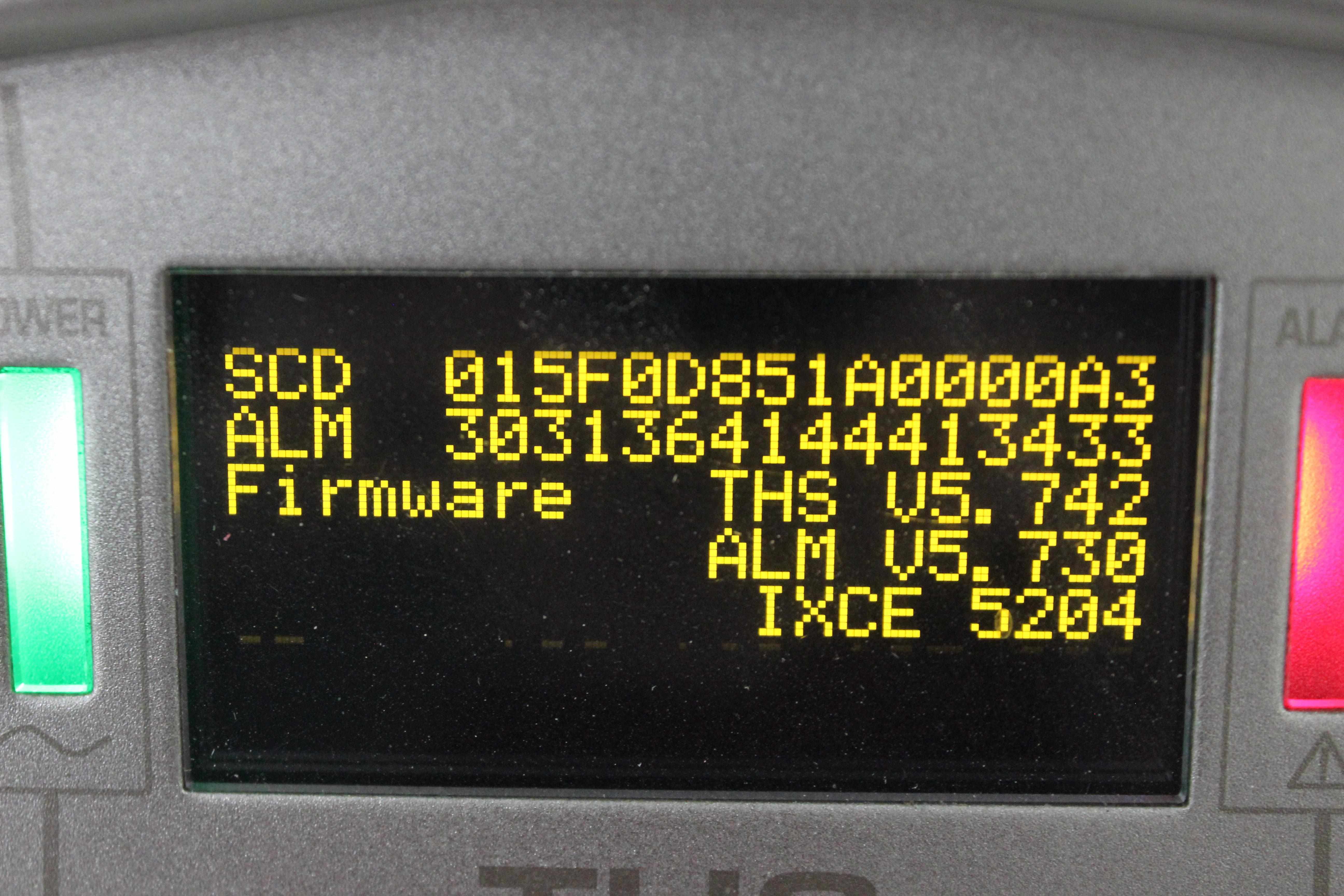

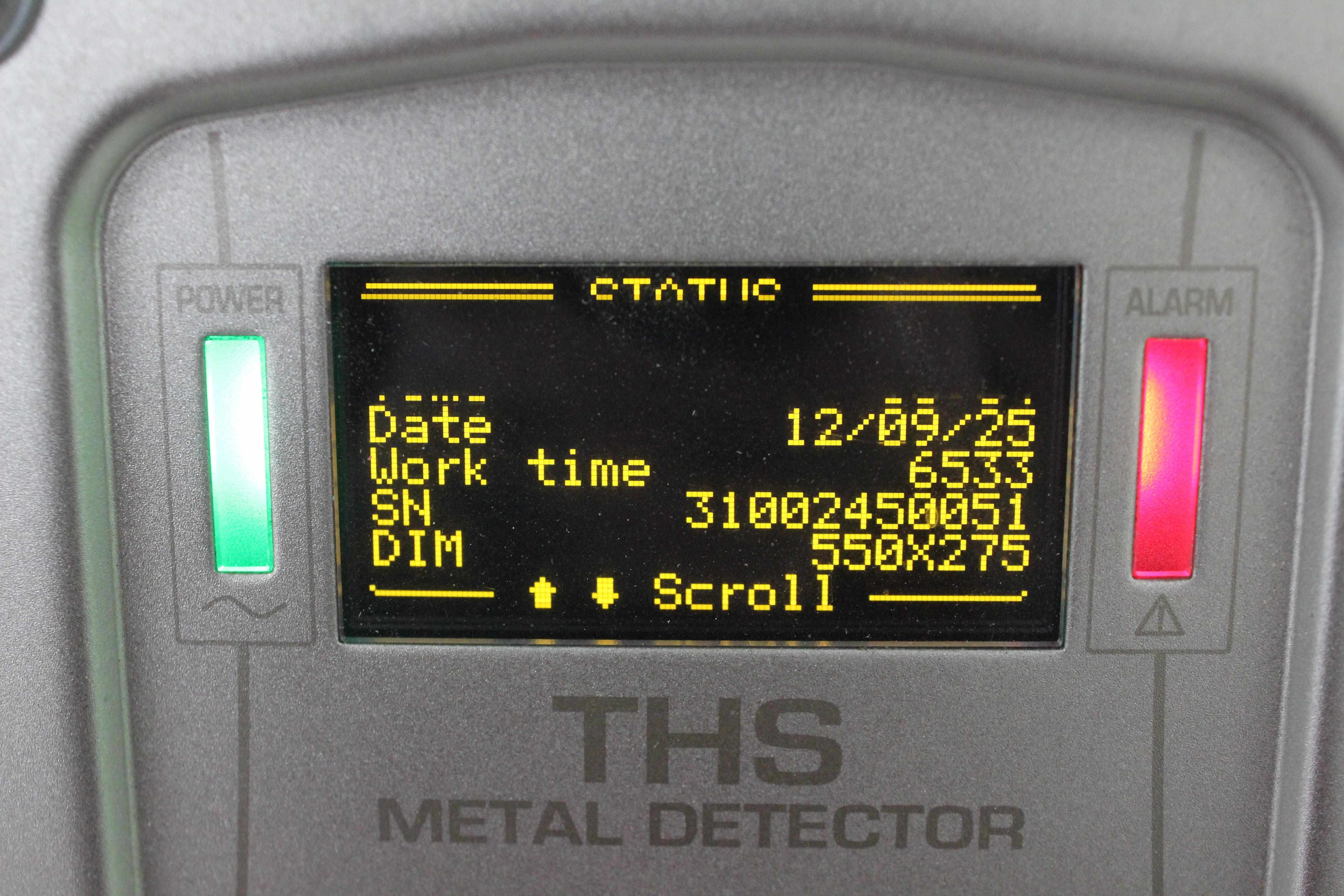

- Data Display: High-contrast graphical OLED 128x64 pixels
- Programming: 16 keys, 3 with double function
- Protection: IP66 – IP69K
- Operating Temperature: -10 to +55 °C
- Humidity: 5 – 90% non-condensing
Weight
Imperial: 1560.0 Pounds
Metric: 707.6 Kilograms
Shipping Dimensions
Imperial: 102.0 lb x 44.4 lb x 48.0 lb
Metric: 259.08 cm x 112.78 cm x 121.92 cm
Harmonized Code
8543.70.9060
Harmonized Code Details
HS Code 8543.70.9060 includes electrical machines and apparatus with individual functions, not specified elsewhere. This code accurately reflects the Ceia THS/MS21's function and purpose as an industrial detection device.
