Fristam FZX 2200 Centrifugal Pump - 100 GPM 316 Stainless Steel USA Made
Fristam
Details
-
CategoryPump
-
Dimension28.0in x 15.0in x 15.0in
-
SerialFZX22002106093
-
Shipping TypeFreight
-
Manufacturing2021-11-24
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

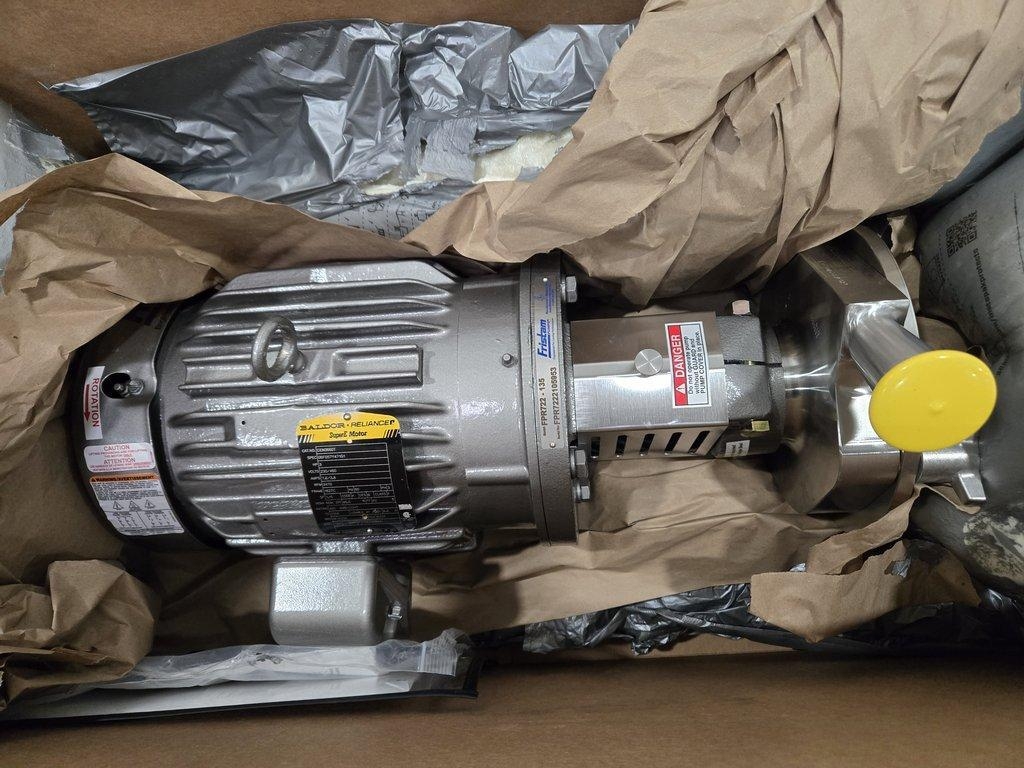

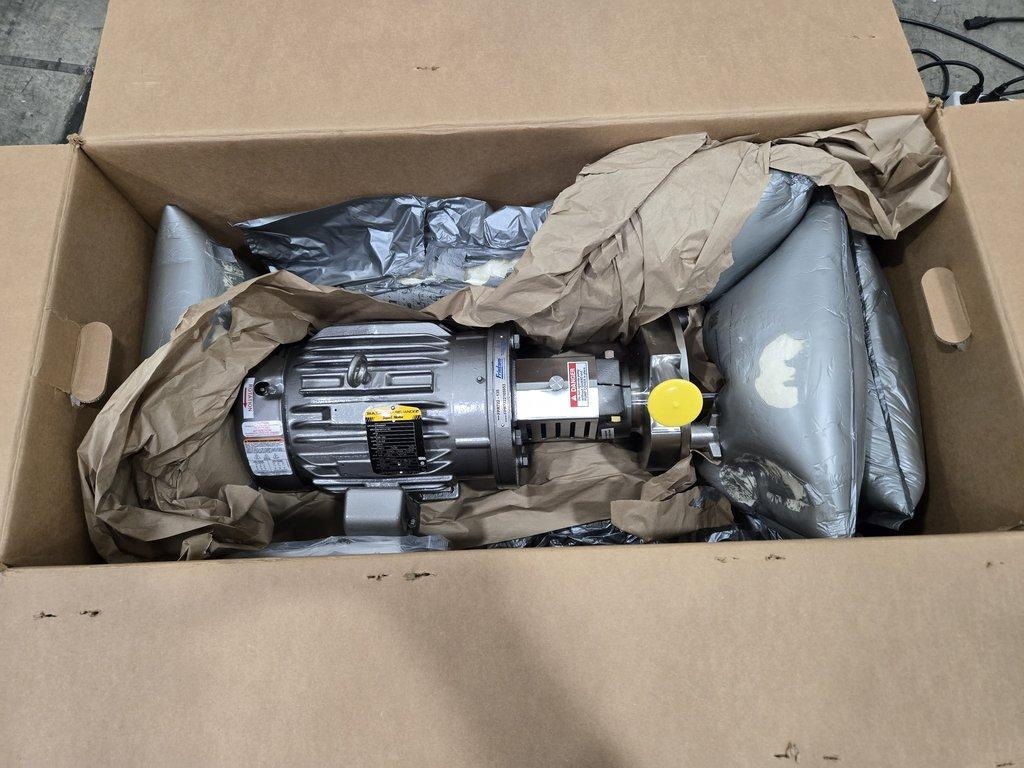

The Fristam FZX 2200 Centrifugal Pump, manufactured in 2021, is a brand new, unused self-priming liquid ring pump designed specifically for sanitary applications. Encased in 316 stainless steel, it offers a maximum flow rate of 100 gallons per minute at an 80-foot head. Engineered with a 10hp, 3/60/460 volt, 3500 rpm drive motor, it is capable of handling products with entrained air. Furthermore, it features a 2-inch Tri-Clamp inlet/outlet and an approximate 8-inch diameter impeller. Ideal for CIP return, pumping aerated products, complete evacuation of tanks, and more, this pump optimizes liquid handling efficiencies even under challenging conditions, like when other pumps become air bound.
Key Features
- New, unused Fristam FZX 2200
- Self-priming liquid ring pump
- 316 stainless steel construction
- Handles products with entrained air
- 10hp, 3/60/460 volt motor
- 100 GPM max capacity at 80-foot head
Specifications
- Brand: Fristam
- Model: FZX 2200 Centrifugal Pump
- Year of Manufacture: 2021
- Maximum Flow Rate: 100 gallons per minute
- Material: 316 Stainless Steel
- Inlet/Outlet: 2-inch Tri-clamp
- Impeller Diameter: Approx. 8 inches
- Motor: 10hp, 3/60/460 volt, 3500 rpm
- Max Discharge Pressure: 100 psi (7 bar)
- Max Viscosity: 5,000 cps
- Applications: CIP return, aerated product pumping, complete tank evacuation
Weight
Imperial: 291.6 Pounds
Metric: 132.27 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 18.0 lb x 18.0 lb
Metric: 85.34 cm x 45.72 cm x 45.72 cm
Harmonized Code
841370
Harmonized Code Details
The harmonized code 841370 relates to centrifugal pumps that move liquid, aligning with the characteristics of the Fristam FZX 2200.
