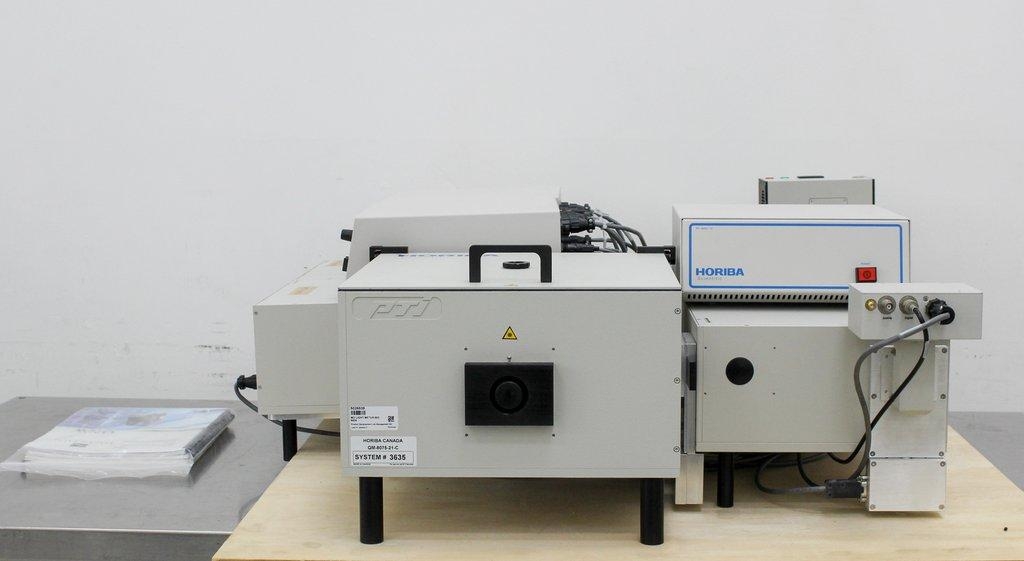

Horiba QM 8075-21-C Light Meter Fluorescence Spectrometer 75W Xenon Arc Lamp
Horiba Scientific
Details
-
CategorySpectrometer - Single Well
-
Dimension38.0in x 38.0in x 15.0in
-
Serial3635
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

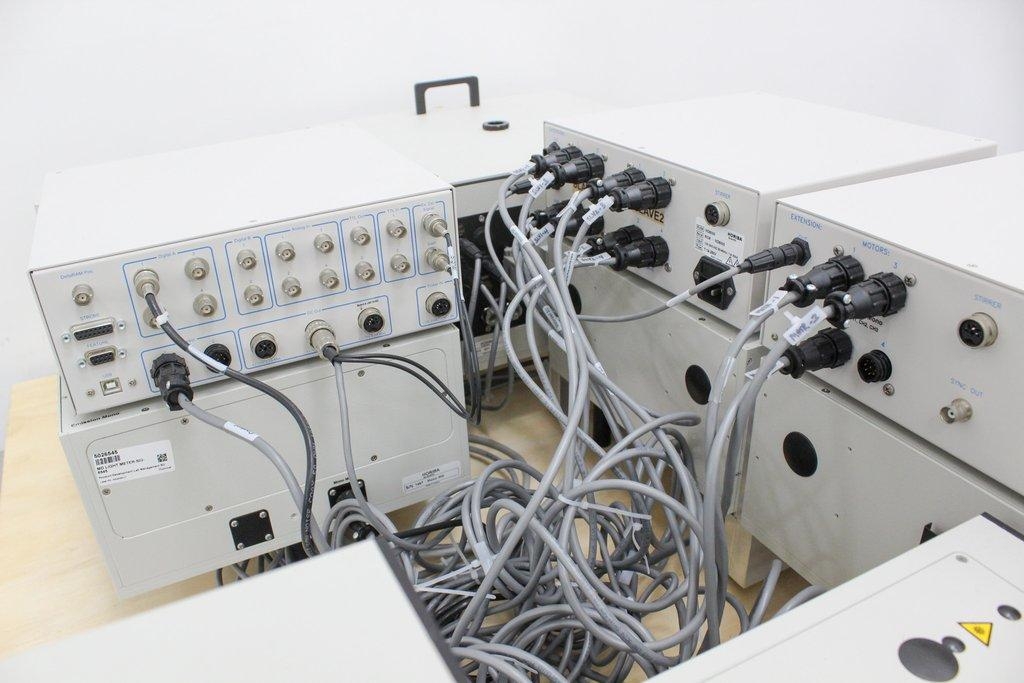

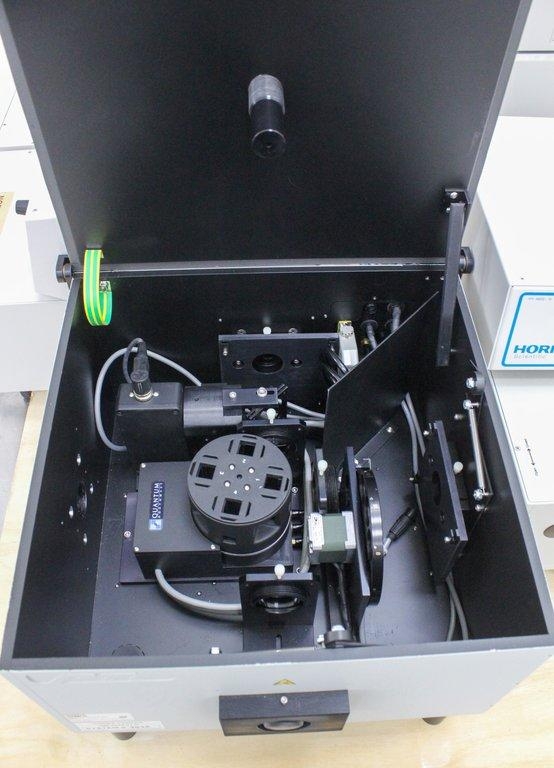

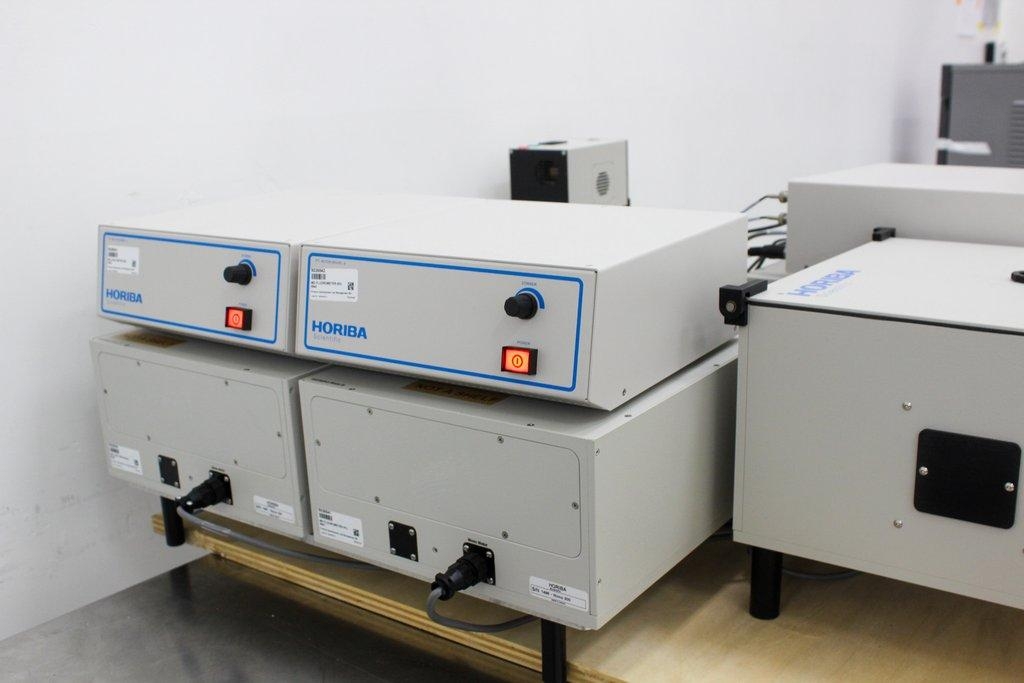

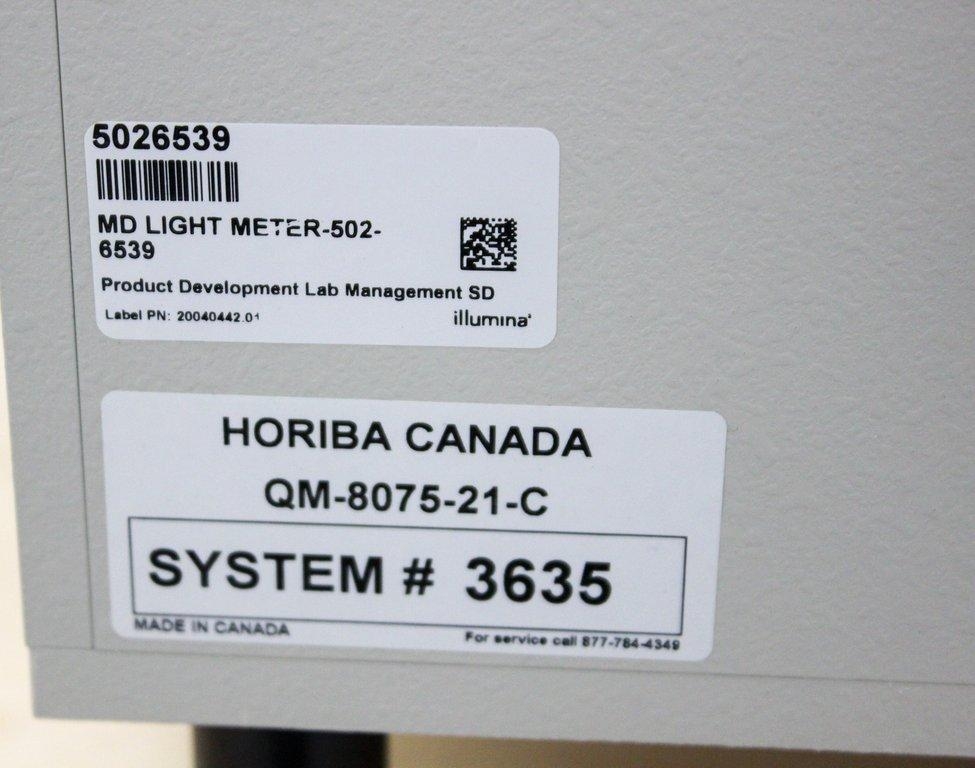

The Horiba Scientific MD Light Meter QM 8075-21-C is a versatile tool within the PTI QuantaMaster TM Series. Designed for fluorescence analysis, this unit includes a high-efficiency 75W ECO-friendly Xenon arc lamp, maximizing performance in laboratory settings. Key components such as PTI Motor Driver-4 (MD4000), PTI Motor Driver-8 (MD8000), and multiple Monochromators enhance functionality, providing an emission range from 185 nm to 900 nm. The unit's advanced features include a signal-to-noise ratio of over 31,000:1 RMS, data acquisition rate up to 1,000,000 points/sec, and an adaptable monochromator system with 350mm, triple grating controlled by a computerized slit system. Although unable to test fully, it powers up and passes basic functions. Suitable for various spectrometric applications, it includes power cord only. Manufactured in Canada with the serial number 3635, this device excels in delivering precision readings essential for advanced analytical research.
Technician comment

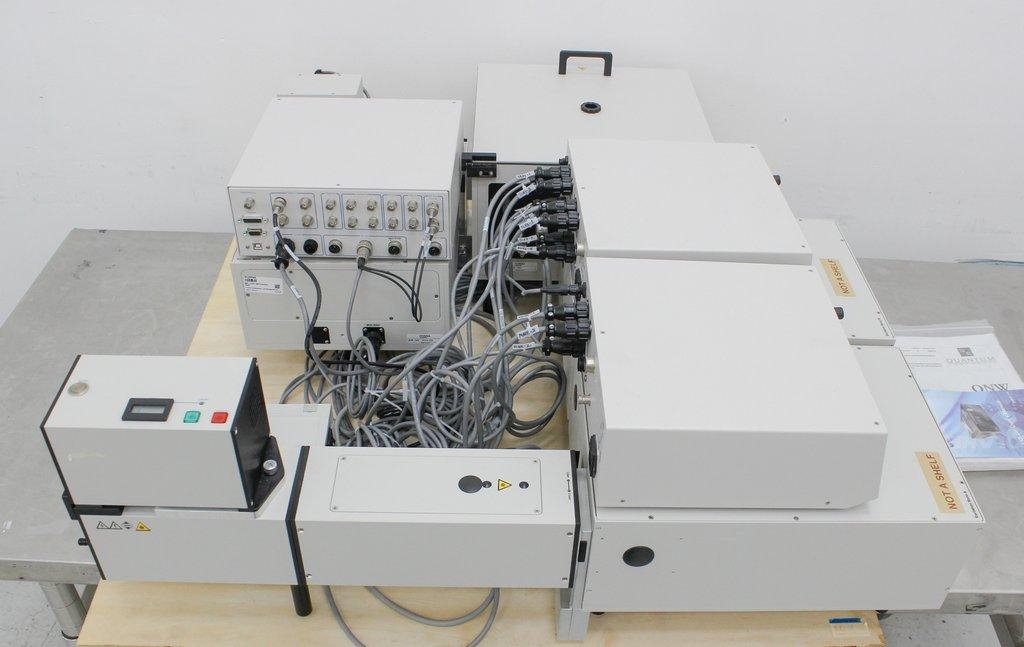

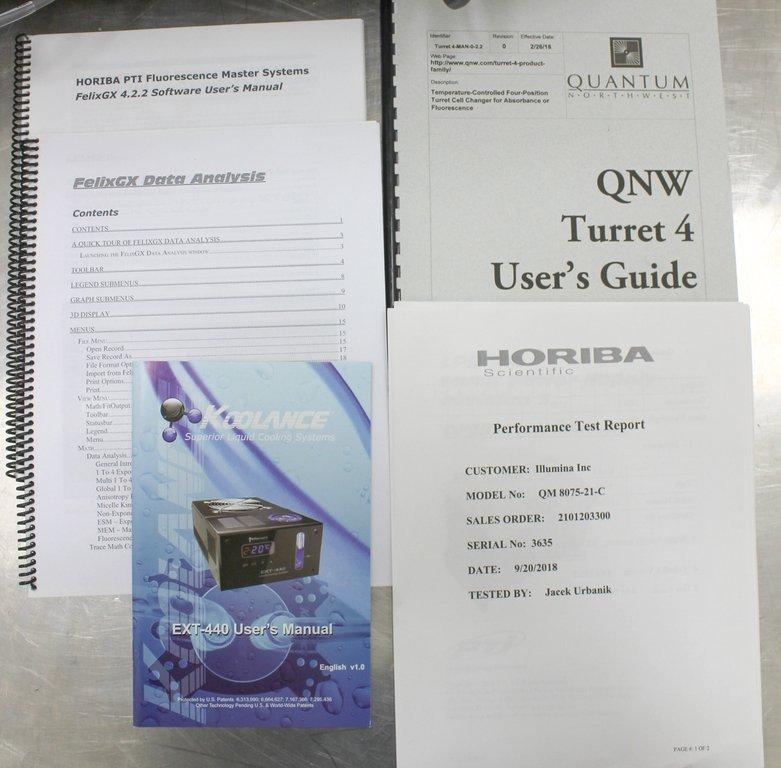

Has slight cosmetic blemishes from regular use. Everything in pictures is included. Software not included. See photos
Key Features
- 75W ECO-friendly Xenon arc lamp
- Signal to noise ratio >31,000:1 RMS
- Emission range: 185 nm to 900 nm
- 350mm, triple grating monochromator
- Data acquisition rate: 1,000,000 points/sec
- Computer-controlled slit system
Specifications
- Signal to Noise Ratio: >31,000:1 RMS; >15,500:1 FSD
- Data Acquisition Rate: 1,000,000 points/sec to 1 point/1000 sec
- Inputs: 4 photon counting (TTL); 4 analog (+/- 10 volts); 1 analog reference channel (+/- 10 volts); 2 TTL
- Outputs: 2 analog (+/- 10 volts); 2 TTL
- Emission Range: 185 nm to 900 nm (optional to 5,500 nm)
- Light Source: High efficiency 75W Xenon arc lamp
- Monochromator: 350 mm, triple grating, corrected for coma-aberration
- Excitation Grating: 1200 line/mm 300 nm blaze
- Emission Grating: 1200 line/mm 400 nm blaze
- Wavelength Accuracy: +/- 0.3 nm
- Minimum Step Size: 0.01 nm
- System Control: Compatible with FelixGX spectroscopy software
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 45.6 lb x 45.6 lb x 18.0 lb
Metric: 115.82 cm x 115.82 cm x 45.72 cm
Harmonized Code
902750
Harmonized Code Details
902750 - Instruments and apparatus for measuring or checking quantities of heat, sound or light. Suitable based on functionalities related to fluorescence measurement.
