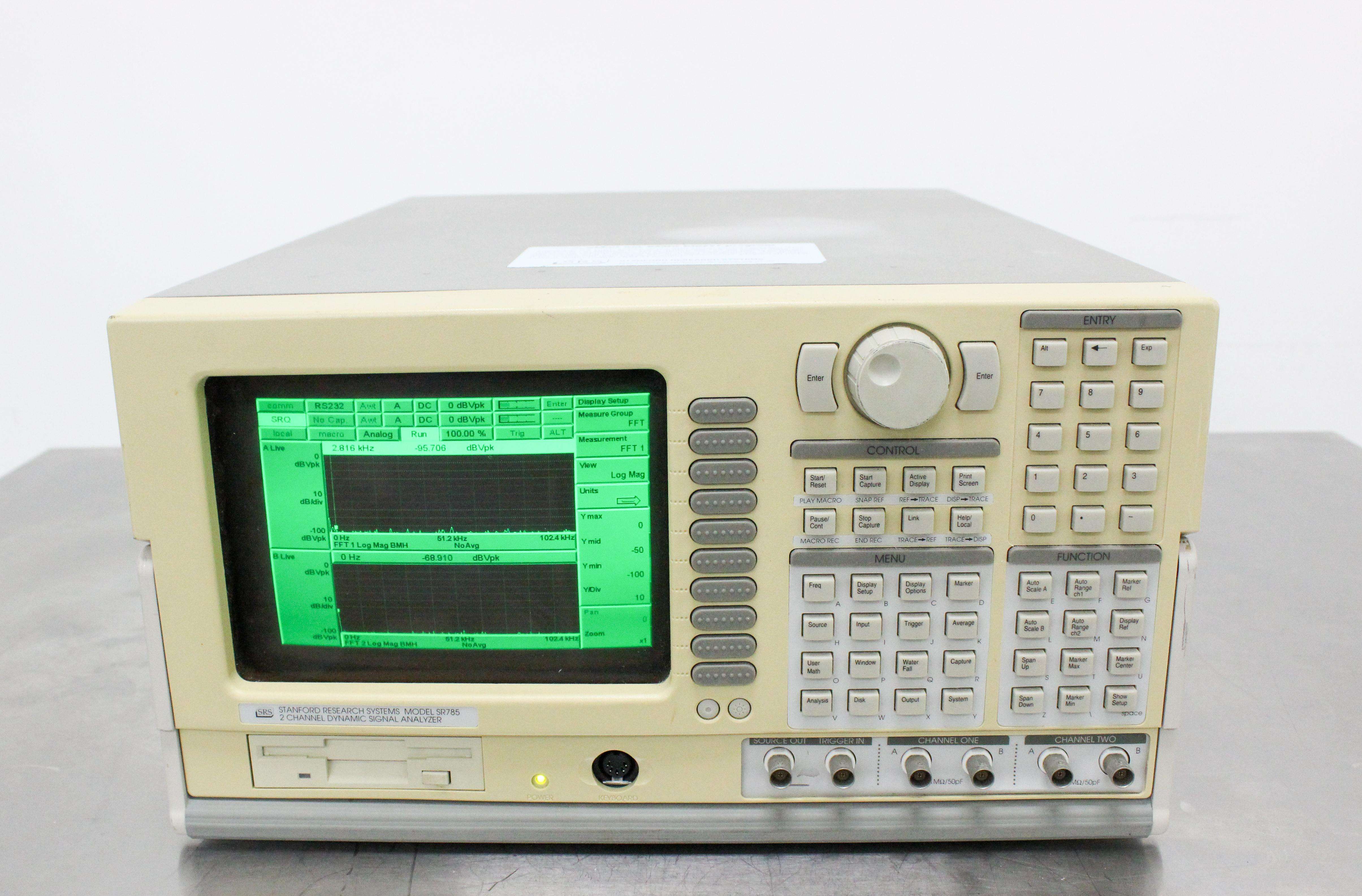

SRS SR785 Dual-Channel Dynamic Signal Analyzer 90dB Range FFT Acoustic Tests
SRS
Details
-
CategoryOther
-
Dimension24.0in x 17.0in x 9.0in
-
Serial46262
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The SRS SR785 Two-Channel Dynamic Signal Analyzer is a versatile tool for analyzing mechanical and electrical systems. With a bandwidth of DC to 102.4 kHz and a dynamic range of 90 dB, this analyzer is ideal for applications such as servo systems, control systems, acoustics, and machinery diagnostics. Equipped with FFT, order tracking, octave analysis, and real-time visualization capabilities, it also offers swept-sine measurements and a dual-channel architecture for detailed data analysis. This Good condition unit powers on and performs basic operational tests but has not been fully tested.
Key Features
- Dual-Channel Dynamic Signal Analyzer
- Bandwidth from DC to 102.4 kHz
- 90 dB typical dynamic range
- 145 dB dynamic range (swept-sine)
- Real-time octave analysis
- GPIB and RS-232 interfaces
- Up to 32 Mbyte memory
- Order tracking with up to 400 orders
Specifications
- Measurement Groups: FFT, Order Tracking, Octave, Correlation, Time Capture
- Frequency Range: DC to 102.4 kHz
- Dynamic Range: 90 dB (typical), 145 dB (swept-sine)
- Input Configuration: Single-ended or differential
- Power Requirements: 120V/220V at 50Hz/60Hz
- Data Storage: USB drive

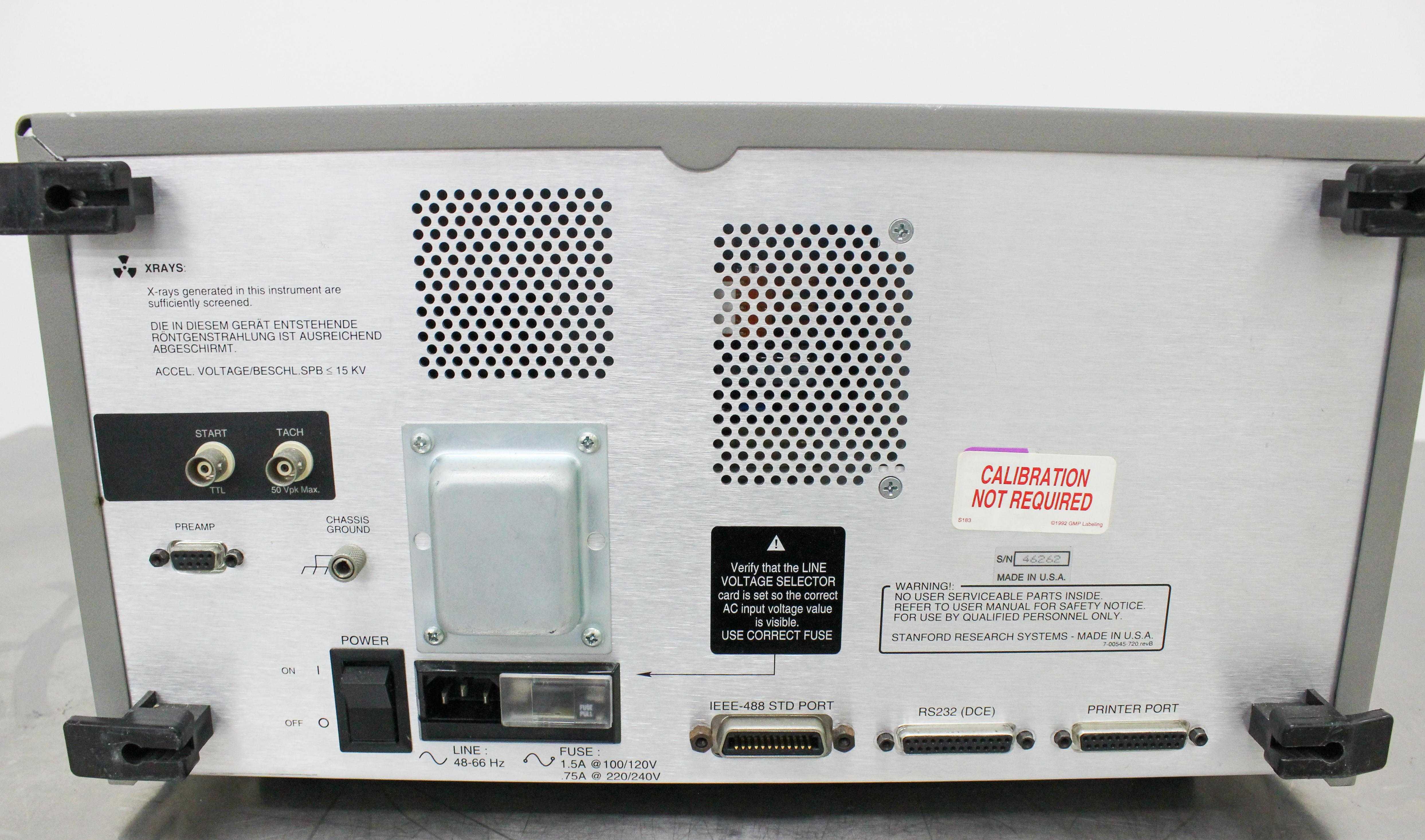

- Interfaces: IEEE-488.2, RS-232, Computer and Printer Interfaces
Weight
Imperial: 67.2 Pounds
Metric: 30.48 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 20.4 lb x 10.8 lb
Metric: 73.15 cm x 51.82 cm x 27.43 cm
Harmonized Code
9030.84.00
Harmonized Code Details
Harmonized code 9030.84.00 corresponds to instruments and apparatus, specially designed for telecommunications (specifically frequency measurement devices), which suits the SR785 as it involves various signal measurements and analyses.
