Edwards RV3- A65201903 Rotary Vane Vacuum Pump, 3.3 m3/hr, 2-Position Gas Ballast
Edwards
Details
-
CategoryPump
-
Dimension17.0in x 7.0in x 10.0in
-
Serial099408278
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Edwards RV3-A65201903 rotary vane vacuum pump is recognized for its reliability and efficiency in various industrial applications. With a robust design reflecting over 75 years of experience, this pump supports a peak pumping speed of 3.3 m³/hr or 2.3 cfm. It features exclusive capabilities such as superior vapor and particulate handling, quiet operation, and a fast-acting inlet valve for anti-suck back protection. Configured to meet your specific vacuum needs, the RV3 model is designed to minimize unplanned downtime and improve work environment. Despite some cosmetic damage, this particular unit has demonstrated the ability to reach a pressure of .005 mbar on testing, indicating strong performance potential. Please note, this unit is sold as-is, and it includes a power cord.
Technician comment

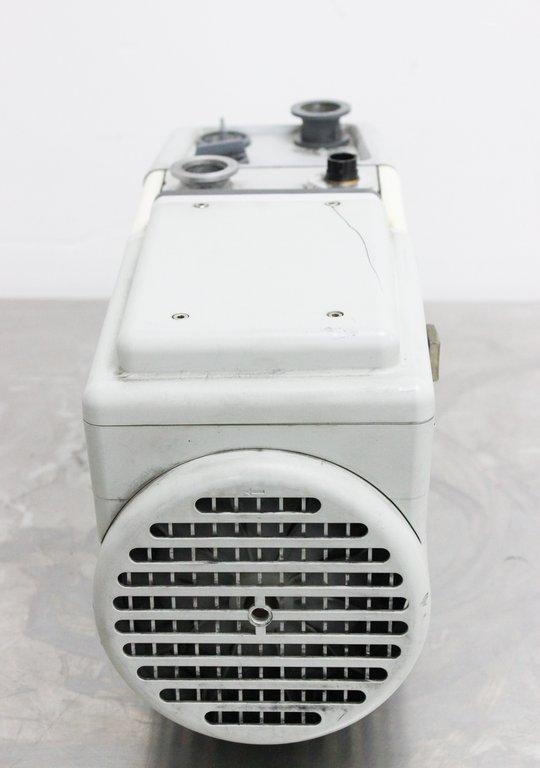

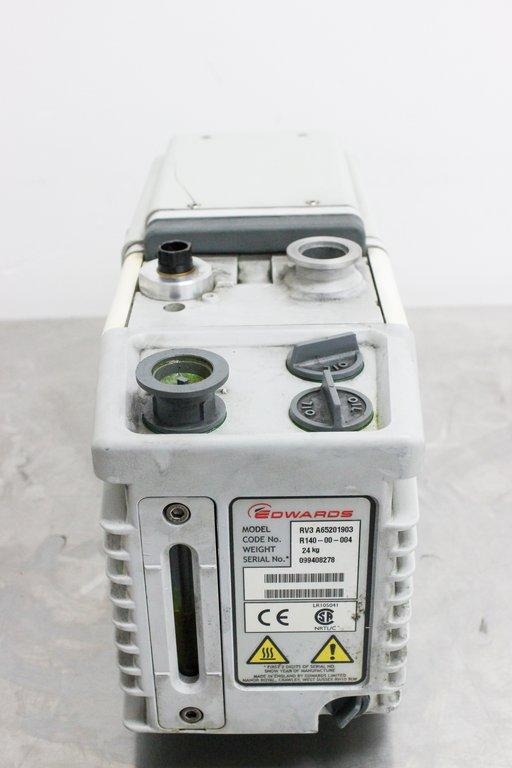

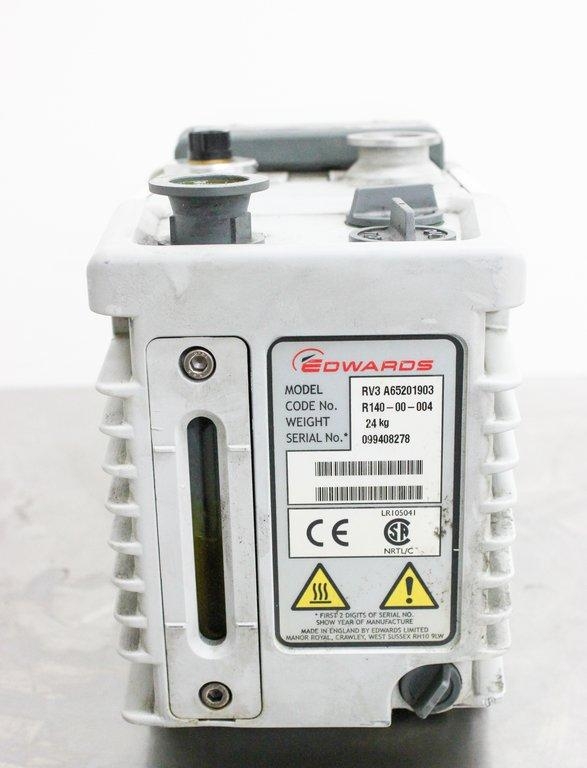

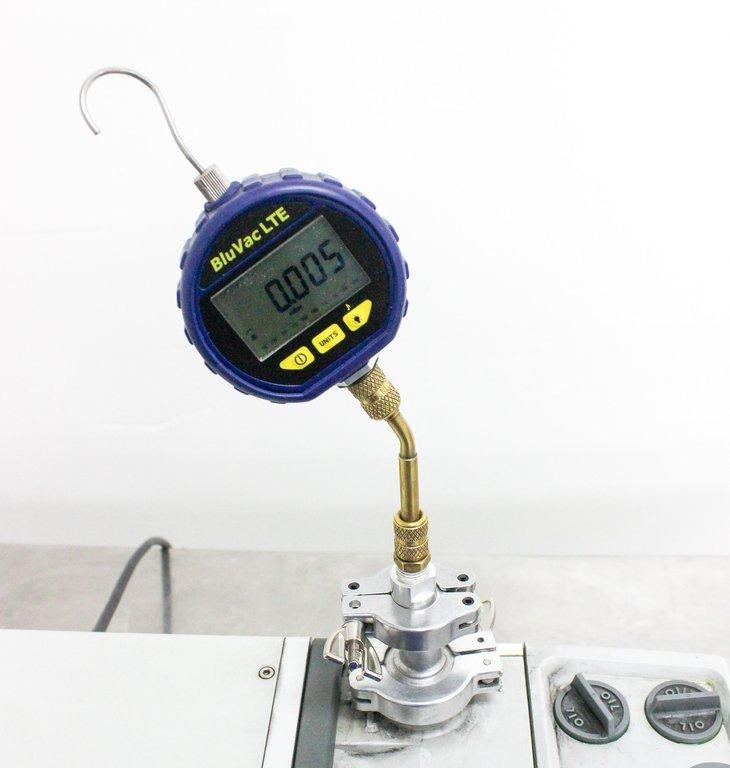

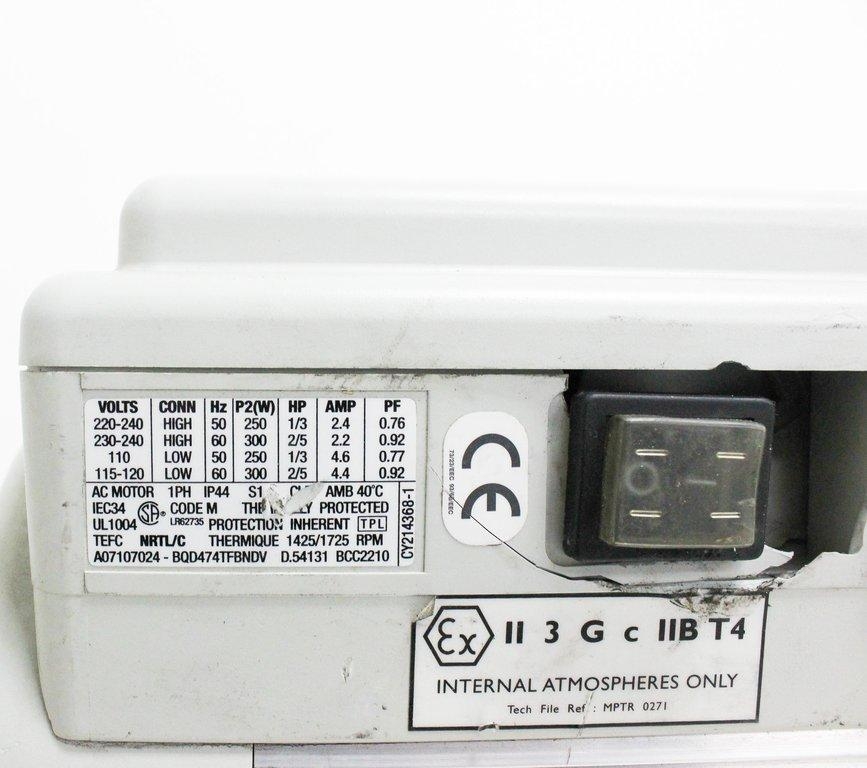

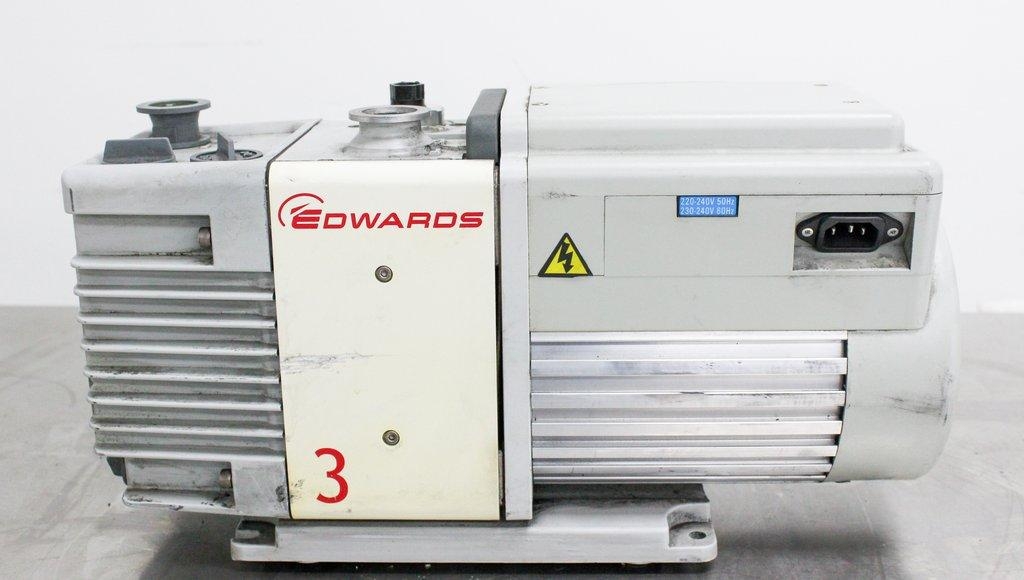

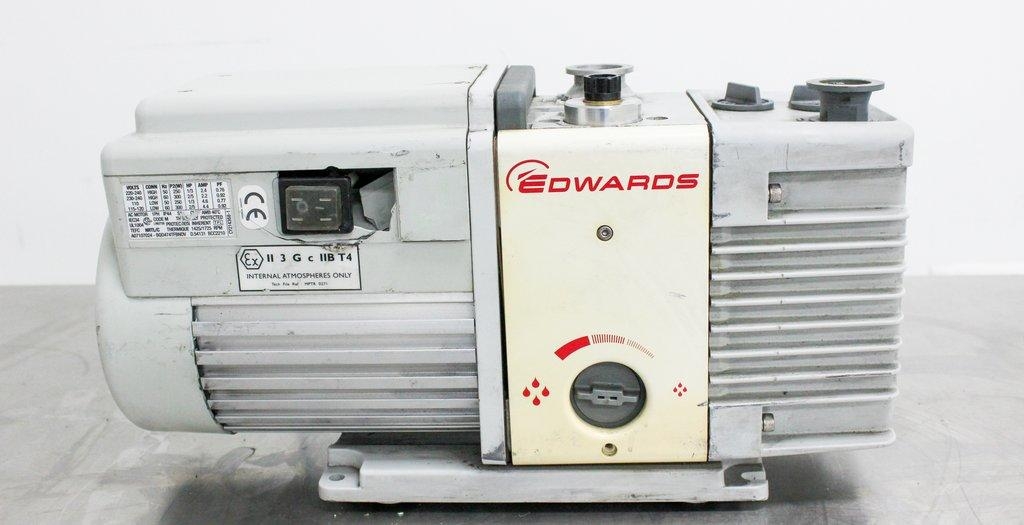

Edwards RV3 vacuum pump is for sale AS/IS due to cosmetic damage on switch, top panel casing is cracked. Unit was able to reach .005 mbar on our pressure gauge. See photos for details.
Key Features
- 3.3 m³/hr peak pumping speed
- Ultimate pressure of 1.5 x 10^-3 Torr
- High vapor and particulate handling
- Quiet running for better work environment
- Fast-acting inlet valve for anti-suck back protection
- Two-position gas ballast for variable vacuum needs
Specifications
- Peak Pumping Speed: 3.3 m³/hr / 2.3 cfm
- Ultimate Pressure: 1.5 x 10^-3 Torr (60Hz)
- Water Vapor Capacity: 220 g/h
- Inlet/Outlet Flange: NW25 KF
- Motor Type: 1ph115/230V, 50/60Hz
- Voltage: 120V/220V
- Hertz: 50Hz/60Hz
- Part Number: A65201903
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 8.4 lb x 12.0 lb
Metric: 51.82 cm x 21.34 cm x 30.48 cm
Harmonized Code
8414100000
Harmonized Code Details
8414100000 - Vacuum pumps; this code applies as it best classifies vacuum pumps used in industrial applications like the Edwards RV3 model.
