Edmund Optics Prism RA HT 30MM VIS Optics High Tolerance Right Angle
Edmund Optics
Details
-
CategoryMiscellaneous
-
Dimension6.0in x 6.0in x 6.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

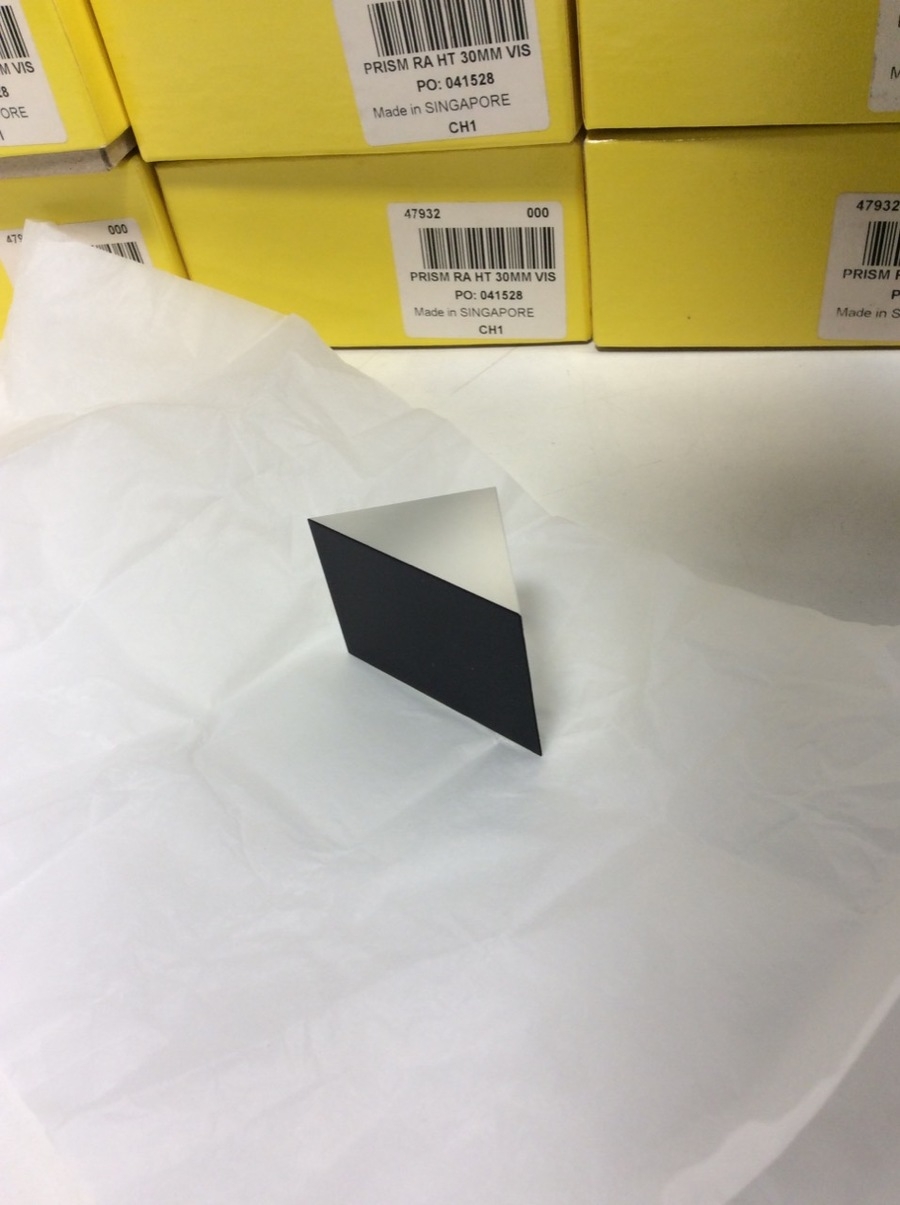

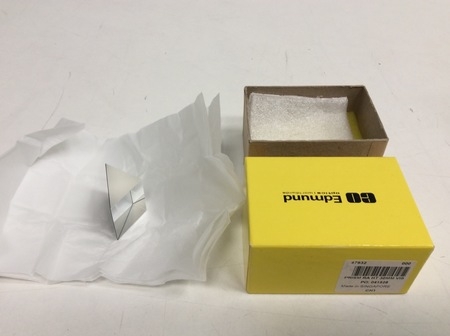

The Edmund Optics Prism RA HT 30MM VIS, Stock No 47-932, is a high-tolerance right angle prism designed to deliver exceptional precision and reliability in optical applications. This prism features a hypotenuse length of 42.4mm and leg lengths of 30mm, boasting a dimensional tolerance of +0/-0.1mm. The prism's surface has a flatness of λ/8 and a surface quality rating of 40-20, ensuring superior performance in light deviation. With angle tolerance at 15 arcseconds and a protective bevel, it is crafted from N-BK7 substrate and coated with VIS 0 and Aluminized layers, optimizing reflectivity across the 425-675nm wavelength range. It effectively handles typical energy densities, with limits of 0.3 J/cm² on the hypotenuse and 5 J/cm² on the legs. This item, noted for its very good condition with minor cosmetic imperfections, confidently supports usability and functionality, having passed all function tests.
Key Features
- Brand: Edmund Optics
- Model: Prism RA HT 30MM VIS Stock No 47-932
- Right Angle Prism
- High Dimensional Tolerance (+0/-0.1mm)
- Surface Flatness: λ/8
- Surface Quality: 40-20
- Coating: VIS 0 & Aluminized
- Wavelength Range: 425-675nm
- N-BK7 Substrate
Specifications
- Length of Hypotenuse: 42.4mm
- Length of Legs: 30.0mm
- Dimensional Tolerance: +0/-0.1mm
- Surface Flatness: λ/8
- Surface Quality: 40-20
- Angle Tolerance: 15 arcseconds
- Bevel: Protective as needed
- Substrate: N-BK7
- Coating: VIS 0 & Aluminized
- Coating Reflectivity: Hypotenuse >85% @ 400-700nm, Legs 0.4% @ 425-675nm
- Typical Energy Density Limit: Hypotenuse 0.3 J/cm² @ 532 & 1064nm, Legs 5 J/cm² @ 532nm
- Ray Deviation: 90°
- RoHS Compliant
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 7.2 lb x 7.2 lb
Metric: 18.29 cm x 18.29 cm x 18.29 cm
Harmonized Code
900190
Harmonized Code Details
900190 - Optical elements, unmounted. This code is used as it applies to optical prisms made of glass or other materials that are not mounted in any form.
