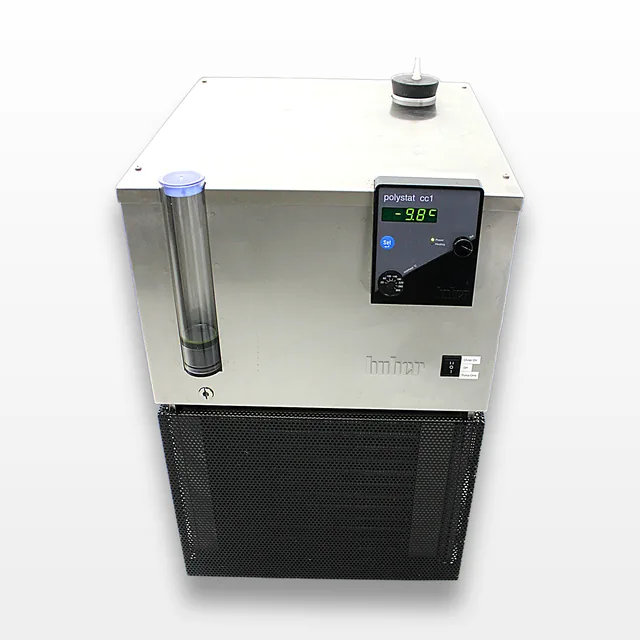

Huber UC020-S12 Chiller Polystat CC1 Range -10 to +40C Microprocessor Efficiency
Huber
Details
-
CategoryChiller / Heater
-
Dimension26.0in x 19.0in x 32.0in
-
Serial53422/ 02
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz240V / 60Hz US
Description
The Huber UC020-S12 Polystat CC1 Chiller, designed for laboratory and industrial cooling applications, delivers superior efficiency and stable cooling performance. Tested to meet specifications, this unit has cosmetic wear typical of used equipment but remains fully functional. With a temperature range of -10 to +40C, the chiller is well-suited for removing heat from chemical processes or serving as a central cooling water supply. It features a stainless steel evaporator, brass pump, and a microprocessor control unit for precise settings. This eco-friendly chiller minimizes water consumption and operational costs, while the built-in safety and overflow features protect against pump running dry and thermal fluid overflow, ensuring reliable operation.
Key Features
- Temperature range: -10 to +40C
- Microprocessor control for precision
- Eco-friendly design reduces water use
- Stainless steel evaporator
- Brass pump
- Internal safety cut-out switch
- Atmospherically open expansion vessel
- ISO9000ff calibration compliant
Specifications
- Temperature range: -10C to +40C
- Temperature stability at -10C: 0.1K
- Fill volume minimum: 1.7L
- Volume of expansion: 3.8L
- Force pump max: 20L/min
- Electrical requirements: 208-240V, 3-60Hz, max 10A
- Refrigerant: R507, 0.64kg, max 25bars
Weight
Imperial: 132.0 Pounds
Metric: 59.87 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 22.8 lb x 38.4 lb
Metric: 79.25 cm x 57.91 cm x 97.54 cm
Harmonized Code
8418690000
Harmonized Code Details
8418690000: Machines and apparatus for the preparation of food or drink. This code fits industrial chillers including the Huber UC020-S12 due to its application in cooling processes and equipment in laboratory settings.
