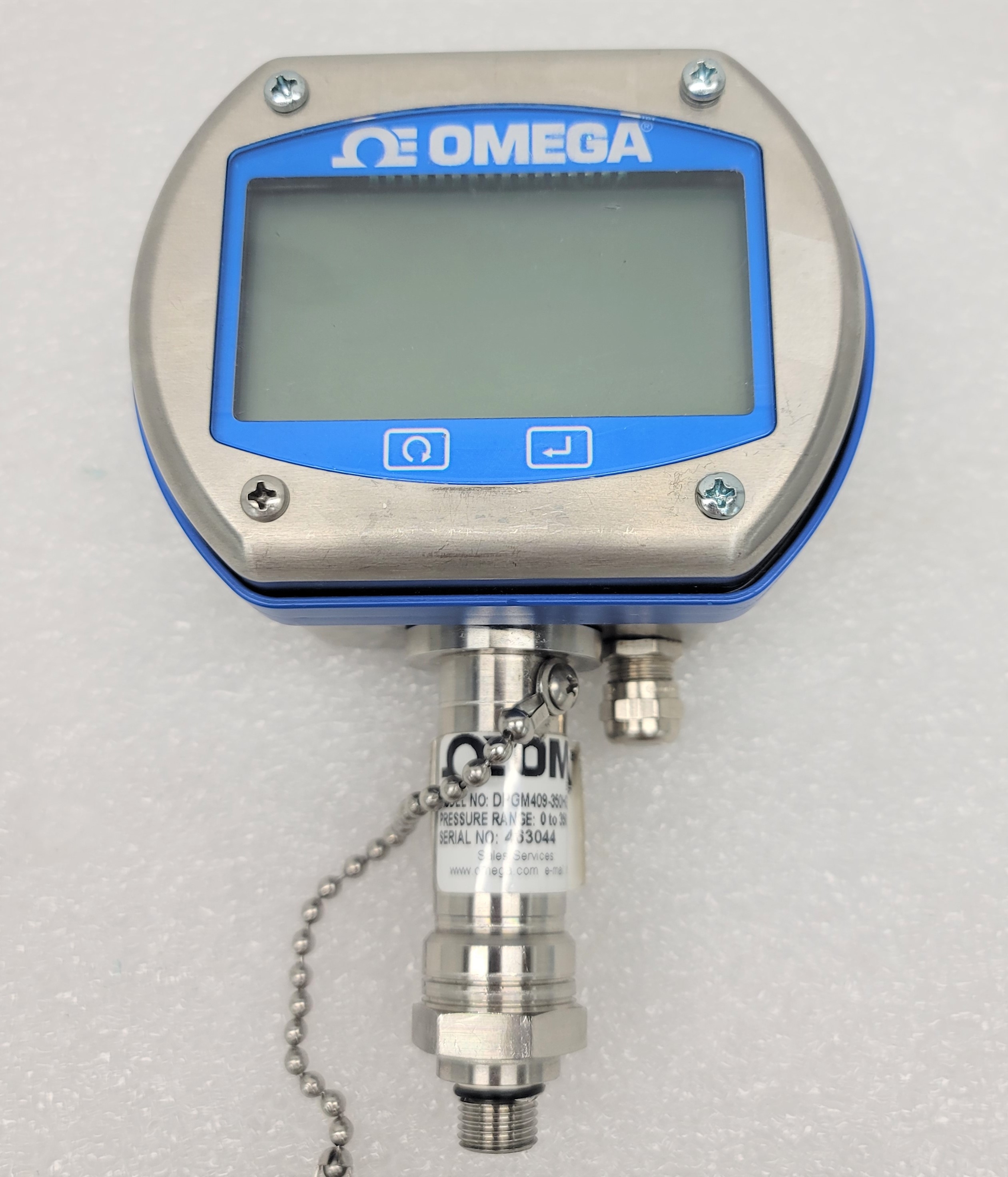

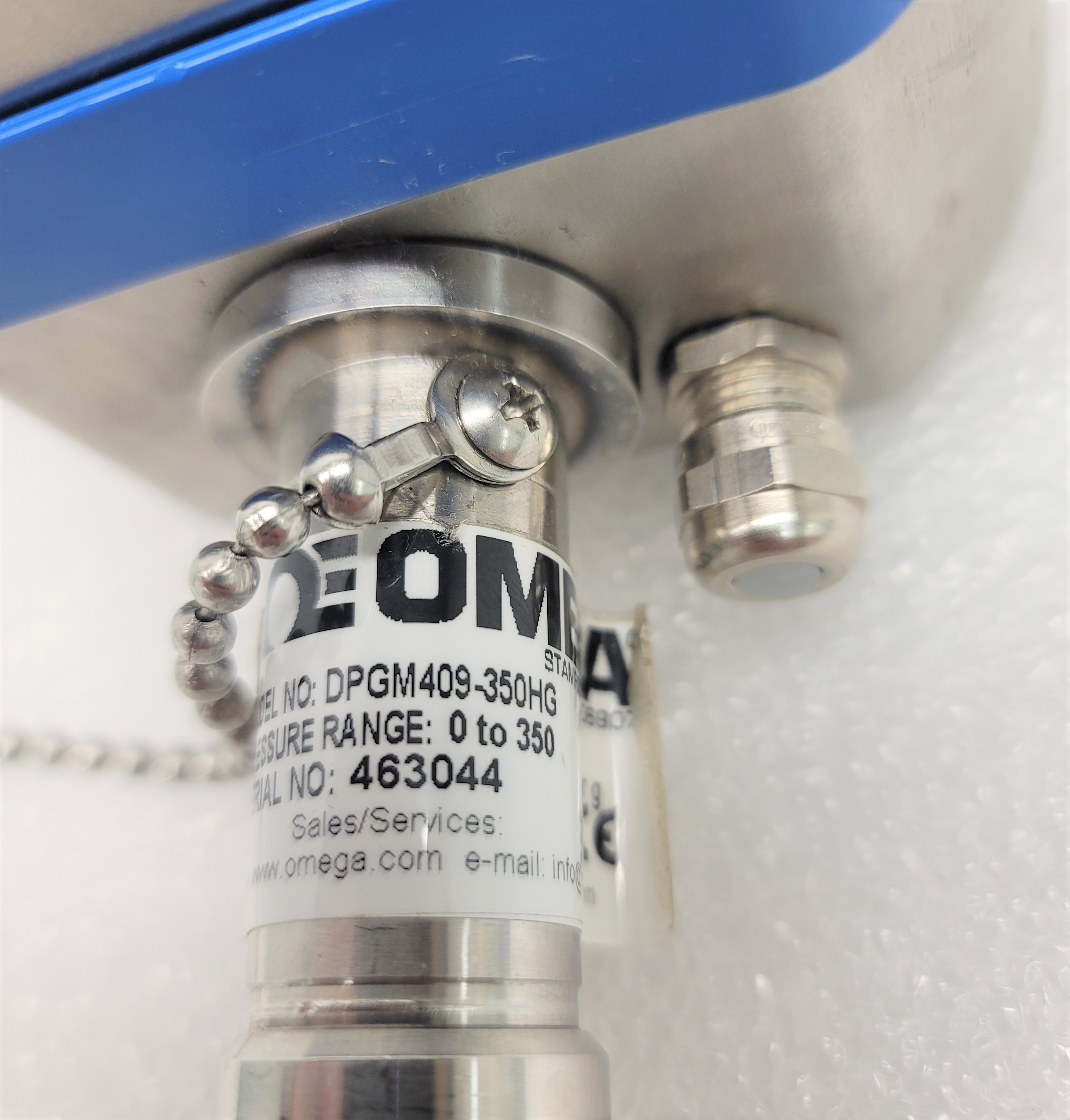

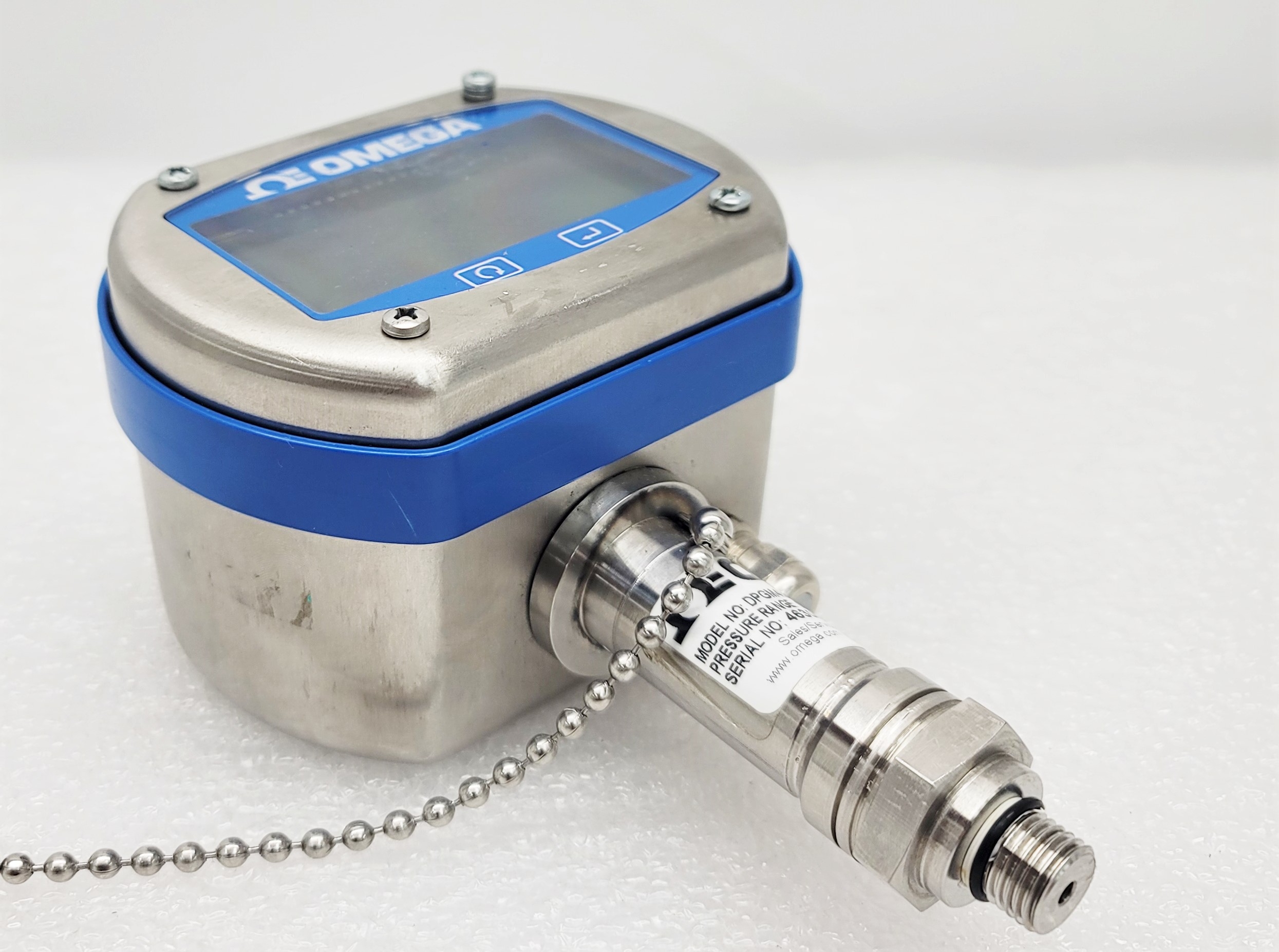

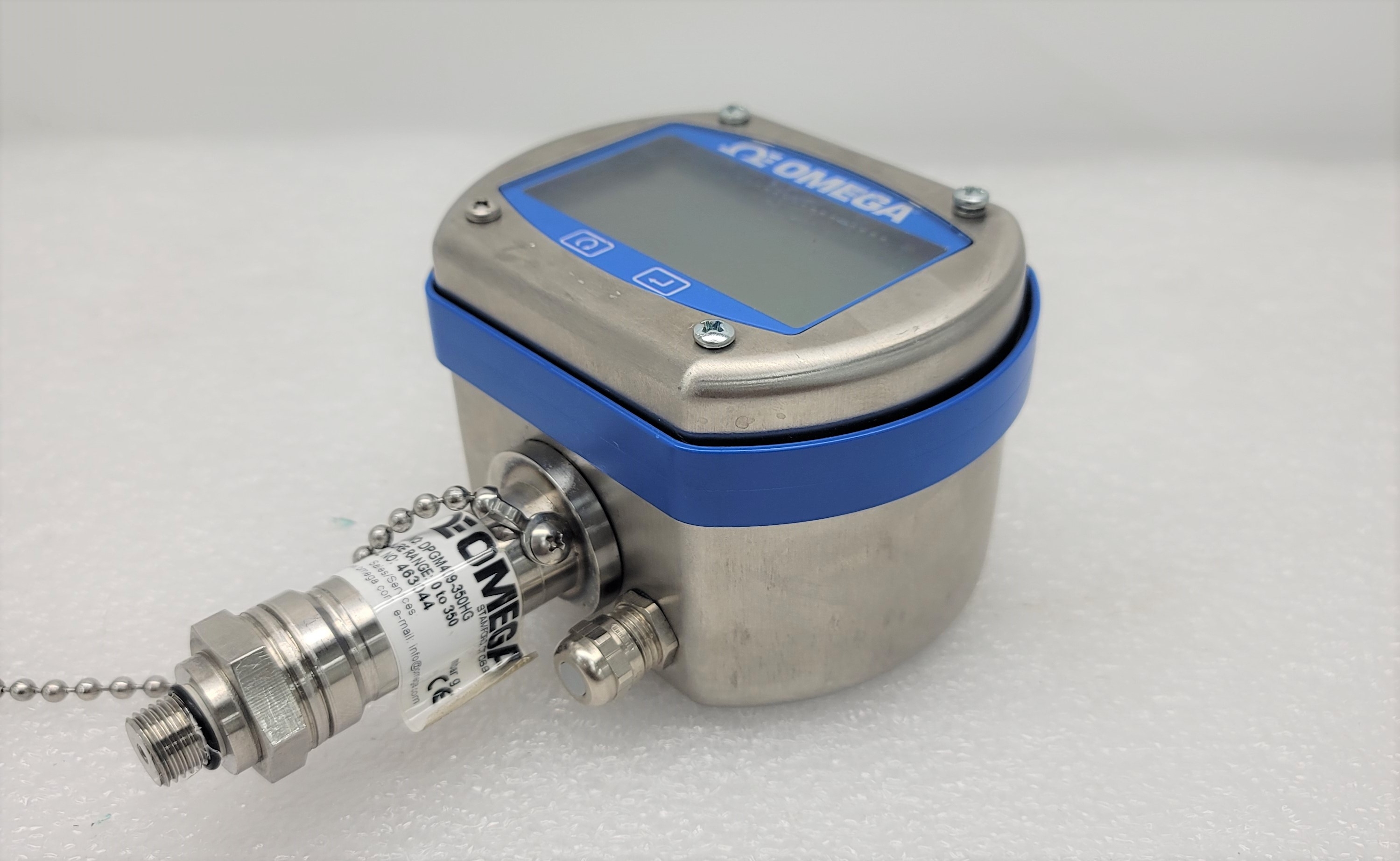

Omega DPGM409-350HG Pressure Gauge 316 SS Enclosure Digital 0.08% Accuracy
Omega
Details
-
CategoryMeter
-
Dimension7.0in x 5.0in x 4.0in
-
Serial463044
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Omega DPGM409-350HG digital pressure gauge is engineered for demanding industrial applications, providing exceptional precision with a 0.08% accuracy pressure transducer and a robust 316 stainless steel enclosure suited for washdown and marine environments. The gauge features 316L SS wetted components ensuring durability even in harsh conditions. Its large 25mm backlit LCD display allows for easy readability from a distance of up to 11 meters. This versatile unit is available in multiple pressure ranges including Gauge, Sealed Gauge, Compound Gauge, Absolute, Vacuum, and Barometric. Additional advanced features include stable silicon sensors, selectable MIN/MAX/AVG readings, high and low alarms, and an externally powered user-selectable analog output. It meets industrial CE standards and has a G 1/4 B pressure connection port.
Key Features
- Rugged 316 stainless steel enclosure
- Precision 0.08% accuracy pressure transducer
- Easy-to-read 25mm backlit LCD
- Multiple pressure ranges: Gauge, Absolute, Vacuum
- Selectable MIN/MAX/AVG readings
- High/low alarms
- Externally powered analog output
Specifications
- High 0.08% accuracy pressure transducer
- 316L SS wetted parts and body
- Large 25 mm (1") backlit LCD display
- Easy readability up to 11 meters
- Available in Gauge, Sealed Gauge, Compound Gauge, Absolute, Vacuum, Barometric ranges
- Highly stable silicon sensor
- Selectable MIN/MAX/AVG functionalities
- Hi/Lo alarms standard
- Tested to industrial CE standards
- G 1/4 B pressure connection
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 8.4 lb x 6.0 lb x 4.8 lb
Metric: 21.34 cm x 15.24 cm x 12.19 cm
Harmonized Code
902620
Harmonized Code Details
902620 - Instruments and apparatus for measuring or checking pressure. Suitable due to the precise pressure measurement capability of the Omega DPGM409-350HG.
