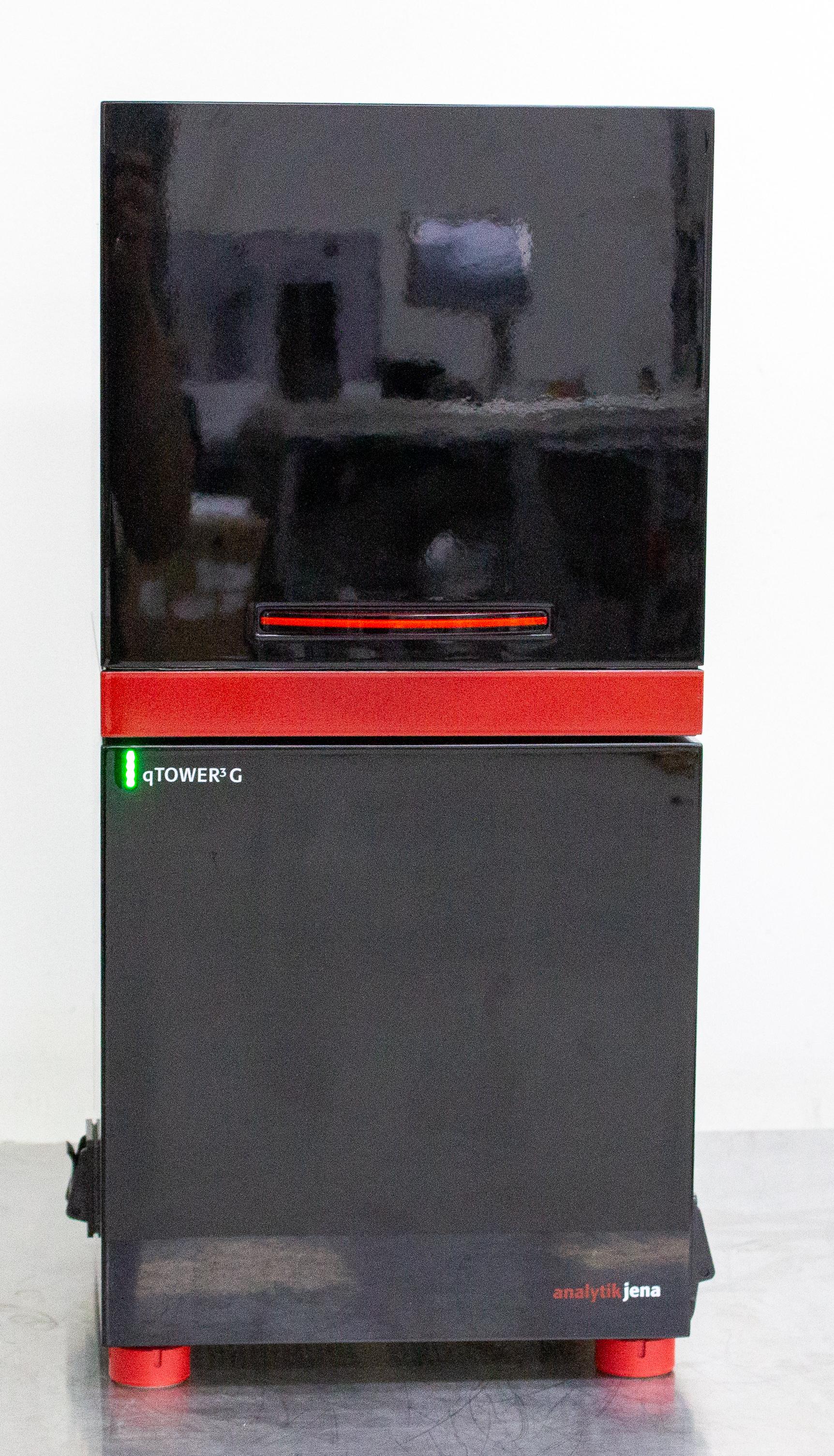

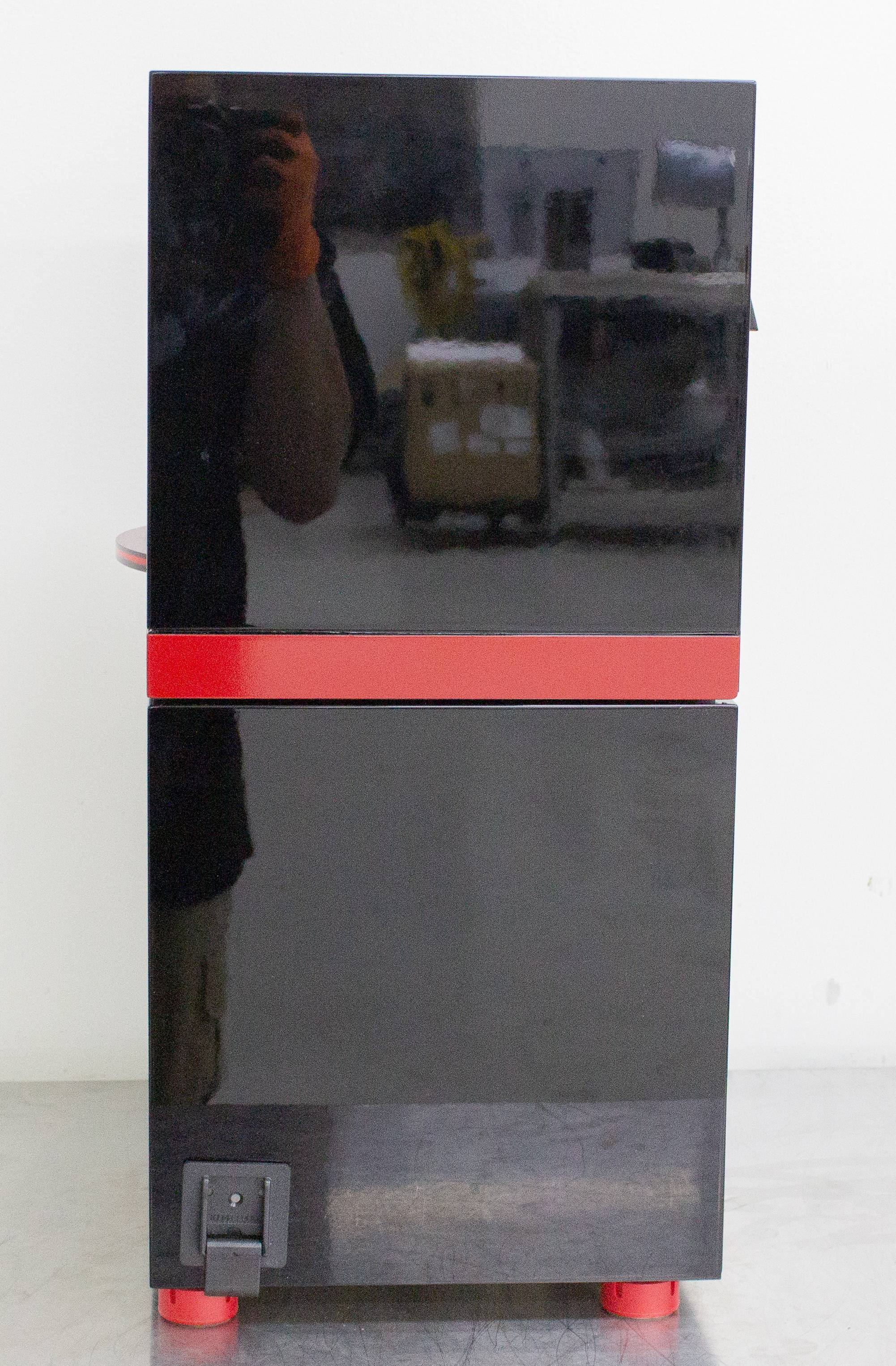

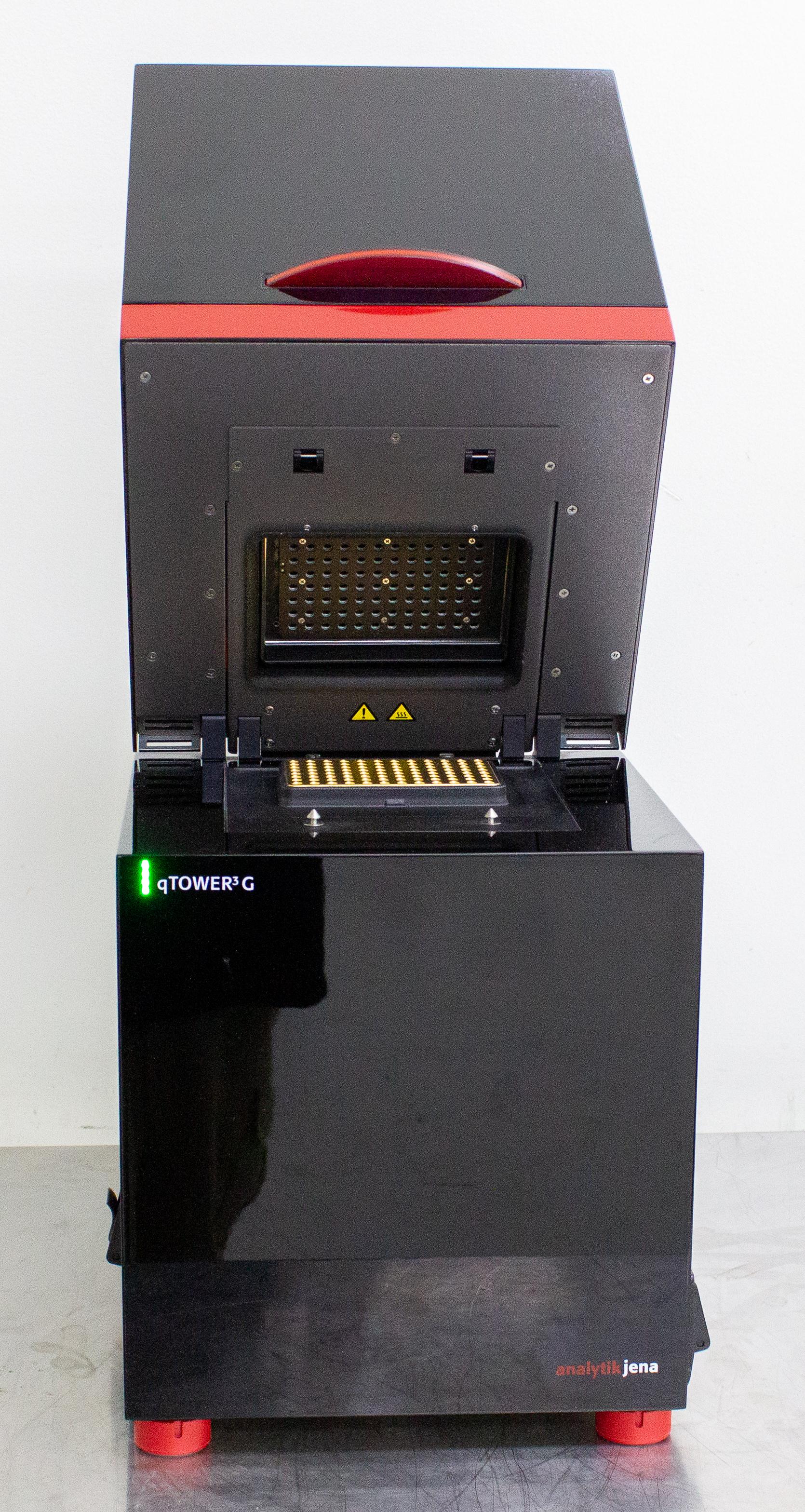

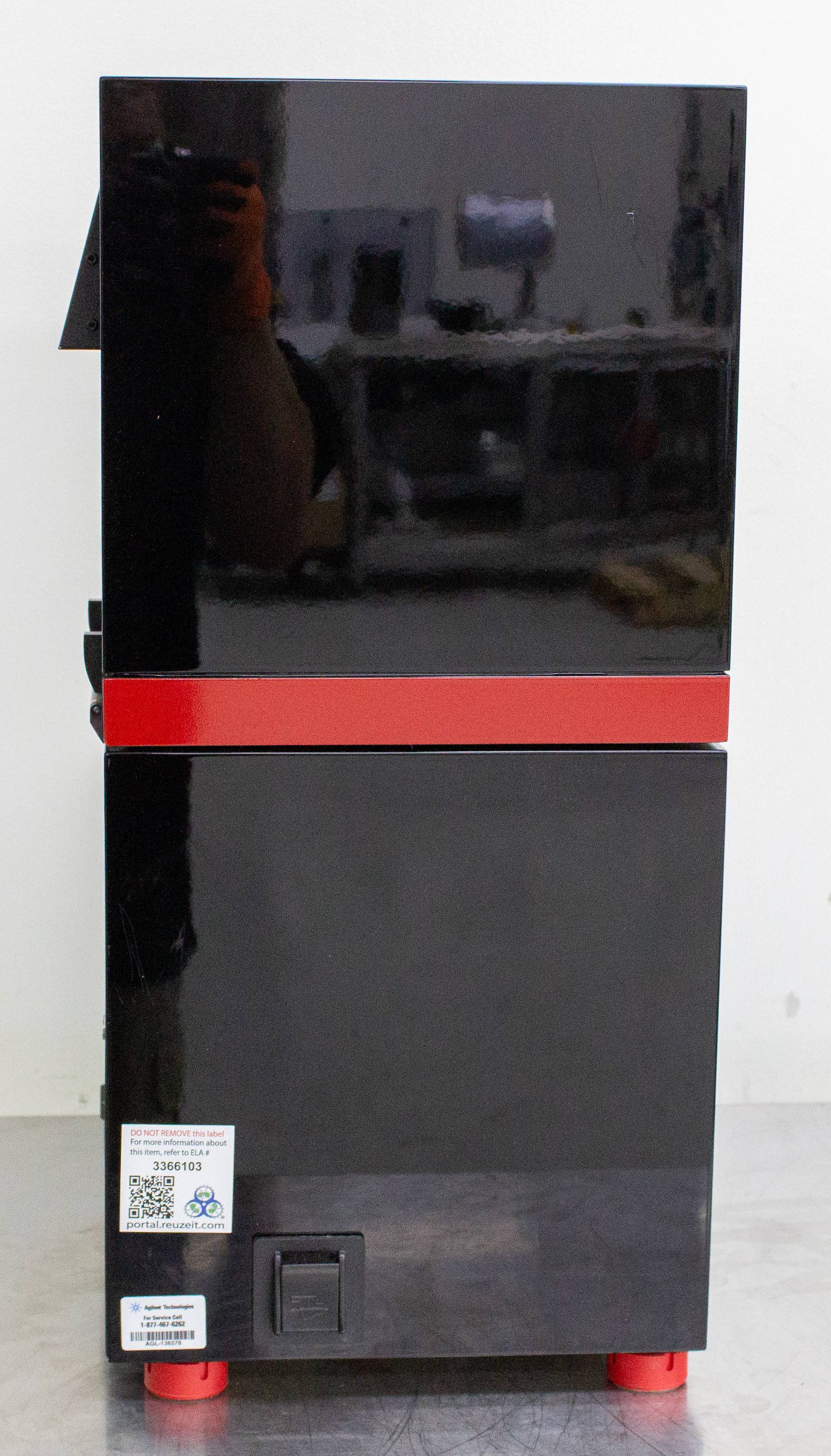

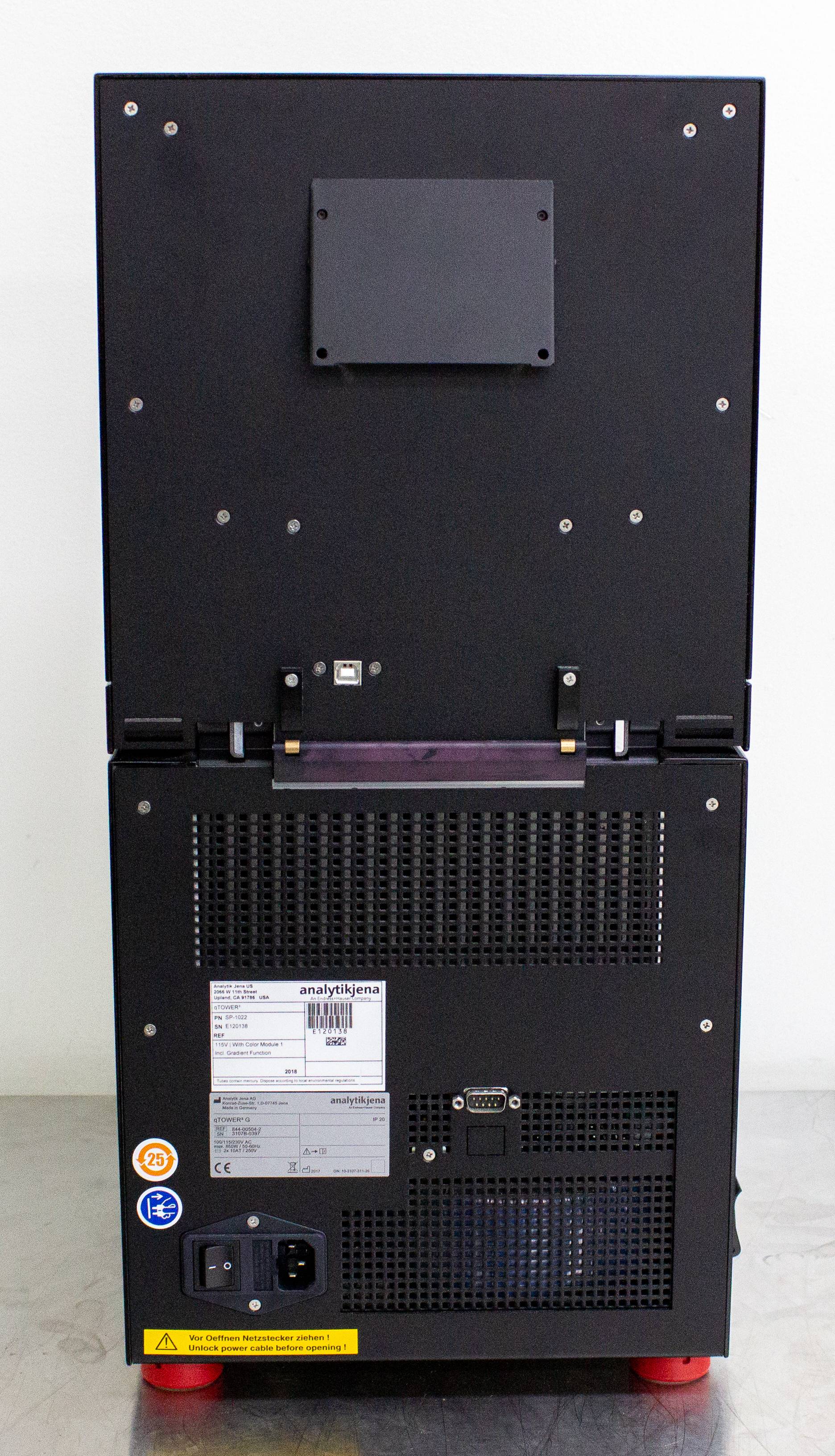

Analytik Jena qTOWER3G Real Time PCR Thermal Cycler 96 Well Block 12 Colors
Analytik Jena
Details
-
CategoryMolecular Biology
-
Dimension11.0in x 11.0in x 23.0in
-
SerialE120138
-
Shipping TypeFreight
-
Manufacturing2017-01-01
-
Voltage / Hertz120V / 60Hz US
Description
Manufactured by Analytik Jena in 2017, this qTOWER3G Real Time PCR Thermal Cycler offers reliable 96-well operation with advanced 12 color, FRET, and protein modules to enhance its capabilities as research needs evolve. Conceived with German engineering, the device requires no regular calibration or maintenance. It features a patented fiber-optic shuttle system with 4 high-performance LEDs for precise fluorescence excitation. The detection module supports up to six color filter modules for versatile assays. Users can confidently trust in its genuine silver block technology, boasting precise temperature control (0.1C) across its 96 well block. This gradient-enabled cycler is indispensable for dynamic laboratory environments.
Key Features
- 96-well block capacity
- 12 color, FRET, and protein modules for expanded capabilities
- No periodic calibration or maintenance required
- Patented fiber-optic shuttle system with 4 LEDs
- Real-time temperature precision of 0.1C
- Silver block technology with gold coating
- Exceptional gradient technology from 0.1C to 40C
Specifications

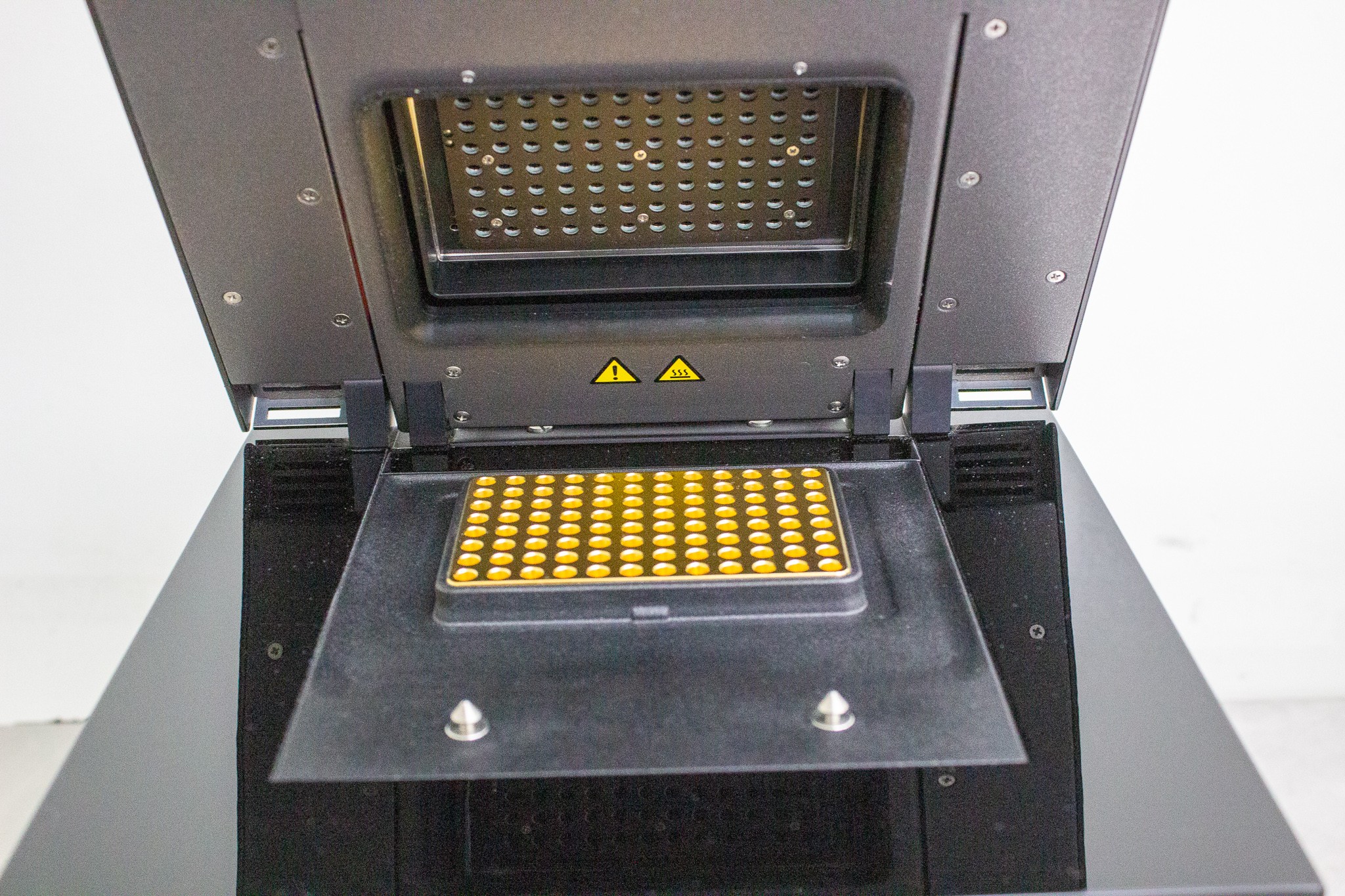

- Thermal block: Silver sample block with gold coating
- Block capacity: 96 wells in 0.2 mL format
- Sample volume: 5-100 µL
- Heating rate: 8C per second
- Cooling rate: 6C per second
- Temperature setting range: 4-99C
- Temperature control precision: 0.1C
- Maximum / Minimum gradient: 40C / 0.1C
- Lid temperature: 30C to 110C
- Contact pressure: 30 kg, automated
- Sensitivity: 1 copy of the target sequence
- Dynamic range: 10 log levels
- Detection: Fiber-optic shuttle system, PMT detector
- Light source: 4 long-life, high-performance LEDs (RGBW)
- Read-out time: 6 seconds for 96 wells
- PC interface: USB
- Noise emission: Max. 45 db
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 13.2 lb x 27.6 lb
Metric: 33.53 cm x 33.53 cm x 70.1 cm
Harmonized Code
9027801020
Harmonized Code Details
9027801020: Instruments and apparatus for physical or chemical analysis, such as polarimeters, refractometers, spectrometers, etc. This code applies due to the qTOWER3G's function as a real-time PCR thermal cycler, which is primarily used in chemical analysis.
