Thermo Surveyor Autosampler SRVYR-AS 200 Vial Capacity Rapid Injection
Thermo Quest
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension21.0in x 15.0in x 15.0in
-
Serial51676
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-

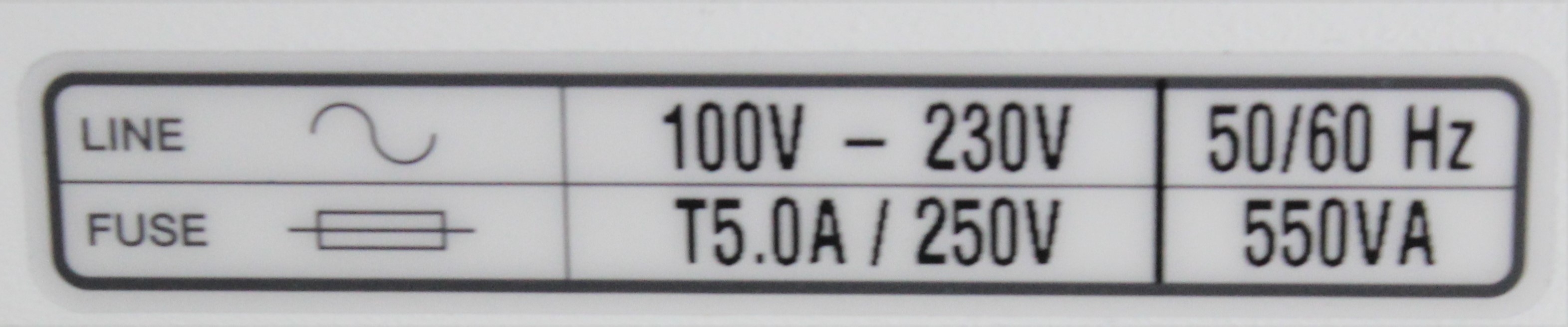

Voltage / Hertz120V/220V / 50Hz/60Hz
Description

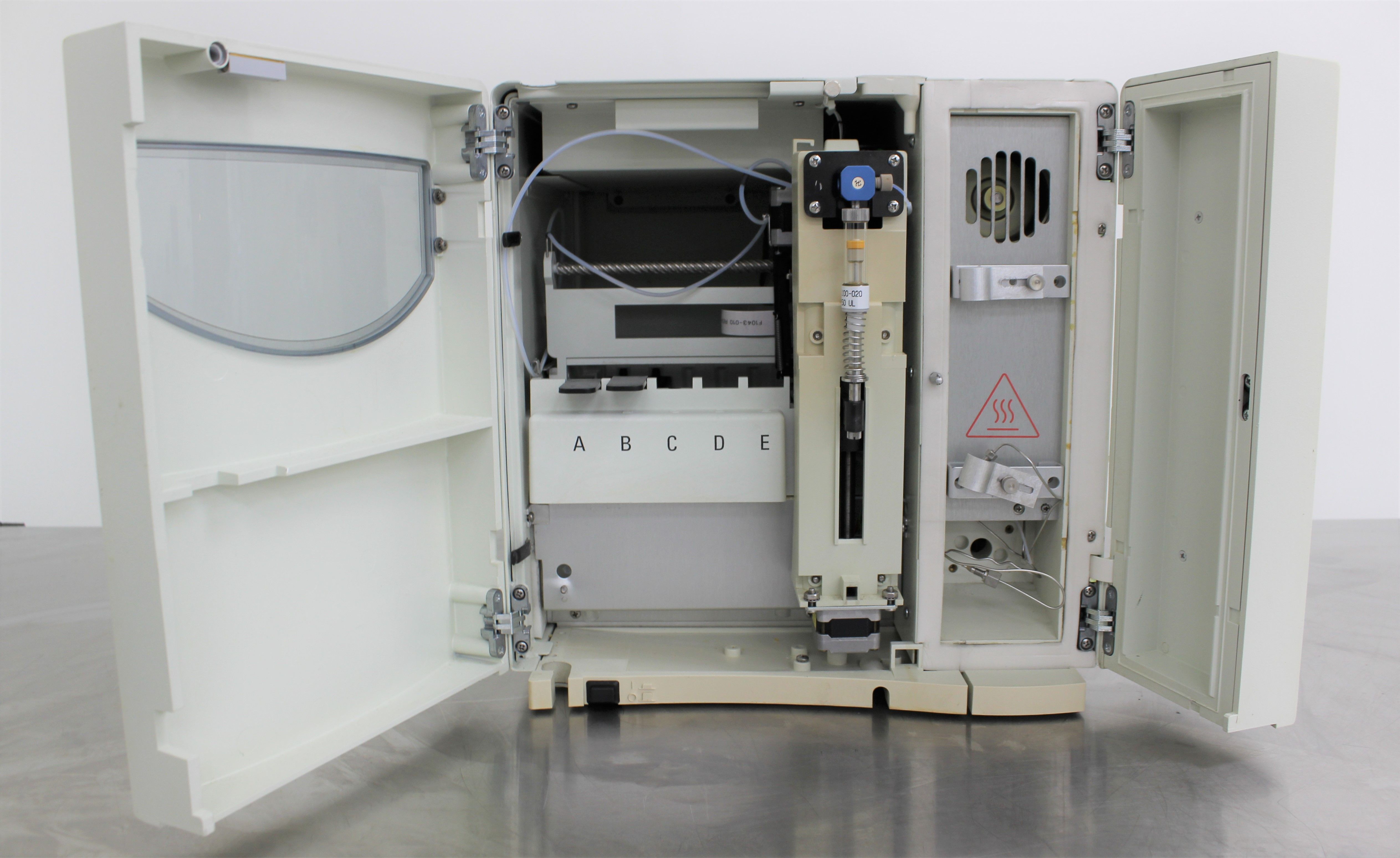

The Thermo Finnigan Surveyor Autosampler SRVYR-AS, a used yet fully functional device, is engineered to enhance productivity in laboratory settings. With a unique sampling arm design, it reduces unnecessary movements, allowing for maximum injections in minimal time. This model delivers fast injection cycles of under 30 seconds and accommodates up to 200 standard 1.8 mL sample vials or three 96/384 well microtiter plates. Equipped with a sophisticated syringe flush and needle wash system, it minimizes sample carryover, maintaining sample integrity. It also features a heat exchanger to equilibrate the mobile phase before sample introduction. Additional features include programmable needle height, precise injection capabilities, and tray temperature control. Compatible for operation in a range of ambient conditions, the Surveyor Autosampler demonstrates robust and reliable performance.
Key Features
- High throughput design with novel sampling arm
- Fast injection cycles in less than 30 seconds
- Capable of holding 200 vials or three microtiter plates

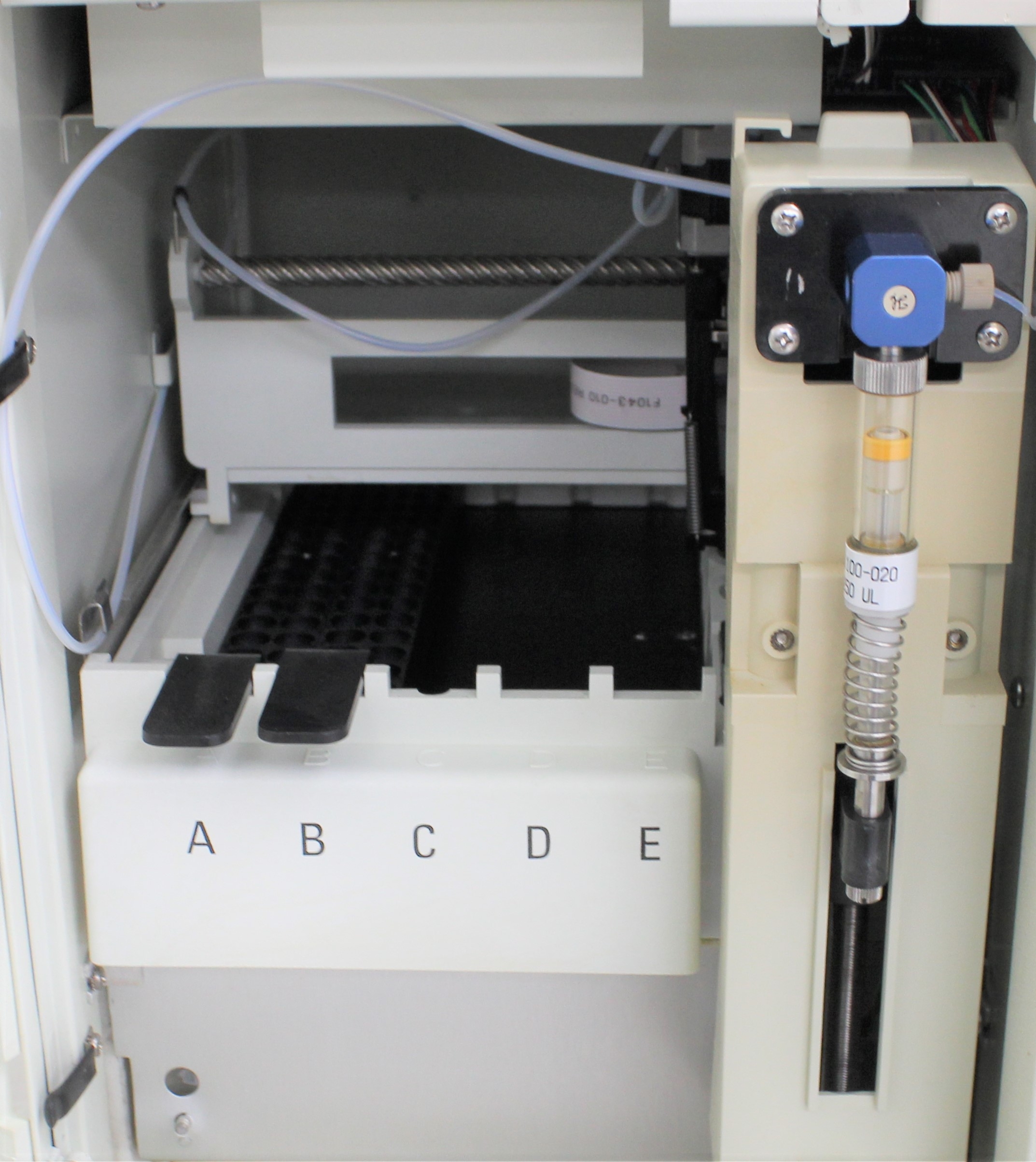

- Syringe flush and needle wash to minimize carryover
- Heat exchanger for mobile phase equilibration
- Programmable needle height
Specifications
- Vial Capacity: 200 vials with tray temperature control, Three 96 or 384-Well Microtiter Plates
- Injection Precision: 1.0% RSD at 5 uL and higher
- Minimum Sample Volume: 1 uL from 5 uL sample
- Injection Volume: Standard 20 uL loop, up to 1000 uL
- Sample Carryover: 0.1% with 6 mL needle wash
- Needle Height: Programmable in 0.1 mm increments
- Column Oven: 5C to 95C +/- 0.5C
- Tray Temperature Control: 0C to 60C +/- 0.5C

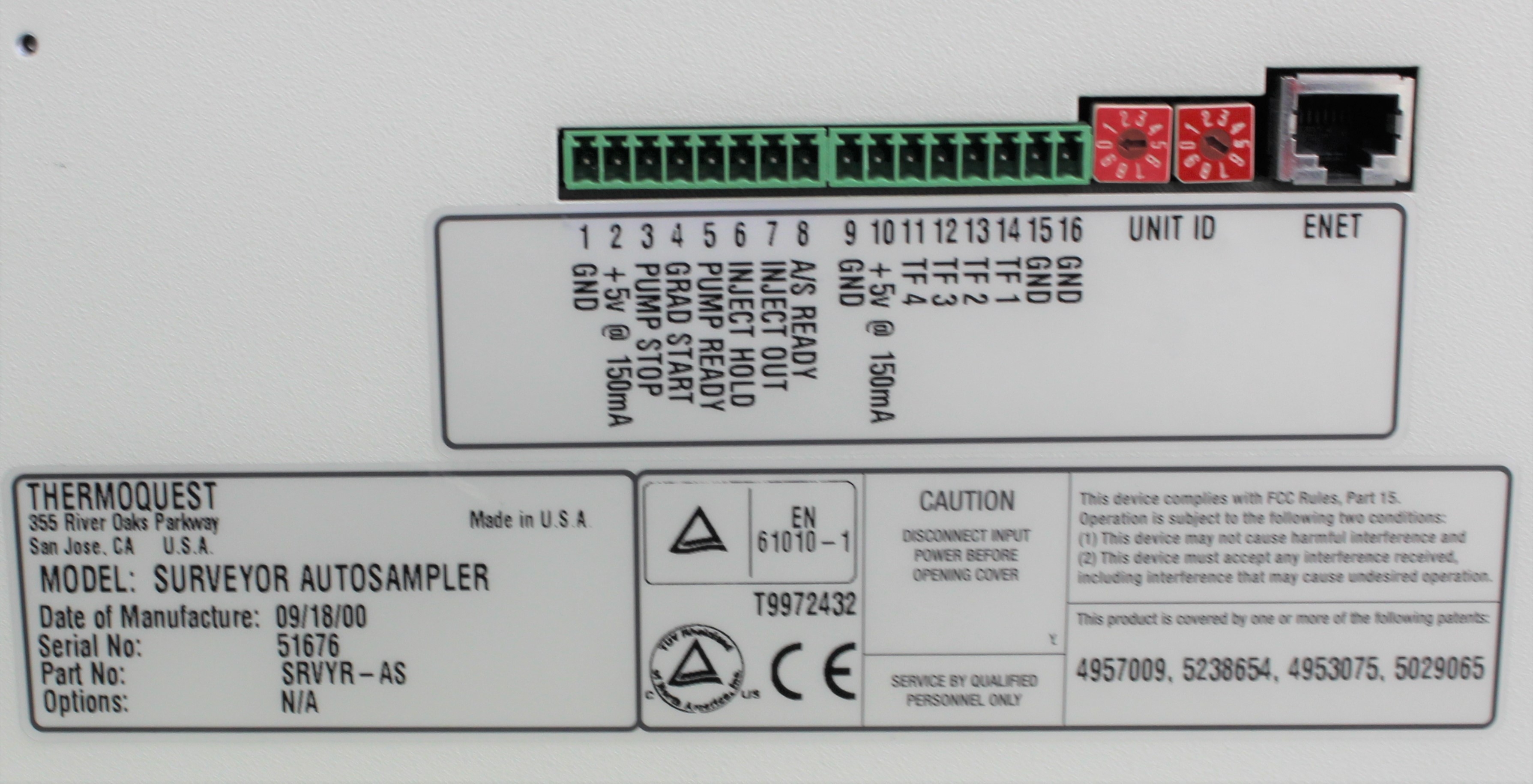

- Remote Inputs / Outputs: For effective edge integration
- Ambient Environment: Operates between 10C to 40C
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 25.2 lb x 18.0 lb x 18.0 lb
Metric: 64.01 cm x 45.72 cm x 45.72 cm
Harmonized Code
9027.80.25
Harmonized Code Details
9027.80.25 covers instruments and apparatus for physical or chemical analysis. The Surveyor Autosampler performs chemical analysis, making this code applicable.
