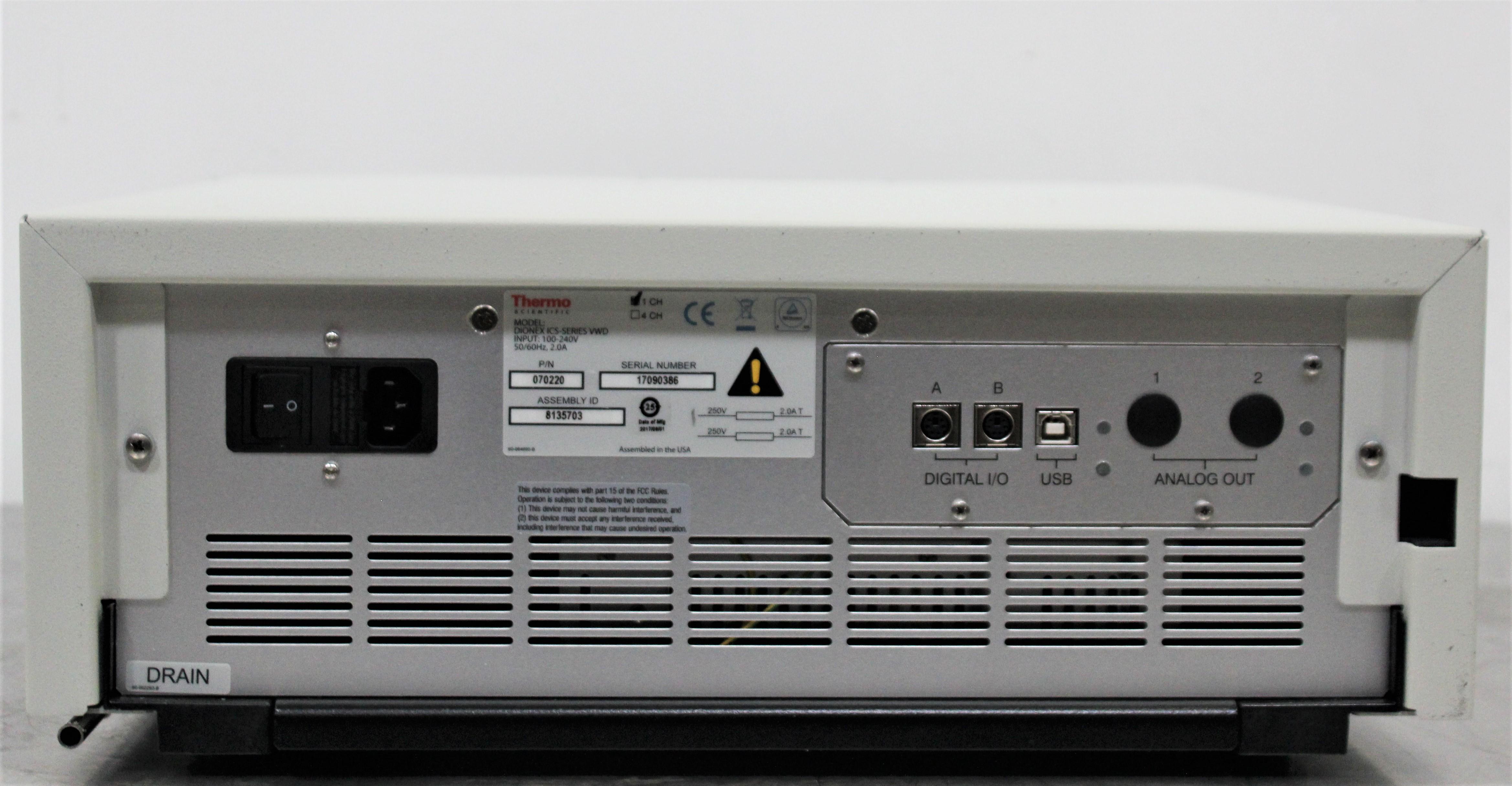

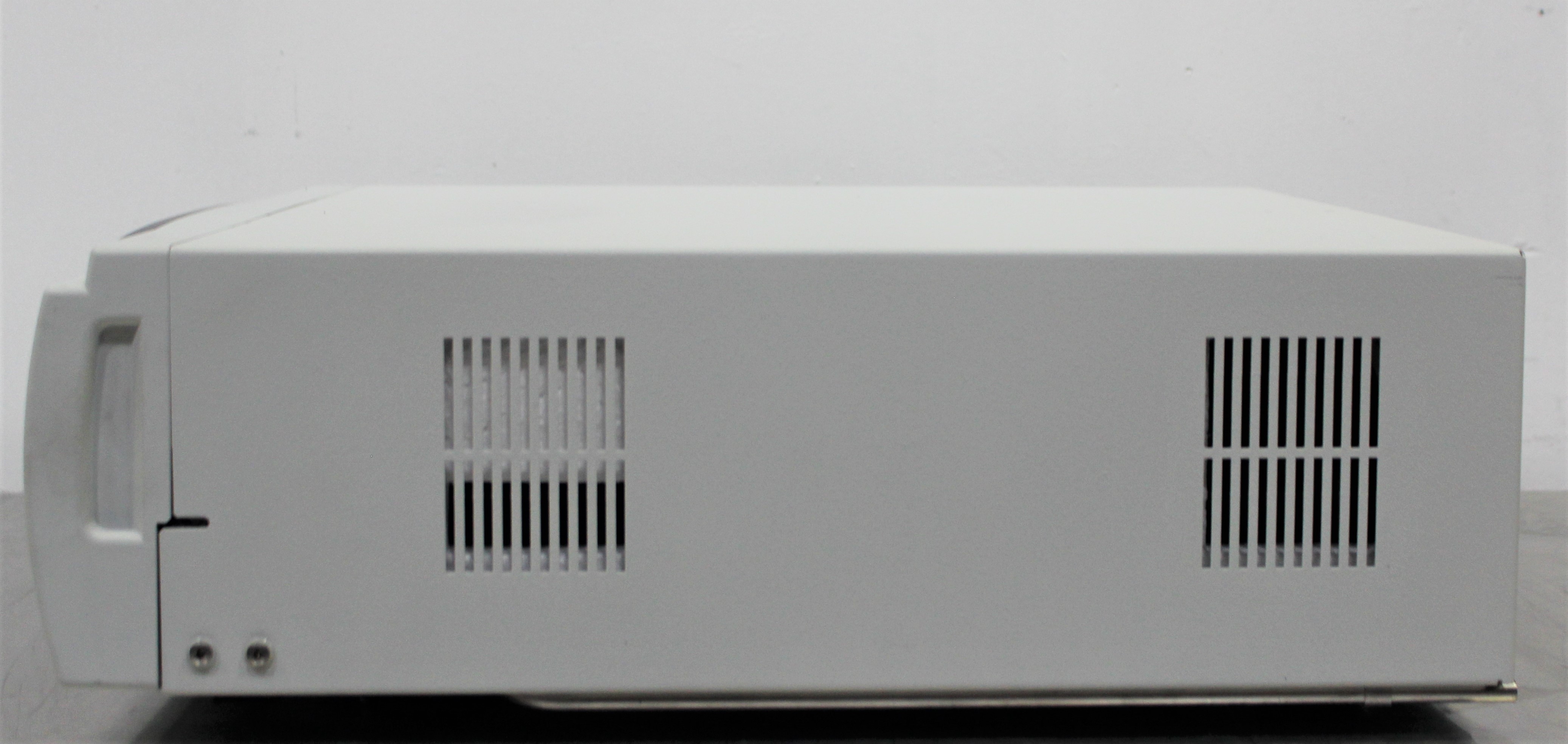

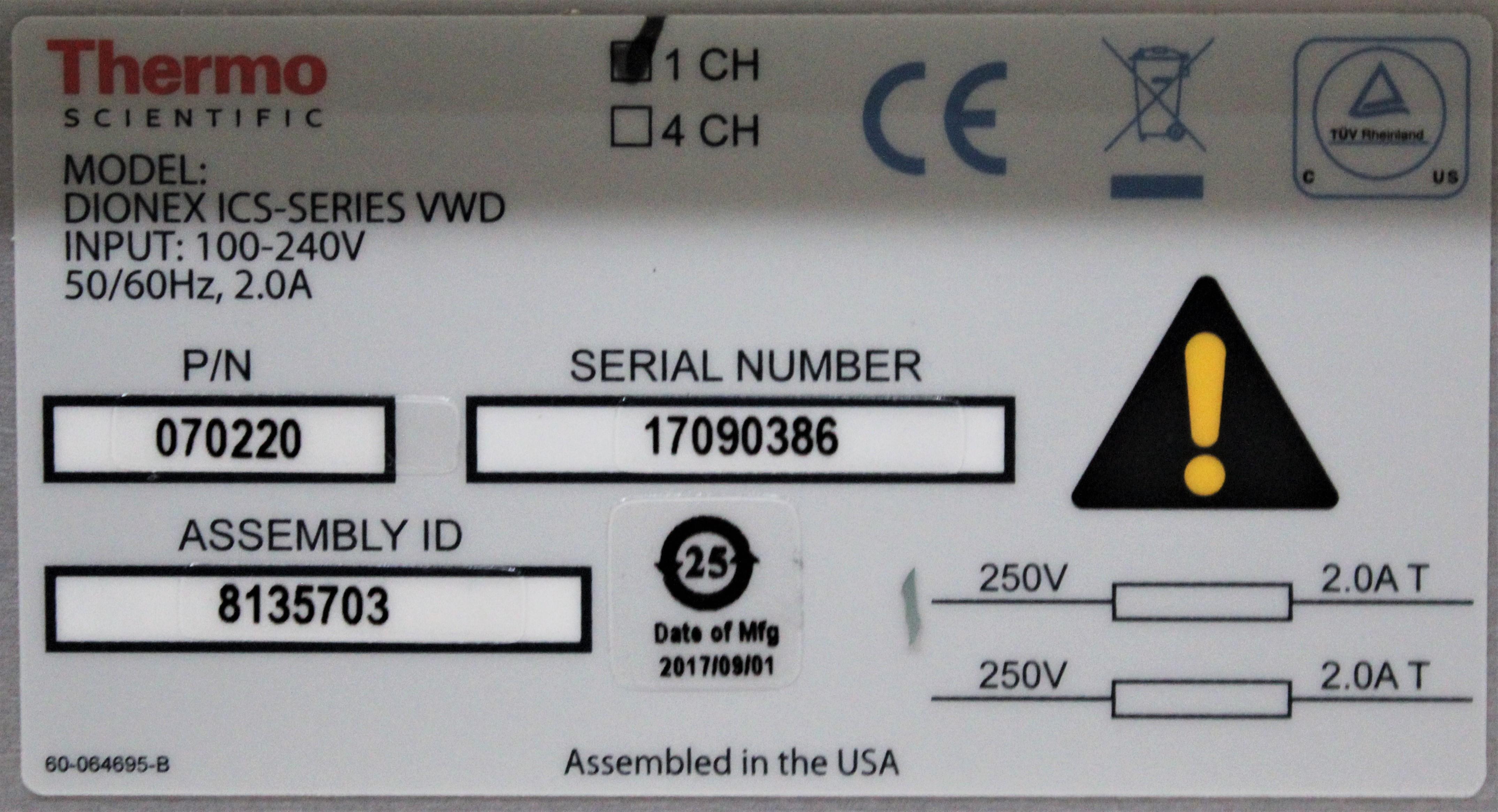

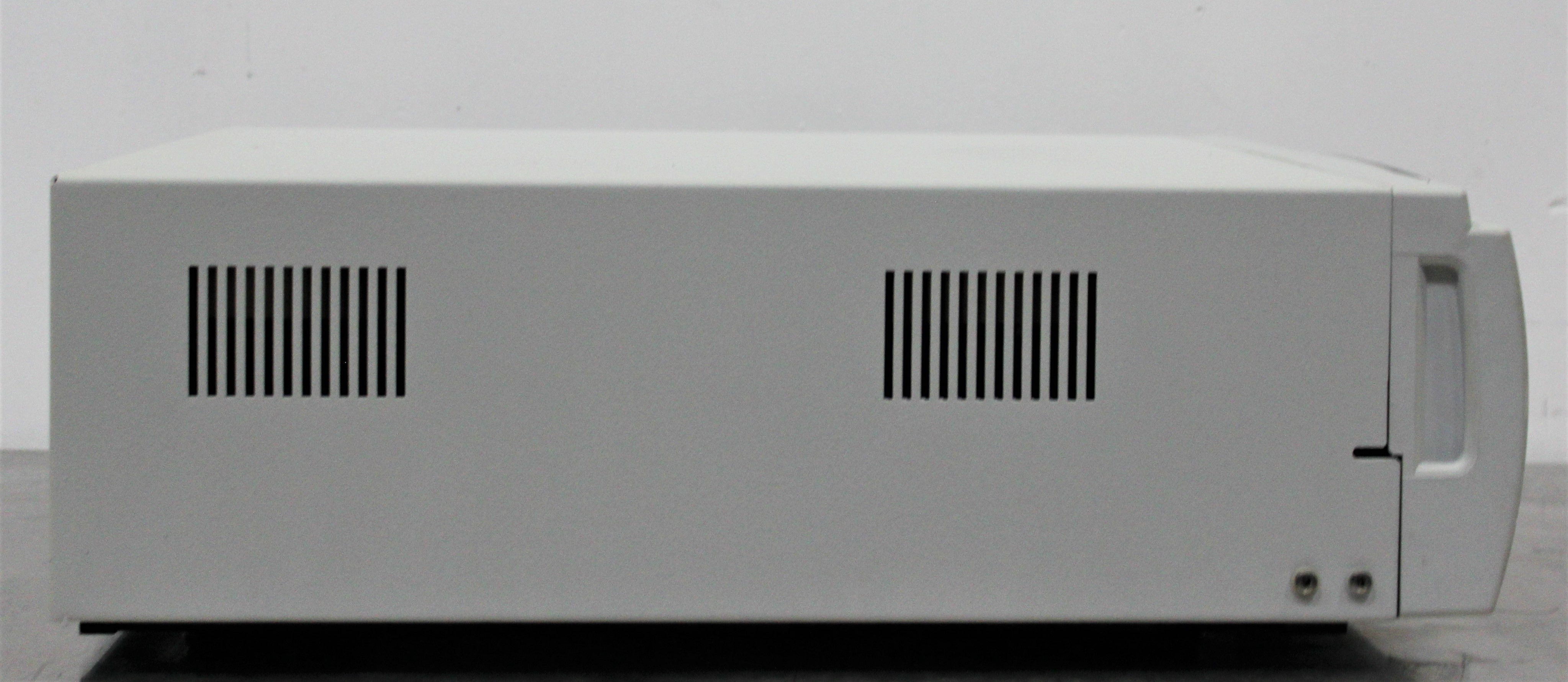

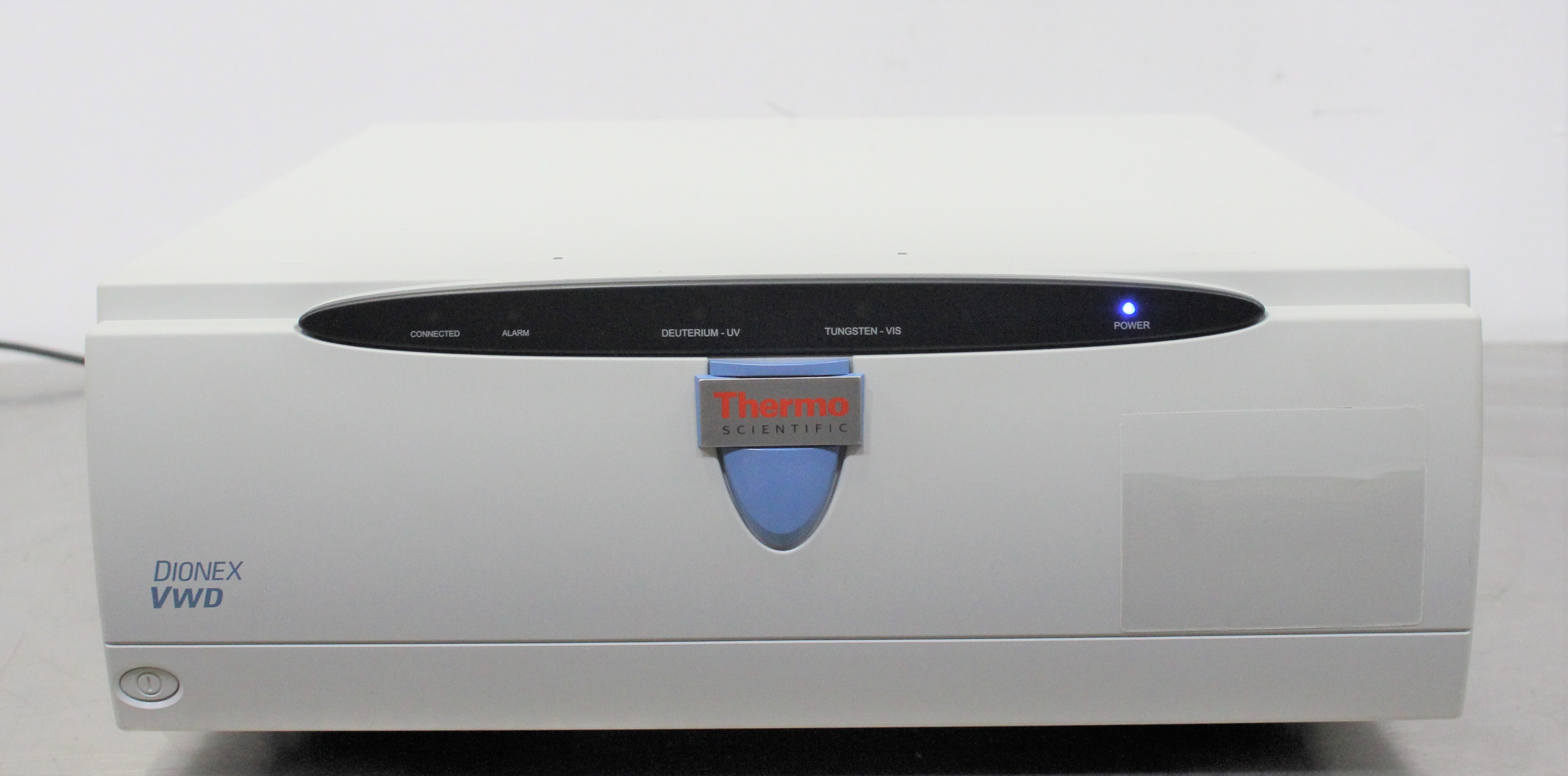

Thermo Scientific Dionex ICS-Series VWD Wavelength Detector 70220 PEEK
Thermo Scientific
Details
-
CategoryAnalytical
-
Dimension20.0in x 18.0in x 6.0in
-
Serial17090386
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Thermo Scientific Dionex ICS-Series VWD Model 70220 is a Variable Wavelength Detector, ideal for routine ion chromatography applications. This used unit is in very good condition, demonstrating reliable functionality with minimal cosmetic damage. It includes a power cord but no computer or software. Notably, the instrument features dual simultaneous tungsten and deuterium lamps for high sensitivity, and a PEEK flow cell (not included) to prevent metal contamination. With a wavelength range from 190 to 900 nm and high linearity, it is perfect for precise analytical measurements. Compatible with USB connectivity, it offers data collection rates up to 10 Hz and includes versatile analog outputs. Ensure outstanding sensitivity and reliability with the Dionex ICS-Series VWD.
Key Features
- Variable Wavelength Detector
- Dual-lamp tungsten and deuterium
- No metal contamination with PEEK flow cells
- Wavelength range 190-900 nm
- High linearity and sensitivity
Specifications
- Voltage: 120V/220V, Frequency: 50Hz/60Hz
- Data Collection Rate: Up to 10 Hz
- Drift: <0.1 mAU/hr
- Noise Level: < 2.5 AU (at 254 nm)
- Flow Cell Volume: 11 L (available in PEEK only)
- Flow Cell Materials: PEEK
- Wavelength Accuracy: 1 nm
- Analog Outputs: Two, absorbance, 20-bit resolution, 0-1 V and 0-10 V
- PC Connection: USB
- Simultaneous Tungsten and Deuterium lamps
Weight
Imperial: 39.6 Pounds
Metric: 17.96 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 21.6 lb x 7.2 lb
Metric: 60.96 cm x 54.86 cm x 18.29 cm
Harmonized Code
9027.50.40
Harmonized Code Details
9027.50.40 - Instruments and apparatus for physical or chemical analysis, involving chromatography or electrophoresis. This code is suitable given the nature of the Dionex ICS-Series as a specialized chromatography detector.
