ESA Coulochem III Electrochemical Detector High Sensitivity Analysis
esa
Details
-
CategoryProcess / Scale-Up
-
Dimension20.0in x 9.0in x 11.0in
-

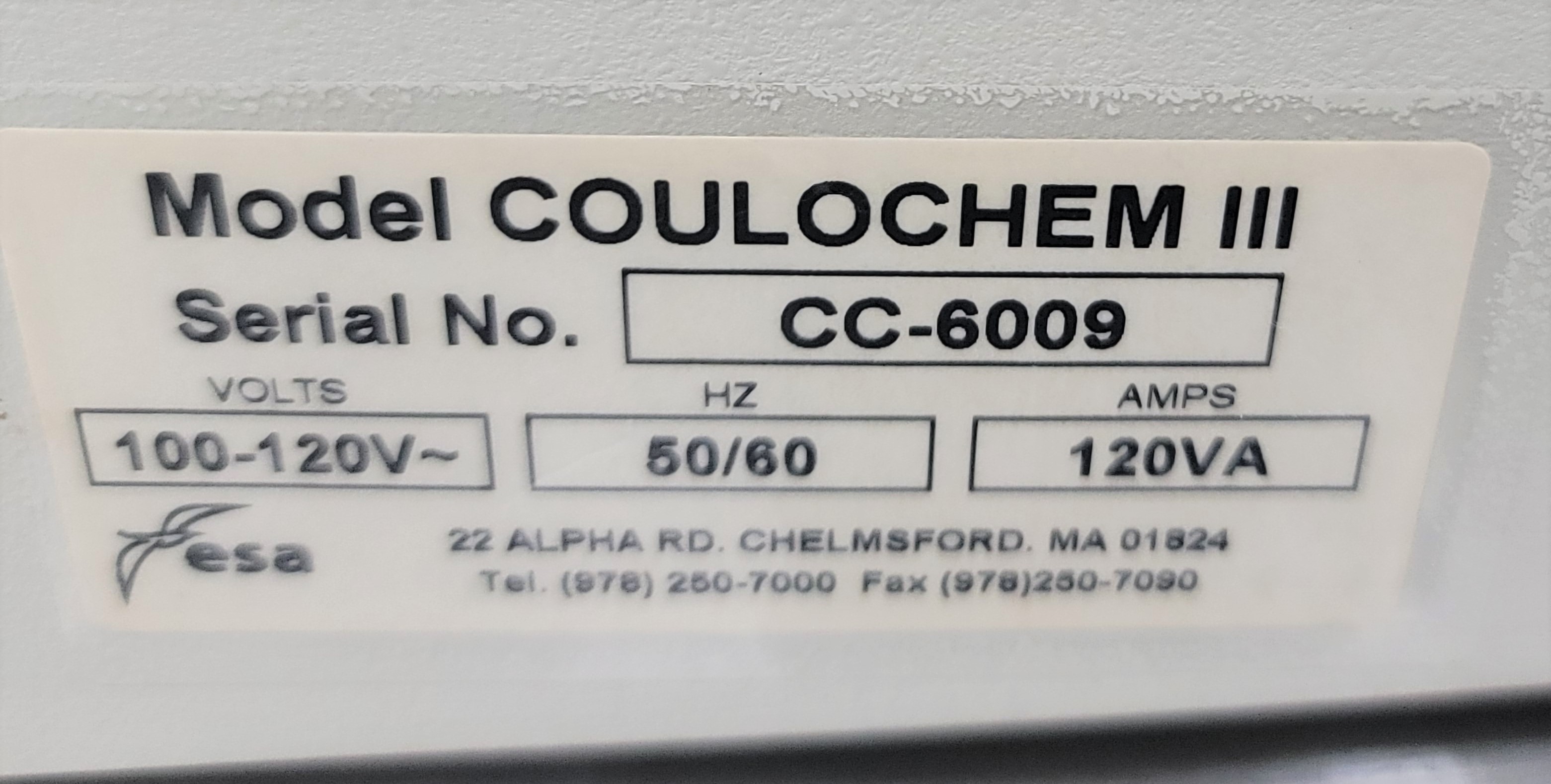

SerialCC-6009
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The ESA Coulochem III Detector is a versatile electrochemical detection unit renowned for its high sensitivity and precise signal optimization. Designed for detecting low signals in direct current (DC) modes, this device supports capillary to normal bore chromatography. With features such as pulse mode for variable timing and scan mode for optimal potential selection, it ensures accurate analyses. Its flexible detector configuration consists of a DC potentiostat accommodating one or two cells and a potentiostat for Guard Cell, Scan Mode, or Pulse Mode. This unit is perfect for scientific applications requiring intricate waveform control and sensitive detection.
Key Features
- High sensitivity detection unit
- DC potentiostat for 1 or 2 cells
- Pulse mode for variable timing
- Scan mode for optimal potential selection
- 24-bit bipolar output resolution

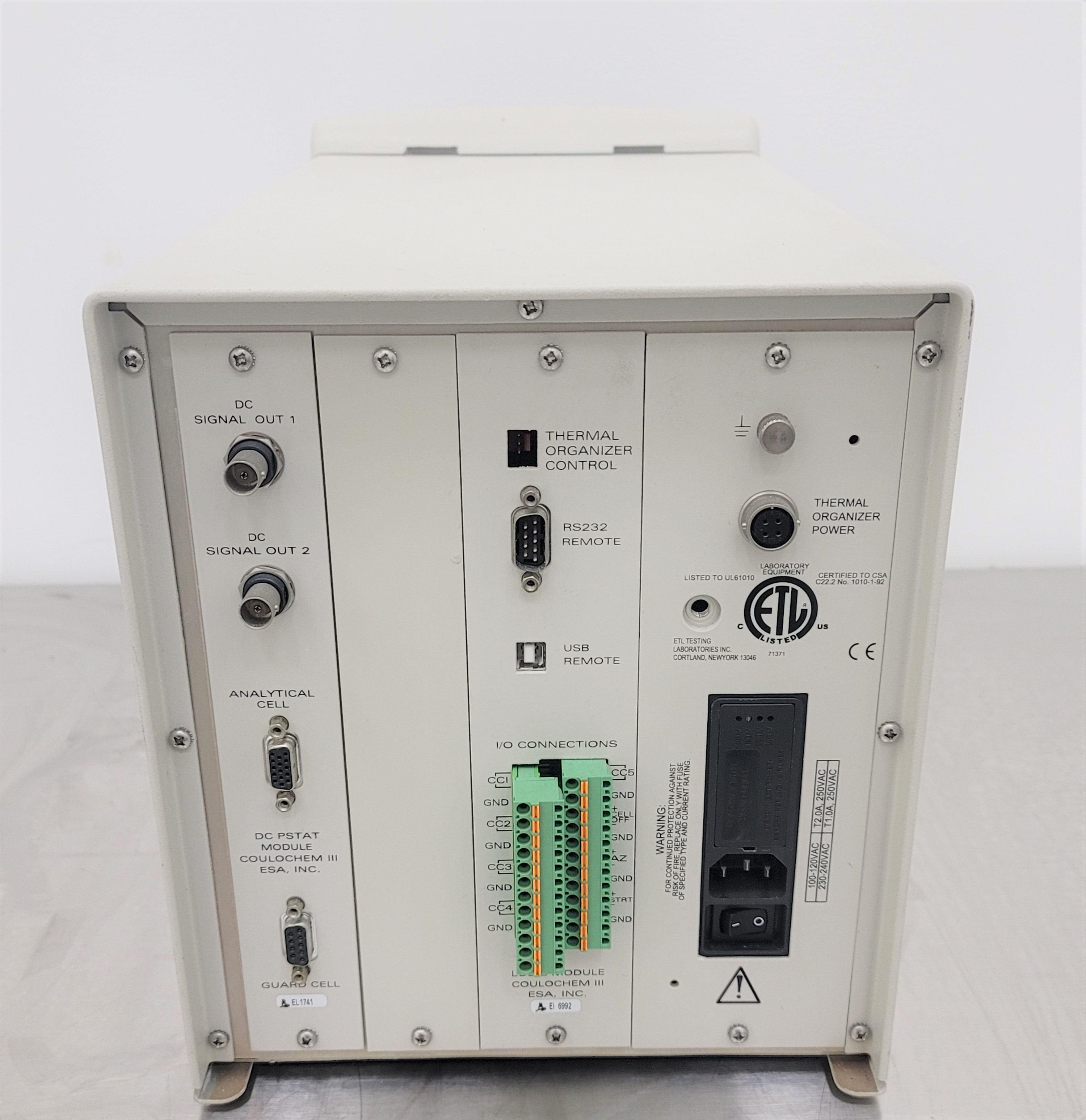

- RS-232C interface for full parametric control
Specifications
- Detector Configuration: DC potentiostat for 1 or 2 cells
- Operating Modes: DC, Pulse, Scan
- Potential Range: 2000 mV in 1 mV steps
- Full Scale Current Range: 10 pA to 1 mA (DC Mode)
- Filter Time Constants: 0.2 to 10 seconds (DC Mode)
- Typical Noise: < 750 fA (0.75 pA)
- Signal Output: 100 mV, 1 V
- Output Resolution: 24-bit bipolar
- Guard Cell Potential: 2000 mV in 1 mV steps
- Event Marker: Keypad, timed operation, or RS-232C control
- Autozero: Keypad, contact closures, timed operation, or RS-232C control
- RS-232C Interface: Full parametric instrument control
- Method Storage: Up to 25 methods
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 10.8 lb x 13.2 lb
Metric: 60.96 cm x 27.43 cm x 33.53 cm
Harmonized Code
9027.10.6000
Harmonized Code Details
The harmonized code 9027.10.6000 pertains to instruments and apparatus for physical or chemical analysis, being the most fitting for electrochemical detectors like the ESA Coulochem III.
