Shimadzu RF-10AXL Detector Fluorescence HPLC System 200-650nm 120V 50/60Hz
Shimadzu
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension21.0in x 10.0in x 8.0in
-

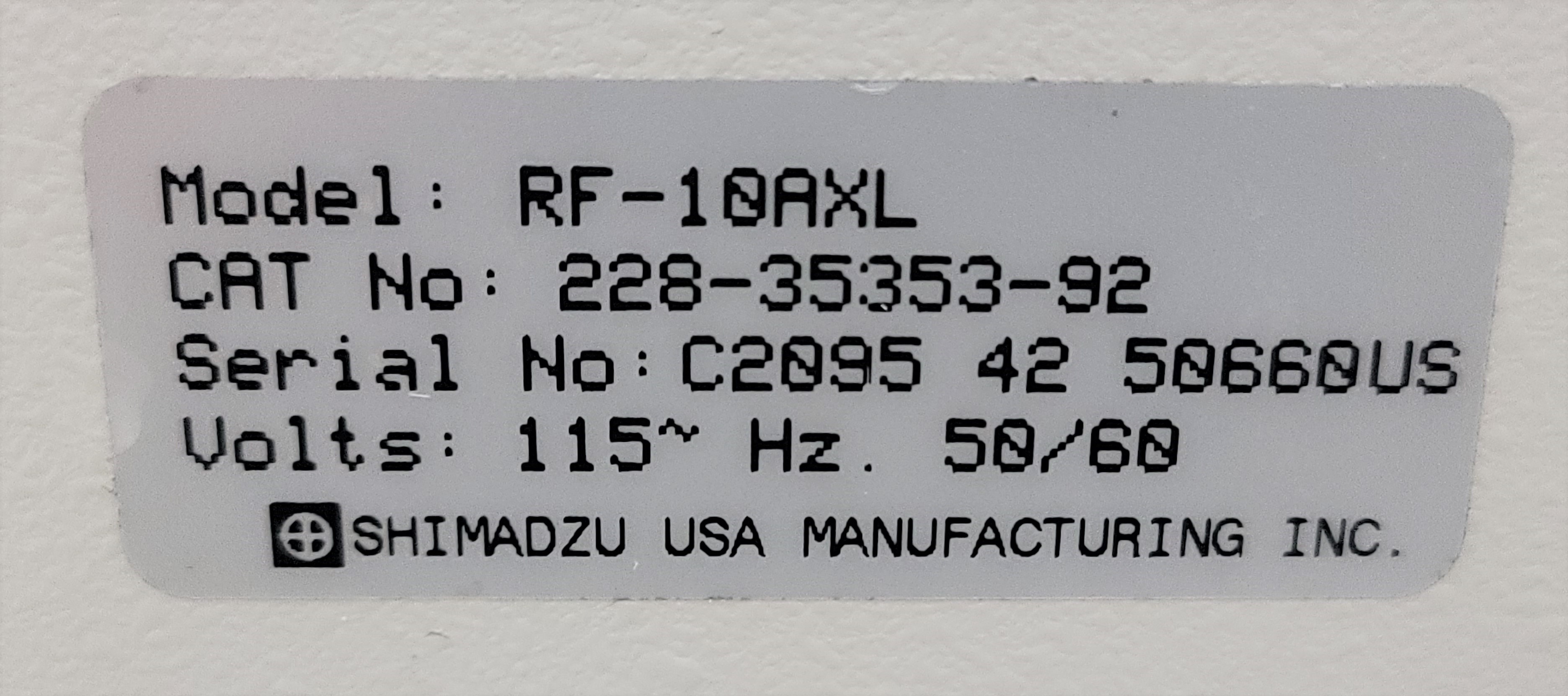

SerialC2095 42 50660US
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

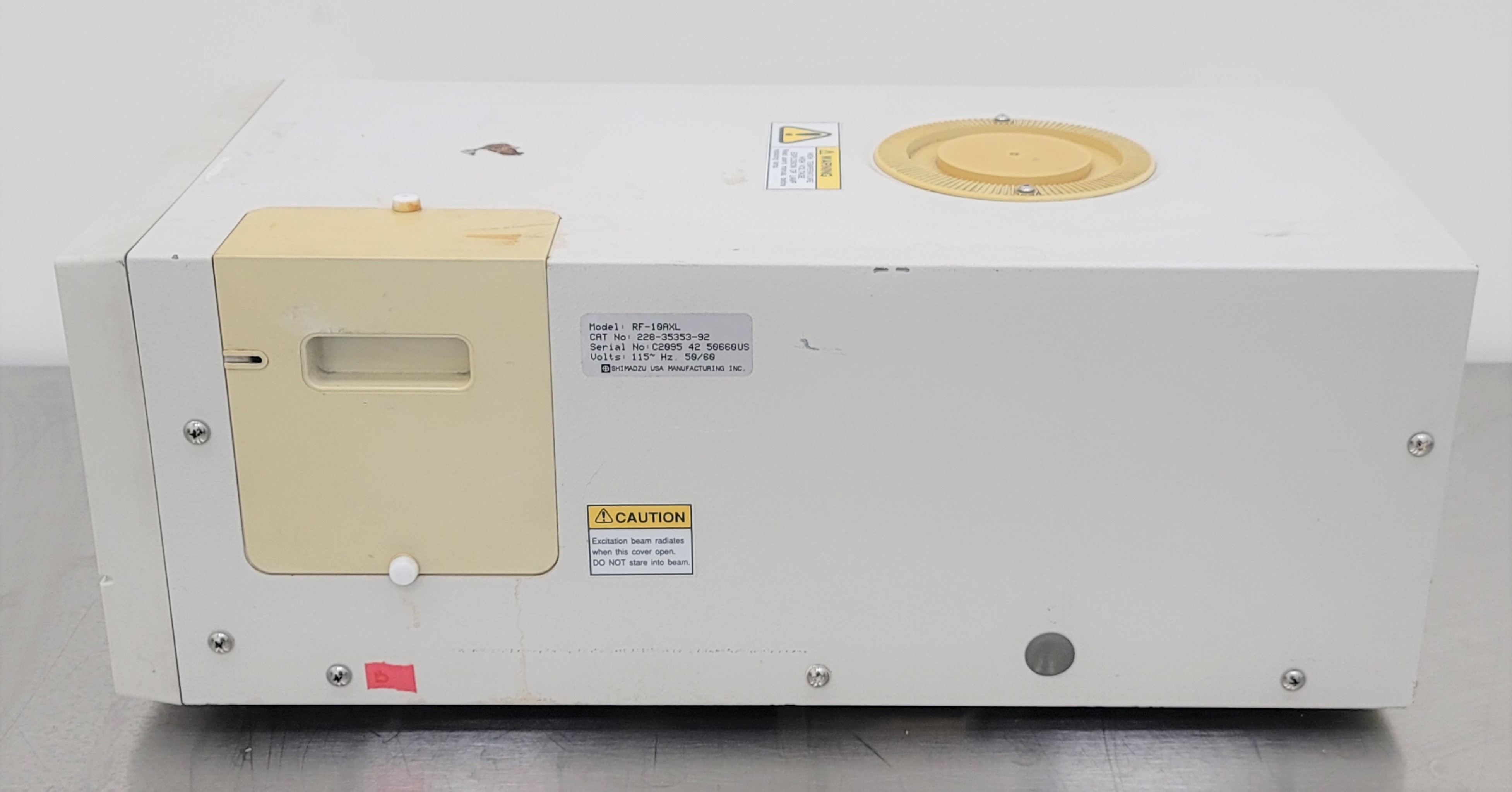

The Shimadzu RF-10AXL Fluorescence Detector is engineered with a compact, modular design to fit seamlessly into any existing HPLC (High-Performance Liquid Chromatography) system. Paired with the SCL-10Avp system controller for enhanced compatibility, this detector easily integrates using fiber optic communication for a plug-and-play configuration within the Shimadzu LC-10A Series. Designed with advanced GLP functions, it includes self-diagnostics, maintenance alerts regarding lamp lit hours, lamp energy, and span calibration for reliable usage. Although this used unit displays minor cosmetic imperfections (refer to pictures for details), it remains fully functional with an excellent condition classification of 'Very Good'. Notably, the light source is a 150W High Precision Xenon lamp, coupled with concave blazed holographic grating monochromators, enabling a measuring wavelength range of 200 to 650 nm, expandable to 900 nm optionally. The detector features a spectral bandwidth of 15 nm on both excitation and emission sides, a wavelength accuracy of +/- 0.2 nm, and offers a sensitivity with an S/N ratio of 300 for the Raman line of distilled water.
Key Features
- Compact modular design for easy integration
- Compatible with Shimadzu LC-10A Series via fiber optic communication
- Advanced GLP functions including self-diagnostics
- High Precision Xenon lamp, 150W
- Measuring wavelength range: 200 - 650 nm (expandable to 900 nm)
- Spectral bandwidth: 15 nm on excitation and emission sides
- Wavelength accuracy: +/- 0.2 nm
- Sensitivity with an S/N ratio of 300
Specifications
- Light source: High Precision Xenon lamp, 150W
- Excitation/emission monochromators: Concave, blazed holographic grating monochromators, F2.4
- Measuring wavelength range: 200 - 650 nm (200-900nm option)
- Spectral bandwidth: 15 nm both in the excitation and emission sides
- Wavelength accuracy: +/- 0.2 nm
- Sensitivity: The S/N ratio is 300 for the Raman line of distilled water (350nm excitation wavelength and 1.5 sec. time constant)
- Detector: Photomultiplier
- Cell (volume, pressure, material): 12 L, approx. 20kgf/cm2 as standard
- Time programming: Wavelengths parameters may be programmed in up to 32 steps
Weight
Imperial: 44.4 Pounds
Metric: 20.14 Kilograms
Shipping Dimensions
Imperial: 25.2 lb x 12.0 lb x 9.6 lb
Metric: 64.01 cm x 30.48 cm x 24.38 cm
Harmonized Code
9027.30.40
Harmonized Code Details
Harmonized code 9027.30.40 refers to spectrophotometers using light to measure gaseous, liquid, or solid samples. This code is suitable for the Shimadzu RF-10AXL Fluorescence Detector as it employs light spectral data for measurement in HPLC analyses.
