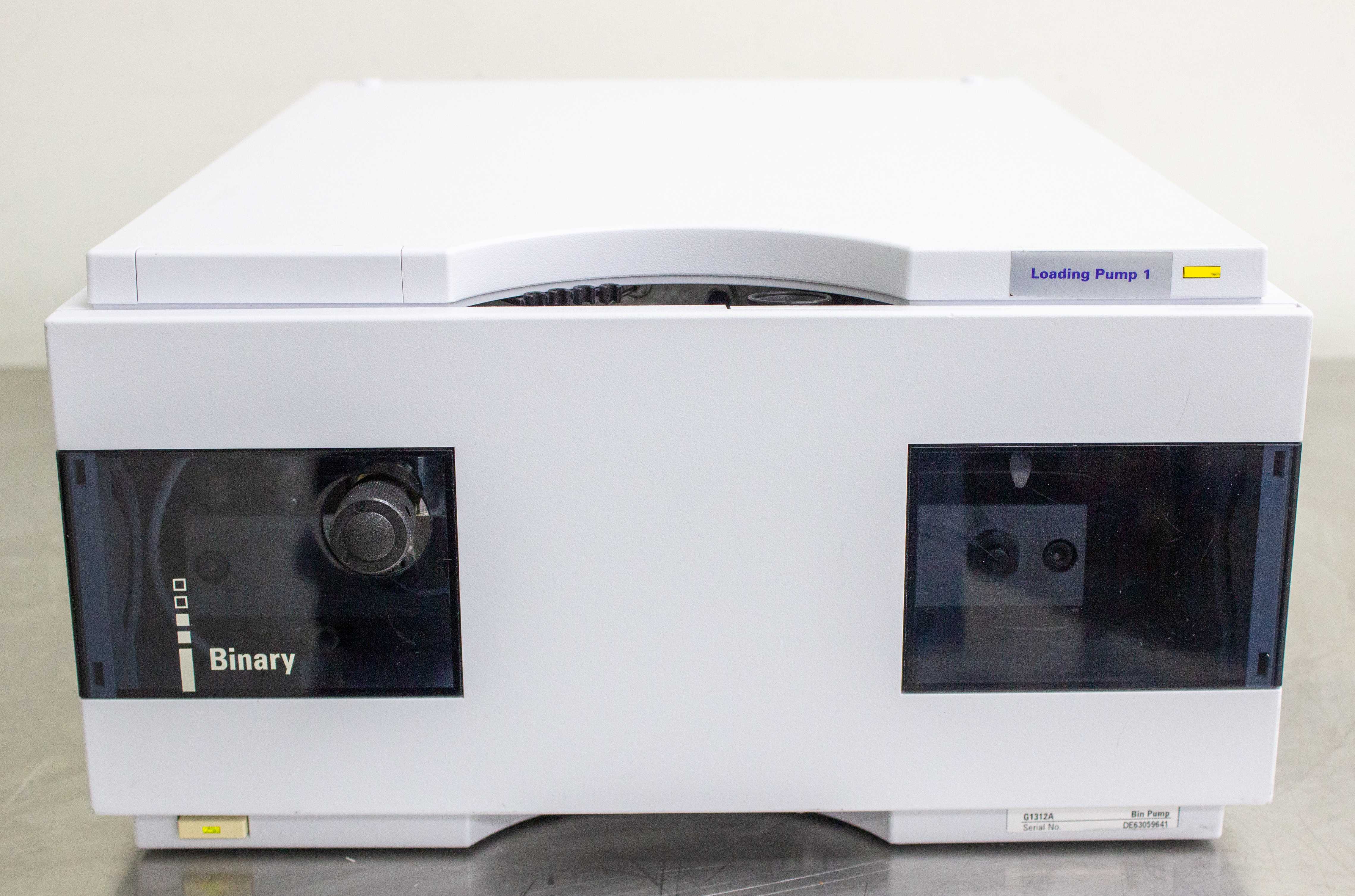

Agilent G1312A Bin Pump HPLC Dual-Piston Binary Pump 400 Bar High Performance
Agilent
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension19.0in x 14.0in x 8.0in
-

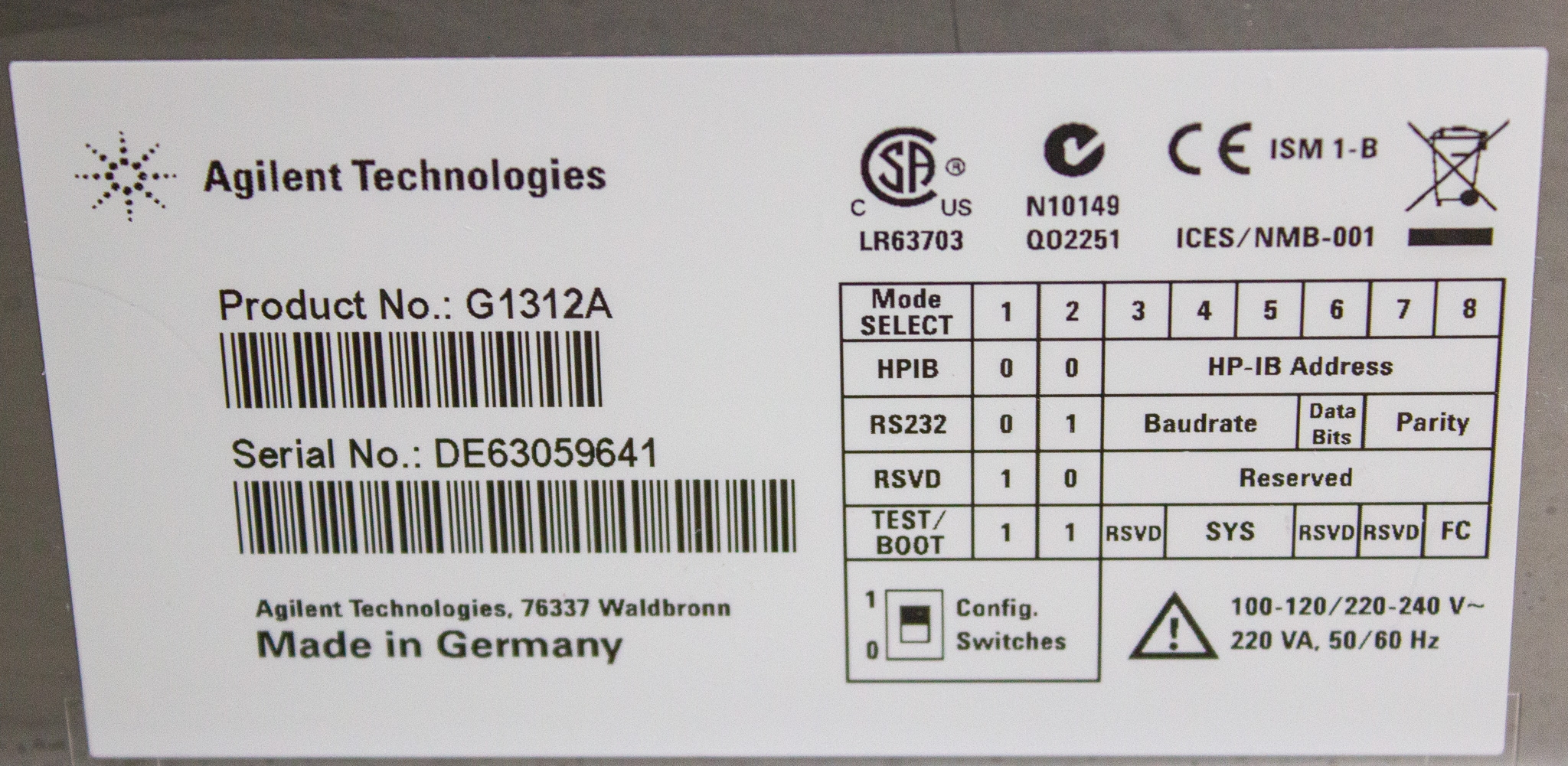

SerialDE63059641
-
Shipping TypeGround
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent G1312A Bin Pump is a high-performance binary pump designed for precise high-pressure mixing, essential for modern liquid chromatography. Although used, this pump has minor cosmetic wear consistent with normal use. Its robust design minimizes maintenance with electronically controlled active inlet valves for flow rates up to 5.0 mL/min and floating pistons for optimal sealing. A versatile flow range starting at 50 µL/min ensures accurate gradient formation, while the dual-piston two-channel system handles pressures up to 400 bar. It includes key features such as a low-volume mixing chamber, damping unit, purge valve with PTFE frit, and comprehensive safety standards compliance. Ideal for research environments seeking reliable solvent delivery systems.
Key Features
- High-pressure binary mixing

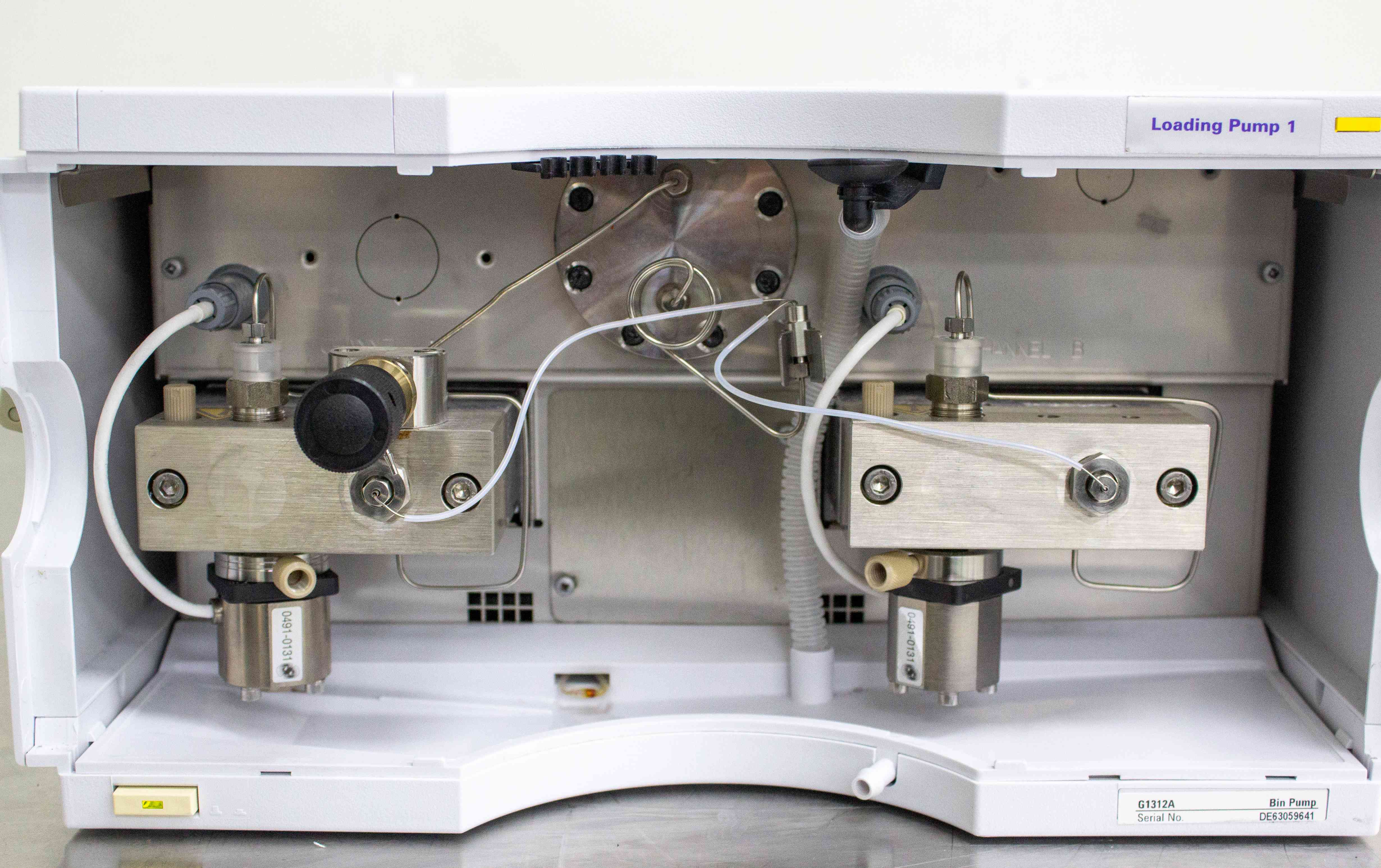

- Dual-piston, two-channel design
- Flow rates up to 5.0 mL/min
- Pressure handling up to 400 bar
- Floating piston design for optimal seal
- Electronically controlled active inlet valves
- Includes purge valve with PTFE frit
Specifications
- Hydraulic system: Two dual piston in series pumps with servo-controlled variable stroke drive
- Settable flow range: 0.001 to 5 ml/min in 0.001 ml/min increments
- Flow precision: 0.07% RSD, or 0.02 min SD
- Flow accuracy: ±1% or 10 µl/min
- Pressure range: Up to 400 bar (0-5880 psi) up to 5 ml/min
- Pressure pulsation: <2% amplitude, typically <1%
- Composition range: 1-99% or 5 µl/min per channel
- Control and data evaluation: Compatible with Agilent ChemStation for LC

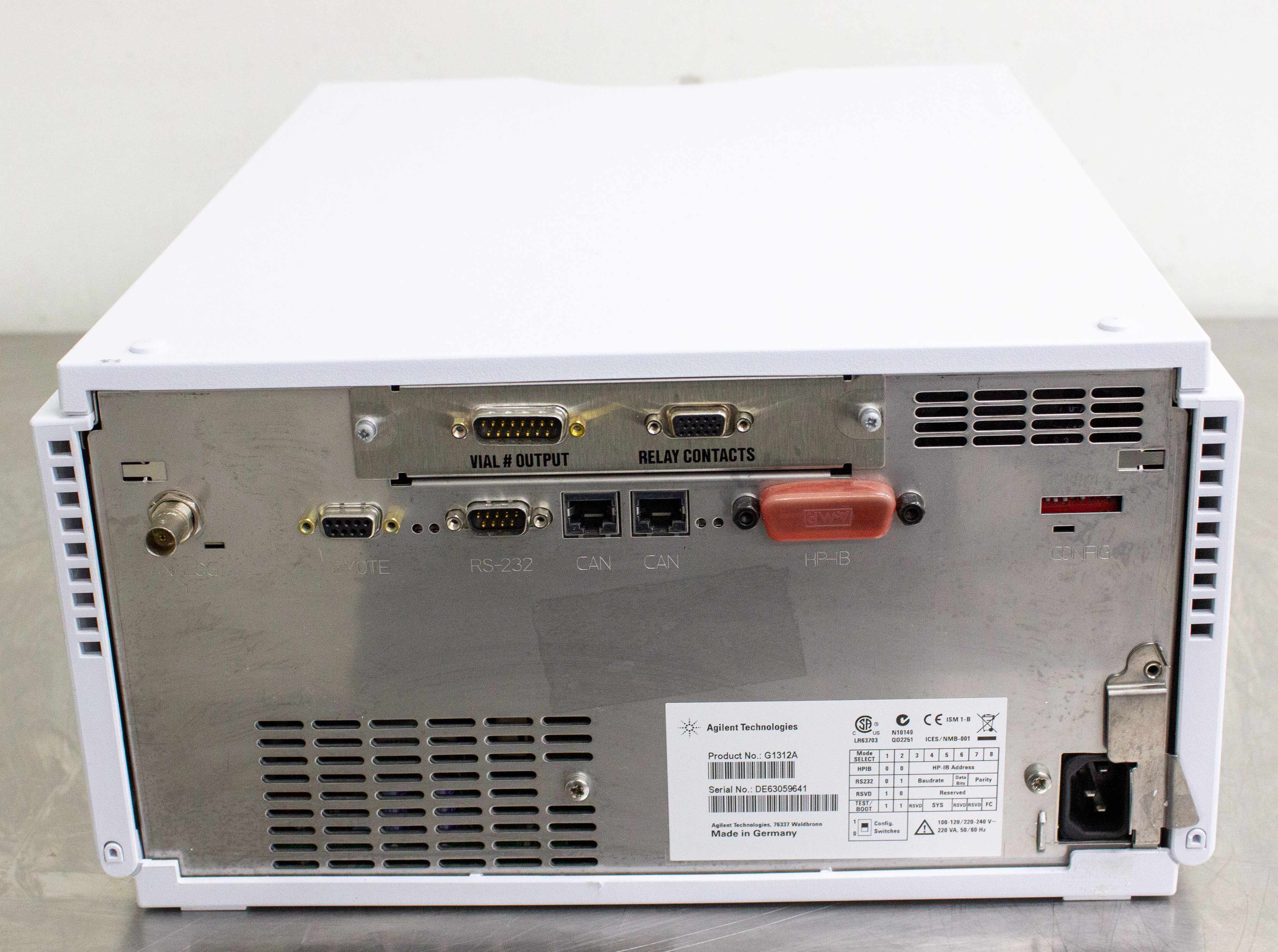

- Communications: CAN, GPIB, RS-232C, optional LAN
- Ambient operating temperature: 45 to 55 °C
Weight
Imperial: 43.2 Pounds
Metric: 19.6 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 16.8 lb x 9.6 lb
Metric: 57.91 cm x 42.67 cm x 24.38 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Instruments and apparatus for physical or chemical analysis. This code is suitable due to the high-performance liquid chromatography function of the Agilent G1312A Bin Pump.
