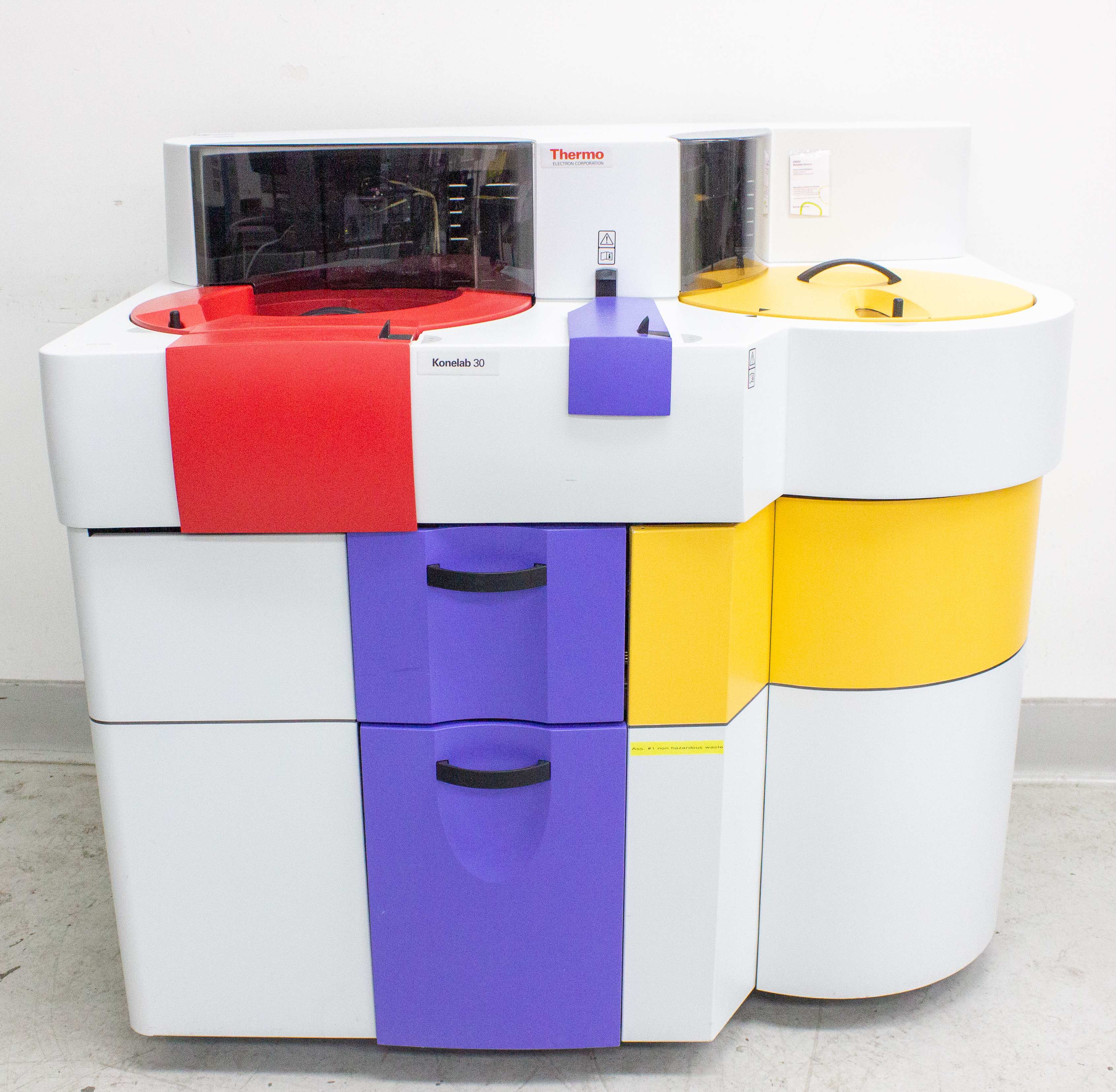

Thermo Konelab 30 Clinical Chemistry Analyzer 300 Tests/Hour Random Access
Thermo Electron
Details
-
CategoryAnalytical
-
Dimension31.0in x 48.0in x 45.0in
-
SerialE0319482
-
Shipping TypeFreight
-
Manufacturing2004-01-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Thermo Electron Konelab 30, manufactured in 2004, is a robust random-access clinical chemistry analyzer suited for routine and specialized laboratory tests. Supporting tests on specific proteins, electrolytes, therapeutic drugs, and drugs of abuse, this instrument offers an impressive throughput capacity of up to 300 tests per hour. The system facilitates continuous sample and reagent access, ensuring uninterrupted processing. It integrates an advanced barcode reader and cup/tube recognition for seamless operation. Its on-board capacity includes 84 routine samples, five STAT samples, and up to four reagent additions per test, displaying real-time reagent status on its interface. While the physical integrity of this pre-owned unit shows minimal cosmetic wear, functionality remains uncompromised as it powers on and passes basic tests as available, despite the absence of full diagnostic software evaluation due to compatibility constraints.
Technician comment

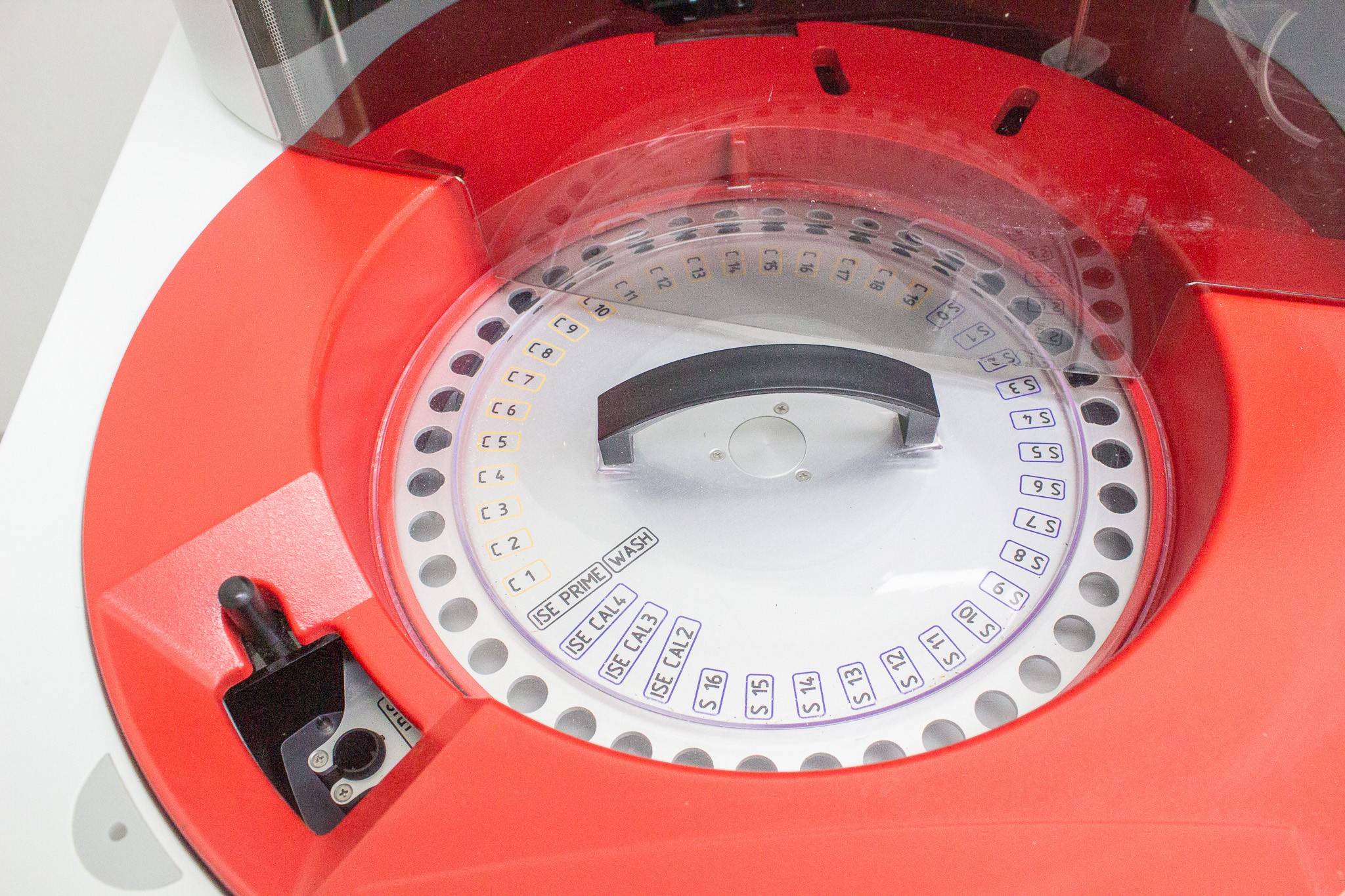

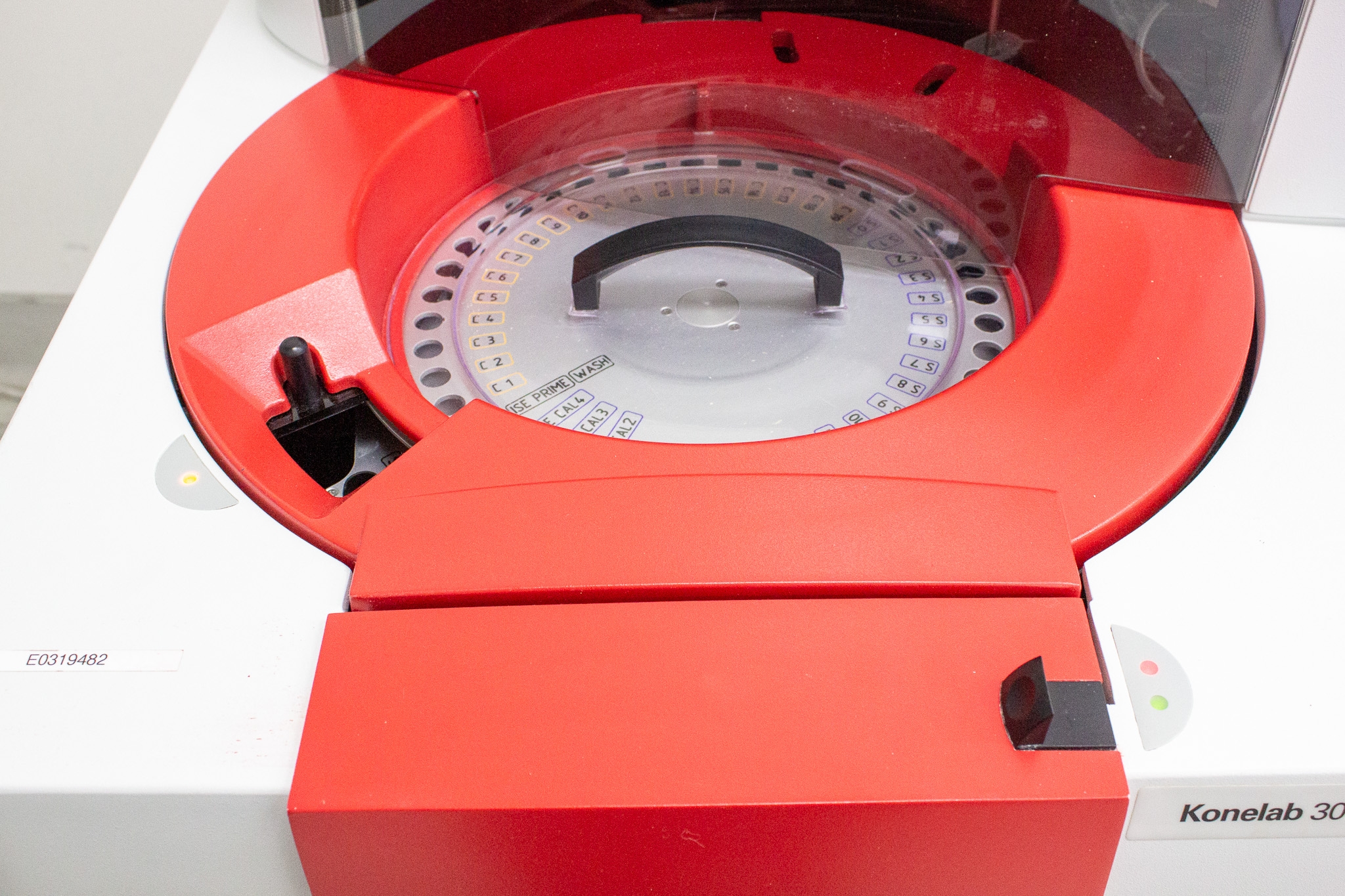

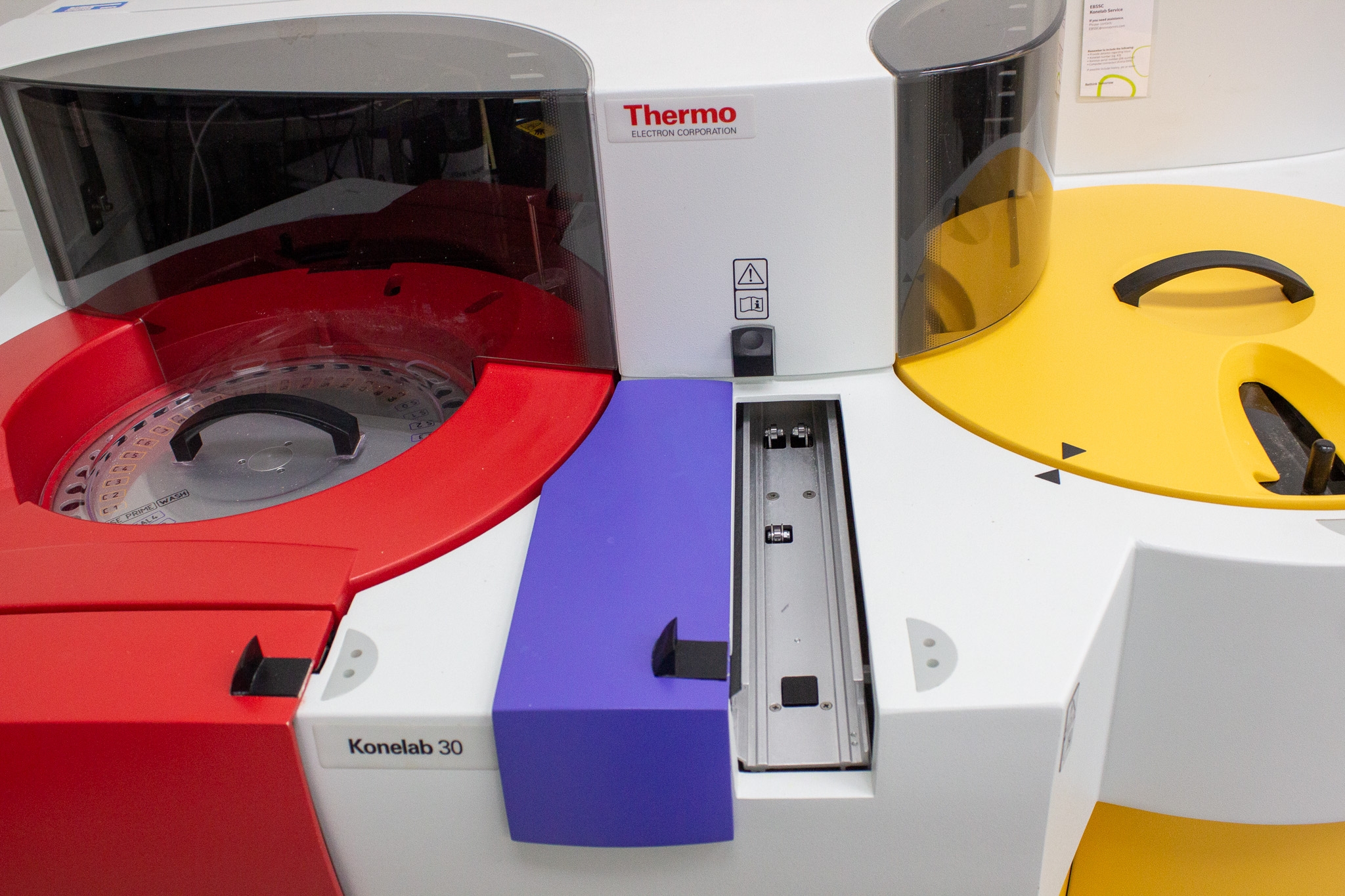

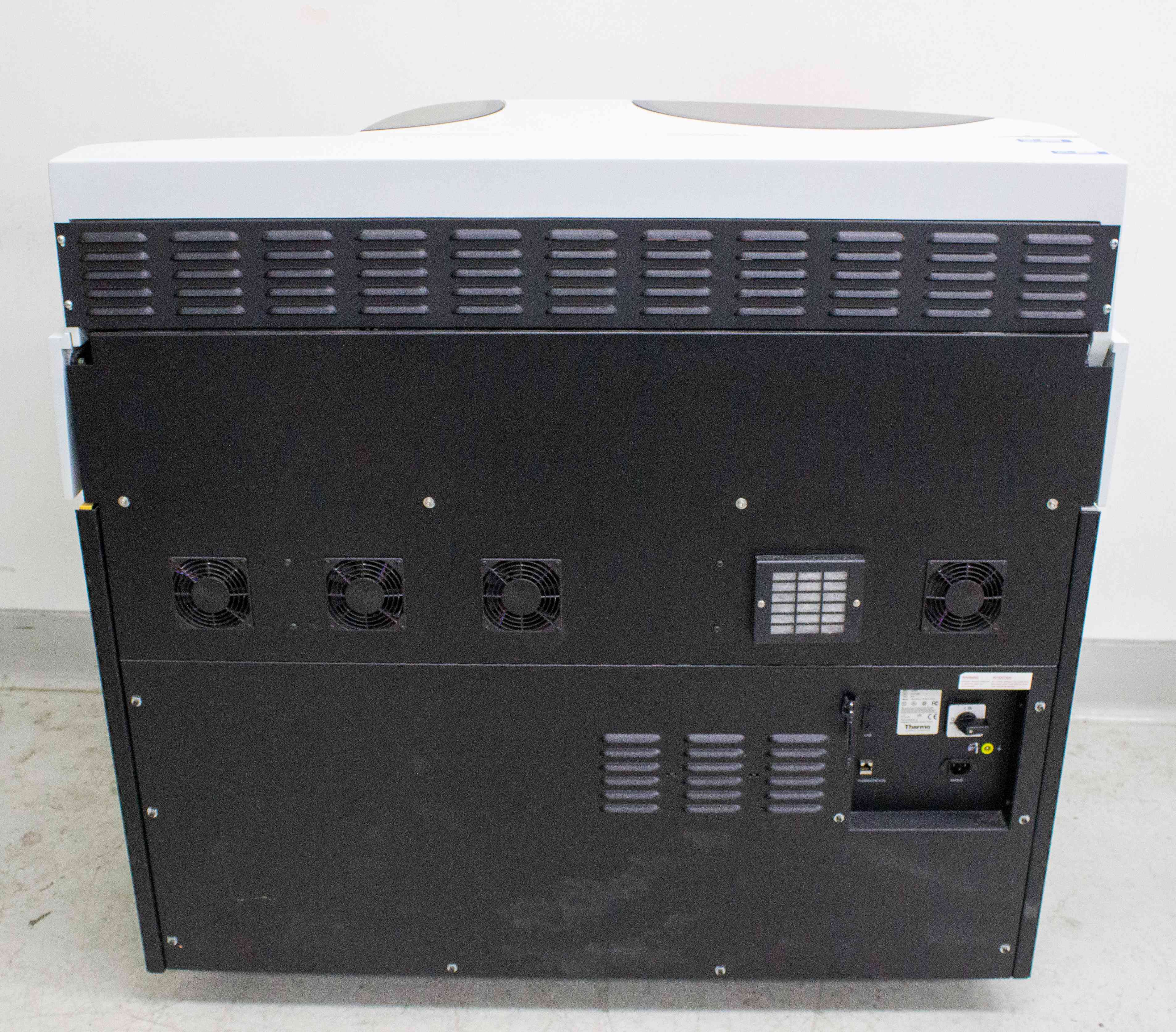

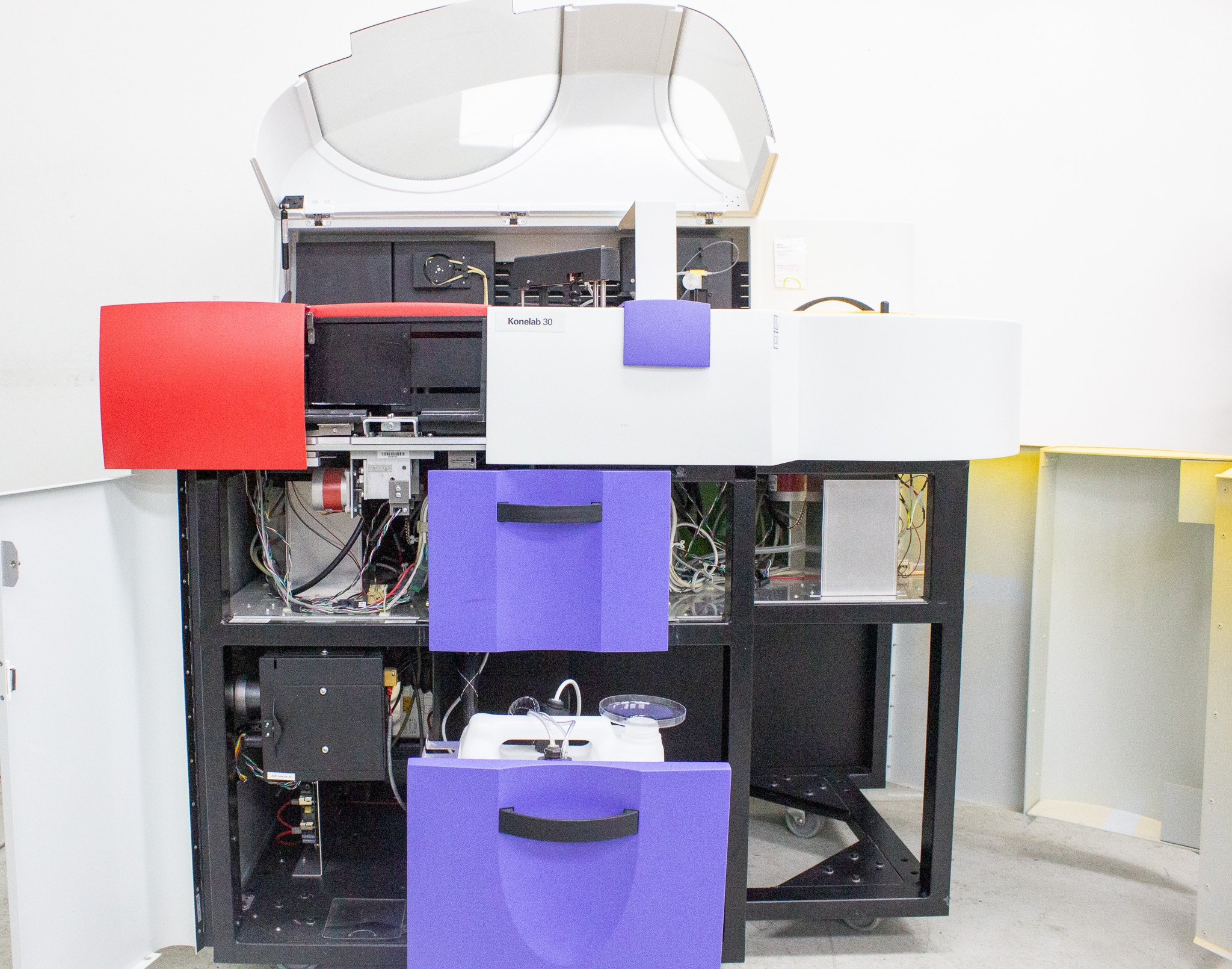

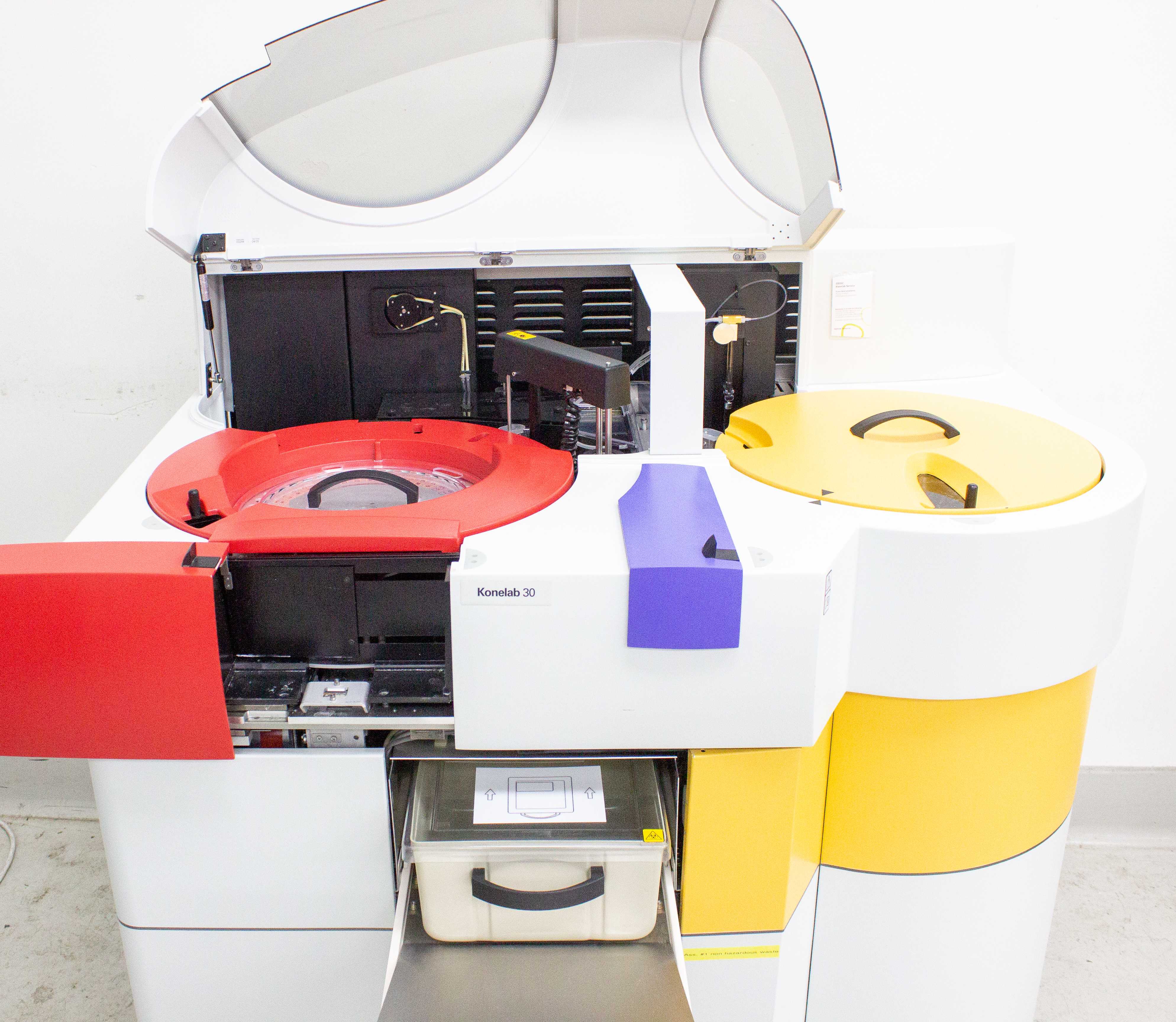

Preowned Konelab 30 powers on successfully with no error indications and shows only slight cosmetic wear from normal laboratory use—see photos for condition details. Instrument was tested to the extent possible without specialized Konelab control software, which limited full diagnostic verification. Instrument was sourced from a working lab environment.
Key Features
- Throughput of up to 300 tests per hour
- Handles routine and specialized chemistries
- Supports specific proteins, electrolytes, and drug tests
- Continuous sample and reagent access
- 84 routine samples and 5 STAT samples capacity

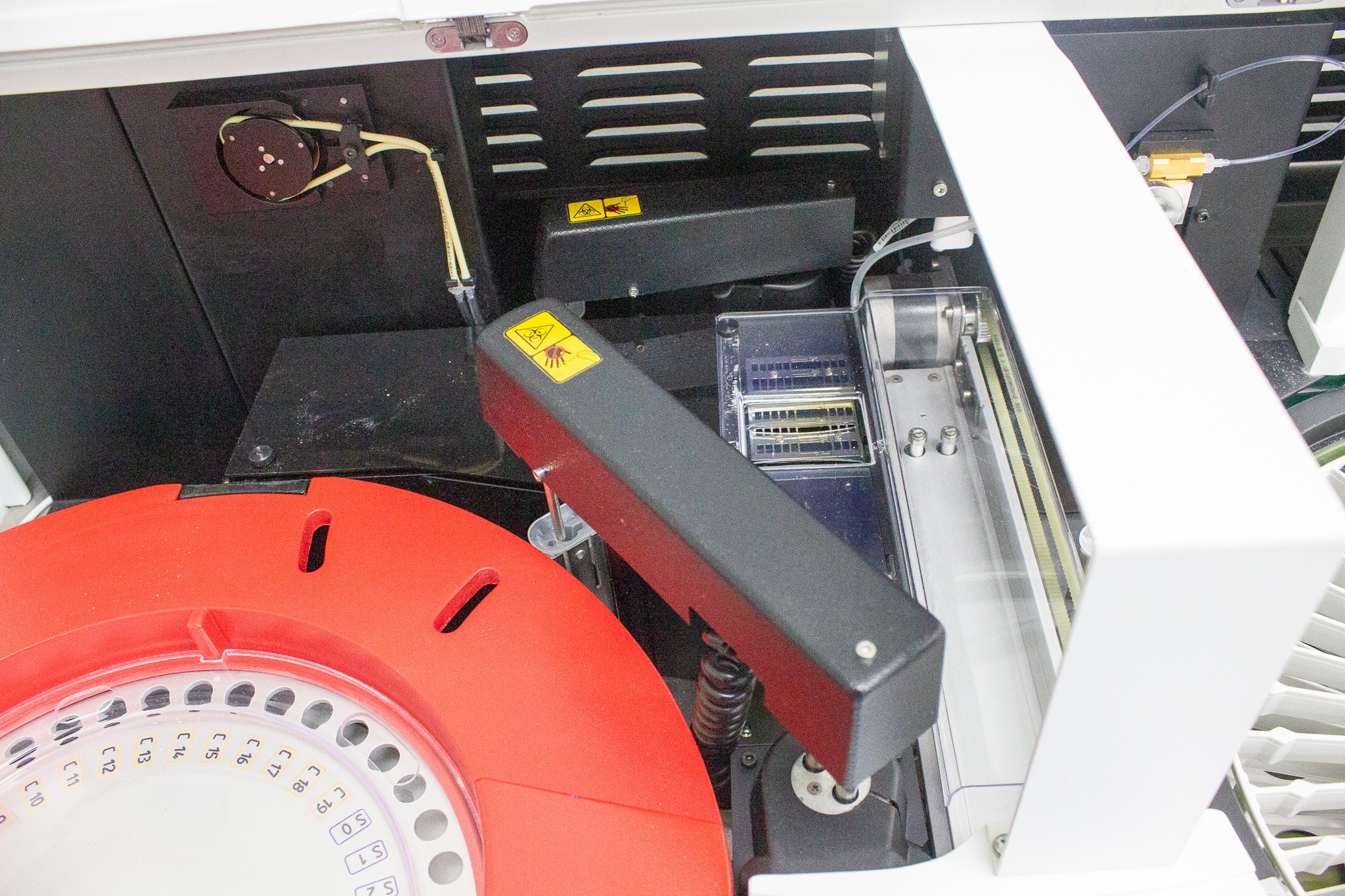

- Integrated barcode reader for sample processing

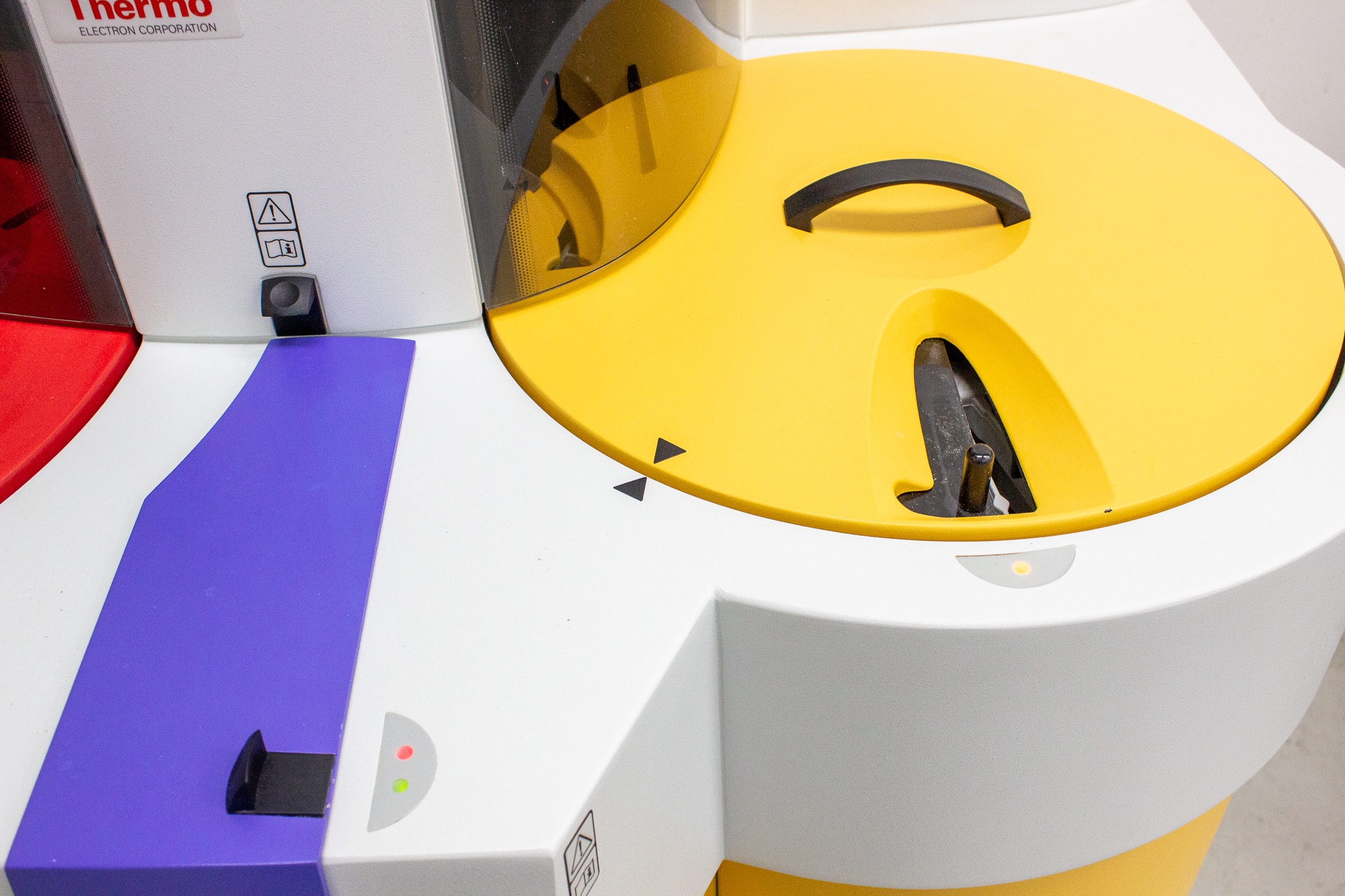

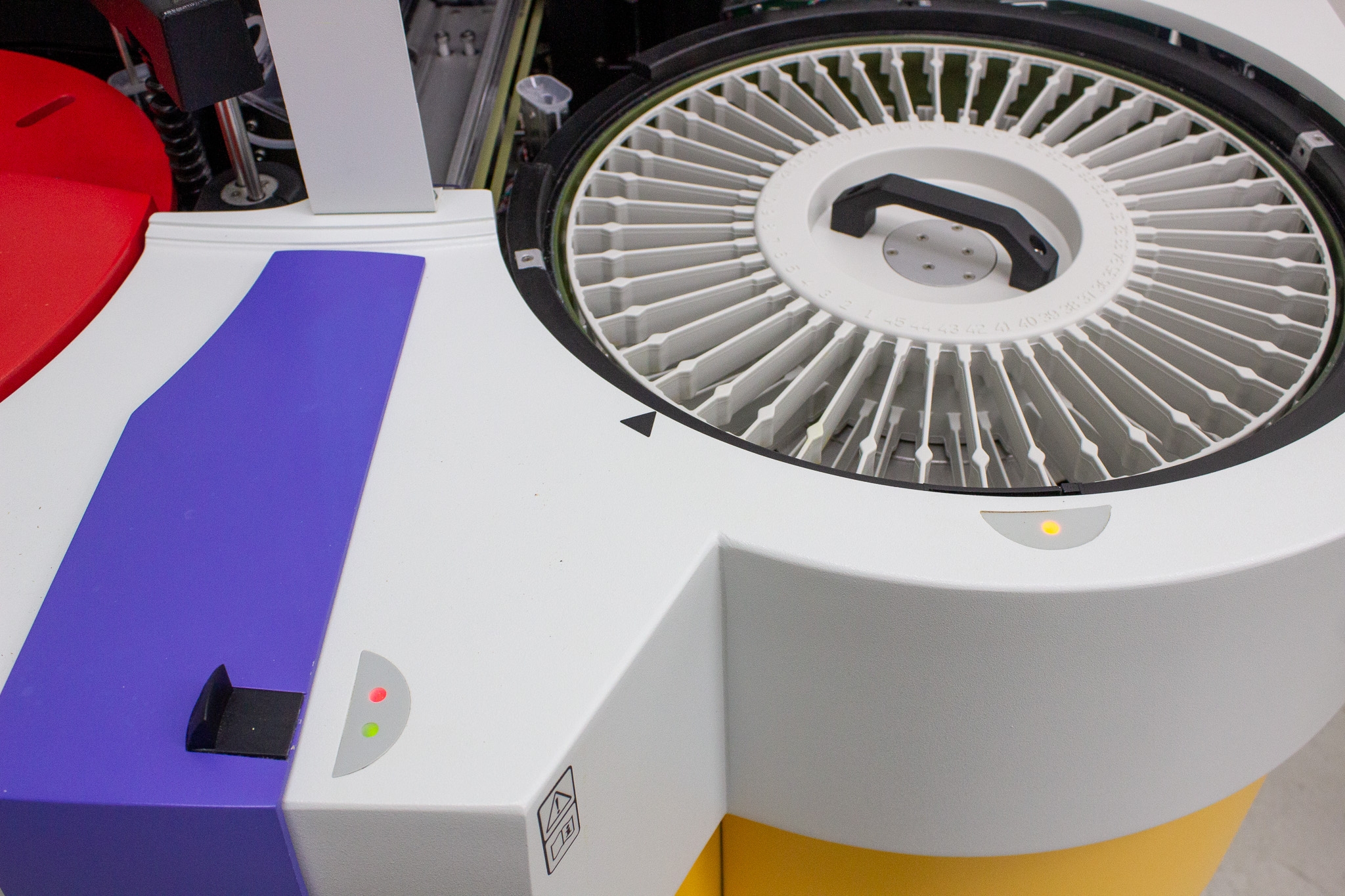

- Refrigerated reagent compartment with 45 positions
- Discrete disposable 12-cell cuvettes
Specifications
- Make: Thermo Electron
- Model: Konelab 30
- Manufacture Date: 2004
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- On-board capacity for 84 routine samples and 5 STAT samples
- Sample types: Serum, plasma, urine, CSF
- Sample volumes: 1-120 μl, typically 2-15 μl
- Reagent volumes: 2-250 μl, typically 120-200 μl
- Capable of continuous sample and cuvette access
- 600 measurement cells with 12 reaction cells per cuvette
Weight
Imperial: 528.0 Pounds
Metric: 239.5 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 57.6 lb x 54.0 lb
Metric: 94.49 cm x 146.3 cm x 137.16 cm
Harmonized Code
902720
Harmonized Code Details
902720 - Chromatographs, electrophoresis instruments. This HS Code includes instruments and devices for analyzing chemical compositions and structures, matching the functions of the Konelab 30 analyzer.
