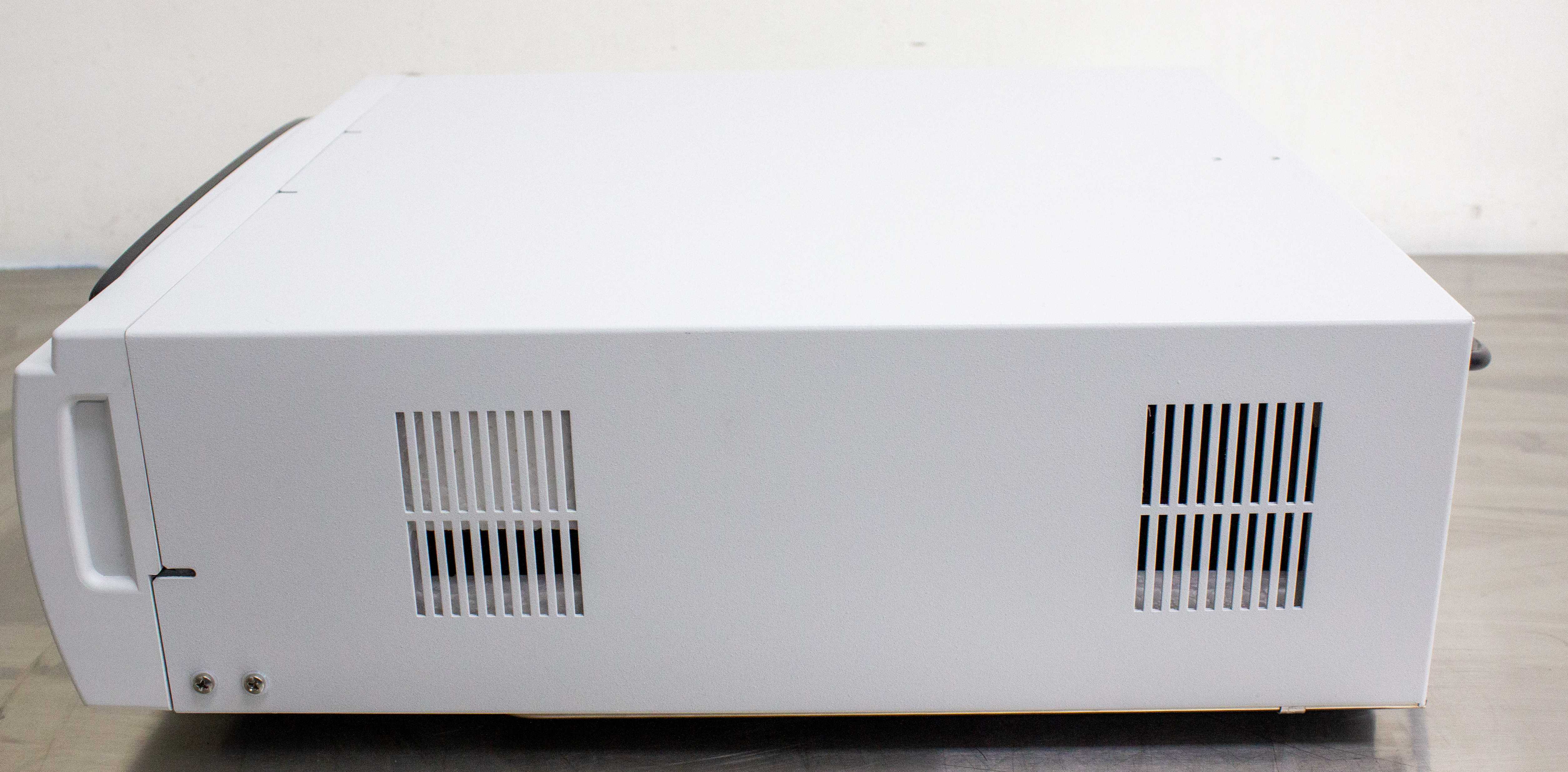

Thermo Dionex ICS-Series VWD Detector UV-Vis 190-900nm Inert Flow Path Used
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension20.0in x 18.0in x 7.0in
-

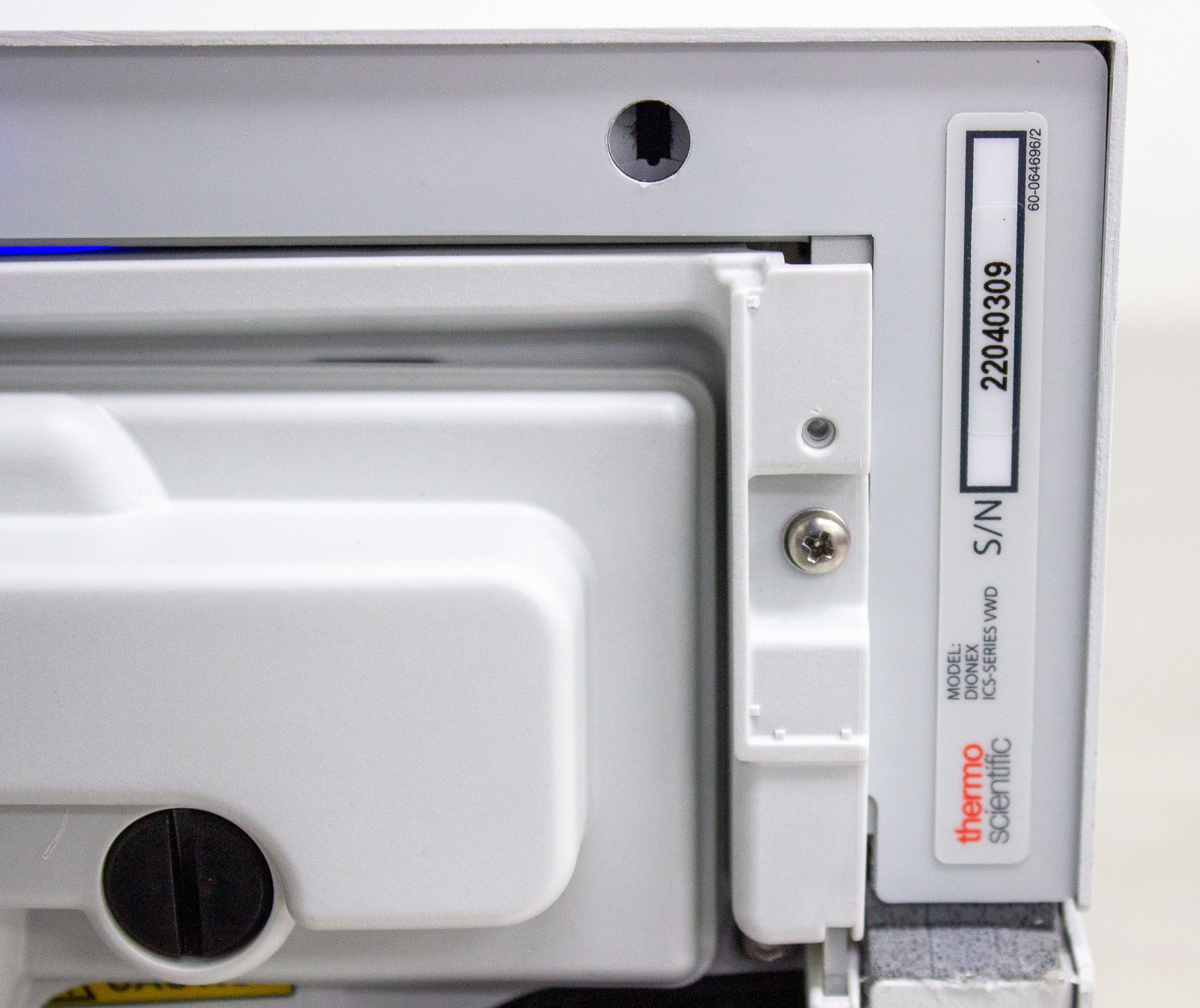

Serial22040309
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-

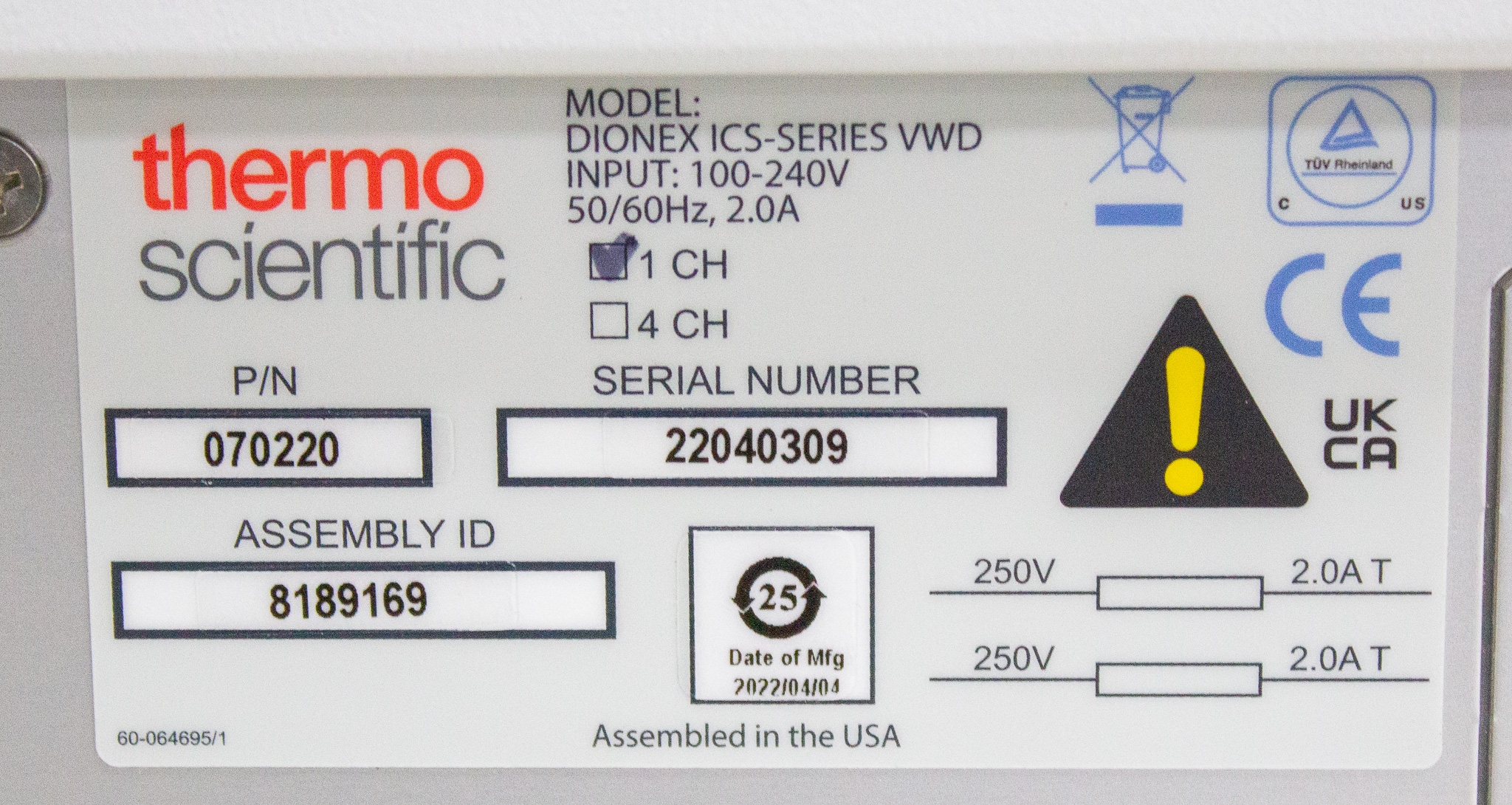

Voltage / Hertz120V/220V / 50Hz/60Hz
Description

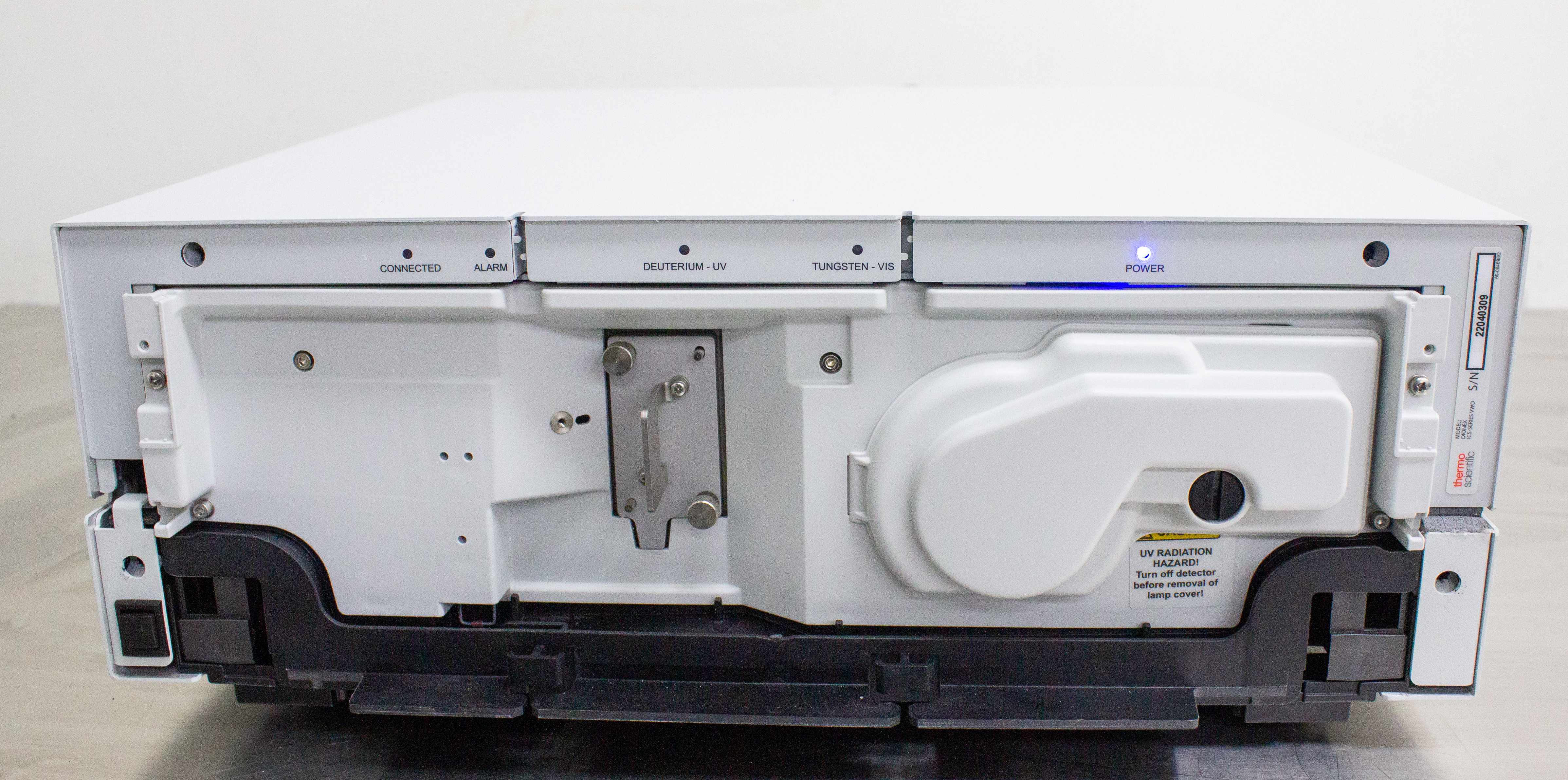

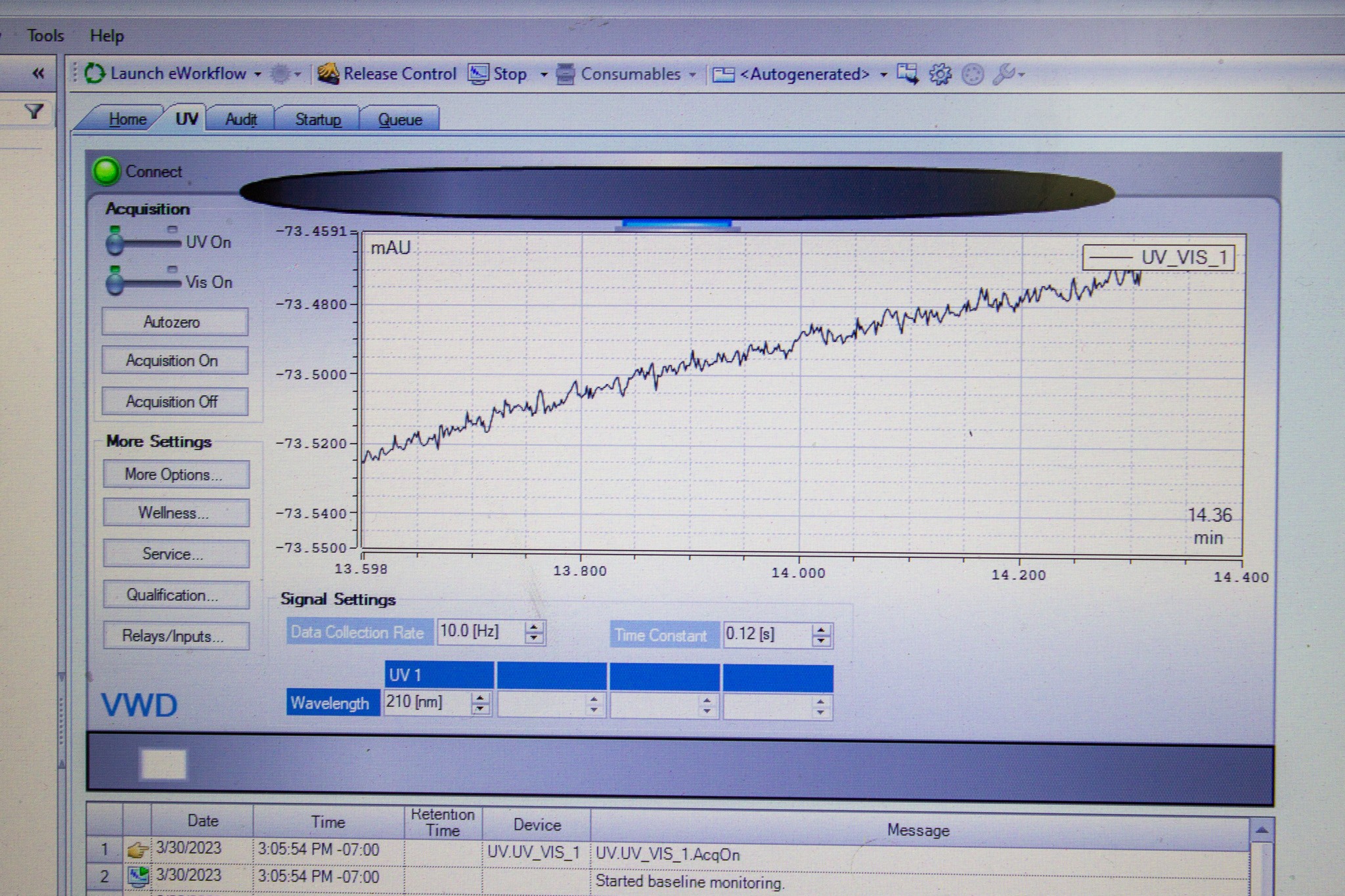

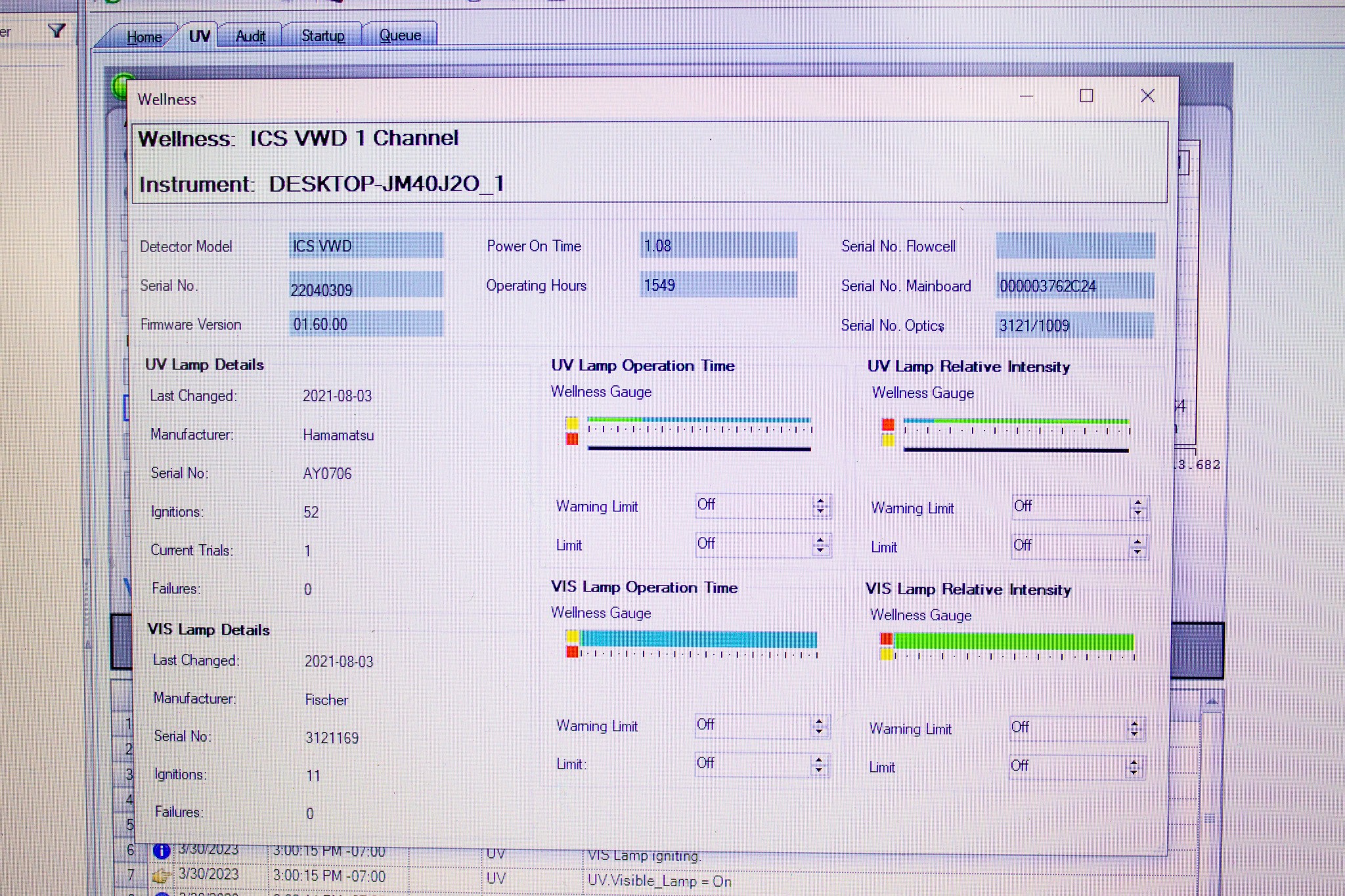

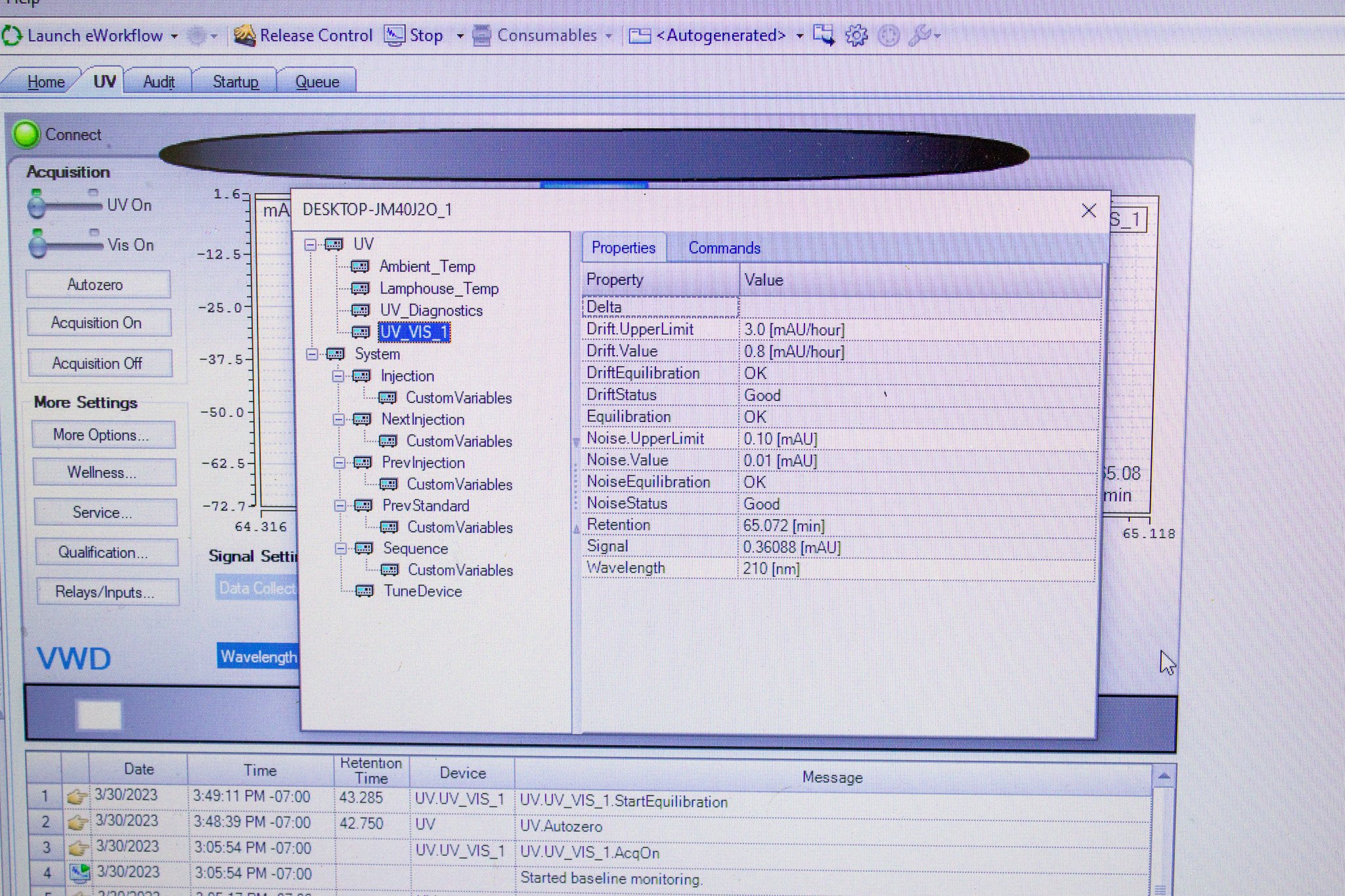

The Thermo Dionex ICS-Series Variable Wavelength Detector (VWD), model P/N 070220, is a robust instrument engineered for ion chromatography (IC) analysis utilizing a UV-Vis detector and high-performance liquid chromatography (LC) requiring an inert PEEK flow path. Suitable for various laboratory environments, this detector offers a dual-beam, variable-wavelength photometer system and measures a spectral range from 190 to 900 nm. Featuring a deuterium lamp for UV detection and a tungsten lamp for visible and near-IR wavelengths, it ensures precise wavelength accuracy, verified internally with a holmium oxide filter. Though showing signs of prior use, the unit powers on and passes basic operational tests, indicating no known functionality issues. Ideal for routine analysis or sophisticated research tasks, this device integrates with numerous Thermo systems including the ICS-5000, ICS-2100, and others. No software is included, and the unit necessitates control via a compatible PC running designated software. Cosmetic imperfections may be present.
Key Features
- Designed for IC and LC analysis
- UV-Vis detector with wavelength range 190-900 nm
- Compatible with Thermo ICS systems
- Inert PEEK flow path
- Dual-beam photometer design

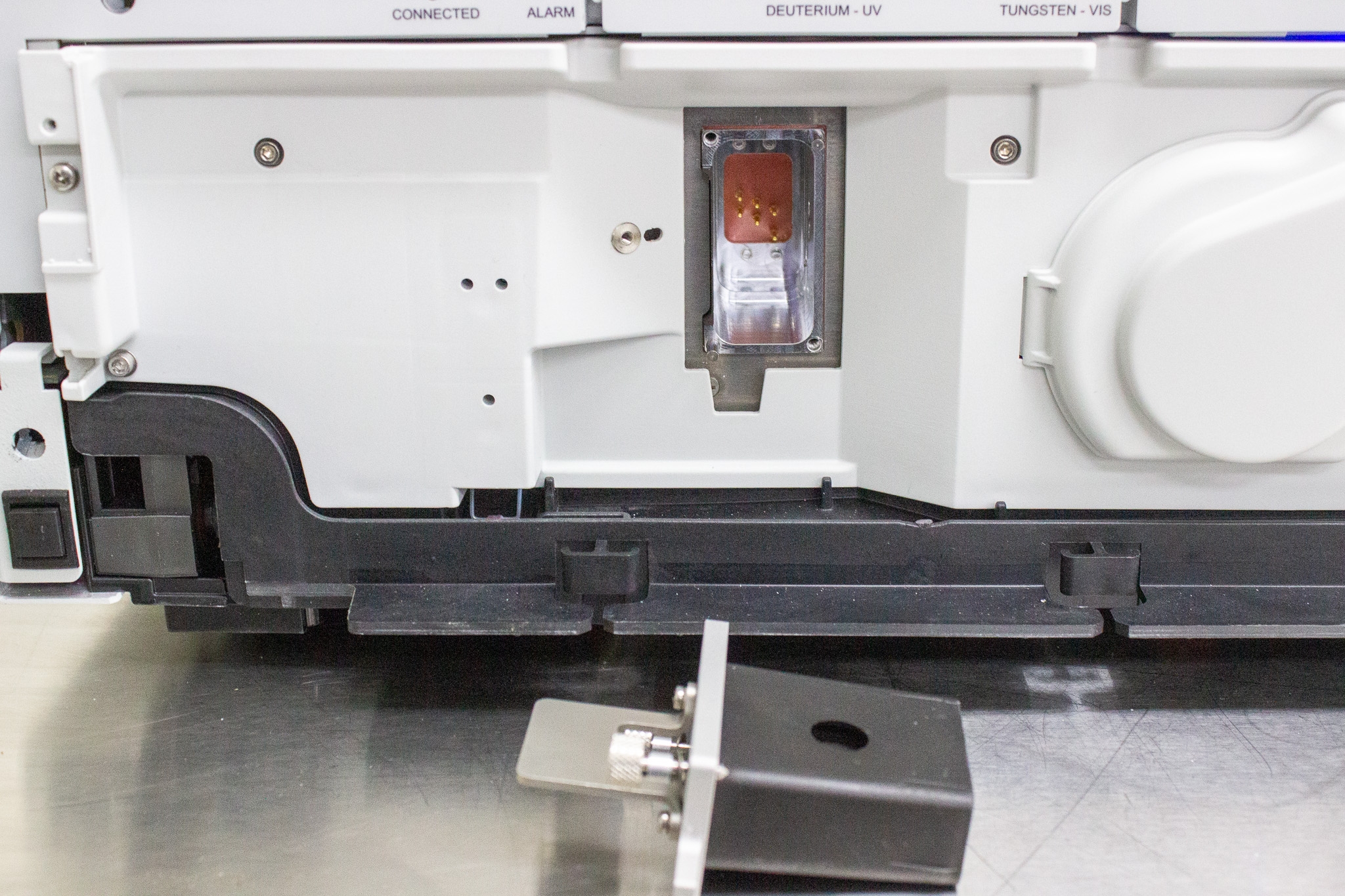

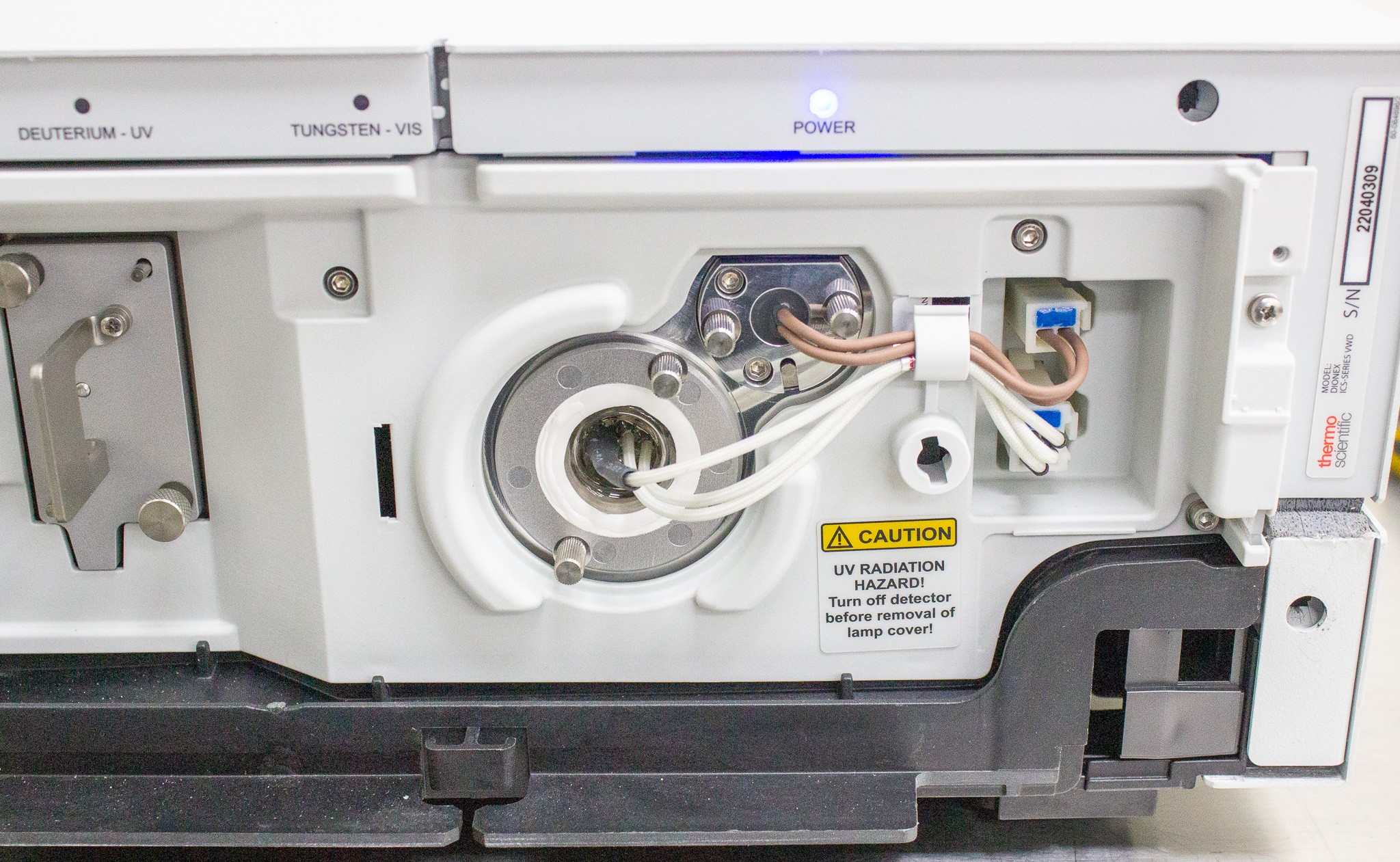

- Uses deuterium and tungsten lamps
- Internal verification via holmium oxide filter
Specifications
- Optical System: Double-beam forward optics
- Wavelength Range: 190 to 900 nm
- Accuracy: 1 nm over detector's lifetime
- Repeatability: 0.1 nm
- Noise: < 3.5 AU (single wavelength)
- Drift: < 1 x 10-4 AU/hour
- Data Collection Rate: Up to 10 Hz (single-channel), 100 Hz (four-channel)
- Digital I/O: 4 inputs, 4 outputs
Weight
Imperial: 39.6 Pounds
Metric: 17.96 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 21.6 lb x 8.4 lb
Metric: 60.96 cm x 54.86 cm x 21.34 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrometers, spectrophotometers and spectrographs using optical radiations (ultraviolet, visible, infrared): Justified for the Dionex VWD due to its function as a UV-Vis detector for analytical applications.
