Thermo Dionex AS-AP Autosampler Ion Chromatography 81 Vial Capacity New
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension21.0in x 18.0in x 15.0in
-
Serial22123007
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

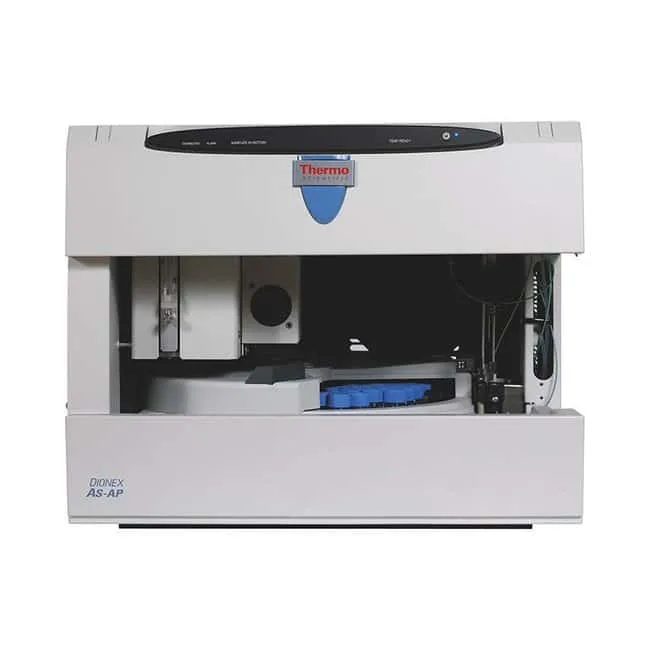

Introducing the Thermo Dionex AS-AP Autosampler, a high-precision instrument built for reliability and ruggedness in laboratory settings. This new autosampler, part of the ICS product family, offers automated sample processing for ion chromatography applications. Notable for its simultaneous injection capability without cross-contamination and consistent operation at RSDs below 0.3%, it ensures reproducible, accurate results. It supports 10 mL polystyrene sample vials, has all-PEEK flow paths to prevent metal contamination and features a moving-needle design for reliable sampling. Capable of holding up to 81 10 mL vials, it includes automated sample preparation functions and optional sample tray cooling. The chemistry-switching option allows seamless transition between different applications, while tray temperature control accommodates thermally sensitive samples.
Key Features
- High-performance automated sample processing
- Simultaneous injection capability without contamination
- Consistent RSDs below 0.3%
- 10 mL polystyrene vials with wide openings
- All-PEEK flow paths compatible with aqueous and reversed-phase eluents
- Moving-needle design for reliable sampling
- High sample capacity: up to 81 10 mL vials
- Automated sample and standard preparations
- Optional well plate capabilities and sample tray cooling
- Chemistry-switching option for dual applications
- Sample tray temperature control from 4 to 60 C
Specifications
- Sample Capacity: 81 ea. 10 mL; 120 ea. 1.5 mL; Well Plates (3 x 96) or (3 x 384)
- Injections per Vial: 199
- Minimum Sample Volume: 10 µL from a 300 µL microvial; 20 µL from a 500 µL microvial
- Variable Volume Range: 1-100 µL in 0.1 µL increments; 100-7500 µL in 1 µL increments
- Injection Precision: Fixed loop <0.3% RSD at 20 µL; Partial loop <0.5% RSD at 20 µL
- Dilution Precision: <1.0% RSD for a 1:10 dilution
- Dispensing Precision: <0.2% RSD (by weighing)
- Carryover: <0.01% with 500 µL flush volume
- Operating Temperature Range: 4-60 C (40-140 F)
- Power Requirements: 90-265 V ac, 47-63 Hz
Weight
Imperial: 62.4 Pounds
Metric: 28.3 Kilograms
Shipping Dimensions
Imperial: 25.2 lb x 21.6 lb x 18.0 lb
Metric: 64.01 cm x 54.86 cm x 45.72 cm
Harmonized Code
9027.80
Harmonized Code Details
Harmonized Code 9027.80 pertains to instruments and apparatus used for physical or chemical analysis, such as spectrometers andrefractometers. This aligns with the Dionex AS-AP Autosampler's function in ion chromatography analysis.
