Dionex PDA-1 Detector Analytical High Resolution 1nm Chromeleon Used VG
Dionex
Details
-
CategoryAnalytical
-
Dimension18.0in x 15.0in x 7.0in
-
Serial08070497
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

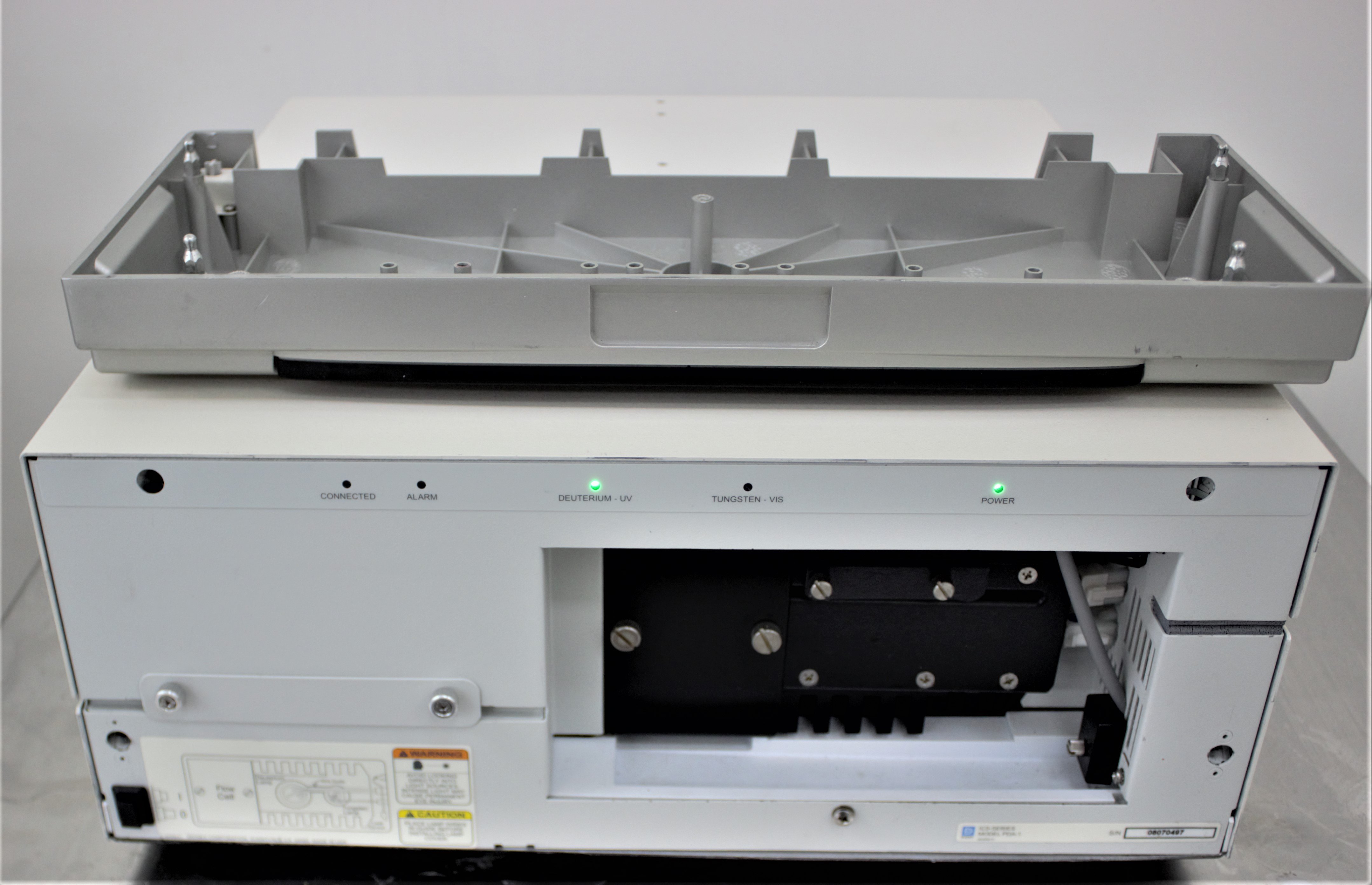

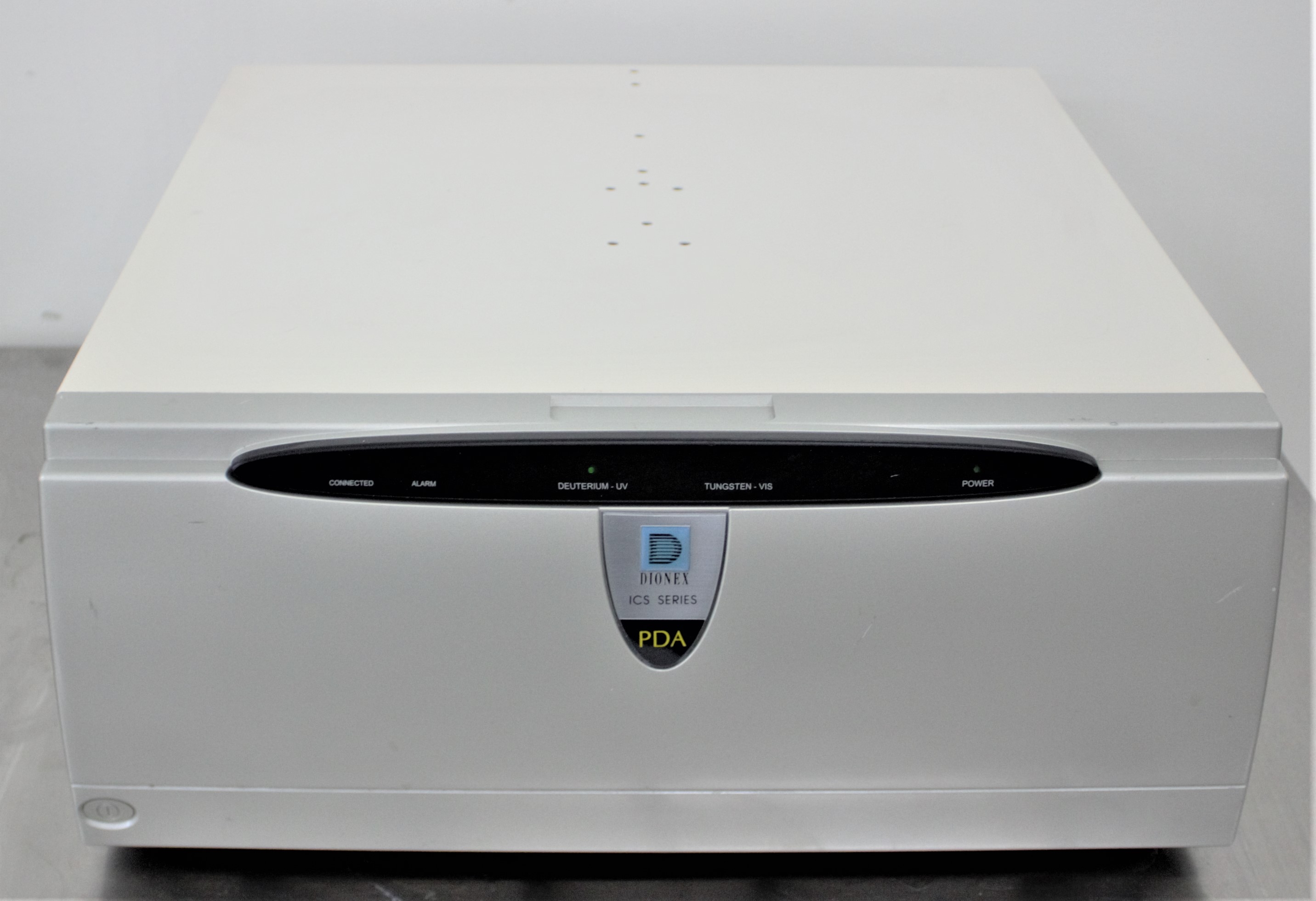

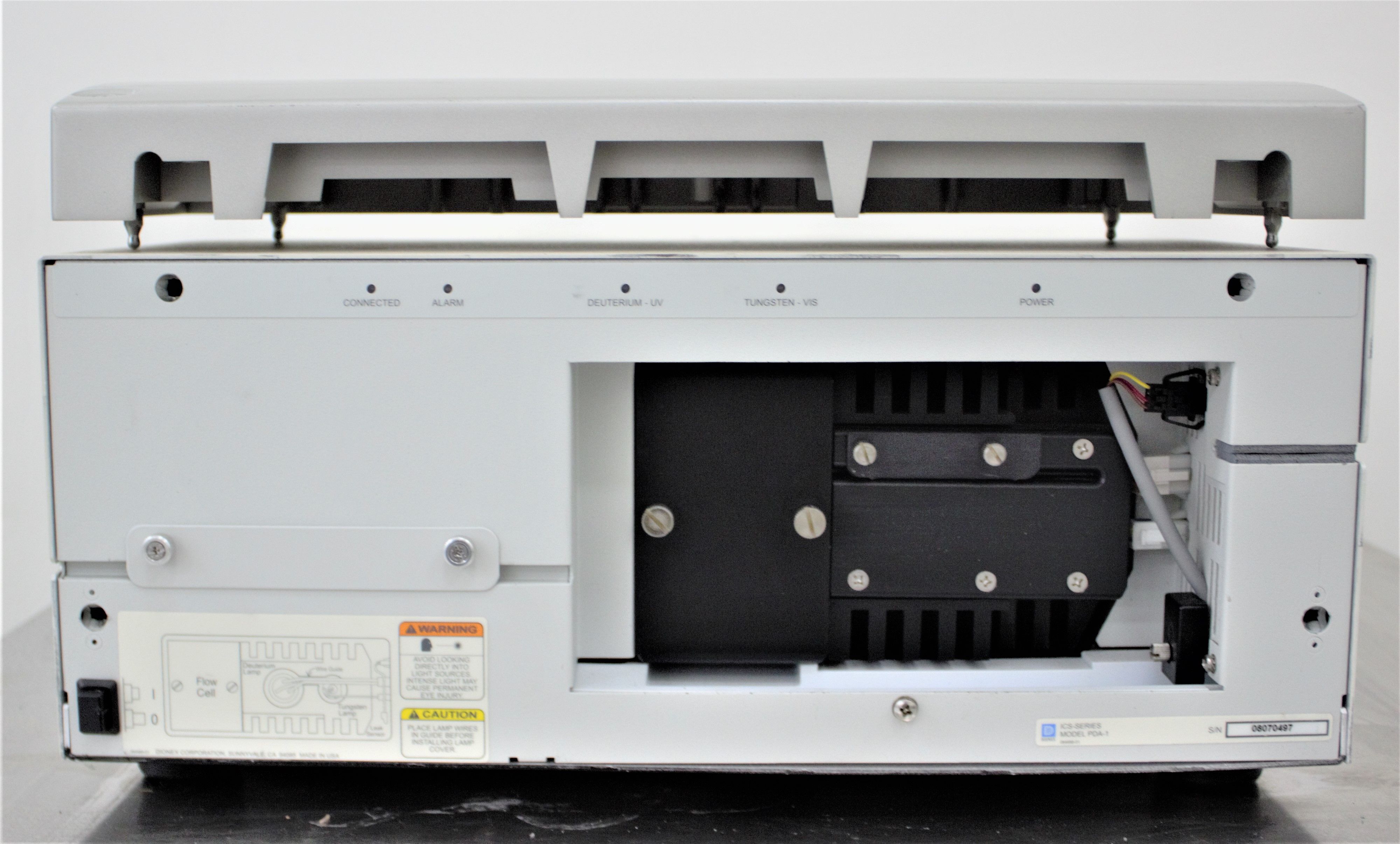

The Dionex PDA-1 is a high-resolution, 1024-element photodiode array detector, excelling in accurate compound confirmation with a 1-nm resolution. Intended for both UV and Vis applications, this unit offers wavelength flexibility from 190 to 800 nm. It utilizes deuterium and tungsten lamps ensuring low noise and high light intensity across the spectrum. A built-in holmium oxide filter facilitates rapid wavelength verification. The PDA-1 is highly reliable with low baseline drift and supports easy maintenance. Flexible data collection and control are possible through Chromeleon software (version 6.6 or higher, not included). Designed to handle rigorous library searches and peak purity analyses, this used unit, in very good condition, displays wear from regular use but functions as intended. Originating from the United States, the PDA-1 ensures maximum uptime with five front-panel LEDs for status monitoring, offering alternative data collection with four analog outputs.
Key Features
- High-resolution 1024-element photodiode array
- 1-nm resolution for precise measurements
- UV and Vis applications, 190–800 nm range

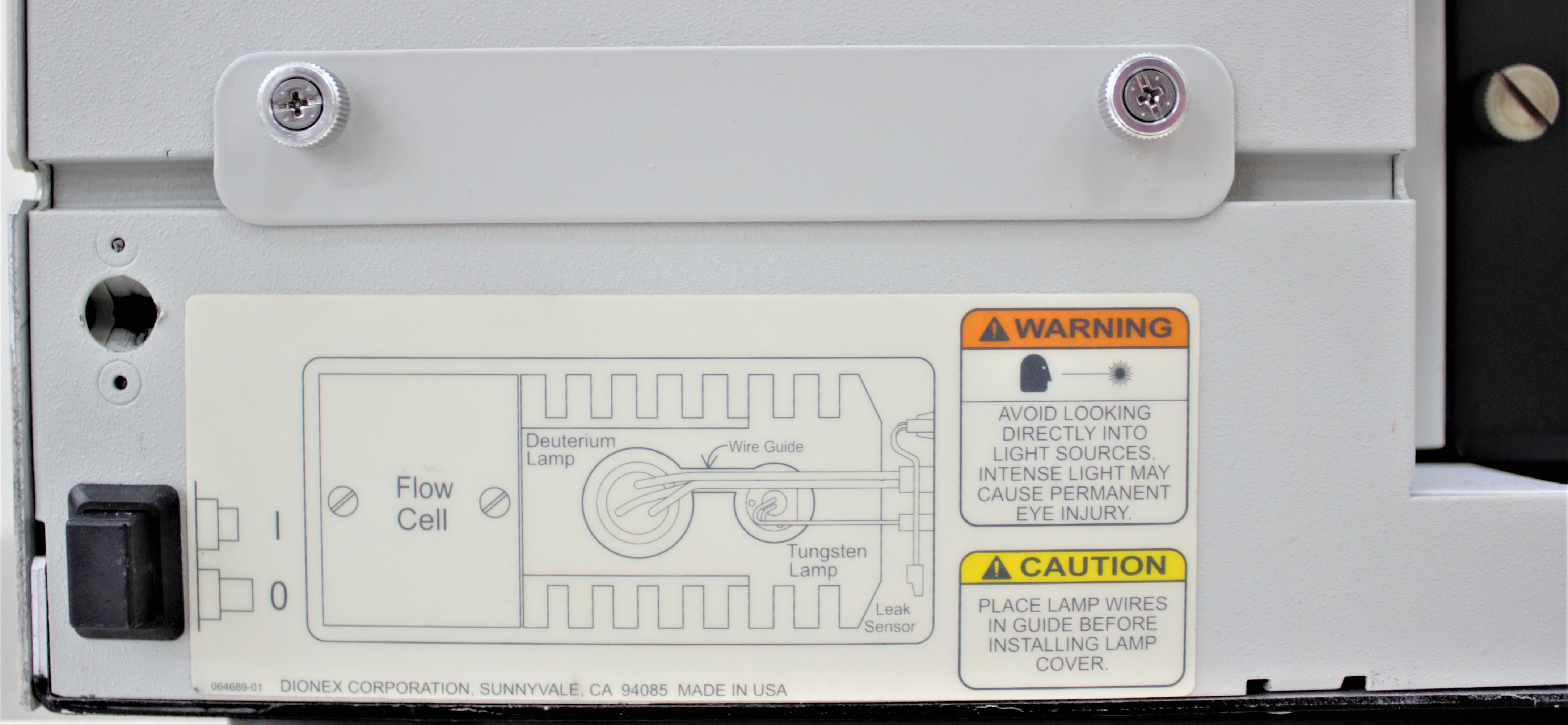

- Low noise, high-intensity lighting with deuterium and tungsten lamps
- Fast wavelength verification using holmium oxide filter
- Low baseline drift (< 500 AU/h) for reliability
- Compatible with Chromeleon software (not included)

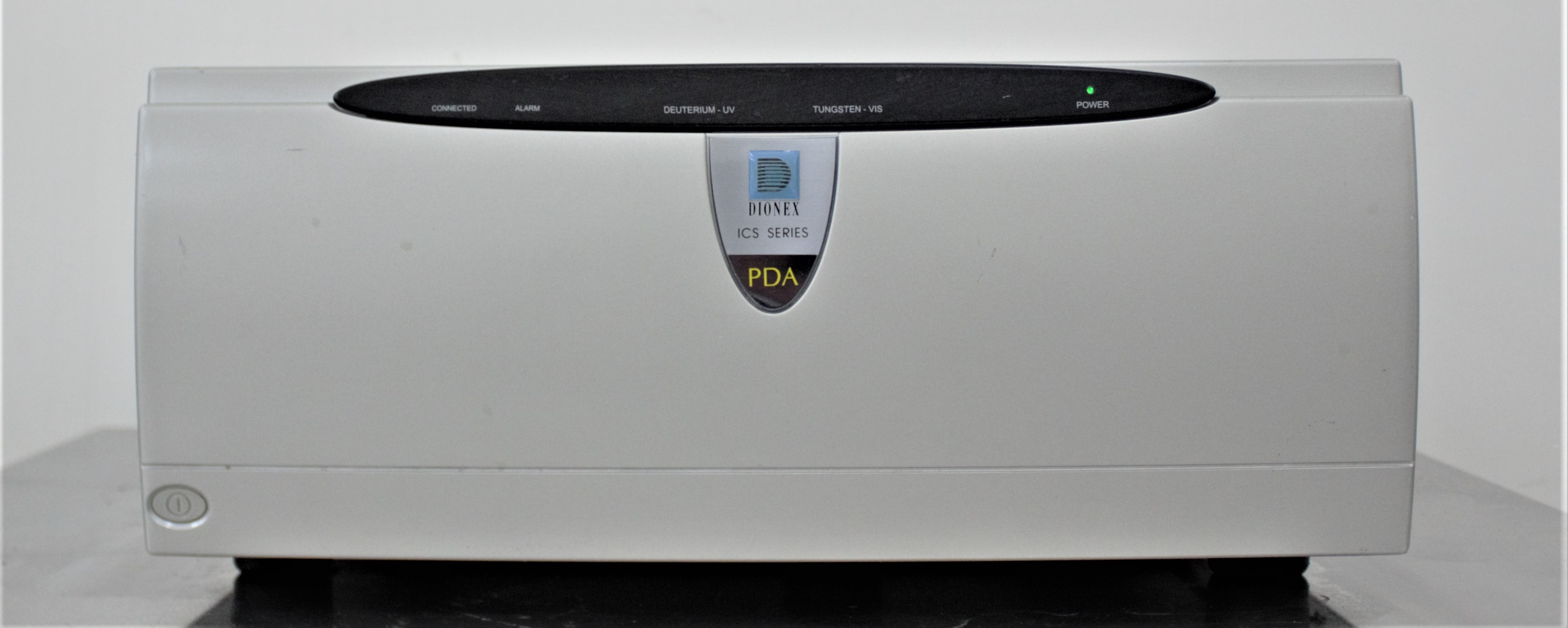

- Front-panel LEDs for status monitoring

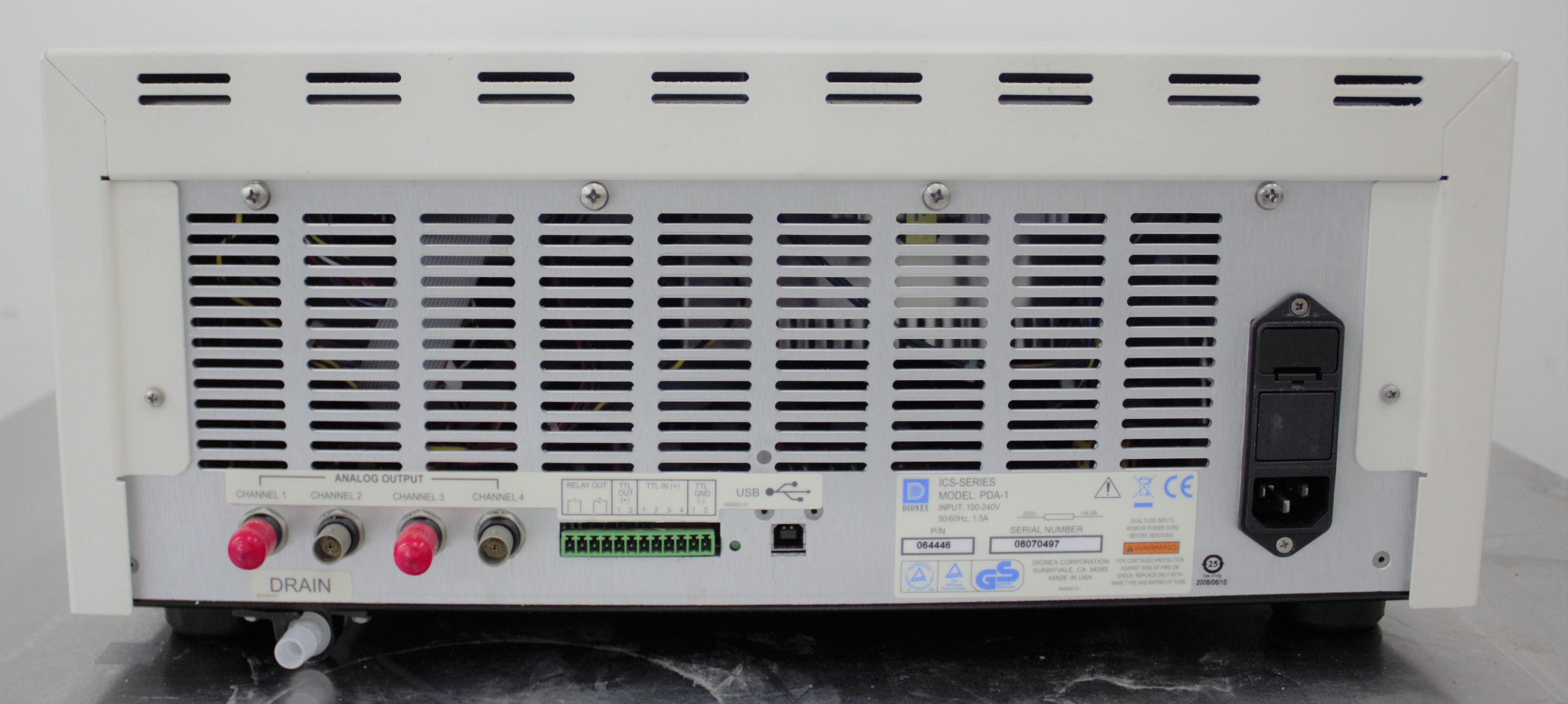

- Four analog outputs for data collection
Specifications
- Model: PDA-1
- Brand: Dionex
- Condition: Used, Very Good
- Functionality: Functions as intended with minor cosmetic wear
- Resolution: 1-nm precision
- Spectral Range: 190-800 nm
- Lighting: Deuterium and tungsten lamps
- Baseline Drift: <500 AU/h
- Software Compatibility: Chromeleon 6.6+
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Serial Number: 08070497
- Includes: Power Cord
Weight
Imperial: 37.2 Pounds
Metric: 16.87 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 18.0 lb x 8.4 lb
Metric: 54.86 cm x 45.72 cm x 21.34 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrophotometers, spectrofluorometers, spectrometers; used for measuring or checking quantities of heat, sound or light, of a kind using optical radiations (ultraviolet, visible, infrared). Selected based on the Dionex PDA-1's function as a photodiode array detector used for measuring and analyzing optical radiations.
