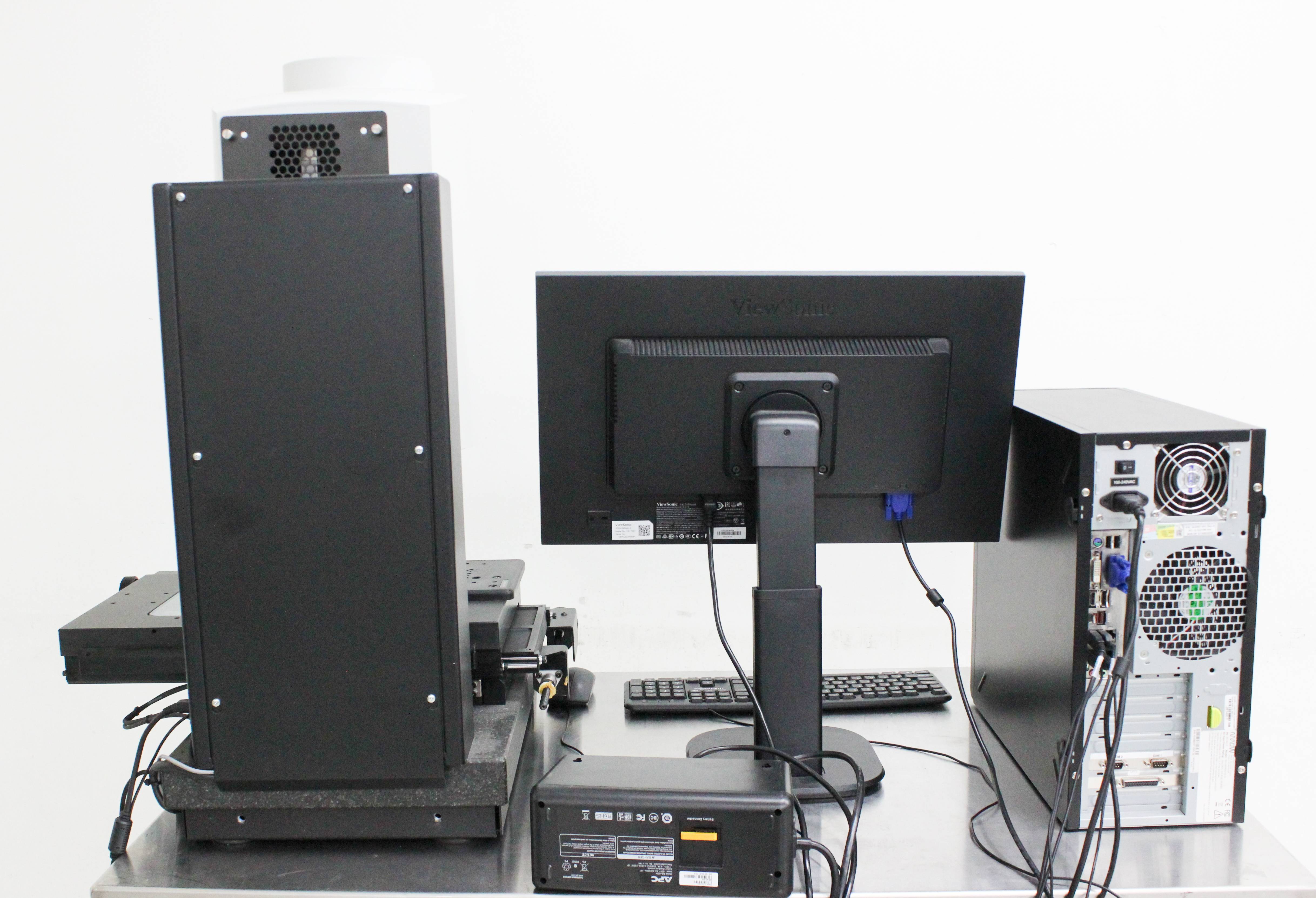

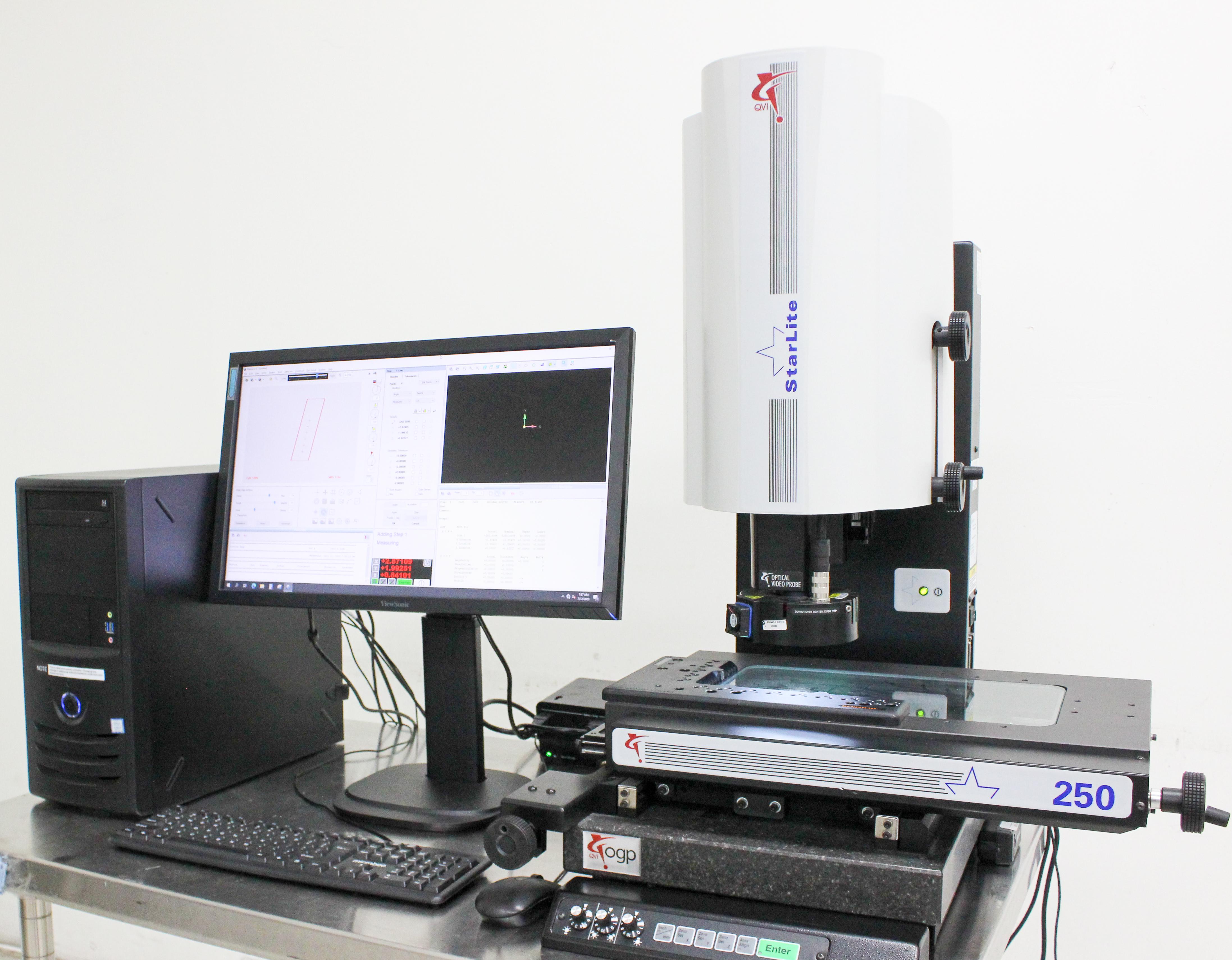

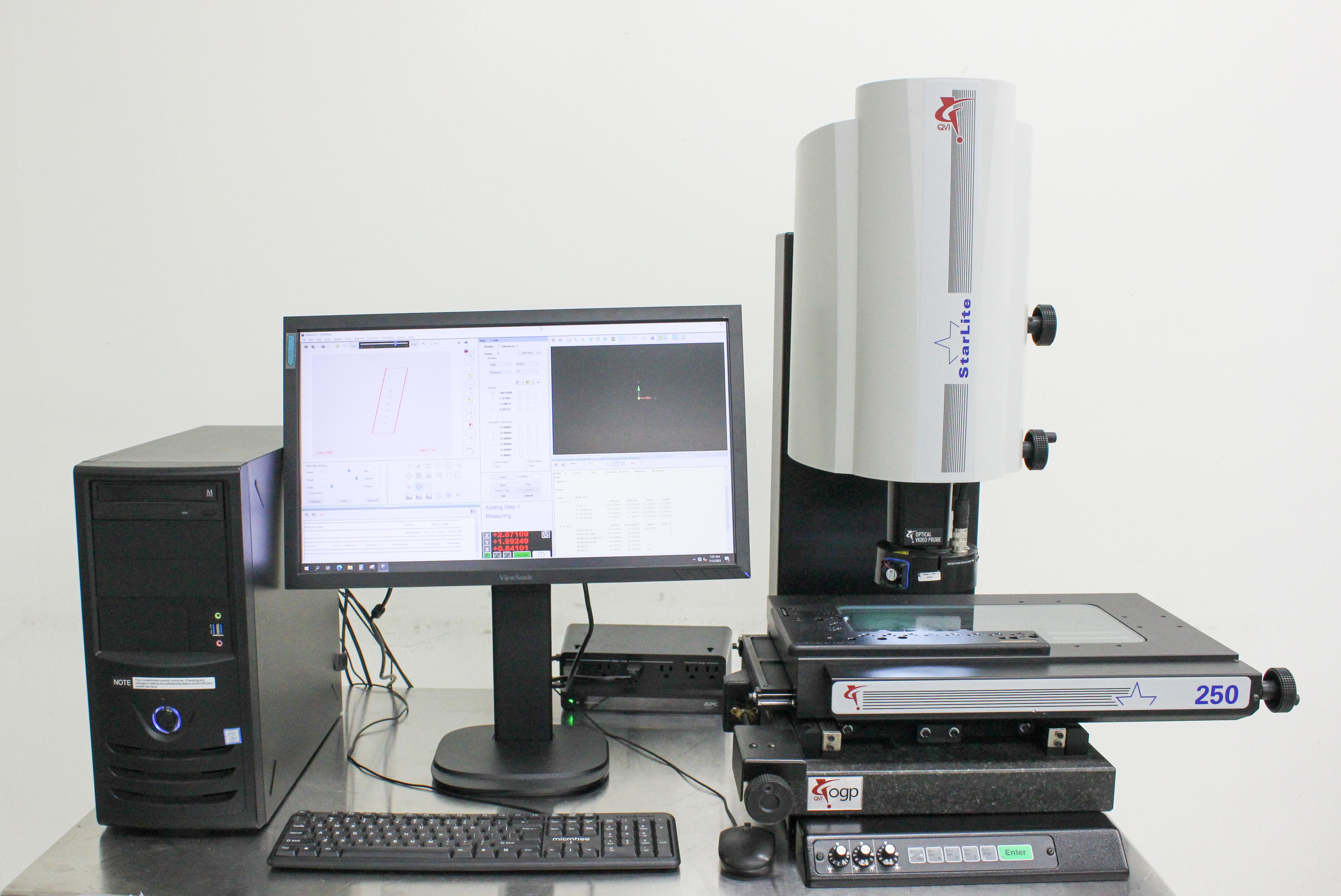

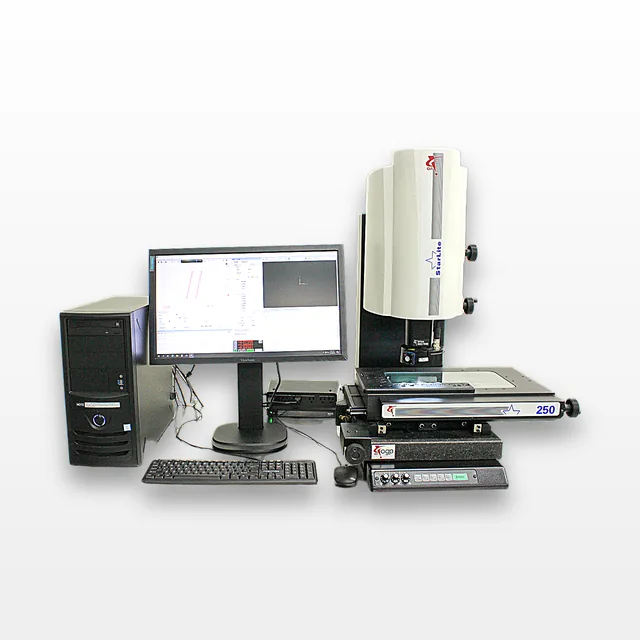

QVI/ShapeGrabber QVI Starlite 250 Measuring System with Computer
QVI/ShapeGrabber
Details
-
CategoryMicroscope / Imager
-
Dimension25.0in x 53.0in x 34.0in
-

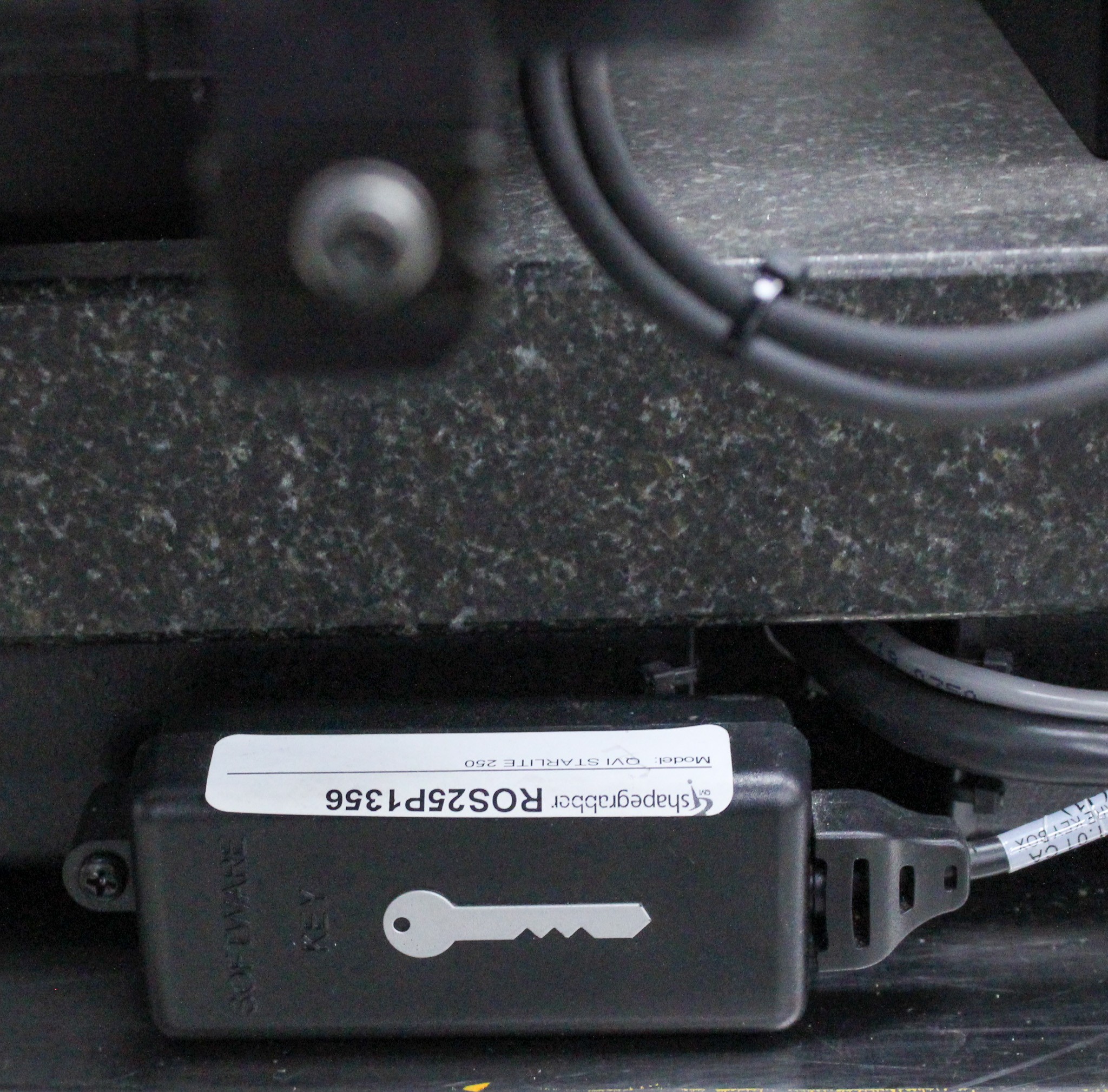

SerialROS25P1356
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

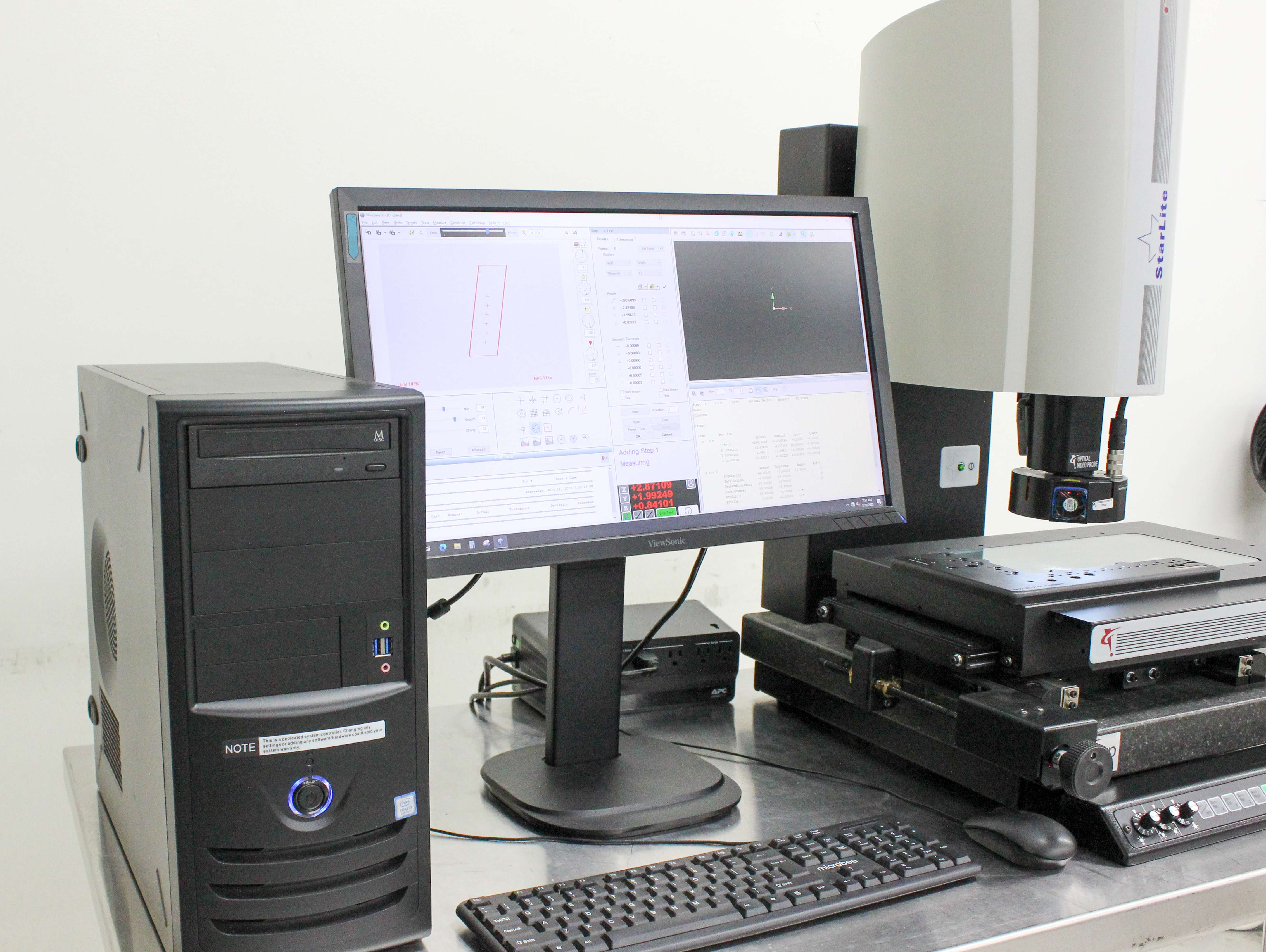

The QVI/ShapeGrabber QVI Starlite 250 is a precision benchtop measuring system designed for versatility and accuracy in various inspection and measurement applications, including plastics, medical devices, automotive, and aerospace industries. This unit features a robust X-Y compound stage with 1.0 micron scales and offers 3-axis (X, Y, Z) measurement capabilities. With a digital megapixel camera and motorized zoom optics, it supports a wide magnification range from 12X to 1470X. The system's LED backlight and programmable VectorLight LED ring light provide optimal illumination. The included computer hosts Measure-X software, facilitating fully automatic measurement routines. The QVI Starlite 250 exhibits very good condition, fully functional with minor cosmetic wear, and is ready for integration into precision measurement workflows.
Key Features
- 3-axis measurement capability
- 1.0 micron scale resolution
- 24X to 370X digital/optical magnification
- Motorized zoom lens with digital megapixel camera
- LED VectorLight programmable ring light and backlight

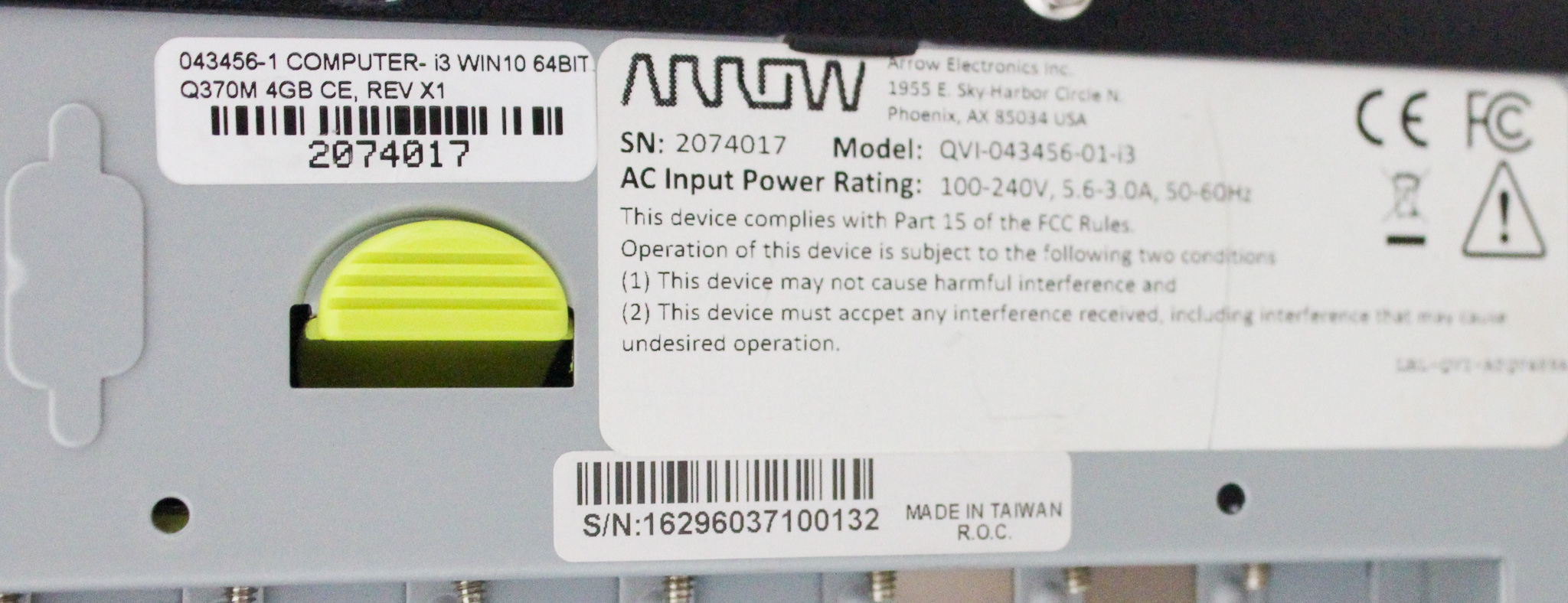

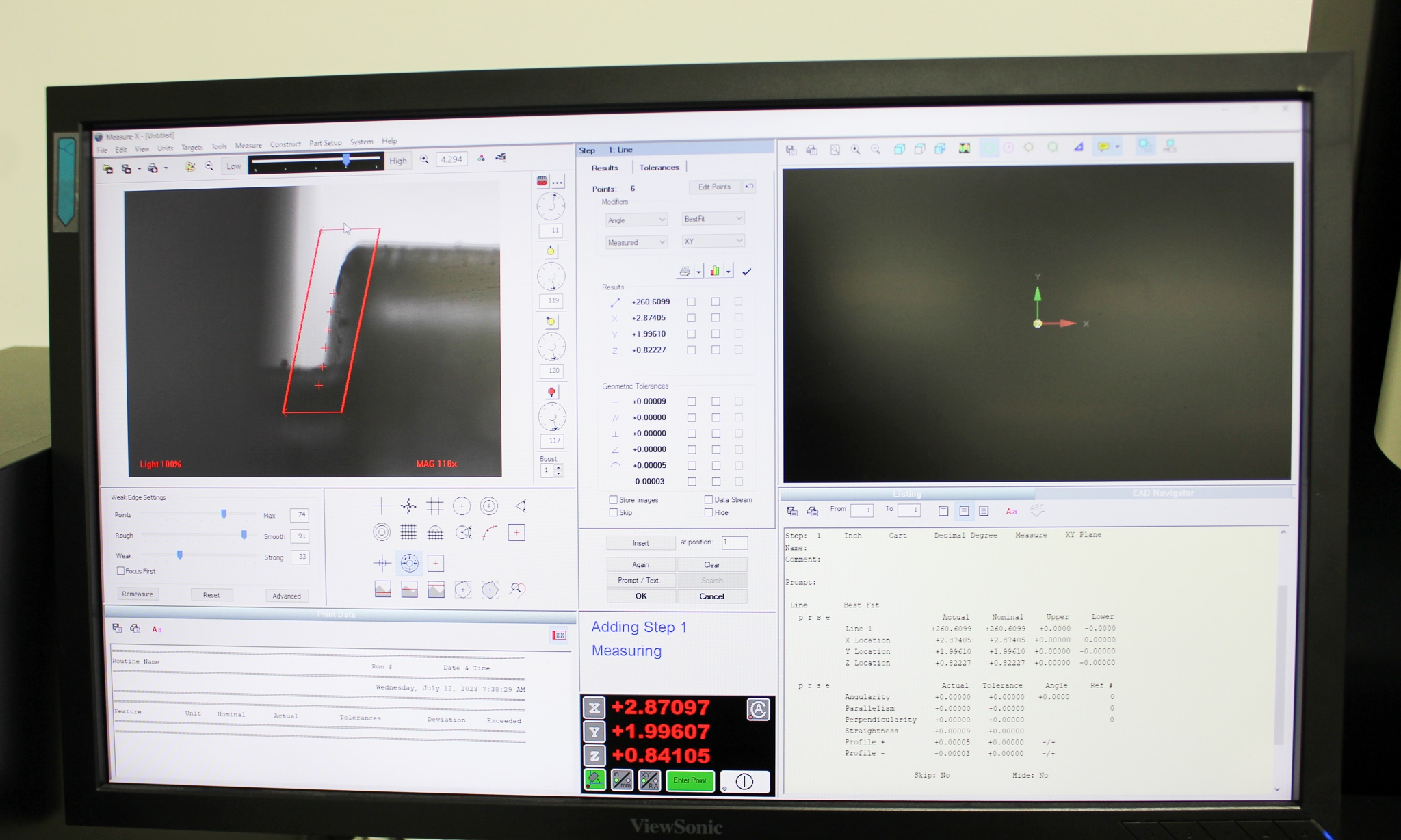

- Includes Measure-X software on computer with Windows 10 Pro
Specifications

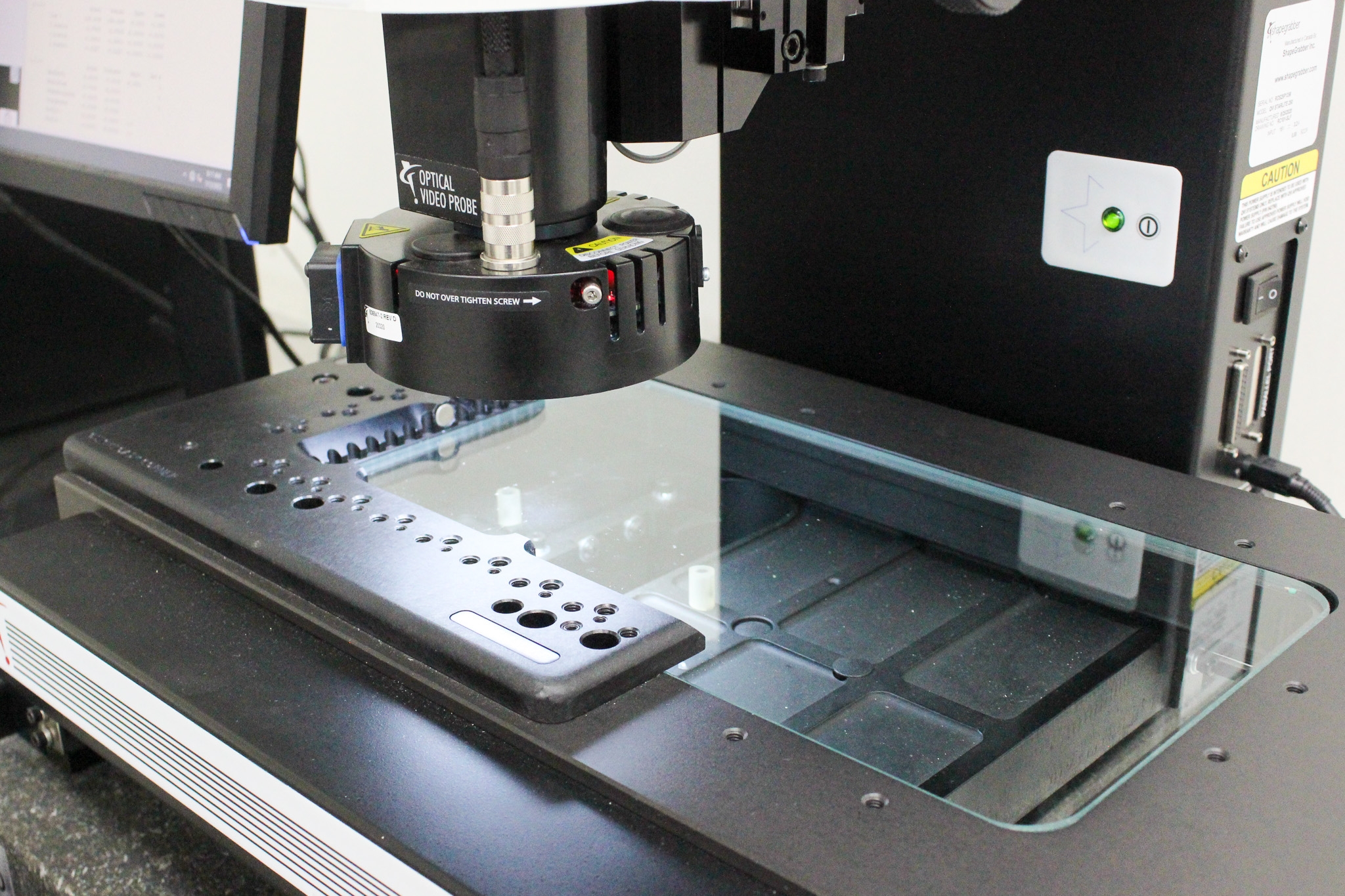

- X, Y, Z Travel: 300 x 150 x 150 mm (12 x 6 x 6 in)
- Scale Resolution: 1.0 micron (0.00004 in)
- Stage Drive System: Precision mechanical bearing compound stage
- Max Stage Load: 23 kg (50 lb)
- Working Distance: 62 mm (2.5 in)
- Imaging Optics: 6.5:1, 10 position motorized zoom lens
- Field of View: Low Mag 9.1 mm (0.36 in) diag, High Mag 0.6 mm (0.02 in) diag
- Temperature Range: Safe operating range 15-30°C
- Power Requirements: 120V/220V, 50Hz/60Hz, 100W
Weight
Imperial: 336.0 Pounds
Metric: 152.41 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 63.6 lb x 40.8 lb
Metric: 76.2 cm x 161.54 cm x 103.63 cm
Harmonized Code
9031.49
Harmonized Code Details
HS Code 9031.49 applies to measuring or checking instruments, appliances, and machines, other than optical ones. This code suits the QVI Starlite 250, a metrology system used for precision measurement in quality assurance applications.
