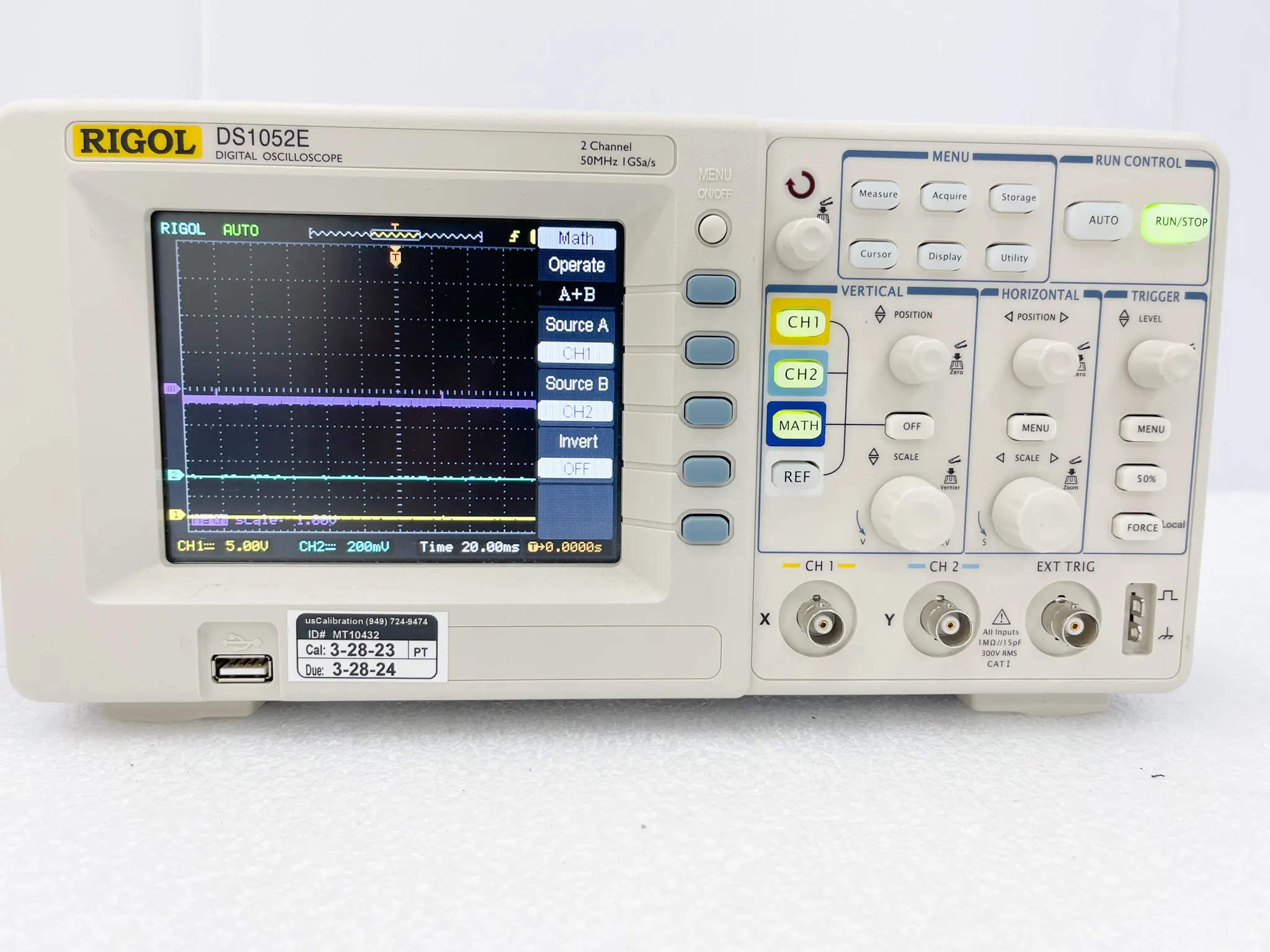

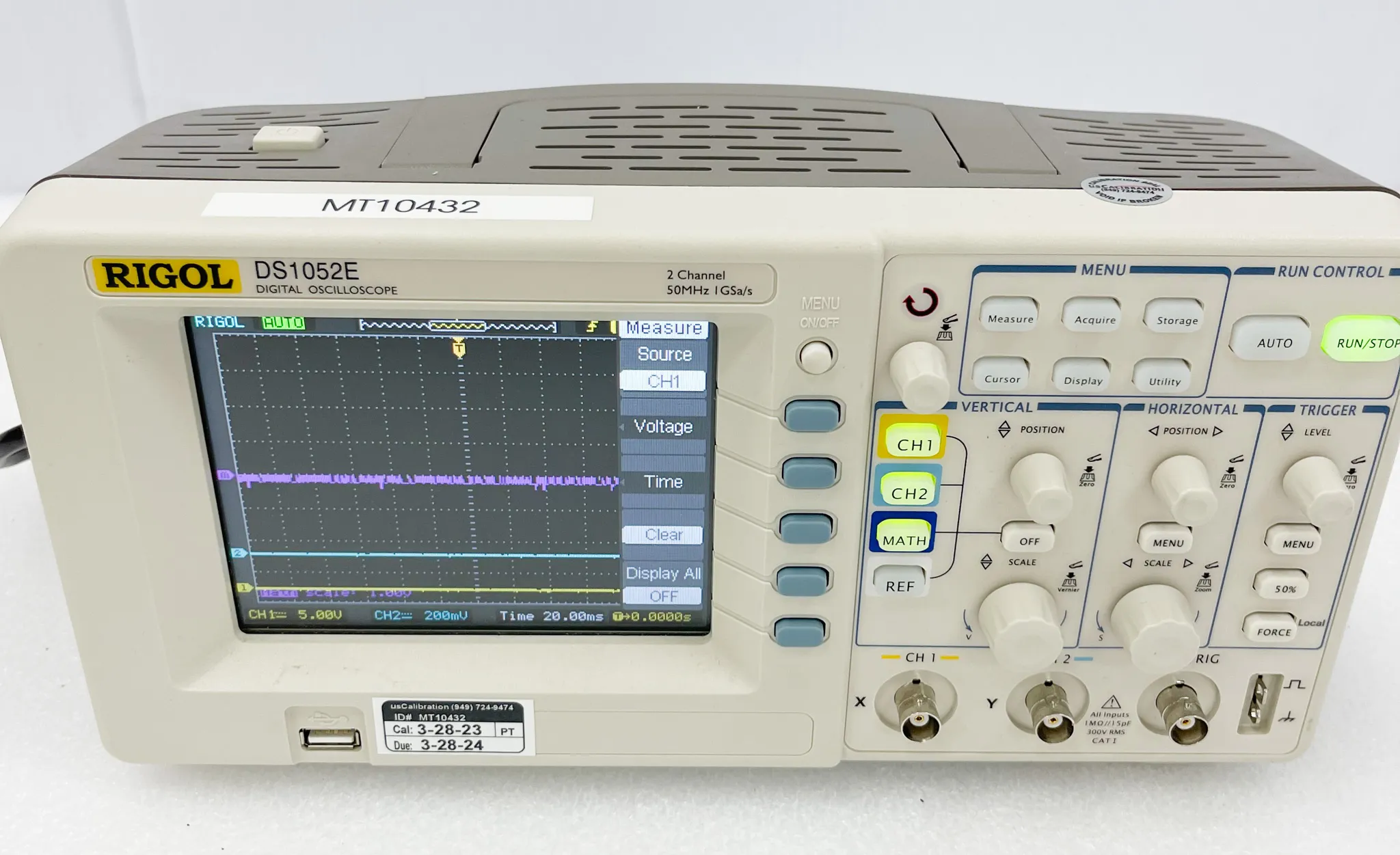

RIGOL DS1052E Digital Oscilloscope, 2 Channel, 50 MHz

Product Information

The RIGOL DS1052E is an economical digital oscilloscope with high-performance, designed for research and development, educational institutions, electronic and electrical equipment repair businesses, stimulus/response testing, frequency response characterization, and in-circuit signal injection. This instrument has been tested for basic functionality and has slight cosmetic wear from normal use. It features dual analog channels, a 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent sample rate, and a 50 MHz bandwidth. Additionally, it has a 5.6" TFT LCD and a variety of customizable waveform measurement and recording functions. Its powerful PC application software UltraScope, USB connectivity, and built-in help menu make it a versatile tool for waveform analysis and signal processing.

• 50 MHz bandwidth
• Dual analog channels
• 1 GSa/s maximum real-time sample rate
• 25 GSa/s maximum equivalent sample rate
• 5.6" TFT LCD
• USB and RS-232 connectivity
• Waveform intensity adjustment
• Built-in FFT function
• Pass/Fail detection function

• Bandwidth: 50 MHz
• Display Type: 5.6" diagonal TFT Liquid Crystal Display
• Channels: 2 Channels + External Trigger
• Real-Time Sample Rate: 1 GSa/s (1 channel), 500 MSa/s (2 channels)
• Equivalent-Time Sample Rate: 10 GSa/s
• Rise Time: 7 ns
• Timebase Range: 5ns/div to 50s/div
• Trigger Modes: Edge, Video, Pulse, Slope, Alternate, Pattern, Duration
• Vertical Resolution: 8 bits
• Vertical Sensitivity: 2 mV/div to 10V/div
• Maximum Input Voltage: All inputs 1 Mohm/15pF 300 V RMS CAT I
• Connectivity: USB Host & Device, RS-232
• Math Functions: +, -, x, FFT

Metric: 9.07 kg
Imperial: 20 lb

Metric: 40.64 cm x 15.24 cm x 22.86 cm
Imperial: 16 in x 6 in x 9 in
