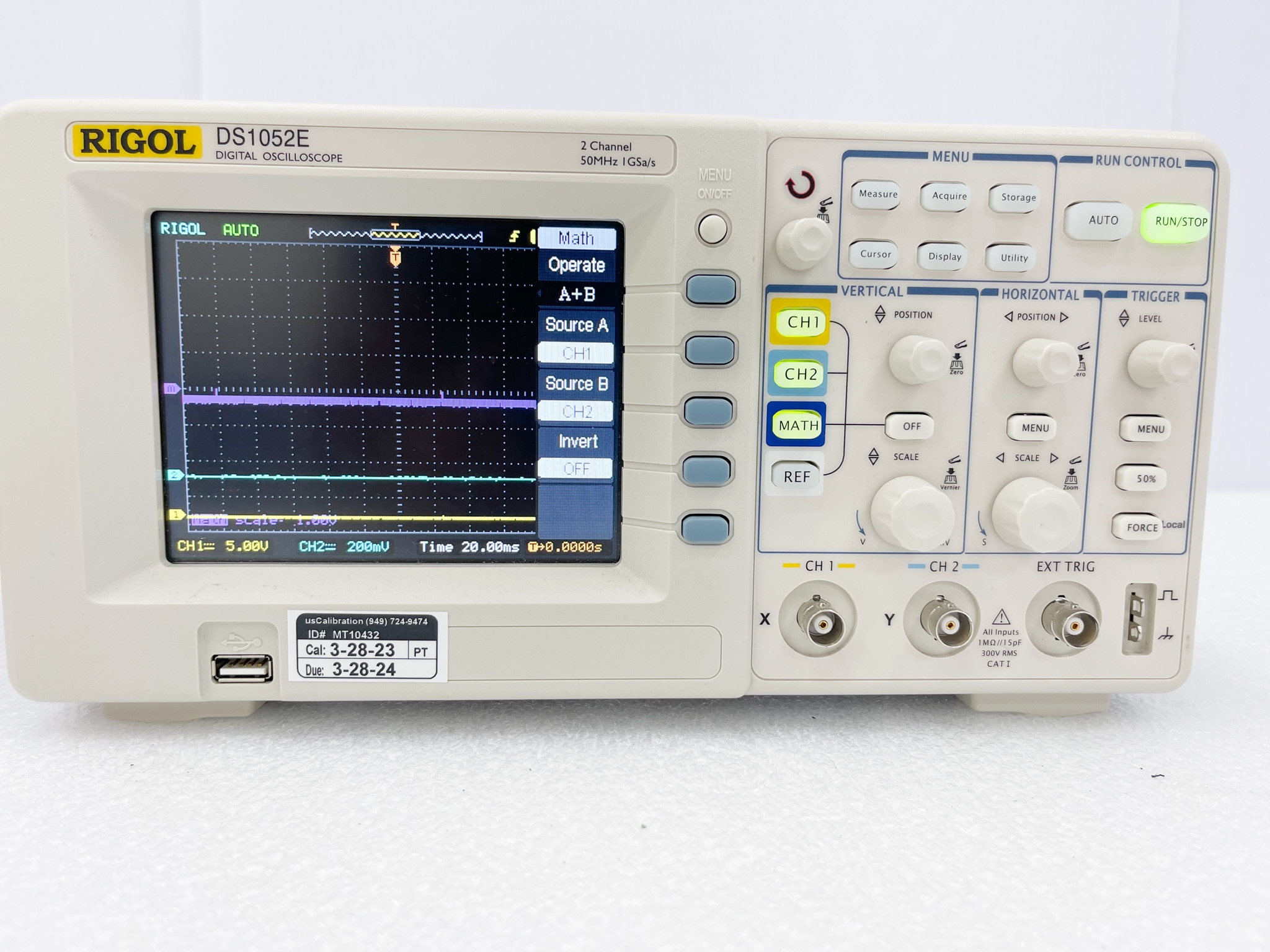

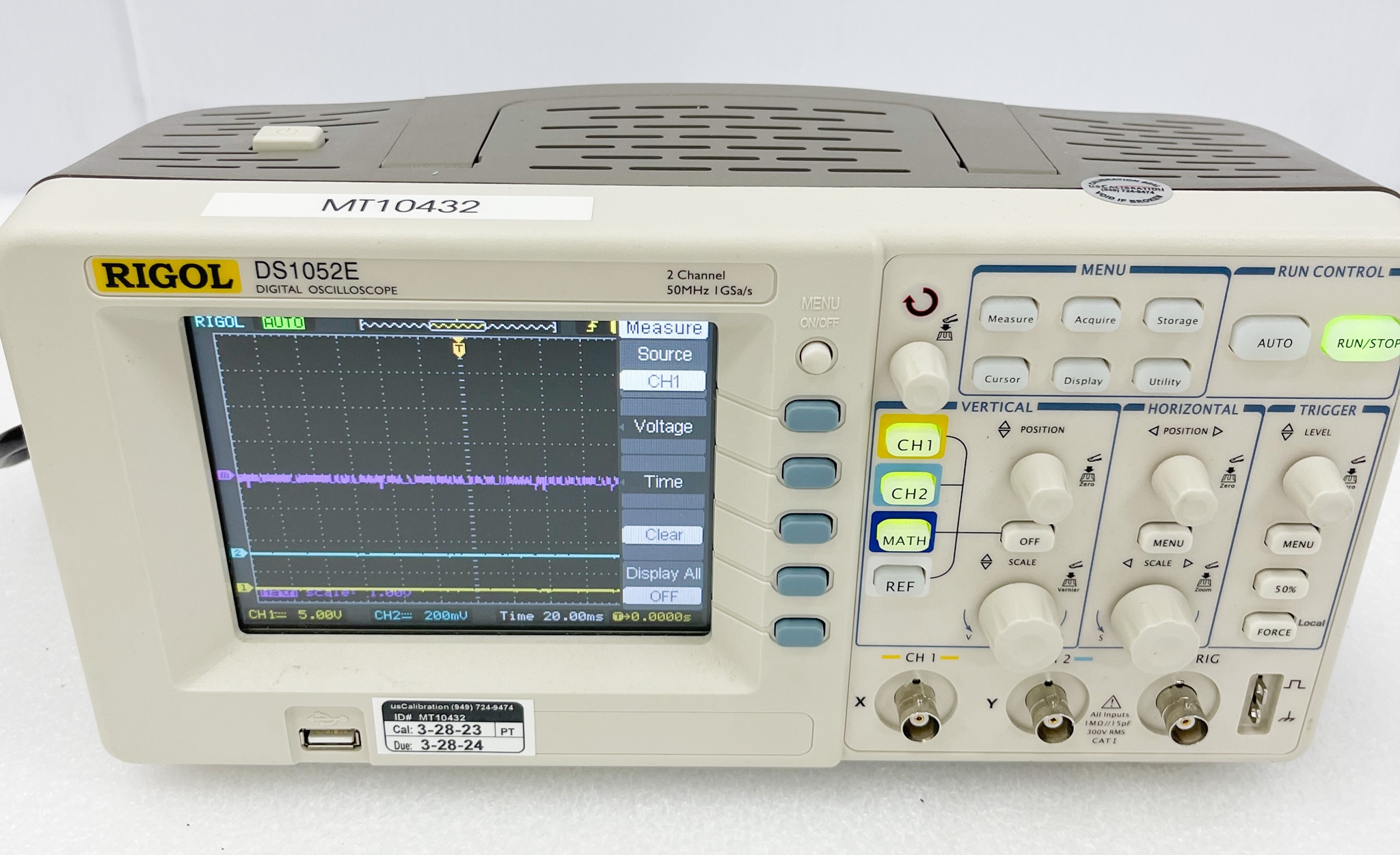

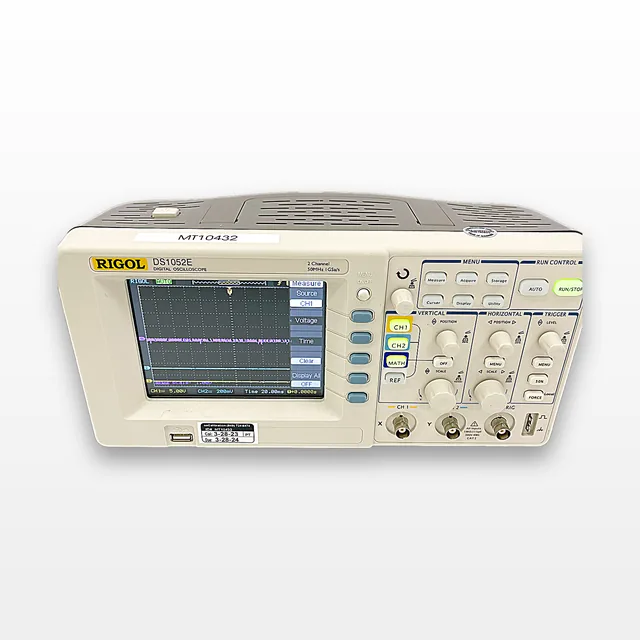

RIGOL DS1052E Oscilloscope 2 Channel 50 MHz w/ Adjustable Trigger Sensitivity
RIGOL
Details
-
CategoryTesting Equipment
-
Dimension40.0in x 6.0in x 9.0in
-

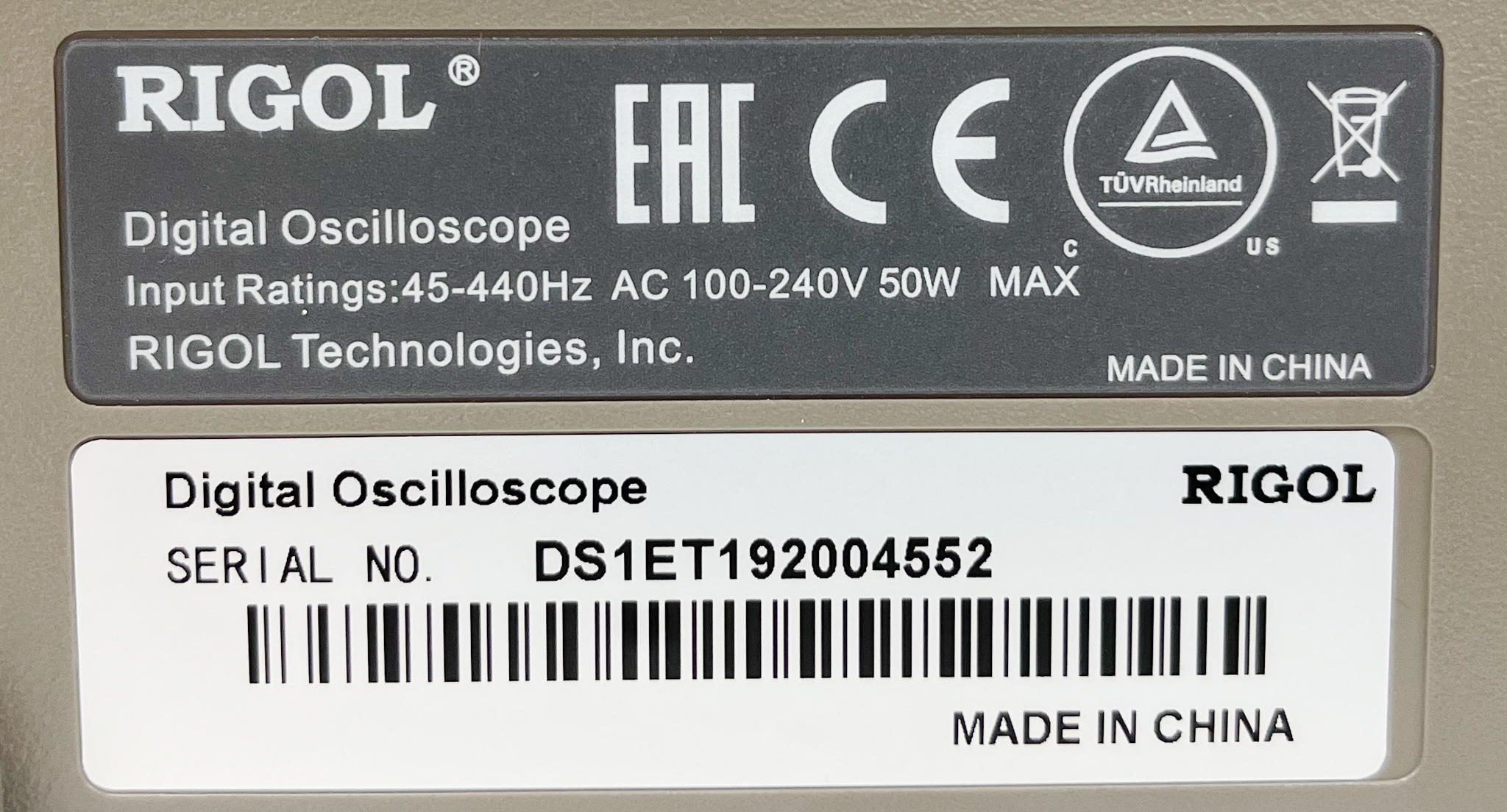

SerialDS1ET192004552
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The RIGOL DS1052E Digital Oscilloscope is part of the high-performance DS1000E series. This economical device features dual analog channels and an external trigger channel, providing a 50 MHz bandwidth per channel. It offers a maximum real-time sample rate of 1 GSa/s and a maximum equivalent sample rate of 25 GSa/s. Designed for diverse research, educational, and electronic repair applications, it enables the measurement of 22 wave parameters with automatic cursor tracking and features waveform record/replay and fine delayed scan functions. This used model has been tested for basic functionality, showing slight cosmetic wear but no functional issues. The instrument includes one power cord and supports various connectivity options, including USB and RS-232. With a 5.6 inch TFT LCD, adjustable waveform intensity, and built-in FFT function, this oscilloscope is perfect for stimulus/response testing, frequency characterization, and in-circuit signal injection.
Key Features
- 50 MHz bandwidth per channel
- Dual analog channels + external trigger
- 1 GSa/s max real-time sample rate
- 5.6 inch TFT LCD display
- Adjustable waveform intensity
- USB and RS-232 connectivity
Specifications
- Bandwidth: 50 MHz
- Display: 5.6" diagonal TFT LCD
- Resolution: 320x234 pixels
- Channels: 2 + External Trigger
- Real-Time Sample Rate: 1 GSa/s (1 channel), 500 MSa/s (2 channels)
- Equivalent-Time Sample Rate: 10 GSa/s
- Rise Time: 7 ns
- Timebase Range: 5ns/div to 50s/div
- Trigger Modes: Edge, Video, Pulse, and more
- Vertical Resolution: 8 bits
- Vertical Sensitivity: 2 mV/div to 10V/div
- Maximum Input Voltage: 300 V RMS CAT I
- Connectivity: USB Host & Device, RS-232
Weight
Imperial: 24.0 Pounds
Metric: 10.89 Kilograms
Shipping Dimensions
Imperial: 48.0 lb x 7.2 lb x 10.8 lb
Metric: 121.92 cm x 18.29 cm x 27.43 cm
Harmonized Code
9030.82
Harmonized Code Details
Harmonized Code 9030.82 - Instruments for measuring or checking electrical quantities, operational status aligns with this product's use for testing electrical properties in labs.
