Huber Unichiller 180TW-H18 Chiller Water-Cooled -20C to 40C 18kW Pilot ONE
Huber
Details
-
CategoryChiller / Heater
-
Dimension18.11in x 15.75in x 29.13in
-
SerialS404947
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / Does Not Apply
Description

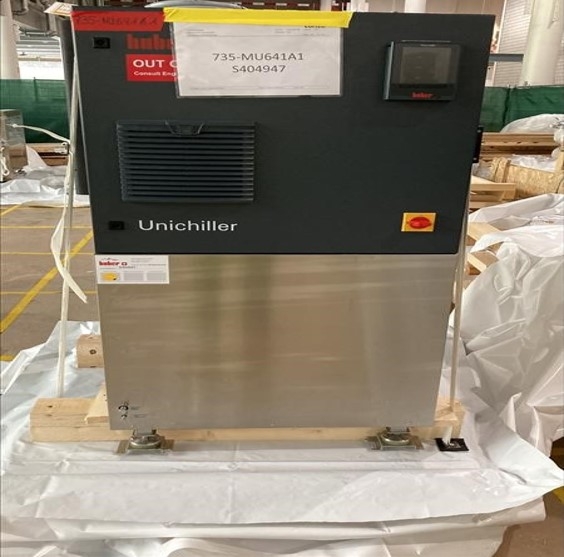

Introducing the Huber Unichiller 180TW-H18, a high-performance water-cooled chiller designed for precise temperature control in laboratory and industrial settings. This unit is in very good used condition, sourced from a working environment. It operates effectively with an extensive temperature range of -20 to 40°C and features a robust refrigerating capacity, achieving up to 18kW cooling power at 15°C. The stainless steel circulation pump and copper soldered evaporator ensure durability, while the digital level indicator offers streamlined monitoring. The integrated Pilot ONE controller provides user-friendly operation, featuring a 5.7-inch TFT touchscreen, USB connectivity, and a comprehensive range of advanced control functions including network integration and software wizards for setup efficiency. The expandable E-grade system further enhances functionality, supporting adaptive and programmable operations. Power supply requirements include 415V, three-phase connection. This unit does not include software or computer components.
Key Features
- Temperature range: -20 to 40°C
- Cooling power: 18kW at 15°C
- Water-cooled refrigerating unit

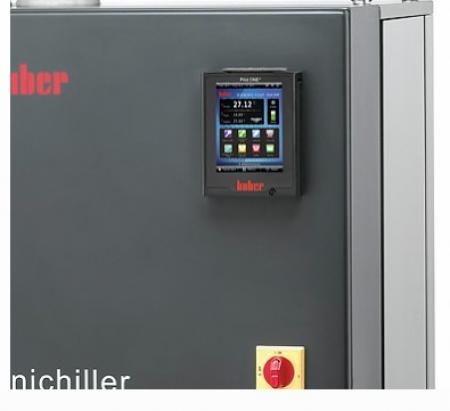

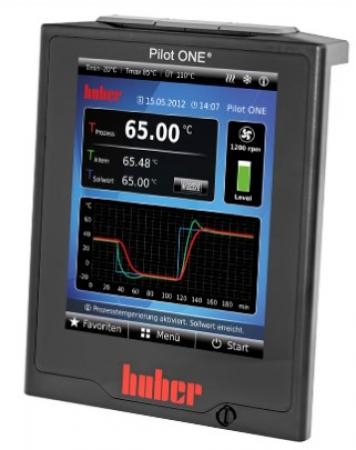

- Pilot ONE controller with 5.7-inch TFT touchscreen
- USB and Ethernet connectivity
- Programmable with E-grade system
Specifications
- Operating temperature range: -20 to 40°C
- Temperature stability: 0.5 K at -10°C
- Cooling power: 18 kW at 15°C, 13 kW at -10°C, 6 kW at -20°C
- Refrigeration: water-cooled, CFC- and HCFC-free, refrigerant R449A
- Pump: max delivery 210 l/min, max delivery pressure 4.7 bar
- Power supply: 460V, 3-phase, 60Hz
- Connections: Gigabit Ethernet, USB, RS232
- Construction: Stainless steel pump and evaporator
Weight
Imperial: 2645.54 Pounds
Metric: 1200.0 Kilograms
Shipping Dimensions
Imperial: 21.73 lb x 18.9 lb x 34.96 lb
Metric: 55.19 cm x 48.01 cm x 88.8 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigerating or freezing equipment, heat pumps (excluding household type, excluding heading 8418) - This code is applicable as the product is an industrial chiller unit used for non-household applications.
