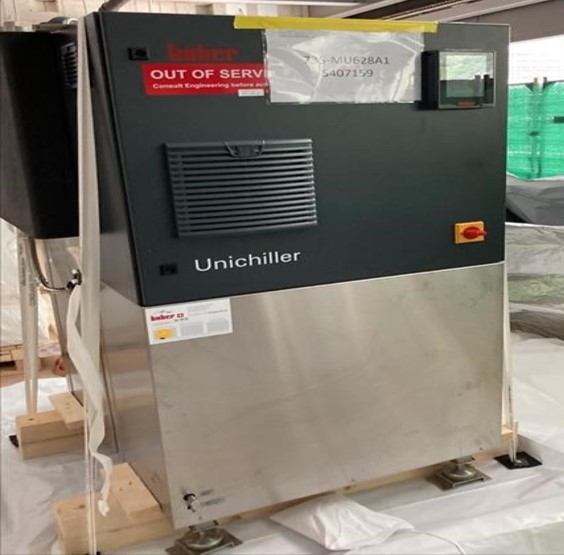

Huber Unichiller 180TW-H18 Refrigerating Unit with Pilot ONE Controller
Huber
Details
-
CategoryChiller / Heater
-
Dimension18.11in x 15.75in x 29.13in
-
SerialS407159
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber Unichiller 180TW-H18 is a high-performance chiller with a water-cooled refrigerating unit and stainless-steel components, designed for precision temperature control in laboratory applications. It features the Pilot ONE controller, which includes a 5.7-inch TFT touchscreen display with USB and network connections, offering advanced control functions and multilingual support. The system operates efficiently within a temperature range of -20°C to 40°C, providing cooling power up to 18 kW. This unit, in very good condition, has been pre-owned in a working environment and ensures reliable performance for closed-loop applications. It is equipped with a three-phase 415V power supply and comes with a power cord. The Unichiller offers innovative features like True Adaptive Control and E-grade expansion options for enhanced functionality.
Key Features
- Water-cooled refrigerating unit

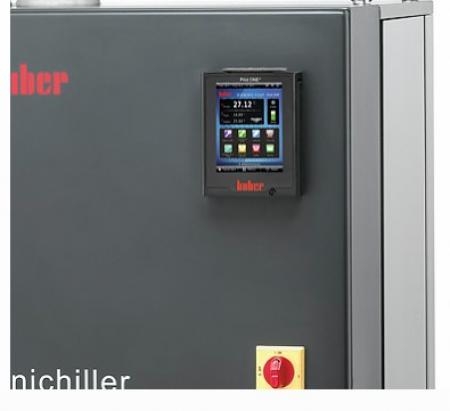

- Pilot ONE controller with 5.7-inch touchscreen
- Multi-language support (13 languages)
- Temperature range: -20°C to 40°C
- Cooling power: up to 18 kW
- USB and Ethernet connections
- Advanced control functions
Specifications
- Operating temperature range: -20°C to 40°C
- Temperature display: 5.7" colour touchscreen
- Internal temperature sensor: Pt100
- External sensor connection: Pt100
- Temperature stability at -10°C: 0.5 K
- Cooling power at various temperatures: 18 kW at 15°C, 13 kW at -10°C
- Refrigeration machine: water-cooled, CFC- and HCFC-free
- Refrigerant: R449A, 2.6 kg
- Maximum pump delivery: 210 l/min at 4.7 bar
- Pump connection: G1 1/4 male
- Cooling water connection: G3/4 male
- Dimensions: 760x800x1615 mm
Weight
Imperial: 2645.54 Pounds
Metric: 1200.0 Kilograms
Shipping Dimensions
Imperial: 21.73 lb x 18.9 lb x 34.96 lb
Metric: 55.19 cm x 48.01 cm x 88.8 cm
Harmonized Code
841989
Harmonized Code Details
841989 - Refrigeration machinery and equipment; justifying suitable for Huber chiller systems for temperature control applications.
