Huber Unichiller 180Tw-H18 Chiller -20...40C 18KW Used
Huber
Details
-
CategoryChiller / Heater
-
Dimension18.11in x 15.75in x 29.13in
-

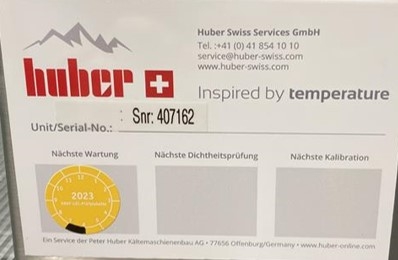

SerialS407162
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description

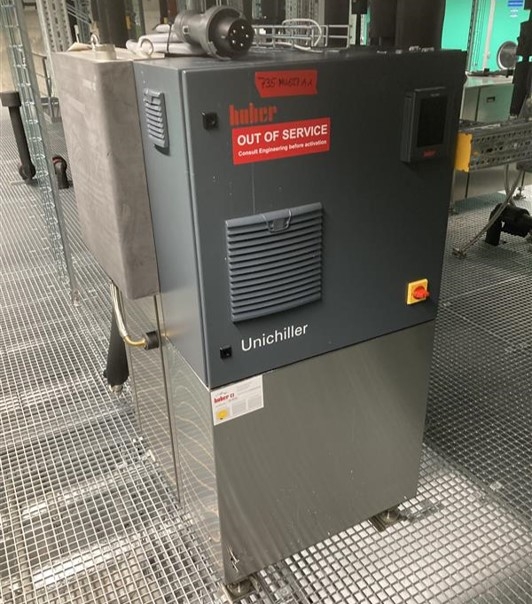

The Huber Unichiller 180Tw-H18, originating from Germany and previously utilized in a working environment, is in very good condition. This unit features a water-cooled refrigerating unit and a stainless steel circulation pump, making it ideal for externally closed applications. It houses an atmospheric open expansion tank, copper soldered evaporator, and boasts a digital level indicator. The unit is powered by a three-phase 415V power supply and integrates the Pilot ONE controller with a 5.7" TFT touchscreen, USB, and network connections. Supporting a temperature range of -20 to 40°C with a stable operation, the chiller's performance features cooling power of 18 kW at both 15°C and 0°C. The robust design includes CFC- and HCFC-free refrigerants, optimizing environmental compliance. Perfect for laboratories requiring reliable and controlled thermal environments.
Key Features
- Water-cooled refrigerating unit
- Stainless steel circulation pump
- Atmospheric open expansion tank
- Copper soldered evaporator
- Digital level indicator

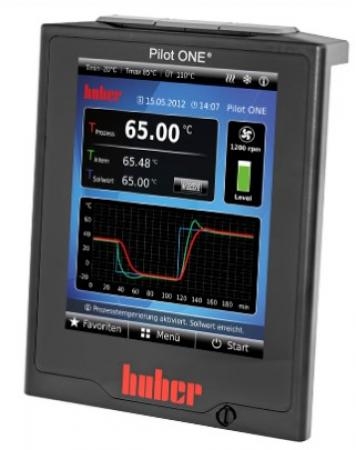

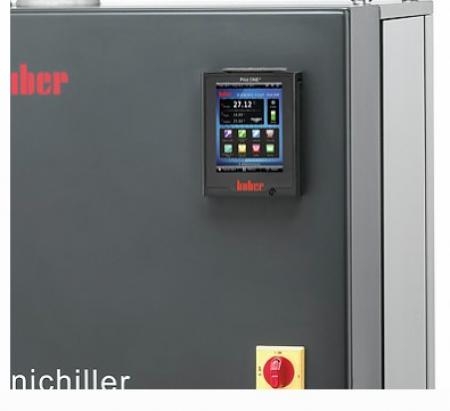

- Pilot ONE controller with 5.7" TFT touchscreen
- Temperature range: -20 to 40°C
- Stable temperature control at 0.5K at -10°C
Specifications
- Operating temperature range: -20...40°C
- Temperature set point/display: 5.7" colour touchscreen
- Internal temperature sensor: Pt100
- Temperature stability at -10°C: 0.5 K
- Cooling power at 15°C: 18 kW
- Circulation pump max. delivery: 210 l/min, max. delivery pressure: 4.7 bar
- Pump and cooling water connections: G1 1/4 male, G3/4 male
- Refrigerant: R449A, CFC- and HCFC-free
- Refrigerant quantity: 2.6 kg
- Min. cooling water differential pressure: 1 bar
- Max. cooling water pressure: 6 bar
- Min. filling capacity: 15 l, Volume of expansion: 22 l
- Power supply: 3 Phase, 415V, 50Hz
Weight
Imperial: 2645.54 Pounds
Metric: 1200.0 Kilograms
Shipping Dimensions
Imperial: 21.73 lb x 18.9 lb x 34.96 lb
Metric: 55.19 cm x 48.01 cm x 88.8 cm
Harmonized Code
841869
Harmonized Code Details
Code 841869 covers refrigerating or freezing equipment that is not self-contained. Suitable since the Huber Unichiller operates as a chiller with an external application focus.
