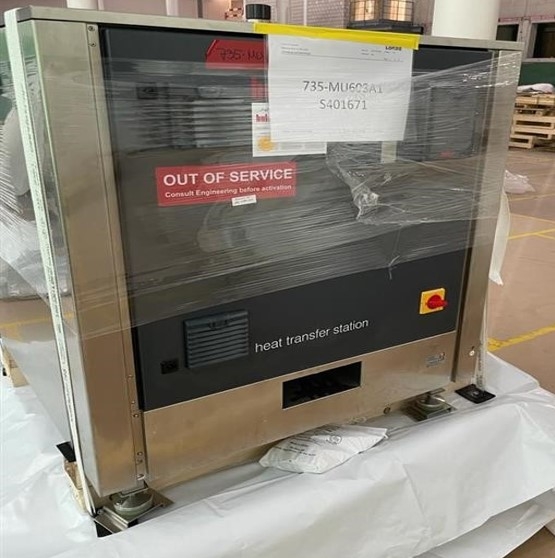

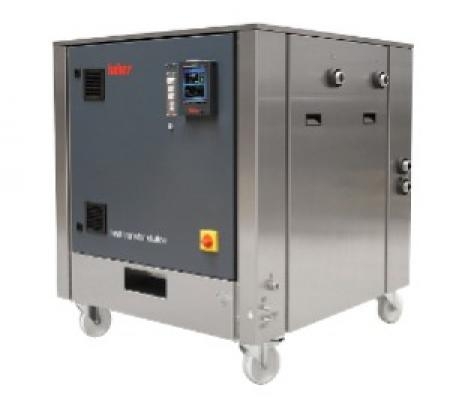

Huber HTS 30-H12 Heat Transfer Unit with Pilot ONE Controller, 5-90C
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS401671
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 is a reliable used heat transfer unit featuring a stainless steel circulation pump and external copper soldered plate heat exchanger. In excellent working condition, this unit supports a temperature range from 5 to 90C, making it ideal for applications requiring precise thermal regulation. Equipped with the innovative Pilot ONE controller with a 5.7-inch TFT touchscreen, this unit also offers USB and network connectivity for versatile data management, ensuring efficient and intuitive operation. Suitable for both internal/process control, it includes True Adaptive Control technology for self-optimizing performance. Perfect for externally closed applications with adjustable overtemperature protection in line with DIN 12876 standards, this unit is designed to meet the dynamic needs of laboratory environments.
Key Features
- Pilot ONE controller with 5.7'' TFT touchscreen
- Temperature range: 5...90C
- Stainless steel circulation pump
- External copper soldered plate heat exchanger
- USB and network connectivity
Specifications
- Power: 400V 3~ 50Hz, max. current 5A
- Dimensions (WxDxH): 940x1050x1130 mm
- Max. delivery pressure: 4.7 bar
- Cooling power with water at 20C: 30 kW
- Interface: Ethernet, USB, RS232
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
84195010
Harmonized Code Details
84195010 - Heat exchange units. This code is appropriate as the product is designed for heat transfer and incorporates heat exchangers.
