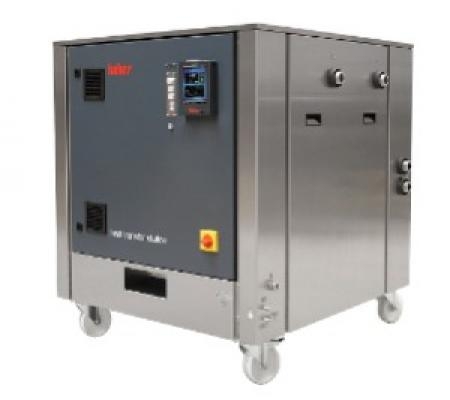

Huber HTS 30-H12 Heat Transfer Heat Exchanger 22kW 5-90C for Lab Use
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS404291
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 Heat Transfer Unit is a pre-owned system, hailing from Germany and is in very good working condition, designed for effective temperature regulation in laboratory environments. It features a stainless steel heat exchanger unit with an atmospheric open expansion tank and an external plate heat exchanger. The system is equipped with a modern Pilot ONE controller, providing advanced control functions with a 5.7-inch TFT touchscreen, USB and network connectivity, and multilingual support. It operates on a power supply of 400V 3-phase, utilizes a stainless steel circulation pump, and includes adjustable overtemperature protection per DIN 12876 standards. With cooling power at 22kW and a temperature range of 5 to 90C, the unit is suitable for closed application use, offering efficiency and reliability for heat transfer processes in labs. Please note, the computer is not included.
Key Features
- Pre-owned Huber HTS 30-H12 Heat Transfer Unit from Germany
- Stainless steel heat exchanger with digital level indicator
- Temperature range from 5 to 90C with a cooling power of 22kW
- Pilot ONE controller with 5.7-inch TFT touchscreen and USB connectivity
- Operates on 400V 3-phase power with maximum current of 5A
- Adjustable overtemperature protection as per DIN 12876 standards
Specifications
- Operating temperature range: 5-90C
- Maximum cooling power: 22kW
- Circulation pump max delivery: 240 l/min
- Temperature stability: 0.1 K
- Control: 5.7-inch color touchscreen display
- Interface: Ethernet, USB, RS232
- Safety classification: I / NFL
- Maximum permissible kinetic viscosity: 50 mm/s
- Power supply requirement: 400V 3-phase, 50Hz
- Dimensions (WxDxH): 940x1050x1130 mm
- Net weight: 270 kg
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
841950
Harmonized Code Details
841950 - 'Heat exchange units', used for machinery and apparatus for chemical industries, selected based on the product's function as a heat exchange unit with applications in laboratory and industrial settings.
