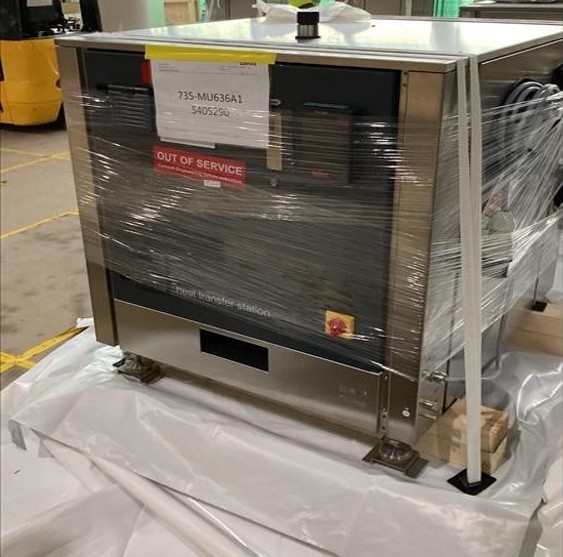

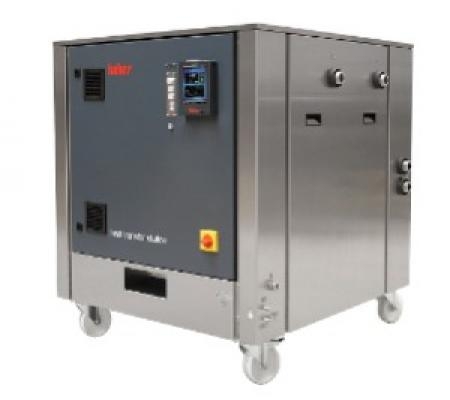

Huber HTS 30-H12 Heat Transfer Unit, 5-90C Operating Temp, Used, VG Condition
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS405290
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 Heat Transfer Unit, a renowned thermal management solution, offers exceptional performance in a used but very good condition. Designed for laboratory or industrial use, this unit provides cooling power of 22kW / 30kW and operates efficiently within a temperature range of 5°C to 90°C. It features a Pilot ONE controller, offering advanced control functions with a 5.7-inch touchscreen, USB and network connectivity, and language support in 13 languages. The robust stainless steel construction includes an atmospheric open expansion tank and copper-soldered external plate heat exchanger. The unit is designed for external closed applications with adjustable overtemperature protection following DIN 12876 standards. The circulation pump, pressure differential functions, and digital indicators make it versatile for precise applications. Manufactured in Germany, it is a choice for high reliability in demanding environments.
Key Features
- Operating temperature range of 5-90°C
- Pilot ONE controller with 13 language support
- Cooling power: 22kW / 30kW
- Digital overtemperature protection
- Stainless steel and copper-soldered construction
Specifications
- Advanced Pilot ONE controller with 5.7-inch TFT touchscreen
- USB and network connectivity with remote control capability
- Cooling power of 22kW / 30kW at various flow rates
- Temperature stability of 0.1 K
- Multiple digital interfaces: Ethernet, USB, RS232
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
84198998
Harmonized Code Details
84198998 - Machinery, plant or laboratory equipment, for treatment of materials by a process involving a change of temperature such as heating, cooling, cooking, etc. This code is used based on the function of the heat transfer unit.
