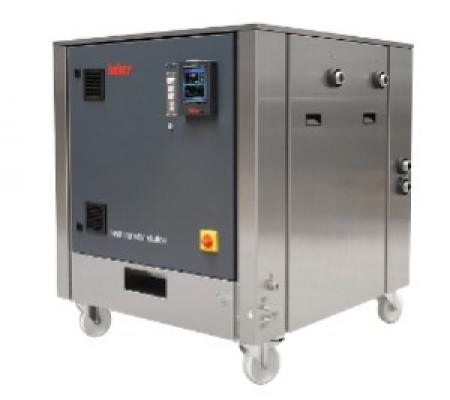

Huber HTS 30-H12 Heat Transfer Unit, 22-30kW, 5-90C Temp Range, Used
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS407041
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 Heat Transfer Unit, a premium model from Germany's renowned Huber, is in very good used condition, having functionally served in its previous environment. This advanced unit is designed for precision thermal management in scientific applications, offering overtemperature protection in accordance with DIN 12876 and featuring a stainless steel heat exchanger with copper soldered plate. The included Pilot ONE controller enhances operational efficiency with its 5.7-inch TFT touchscreen, USB and network connectivity, and support for 13 languages. Capable of handling input/output temperatures of 10C to 20C with a circulation pump rated for up to 240 l/min, the HTS 30-H12 is engineered for optimal thermal stability and efficiency. The system's E-grade functionality allows future upgrading with adaptable control modes and advanced programming. Power requirements are 415V, three-phase at 50Hz, making it suitable for high-demand laboratory environments.
Key Features
- Stainless Steel Circulation Pump
- TFT Touchscreen Display
- 22-30kW Cooling Power
- DIN 12876 Compliant
- Pilot ONE Controller
- Ethernet & USB Connectivity
- Temperature Range: 5...90C
Specifications
- Power Supply Requirement: 400V 3~ 50Hz
- Max Current: 5 A
- Temperature Control Range: 5...90C
- Cooling Power: 22kW / 30kW
- Circulation Pump Delivery: Max 240 l/min
- Fuse Requirement: 3-Phase 3x10 A
- Pump Connection: G1 1/4 male
- Dimensions (WxDxH): 94 x 105 x 113 cm
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
841989
Harmonized Code Details
This code covers machinery for the treatment of materials by a process involving a change of temperature such as heating, cooking, or cooling. The Huber HTS 30-H12, as a heat transfer unit, aligns well with this classification.
