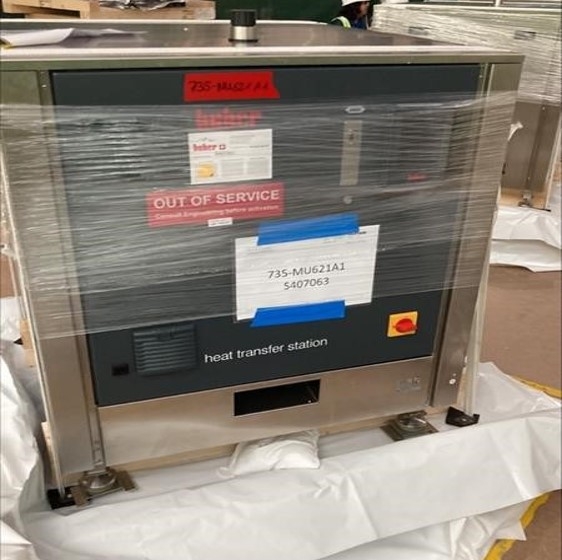

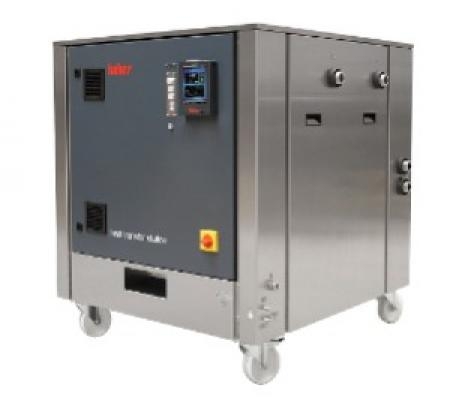

Huber HTS 30-H12 Heat Transfer Unit with Pilot ONE Controller 5-90C
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS407063
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 Heat Transfer Unit originates from Germany and is designed for high-performance thermal regulation. This unit, in very good used condition, makes for a reliable option for consistent heat exchange processes in laboratory settings. It features a stainless steel circulation pump and sophisticated Pilot ONE controller with a 5.7-inch touchscreen and advanced connectivity options like USB and Ethernet. Suiting entirely closed applications, it includes features like an adjustable overtemperature protection and a digital level indicator. The heat exchanger's design involves a copper soldered plate, completed with an open expansion tank. Suitable for both internal and process control, this system has extended programmable operations through optional E-grade expansions. With a cooling power range of 22-30kW, it manages temperature from 0 to 90C using water as the medium. It ensures precise control with its temperature stability of 0.1K, making it ideal for precise laboratory environments.
Key Features
- Heat transfer unit with 5-90C range
- Stainless steel circulation pump
- Digital level indicator
- Pilot ONE controller with touchscreen
- Flexible expansion via E-grade
- Copper plate heat exchanger
Specifications
- Power supply requirement: 3 phase 400V 3~ 50Hz
- Maximum current: 5 A, Fuse: 3x10 A
- Circulation pump: G, max delivery 240 l/min
- Temperature range: 0...90C (primary), 5...90C (secondary)
- Cooling power range: 22-30kW
- USB and Ethernet connectivity
- Temperature stability: 0.1 K
- Safety classification I / NFL
- Operating temperature set point/display: 5.7-inch color touchscreen
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
84199085
Harmonized Code Details
84199085 - Machinery, plant or laboratory equipment for the treatment of materials by a process involving a change of temperature. Suitable as the equipment is specifically designed for heat transfer applications.
