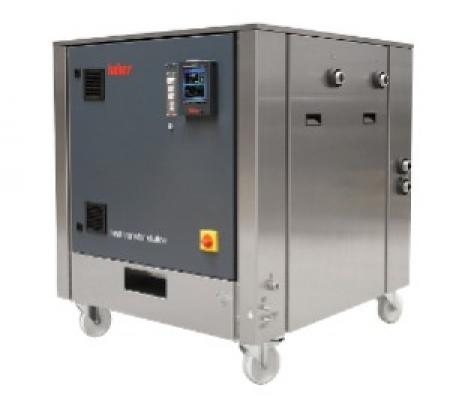

Huber HTS 30-H12 Heat Transfer Unit, 5-90C, VG Condition, 240 l/min
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS407076
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 is a pre-owned yet very well-maintained heat transfer unit originating from Germany, exemplary in managing temperatures ranging from 5 to 90 degrees Celsius. Leveraging a stainless steel heat exchanger and circulation pump, this unit operates efficiently within closed applications. Its innovative Pilot ONE controller offers advanced control functions via a 5.7-inch TFT touchscreen, supporting user-friendly navigation with multilingual options. The cooling power extends up to 30 kW, and its circulation pump can deliver a maximum of 240 l/min. Users can benefit from its comprehensive features including digital connectivity through USB, Ethernet, and RS232, alongside flexible E-grade upgrades to optimize performance. Suitable for demanding laboratory environments, it is ideal for maintaining precise thermal control.
Key Features
- Temperature range: 5-90C
- 5.7-inch TFT touchscreen
- Up to 30 kW cooling power
- Stainless steel heat exchanger
- 240 l/min max delivery pump
- USB, Ethernet, and RS232 connectivity
- E-grade upgradeable functions
Specifications
- Temperature Range: 5-90C
- Cooling Power: 22kW / 30kW
- Maximum Circulation: 240 l/min
- Power Supply: 400V 3~ 50Hz
- Pump Delivery at 1.1 bar: 223 l/min
- Housing: Stainless steel
- Degree of Protection: IP20
- Pilot ONE Controller: 5.7" TFT touchscreen
- Temperature Stability: 0.1 K
- Interface: Digital Ethernet, USB, RS232
- Max Current: 5 A (3 phase)
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
8479.89.98
Harmonized Code Details
Numerically controlled machines and equipment for treating materials by means of a process involving a change in temperature. This code covers various machines including those for heat transfer applications.
