Huber HTS 30-H12 Heat Exchanger 5-90C 22/30kW Digital Control Pump
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS407118
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description

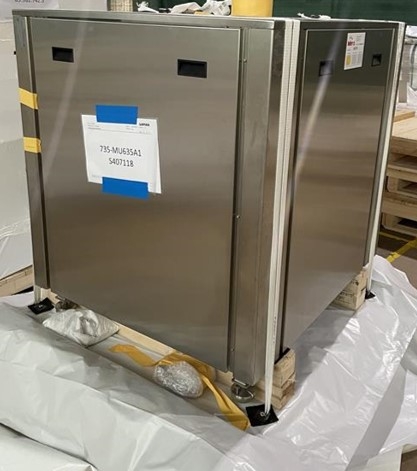

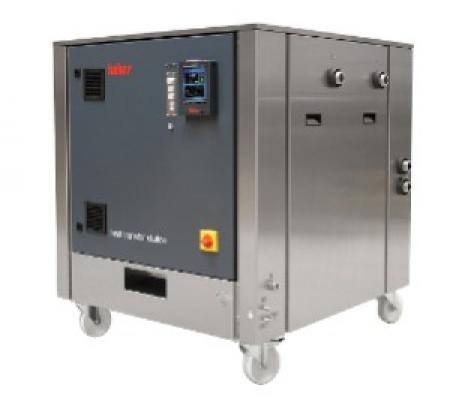

The Huber HTS 30-H12 Heat Transfer Unit from Germany offers a robust and versatile solution for heat transfer applications. Despite being pre-owned, this unit remains in very good condition and functions as intended. It features a stainless steel housing, an atmospheric expansion tank, and an external plate heat exchanger. The device includes a Pilot ONE controller with advanced control functions, large 5.7-inch TFT touchscreen display, and USB/network connectivity. It operates within a temperature range of 5°C to 90°C on the secondary side, and offers a maximum cooling power of 30kW at 20°C. The circulation pump has a delivery capacity of up to 240 l/min with a maximum delivery pressure of 4.7 bar, ensuring efficient operation. It also features safety mechanisms such as overtemperature protection and various alarm functions as per DIN 12876 standards. The unit requires a 3-phase 400V power supply.
Key Features
- Temperature Range: 5...90°C
- Cooling Power: Up to 30kW at 20°C
- Digital Control with 5.7" TFT Touchscreen
- Efficient Stainless Steel Circulation Pump
- Compatible with Closed System Applications
Specifications
- Heat Transfer Unit with circulation pump and external plate heat exchanger
- Temperature Setting/Display: 5.7" color touchscreen
- Temperature Range (Secondary Side): 5...90°C
- Cooling Power: Up to 30kW at 20°C
- Circulation Pump Max. Delivery: 240 l/min
- Max. Delivery Pressure: 4.7 bar
- Power Supply: 3-phase 400V 50Hz
- Digital Interfaces: USB, Ethernet, RS232
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
8419509090
Harmonized Code Details
Harmonized code 8419509090 pertains to heat exchange units, which fits the Huber HTS 30-H12 as it is primarily used for efficient heat transfer.
