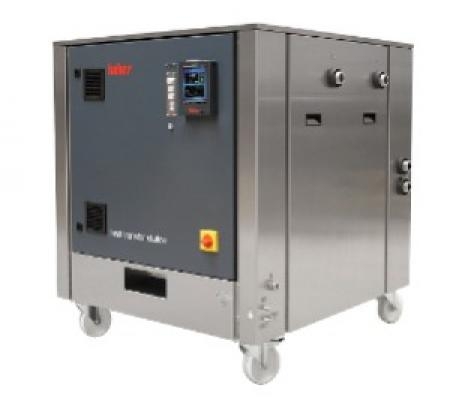

Huber HTS 30-24 Heat Transfer Unit with Pilot ONE Controller, 5-90C
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS398885
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-24 Heat Transfer Unit, manufactured in Germany, is a versatile used unit in very good condition, designed for precise temperature control from 5 to 90°C. Ideal for externally closed applications, this heat exchanger features a stainless steel circulation pump and a pilot ONE controller with a 5.7’’ touchscreen display supporting multiple languages and USB/network connections. The unit’s cooling power ranges from 22kW to 30kW. Notable for its digital level indication, the heat transfer unit includes an adjustable overtemperature protection according to DIN 12876 standards, making it an excellent choice for laboratory environments requiring precise thermal management.
Key Features
- Temperature range: 5 to 90°C
- Cooling power: 22kW / 30kW
- Pilot ONE controller with 5.7’’ touchscreen
- USB and network connectivity
- Adjustable overtemperature protection
- Stainless steel circulation pump
Specifications
- Power supply: 400V 3~ 50Hz
- Max current: 5 A
- Fuse: 3x10 A
- Plug type: 230 507 3P 1N 1E
- Cooling power with water at 20°C: 30 kW
- Circulation pump max delivery: 240 l/min
- Interface: Ethernet, USB (Host and Device), RS232
- Alarm message: optic, acoustic, relay
- Safety classification: I / NFL
- Max ambient temperature: 40 °C
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
84195000
Harmonized Code Details
Harmonized code 84195000 corresponds to heat exchange units. This code fits the Huber HTS 30-24 which is explicitly designed for thermal heat transfer applications.
