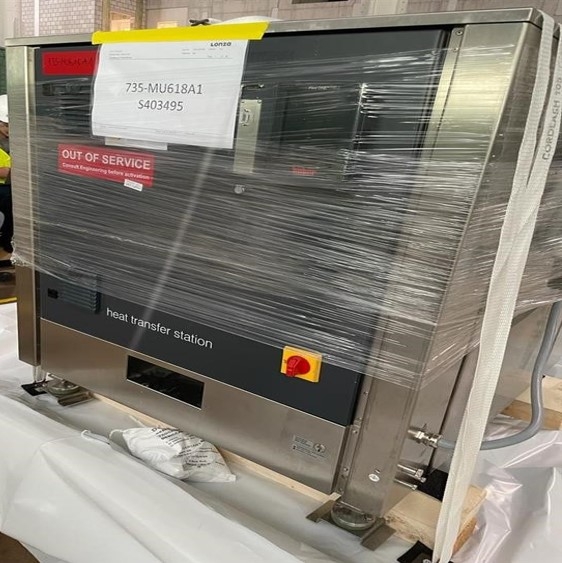

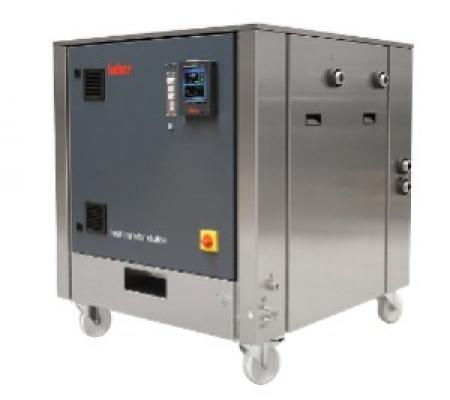

Huber HTS 30-H24 Heat Transfer Unit with Pilot ONE Control, 5...90C Range
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS403495
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H24 is a high-performance heat transfer unit designed for efficient thermal management in laboratory environments. Manufactured in Germany, this pre-owned unit is in very good condition and functions as intended with minimal cosmetic damage. Featuring a stainless steel circulation pump, digital level indicator, and an external plate heat exchanger, it is designed for externally closed applications. The advanced Pilot ONE controller offers a 5.7-inch TFT touchscreen display, USB and network connectivity, and a technical glossary with language support in 13 languages. The temperature range extends from 5°C to 90°C with 30 kW cooling power at 20°C, ensuring precision with temperature stability of 0.1 K. It supports a variety of operational controls and has safety features including overtemperature protection according to DIN 12876. This unit is ideal for demanding thermal control applications.
Key Features
- Stainless steel circulation pump
- Digital level indicator
- External plate heat exchanger
- Pilot ONE controller with 5.7-inch TFT touchscreen
- Temperature range from 5°C to 90°C
- Cooling power 30 kW at 20°C
- Temperature stability of 0.1 K
- Multilingual support
Specifications
- Model: HTS 30-H24
- Manufacturer: Huber
- Power supply: 400V 3 phase, 50Hz
- Max current: 5 A, Fuse: 3x10 A
- Temperature range: 5°C to 90°C
- Cooling power: 22kW / 30kW
- Primary side & Secondary side mediums: Water
- Max delivery pressure: 4.7 bar
- Interface: Ethernet, USB, RS232
- Overall dimensions: 940 x 1050 x 1130 mm
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
8419509000
Harmonized Code Details
8419509000 - Heat exchange units, not electrically operated. Used due to its function as a heat transfer unit fitting this category.
